Properties: Diagnosis & Injection

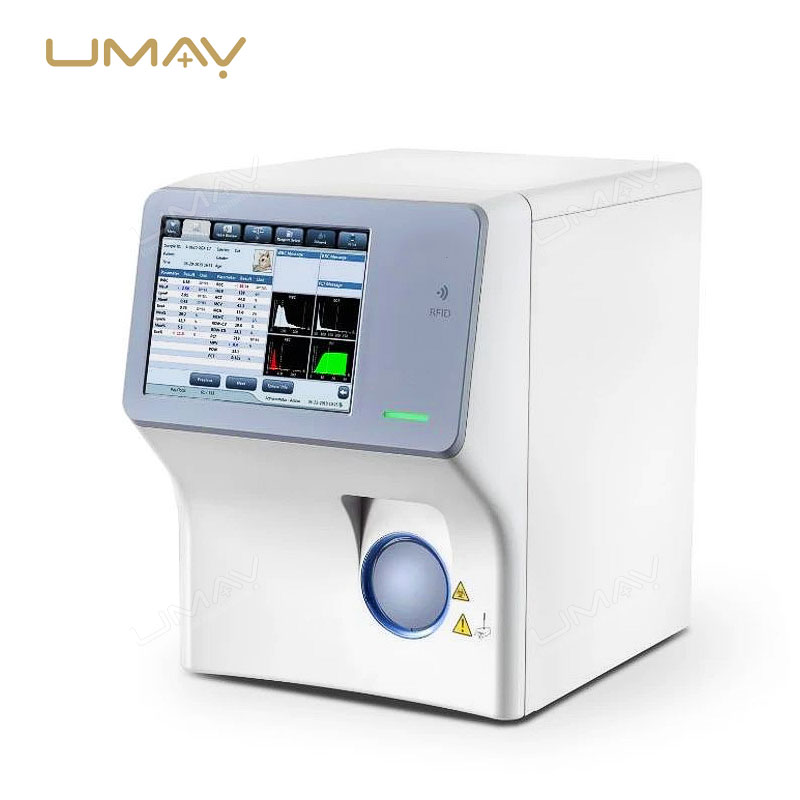

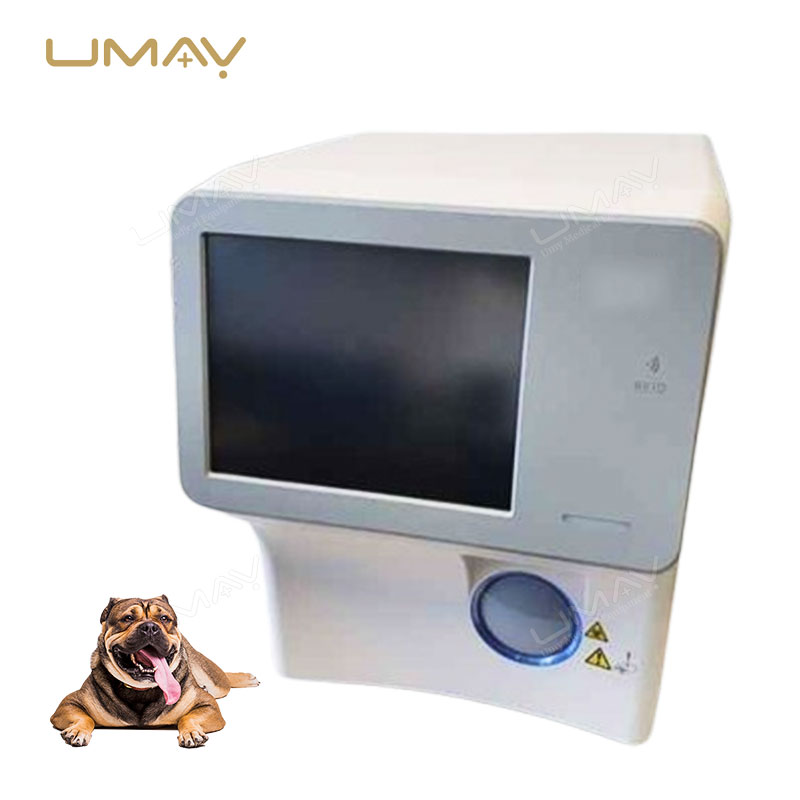

Product name: Veterinary hematology
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Principles | Method for WBC, RBC, and PLT counting; Cyanide free reagent for hemoglobin test |
| Parameters | WBC, Neut%, Eos%, Lym%, Mon%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LLC |
| Sample Volume | Whole blood mode: 9µL, Prediluted mode: 20µL |
| Wavelength | 340nm, 405nm, 450nm, 505nm, 550nm, 600nm, 630nm, 700nm, 800nm |
| Throughput | 30 samples per hour |
| Data | ≥ 50,000 sample and control record |
| Display Type | 7-inch LCD Touch Screen |
| Supported Animals | Dogs, cats, horses, rats, mice, rabbits, pigs, sheep, goats, camels, and more |
| Interfaces | |
| USB Ports | 4 USB ports (for external printer, software upgrade, barcode reader, external Wi-Fi, keyboard and mouse) |
| LAN Port | 1 LAN port |
| Communication | |
| Support | for bi-directional LIS |
| LAN Protocol | Supports HL7 protocol |
| Calibration | Free of calibration, built-in calibration algorithm |
| Other Features | |
| Reagents | DILUENT, CFL LYSE, PROBE CLEANER |
| Printout | Thermal printer (50mm wide paper) |
| Power Requirements | |
| AC Power | 100V–240V, 50Hz/60Hz |
| Power Consumption | ≤ 180VA |
| Physical Specifications | |
| Weight | ≤ 20kg |
| Dimensions | 410mm (L) x 305mm (W) x 400mm (H) |
