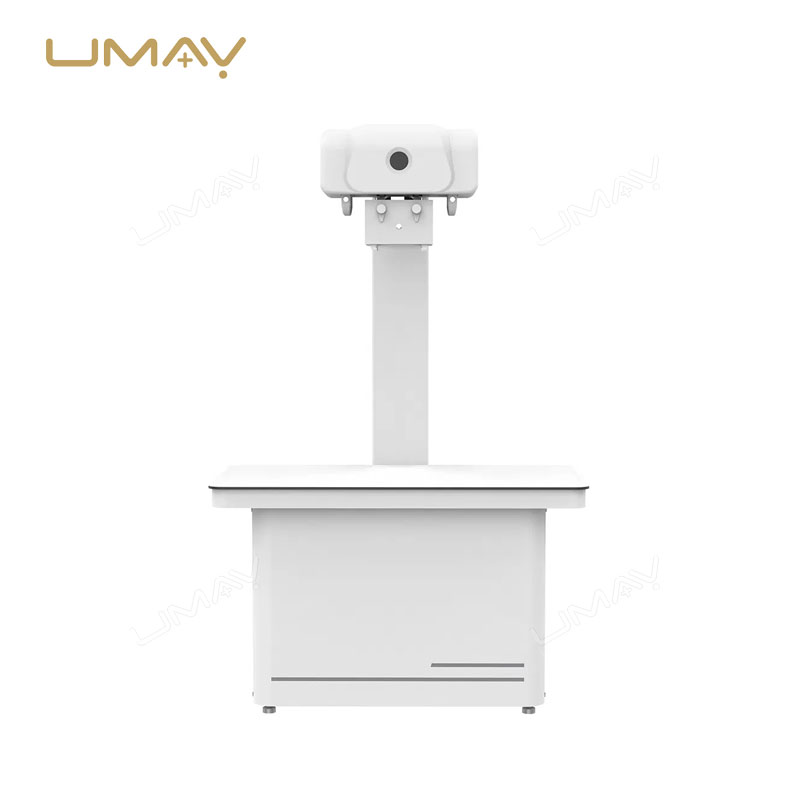

The Digital Veterinary Radiography (DR) X-ray Machine is an advanced imaging system designed to provide high-resolution, precise X-ray images for animal care. It allows veterinarians to accurately diagnose a wide range of conditions, including fractures, joint issues, and internal organ diseases in pets and livestock. With its digital radiography technology, it offers faster image acquisition and reduced radiation exposure, enhancing both diagnostic efficiency and patient safety. This system is perfect for veterinary clinics, hospitals, and mobile units, providing reliable results for effective treatment planning. The DR X-ray machine streamlines workflow, helping veterinary professionals deliver high-quality care to animals.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electric Source (V) | AC110 / AC220 |
| Power (kW) | 32 |
| Detector | |
| Type | Amorphous Silicon |
| Resolution (lp/mm) | 3.6 |
| Active Matrix (pixels) | 3072 × 3072 |
| Pixel Pitch (μm) | 139 |
| Gray Scale (bit) | 16 |
| Active Area (mm²) | 427 × 427 |
| Interface | 1G Ethernet |
| Generator | |
| kVp Range (kVp) | 40 – 125 |
| mA Range (mA) | 10 – 400 |
| ms Range (ms) | 1 – 6300 |
| mAs Range (mAs) | 32 |
| Focal Spots (mm) | 1.0 / 2.0 |
| Anode Angle (°) | 16 |
| Mainframe | |
| Size (mm) | 1902 × 750 × 700 × 1200 |
| SID (mm) | 1000 |
| Column Travel (mm) | 450 (±225) |
| Weight (kg) | 300 |
Product Details
- Digital Veterinary Radiography (DR) X-Ray Machine: Advanced digital imaging system designed specifically for veterinary diagnostic applications.
- High-Resolution Digital Imaging: Produces clear, detailed X-ray images for accurate diagnosis of animal health conditions.
- Advanced DR Technology: Utilizes digital radiography technology for faster image acquisition and enhanced diagnostic efficiency.
- Accurate Fracture Detection: Provides precise visualization of bones and joints for identifying fractures, dislocations, and orthopedic disorders.
- Supports Internal Organ Evaluation: Enables detailed assessment of the chest, abdomen, and internal organs for comprehensive veterinary diagnostics.
- Reduced Radiation Exposure: Optimized digital imaging system minimizes radiation dose while maintaining excellent image quality.
- Fast Image Processing: Delivers near-instant image results, helping veterinarians make timely clinical decisions.
- Suitable for Multiple Animal Species: Ideal for dogs, cats, horses, livestock, and other companion or farm animals.
- Enhanced Diagnostic Accuracy: High-definition imaging improves the detection of subtle abnormalities and disease conditions
- User-Friendly Operating System: Intuitive software interface simplifies image acquisition, review, and workflow management.
- Efficient Veterinary Workflow: Streamlines imaging procedures and reduces examination time in busy veterinary practices.
- Reliable and Consistent Performance: Designed to provide stable imaging quality for daily clinical use.
- Excellent Soft Tissue Visualization: Delivers detailed images of organs, soft tissues, and musculoskeletal structures.
- Digital Image Storage and Sharing: Supports efficient image archiving, retrieval, and integration with veterinary management systems.
- Durable Veterinary-Grade Construction: Built with high-quality components for long-term reliability and continuous operation.
Detail Gallery
