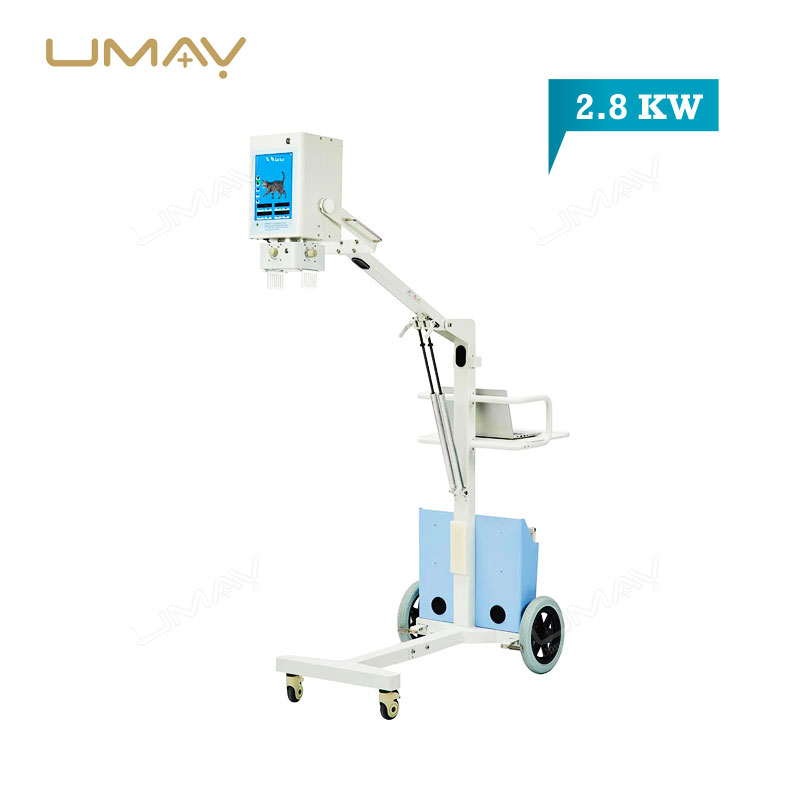

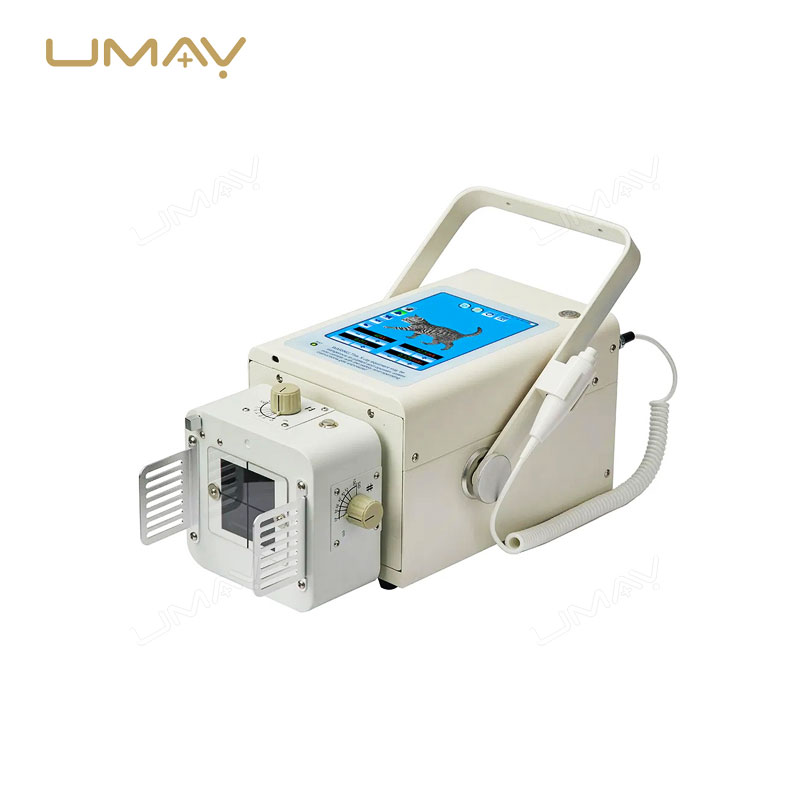

The Portable 2.8kW Ultra-High Frequency X-ray Machine is designed for high-quality diagnostic imaging in veterinary settings. With its 2.8kW output, it ensures clear and accurate X-ray images, making it ideal for diagnosing fractures, infections, and other internal conditions in animals. Its compact and portable design allows for easy transportation and use in various environments, such as veterinary clinics, mobile units, and remote locations. The machine provides fast imaging with minimal radiation exposure, ensuring safety for both animals and healthcare providers. Perfect for veterinary practices, it enhances diagnostic efficiency and supports better patient care.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | 2.8kW |
| Touch Screen Size | 8 inch |
| mA Range | 10-40mA |
| kV Range | 40-100kV |
| mAs Range | 0.1-12.5mAs |
| Exposure Time Range | 0.01-1.25s |
| Focal Spot | 1.0mm |
| Full Charging Time | 2h |
| Stand-by Time | 20h |
| Exposure Times at Fully Charged | 110 times at 100kV, 25mA, 100mS |
| Net Weight | 15.5kg |
| Gross Weight (Machine + Wooden Case) | 27kg |
| Dimensions (Machine + Wooden Case) | 600 × 420 × 460mm |
Product Details
- Portable 2.8kW Ultra-High Frequency X-Ray Machine: Designed for professional veterinary diagnostic imaging with reliable 2.8kW output performance.
- Ultra-High Frequency Technology: Provides stable X-ray generation, shorter exposure times, and superior image quality.
- High-Resolution Veterinary Imaging: Produces clear and detailed radiographic images for accurate animal diagnosis and treatment planning.
- Compact and Portable Design: Lightweight structure allows easy transportation between veterinary clinics, farms, and mobile service locations.
- Ideal for Mobile Veterinary Applications: Perfect for on-site animal examinations, farm visits, and remote veterinary services.
- Accurate Fracture Diagnosis: Delivers detailed bone imaging for detecting fractures, dislocations, and orthopedic abnormalities.
- Supports Internal Disease Detection: Enables effective evaluation of infections, organ conditions, and other internal health issues.
- Fast Image Acquisition: Reduces examination time and improves workflow efficiency in busy veterinary environments.
- Low Radiation Exposure: Optimized imaging technology minimizes radiation dose while maintaining excellent image quality.
- Suitable for Various Animal Species: Ideal for dogs, cats, livestock, horses, and other veterinary patients.
- Reliable Diagnostic Performance: Ensures consistent imaging results for routine and emergency veterinary examinations.
- User-Friendly Operation: Simple controls allow quick setup and convenient operation for veterinary professionals.
- Advanced Digital Imaging Compatibility: Supports integration with digital flat panel detectors and veterinary imaging software.
- Durable Veterinary-Grade Construction: Built for long-term use in demanding clinical and field environments.
