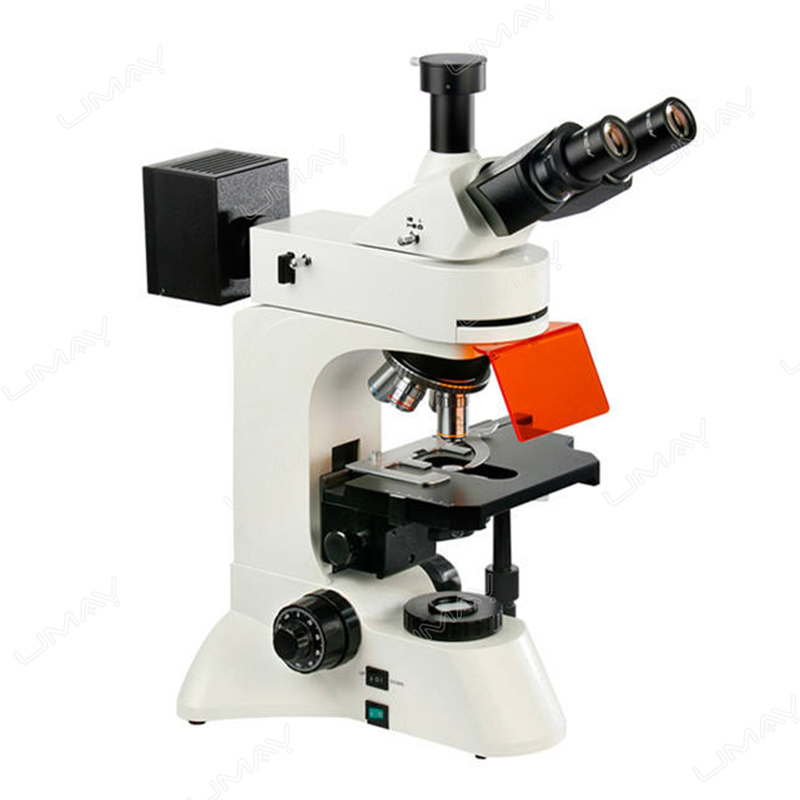

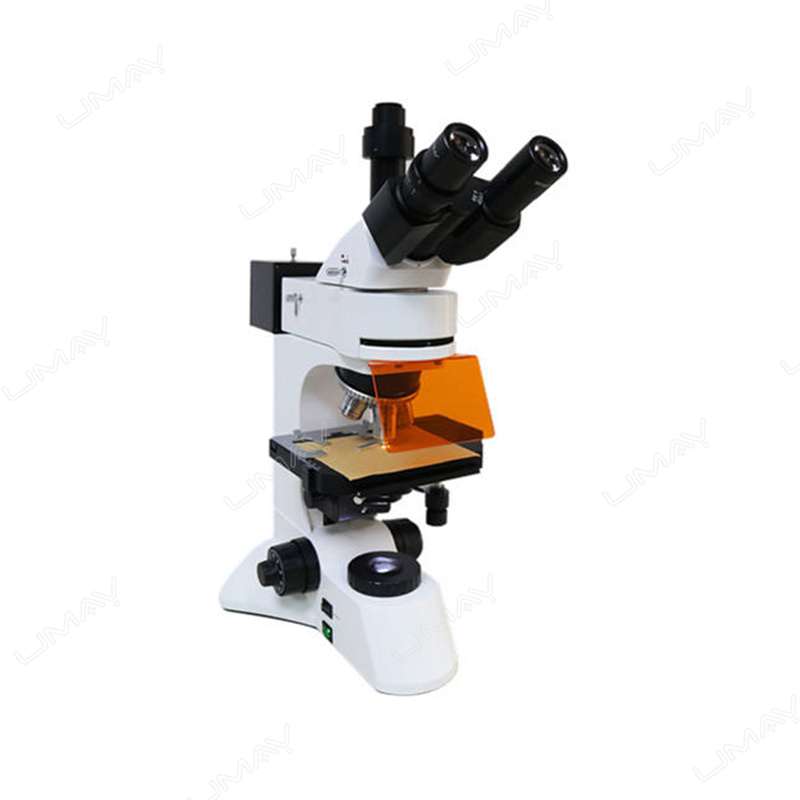

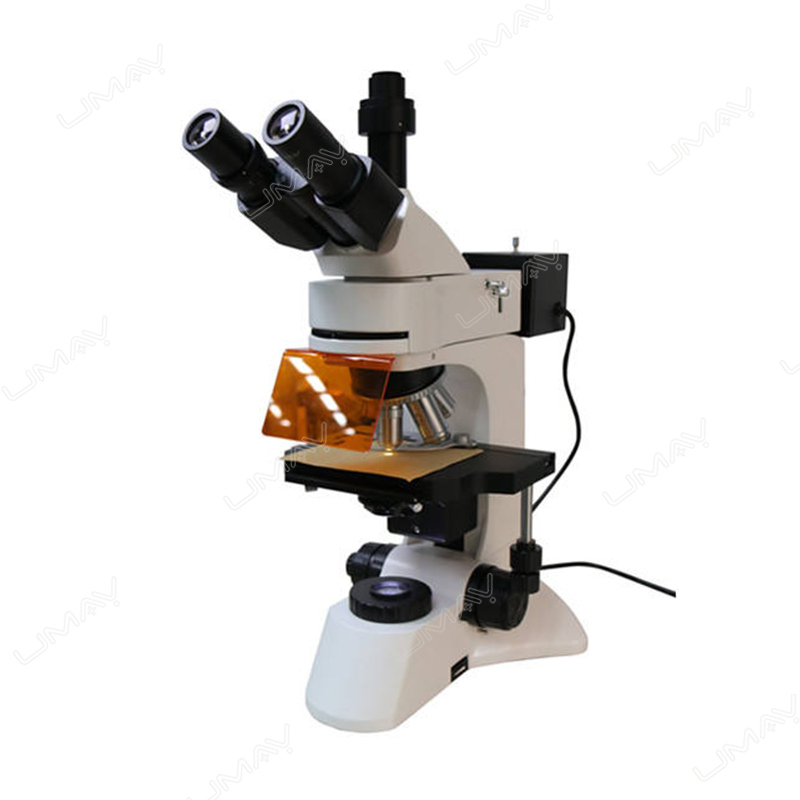

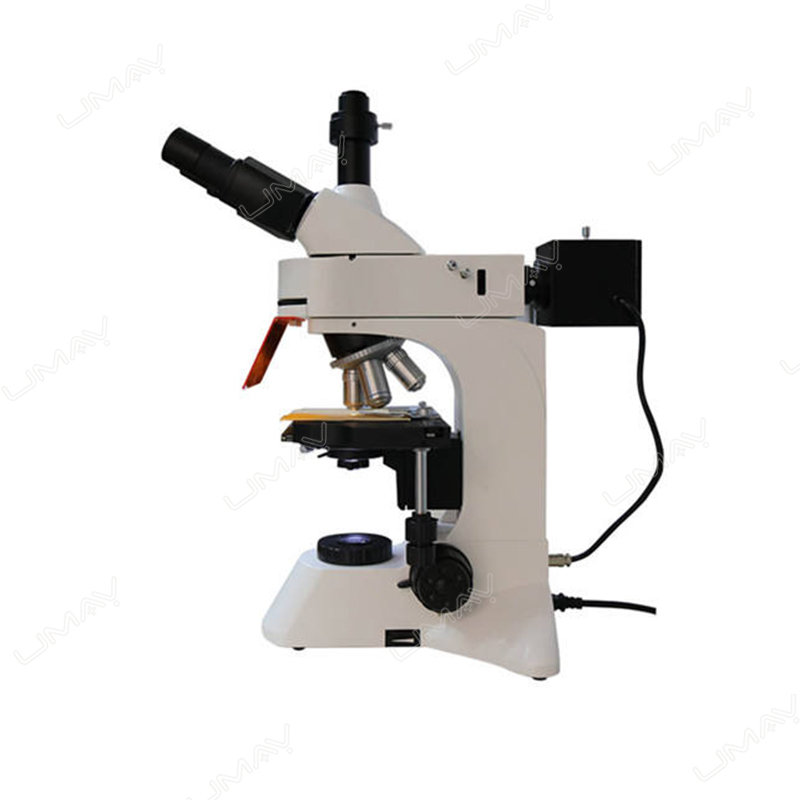

The UMMS013 Trinocular Upright Fluorescence Microscope is designed for
laboratory applications requiring both fluorescence observation and conventional
transmitted-light microscopy.
The system combines a 30° inclined trinocular observation head,
WF10X/22 wide-field eyepieces, infinity-corrected objectives, a five-position
nosepiece, mechanical stage and reflected fluorescence illumination with
UV, violet, blue and green excitation filter sets.
With the standard WF10X eyepiece configuration, the microscope supports
magnifications from 40X to 1000X, depending on the selected objective.
Key Features
- Trinocular upright fluorescence microscope for fluorescence and brightfield observation
- Infinity-corrected optical system
- WF10X wide-field eyepieces with 22 mm field number
- 30° inclined trinocular observation head
- Five-position inward-facing revolving nosepiece
- 4X, 10X, 40X and 100X objective configuration
- 100W mercury reflected fluorescence illumination system
- UV, violet, blue and green fluorescence excitation channels
- Coaxial coarse and fine focusing with 2 μm fine-focus graduation
- 210 × 140 mm double-layer mechanical stage
- 75 × 50 mm X-Y stage movement range
- Abbe condenser NA 1.25 for transmitted-light observation
- 6V 30W adjustable halogen transmitted illumination
Typical Applications
UMMS013 is suitable for laboratories requiring upright fluorescence microscopy
for prepared specimens and routine transmitted-light observation.
Typical applications may include:
- Cell and tissue fluorescence observation
- Biological laboratory research
- Fluorescence staining observation
- Immunofluorescence-related laboratory work
- Microbiology and life-science research
- Clinical and medical laboratory teaching
- Routine brightfield specimen observation
- University and research-institute laboratories
The suitability of a fluorescence microscope depends on the fluorophore,
excitation/emission requirements, specimen preparation and imaging workflow.
Customers should provide the intended fluorescence application before ordering
so that the optical and filter configuration can be reviewed.
Trinocular Observation System
The microscope is equipped with a 30° inclined trinocular observation head.
The trinocular configuration supports visual observation while also providing a
dedicated optical path for compatible imaging equipment when required.
Standard wide-field eyepieces are WF10X with a
22 mm field number, providing a wide observation field for routine
microscopic examination.
Infinity-Corrected Objective Configuration
The UMMS013 objective set includes plan achromatic and fluorescence-oriented
objectives for routine transmitted-light and fluorescence applications.
| Objective | Numerical Aperture | Working Distance | Configuration |
|---|---|---|---|
| PL 4X | 0.10 | 19.8 mm | Plan achromatic |
| PL 10X | 0.25 | 5.0 mm | Plan achromatic |
| PL FL 40X | 0.85 | 0.42 mm | Spring-loaded fluorescence objective |
| PL 100X | 1.25 | 0.36 mm | Spring-loaded oil-immersion objective |
With WF10X eyepieces, the corresponding nominal total magnifications are
40X, 100X, 400X and 1000X.
Reflected Fluorescence Illumination System
The reflected fluorescence system uses a 100W DC mercury lamp
with a separate power supply configuration. Power-box voltage should be confirmed
according to the destination market and supplied configuration.
A rotary fluorescence reflector provides four excitation channels:
UV, violet, blue and green.
| Channel | Excitation Wavelength | Emission Wavelength |
|---|---|---|
| UV | 320–380 nm | 435 nm |
| Violet | 380–415 nm | 475 nm |
| Blue | 450–490 nm | 515 nm |
| Green | 495–555 nm | 595 nm |
Before ordering, the required fluorescence dyes or fluorophores should be provided
so that the available excitation and emission filter combination can be checked
against the intended application.
Mechanical Stage and Focusing System
UMMS013 uses a 210 × 140 mm double-layer mechanical stage
with an X-Y movement range of 75 × 50 mm.
The mechanical control system allows precise positioning of prepared microscope slides.
Coaxial coarse and fine focusing is provided, with a fine-focus graduation of
2 μm. Locking and limit mechanisms are incorporated into the
focusing system to support controlled operation.
Transmitted Brightfield Illumination
In addition to reflected fluorescence observation, UMMS013 includes a transmitted-light
system for conventional brightfield microscopy.
The transmitted illumination configuration includes:
- Abbe condenser NA 1.25
- Adjustable condenser height
- Blue filter
- Frosted glass
- 6V 30W halogen lamp
- Adjustable illumination brightness
- Built-in field diaphragm
Technical Specifications
| Model | UMMS013 |
|---|---|
| Microscope Type | Trinocular upright fluorescence microscope |
| Optical System | Infinity-corrected optical system |
| Eyepieces | WF10X, field number 22 mm |
| Observation Head | Trinocular, inclined at 30° |
| Objective Configuration | PL 4X/0.10, PL 10X/0.25, PL FL 40X/0.85 spring, PL 100X/1.25 spring oil |
| Standard Magnification | 40X–1000X with WF10X eyepieces |
| Nosepiece | Five-position inward-facing revolving nosepiece |
| Fluorescence Illumination | Reflected fluorescence illumination, 100W DC mercury lamp |
| Fluorescence Channels | UV, Violet, Blue and Green |
| Fluorescence Power Supply | Separate power box; 110V / 230V configuration depending on order |
| Mechanical Stage | Double-layer mechanical stage, 210 × 140 mm |
| Stage Movement | 75 × 50 mm |
| Focusing | Coaxial coarse and fine focusing with locking and limit mechanisms |
| Fine Focus Graduation | 2 μm |
| Condenser | Abbe condenser NA 1.25, height adjustable |
| Transmitted Illumination | 6V 30W halogen lamp, adjustable brightness |
Before Ordering
Fluorescence microscope configuration should be confirmed according to the actual
fluorescence application rather than selected only by magnification.
For quotation and configuration review, please provide:
- Required quantity
- Fluorescence application
- Fluorophore or staining method where known
- Required excitation wavelength or filter channel
- Whether camera imaging is required
- Required camera interface or imaging software if applicable
- Local power supply
- Required accessories
- Delivery country
If the intended fluorescence dye requires excitation or emission wavelengths outside
the standard UV/V/B/G configuration, please provide the wavelength requirement before
placing the order.
Request UMMS013 Configuration & Quotation
Contact UMY Medical with your fluorescence application, required filter set,
imaging requirements and delivery country for configuration confirmation and quotation.
FAQ
What type of microscope is the UMMS013?
UMMS013 is a trinocular upright fluorescence microscope combining reflected
fluorescence illumination with conventional transmitted brightfield observation.
What fluorescence excitation channels are included?
The standard described configuration includes UV, violet, blue and green
fluorescence excitation channels. The required fluorophore should be checked against
the available filter wavelengths before ordering.
What is the maximum standard magnification?
With the WF10X eyepiece and 100X oil-immersion objective, the nominal total
magnification is 1000X.
Can a microscope camera be connected?
The trinocular head provides an optical path suitable for compatible imaging
configurations. Camera adapter, sensor requirements and imaging software should be
confirmed according to the intended camera system.
Can the fluorescence filter configuration be changed?
Filter availability depends on the required excitation and emission wavelengths
and the supplied configuration. Please provide the intended fluorophore or wavelength
requirements before quotation.
