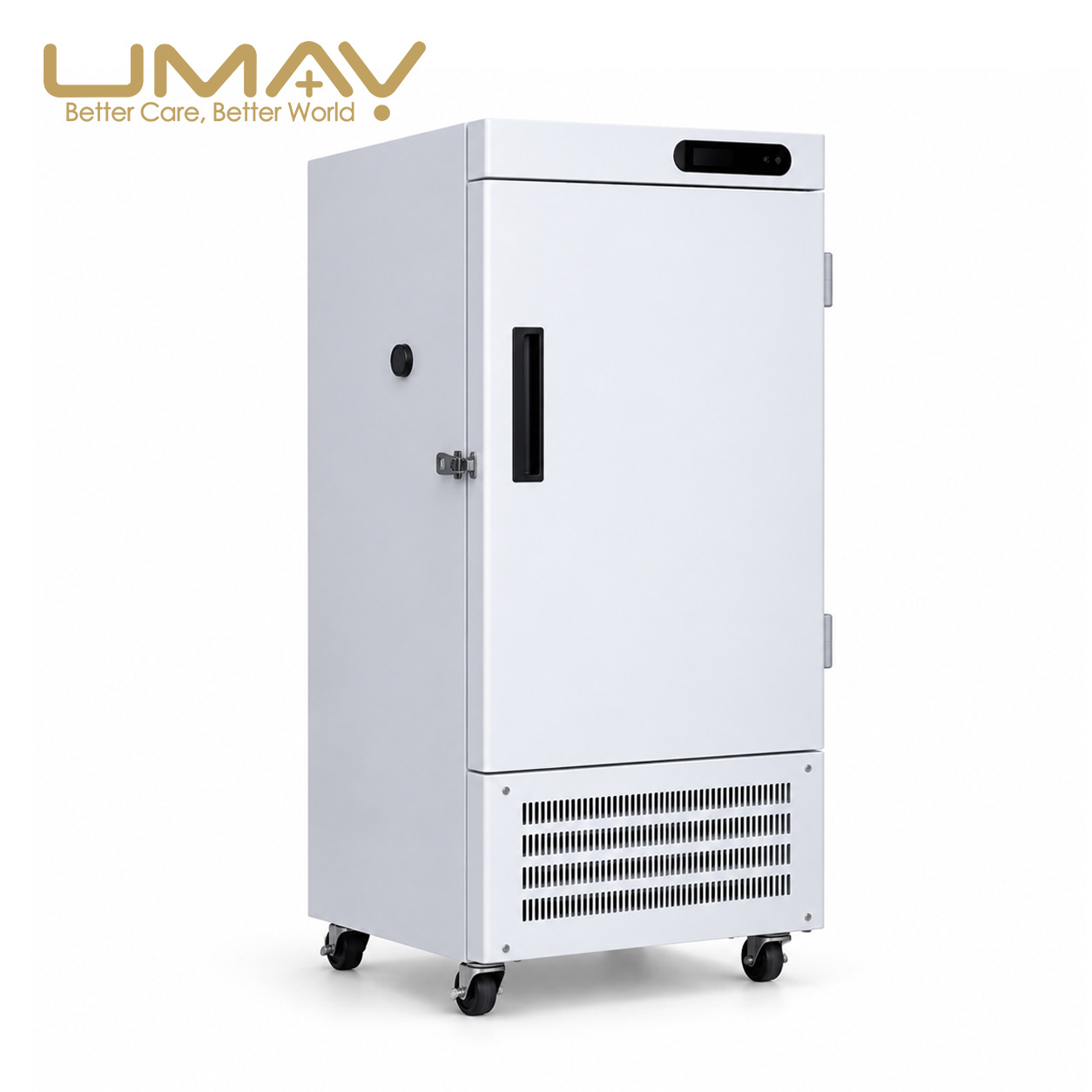

108L Upright Biomedical Freezer for -15°C to -25°C Storage
The UM108LBR001 is a compact upright biomedical freezer designed for controlled low-temperature storage in laboratories, medical facilities and research environments.
The 108L cabinet provides an adjustable internal temperature range from -15°C to -25°C and uses a Secop compressor with a single-compressor refrigeration system. Electronic temperature control, digital temperature display and audible and visual alarms help operators monitor routine storage conditions.
The freezer features a 304 stainless steel interior, a powder-coated cold-rolled steel exterior, 90 mm insulation, two internal doors and four casters for practical laboratory installation and daily use.
Key Features
-15°C to -25°C Adjustable Range
The internal temperature can be adjusted within the listed -15°C to -25°C range for controlled low-temperature storage requirements.
108L Upright Cabinet
The compact 108L vertical configuration provides low-temperature storage capacity while limiting the equipment footprint in laboratory and medical environments.
Secop Compressor
The refrigeration system uses a Secop compressor in a single-compressor configuration for routine low-temperature operation.
Electronic Temperature Control
An electronic temperature controller works with a PTC temperature probe for temperature monitoring and control.
Digital Temperature Display
The front temperature display allows operators to check the cabinet temperature during daily use.
Audible and Visual Alarm
The freezer is equipped with sound and light alarm functions to provide a visible and audible warning when an abnormal condition is detected.
304 Stainless Steel Interior
The internal cabinet is constructed from 304 stainless steel for a durable and easy-to-maintain storage chamber.
90 mm Insulation Layer
The cabinet uses a 90 mm foaming insulation layer to support thermal insulation and internal temperature stability.
Typical Applications
The UM108LBR001 is intended for controlled low-temperature storage environments where a -15°C to -25°C cabinet is required.
- Hospital and clinical laboratory storage.
- Research laboratory low-temperature storage.
- Medical and laboratory material storage.
- Reagent and sample storage where the required storage temperature falls within the freezer’s specified operating range.
Storage suitability should always be confirmed according to the temperature requirements of the specific material being stored.
Temperature and Refrigeration System
| Temperature Range | -15°C to -25°C, Adjustable |
|---|---|
| Temperature Control | Electronic Temperature Control |
| Temperature Display | Digital Display |
| Temperature Probe | PTC |
| Alarm | Audible and Visual Alarm |
| Compressor | Secop |
| Refrigeration System | Single-Compressor Refrigeration System |
| Refrigerant | Fluorine-Free Environmentally Friendly Refrigerant |
Technical Specifications
| Model | UM108LBR001 |
|---|---|
| Product Type | Upright Biomedical Freezer |
| Capacity | 108 L |
| Internal Temperature | -15°C to -25°C, Adjustable |
| Power Supply | 220 V / 50 Hz / 2.3 A |
| Rated Power | 300 W |
| Power Consumption | 3.1 kWh / 24 h |
| Protection Class | Class I |
| Climate Class | N |
| Refrigerant | Fluorine-Free Environmentally Friendly Refrigerant |
| Compressor | Secop |
| Refrigeration System | Single-Compressor Refrigeration System |
| Temperature Control | Electronic Temperature Controller |
| Temperature Display | Digital Display |
| Temperature Probe | PTC |
| Exterior Material | Powder-Coated Cold-Rolled Steel |
| Interior Material | 304 Stainless Steel |
| Shelf / Inner Doors | 1 Shelf / 2 Inner Doors |
| Insulation Thickness | 90 mm |
| Pressure Equalization Port | Yes |
| Casters | 4 |
| Net / Gross Weight | 91 / 110 kg |
| External Dimensions | 700 × 730 × 1260 mm |
| Internal Dimensions | 460 × 460 × 510 mm |
| Package Dimensions | 780 × 830 × 1410 mm |
Cabinet Construction
Single-Door Upright Design
The vertical single-door configuration provides convenient front access while maintaining a relatively compact installation footprint.
Two Internal Doors
Two internal doors help divide the internal storage chamber and reduce unnecessary exposure of the entire cabinet interior during access.
304 Stainless Steel Chamber
The stainless steel inner chamber is suitable for routine laboratory cleaning and long-term equipment use.
Four Casters
Four casters allow the cabinet to be positioned and moved more conveniently during installation and laboratory layout adjustments.
Before Ordering
Please confirm your intended storage application and installation requirements before ordering the UM108LBR001.
- Required quantity.
- Destination country.
- Required power supply and plug standard.
- Required storage temperature.
- Type of material to be stored.
- Any tender or technical documentation requirements.
- Required packaging and shipping terms.
Request a Biomedical Freezer Quotation
Need a 108L -25°C biomedical freezer for a hospital, laboratory, distributor project or tender? Send us your quantity, destination and technical requirements for configuration confirmation and quotation.
Send Your Requirements
Please provide the required quantity, destination country, storage temperature requirement, local voltage and any tender specifications.
Frequently Asked Questions
What is the temperature range of the UM108LBR001?
The listed internal temperature range is adjustable from -15°C to -25°C.
What is the storage capacity?
The UM108LBR001 provides a nominal internal capacity of 108 liters.
What compressor does this freezer use?
The listed configuration uses a Secop compressor with a single-compressor refrigeration system.
What is the cabinet interior made of?
The internal chamber is made of 304 stainless steel.
Does the freezer provide an alarm?
Yes. The listed configuration includes an audible and visual alarm function.
