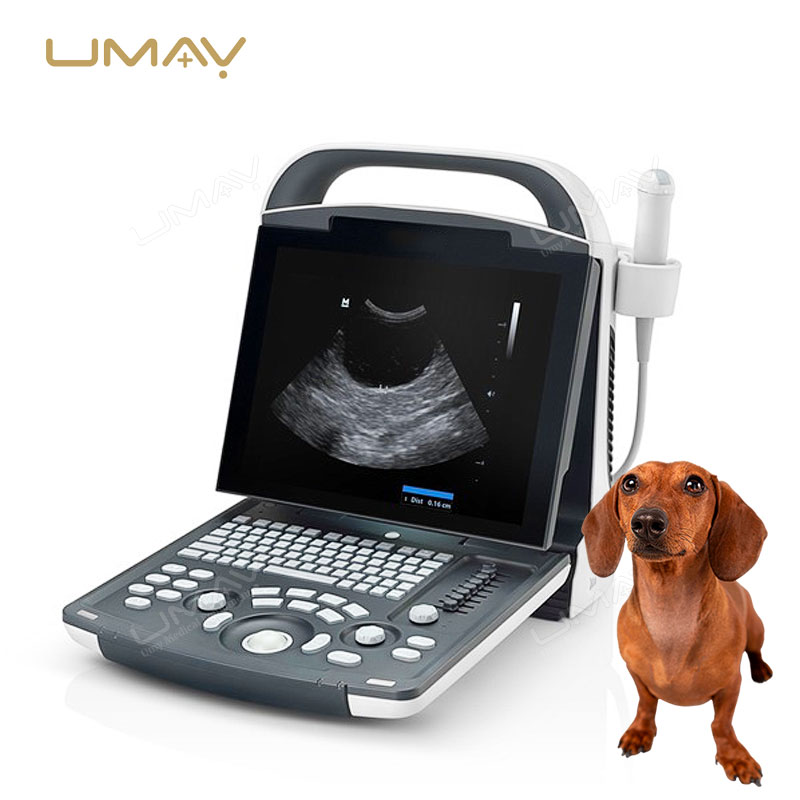

The DP-10Vet is a portable black and white ultrasound scanner designed for fast, clear imaging in general veterinary practice. Ideal for abdominal, reproductive, and musculoskeletal evaluations, it offers reliable performance with features like tissue harmonic imaging and image optimization tools. Its compact size, intuitive interface, and high-resolution display make it a practical choice for both clinics and mobile veterinary services. Suitable for small and large animals, it ensures consistent results during routine diagnostic procedures.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Product Name | Ultrasound Machine |
| Screen | 12.1 inch high definition LED |
| Full Screen Design | Easy cleaning |
| Tilting Angle | 30° adjustable monitor |
| Transducer Connectors | Maximum 2 universal connectors |
| Control Panel | User-friendly with backlit |
| Portability | Light and compact design |
| TGC | 8-channel TGC for precise image control |

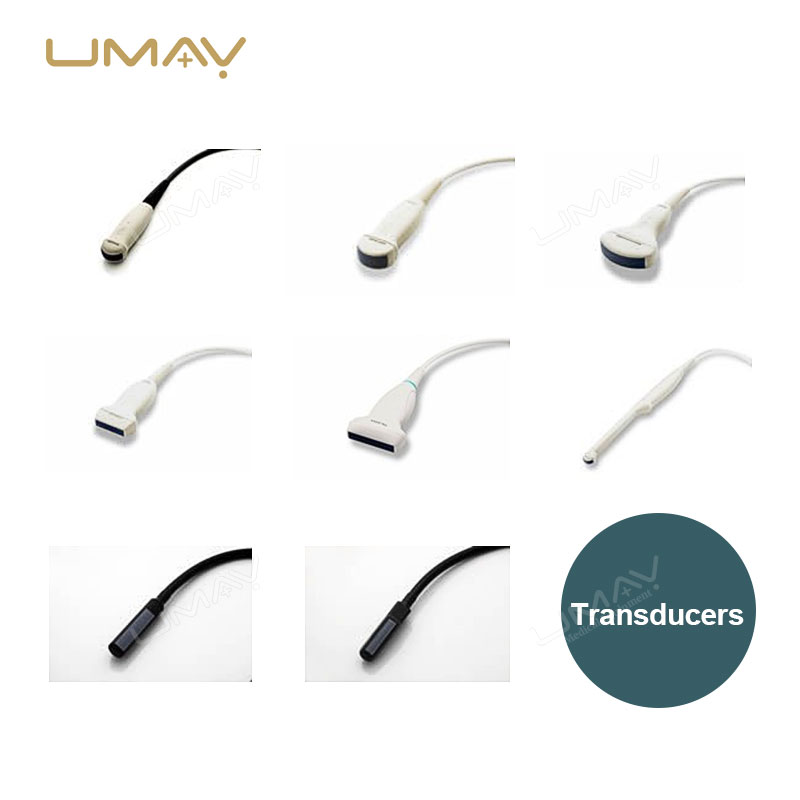

| Probes | Convex, Linear, Transvaginal |
| Power Requirement | AC 100–240V, 50/60Hz |
| USB Port | Storable and readable |
| Performance | |
| PW Mode | PW Doppler and Auto Trace for detailed blood flow analysis |
| Tissue Harmonic Imaging | Enhanced contrast resolution for technically difficult subjects |
| iClear | Improved image quality via auto structure detection |
| TSI | Tissue Specific Imaging with four imaging options: general, muscle, fluid, fat |
| ExFOV | Extended view for convex and linear probes |
| Application Scene | |
| Clinical Applications | Abdomen, thorax, heart, tendon, reproductive system (dogs, cats, horses, cattle, sheep) |
| Veterinary Imaging Presets | Customized for canine, feline, equine, bovine, ovine, etc. |
| Species Subdivision | By weight and body size (small, medium, large dogs) |
| Ergonomics | |
| Monitor Rotation | 180° for high definition LED |
| Touch Screen | 13.3″ anti-glare, 30° rotation, multi-gesture support |
| Monitor Arm | Dual-Wing floating type, fully adjustable |
| Control Panel | Anti-dirty, rotatable, height adjustable |
| Keyboard | Sliding type with silicon cover |
| Transducer Sockets | 5 active smart sockets with easy lock design |
| Cable Management | Keeps cables off the ground |
| Mobility | Stable wheels, small footprint, 360° rotation |
| Workflow | |
| iStorage | Directly transfer images/reports to PC via network cable |
| iTouch | One-click auto image optimization in B, Color, PW Modes |
| iZoom | Full screen view on single click |
| iStation | Integrated patient data management system |
| Quick Mode Switch | Within 1 second for transducers/exam modes |
| UI Design | Concise with associated menu options |
| Animal Information System | Supports fast exam creation and sterilization management |
| Volume Control | PW/CW/TDI off by default to avoid frightening pets |
| Power | |
| Battery Type | Rechargeable |
| Scanning Time | 1.5 hours per charge |
