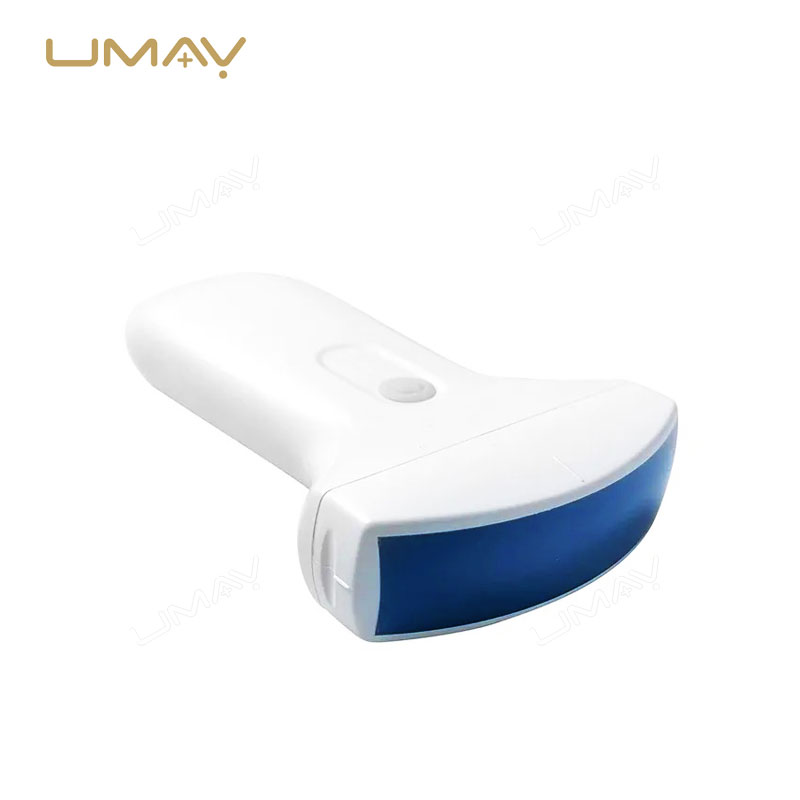

The 2025 USB & WiFi Handheld Color Doppler Ultrasound combines portability with advanced imaging technology. Featuring both convex and linear probe options, it is designed for efficient and precise diagnostic imaging in various clinical settings. Ideal for obstetrics, cardiology, and vascular assessments, this device allows healthcare providers to capture high-quality images and monitor blood flow in real-time. With WiFi and USB connectivity, it enables easy data sharing and integration into digital medical systems. This ultrasound is essential for diagnosing conditions such as heart disease, blood clots, and fetal abnormalities.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Probe Specifications | |
| Probe Type | Convex array probe |
| Display Mode | B, B/M, B+Color, B+PW |
| Frequency | 3.5/5.0MHz |
| Display Depth | 90~305mm |
| Probe Radius | 60mm |
| Probe Length | Not applicable |
| Connectivity | |
| WiFi Type | 802.11n/2.4G/5G |
| USB Type | Type C |
| Image and Measurement Features | |
| Image Adjust | B: GN (Bgain), D (depth), F (frequency), ENH (enhancement), TGC, DR (dynamic range) |
| Color/PW | B: GN, PRF, WF, Steer, Box |
| Measure | |
| B | Length, Area, Circumference, GA (CRL, BPD, GS, FL, HC, AC) |
| B+M | Heart Rate, Time, Distance |
| B+PW | Velocity, Heart Rate (2), S/D |
| Operation Features | |
| Cinplay | Auto and manual, frames can set as 100/200/500/1000 |
| Puncture Assist Function | In-plane puncture guide line, out-of-plane puncture guide line |
| Image/Video Storage | Store on mobile phones, Tablet PC |
| Power and Charging | |
| Power | Built-in lithium battery, Replaceable |
| Battery Working Time | 1.5~4h according to scan mode |
| Charging Mode | USB charging |
| Bootup | Platform dependent, generally <5 seconds |
| System and Configuration | |
| Working System | Android/iOS (Download for free) |
| Standard Configuration | Host: 1pcs, USB cable: 1pcs |
| Physical Specifications | |
| Dimensions | 115(w) x 70(d) x 20(h) mm |
| Package Size | 185(w) x 105(d) x 55(h) mm |
| Net Weight | 125g |
| Gross Weight | 600g |
