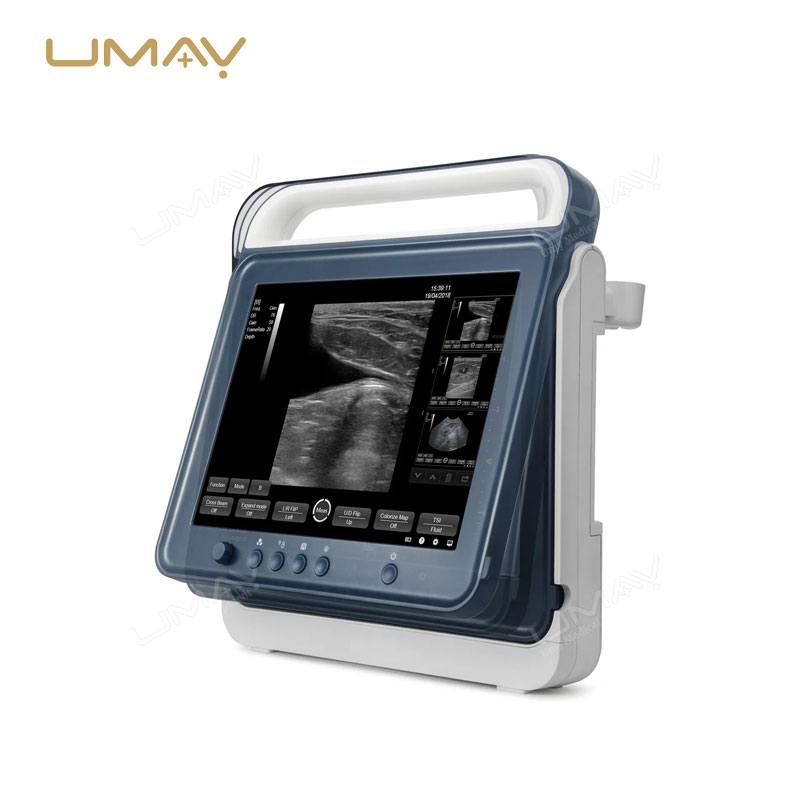

The Portable Veterinary Ultrasound Scanner with a touch screen is designed specifically for large animal care, providing clear, black and white imaging for horses and cows. This compact device is ideal for on-the-go diagnostics, offering high-resolution images for assessing conditions such as pregnancy, organ health, and injuries. The user-friendly touch screen interface makes it easy for veterinarians to operate in the field or at the clinic. Its portability and reliable performance ensure accurate results, even in challenging environments. This ultrasound scanner is a must-have tool for veterinary professionals working with large animals.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Physical Specifications | |
| Height (mm) | 402 |
| Width (mm) | 385 |
| Depth (mm) | 53 |
| Weight (kg) | Around 4.5 (Include Battery) |
| Material | Fireproofing and anti-corrosion ABS |
| Monitor Specifications | |
| Type | 15″ High-Resolution LCD Monitor |
| Resolution | 1024×768 |
| Brightness | Adjustable |
| Max Opening Angle | 45° |
| Touchscreen Specifications | |
| Type | Fully Resistive Touch Screen |

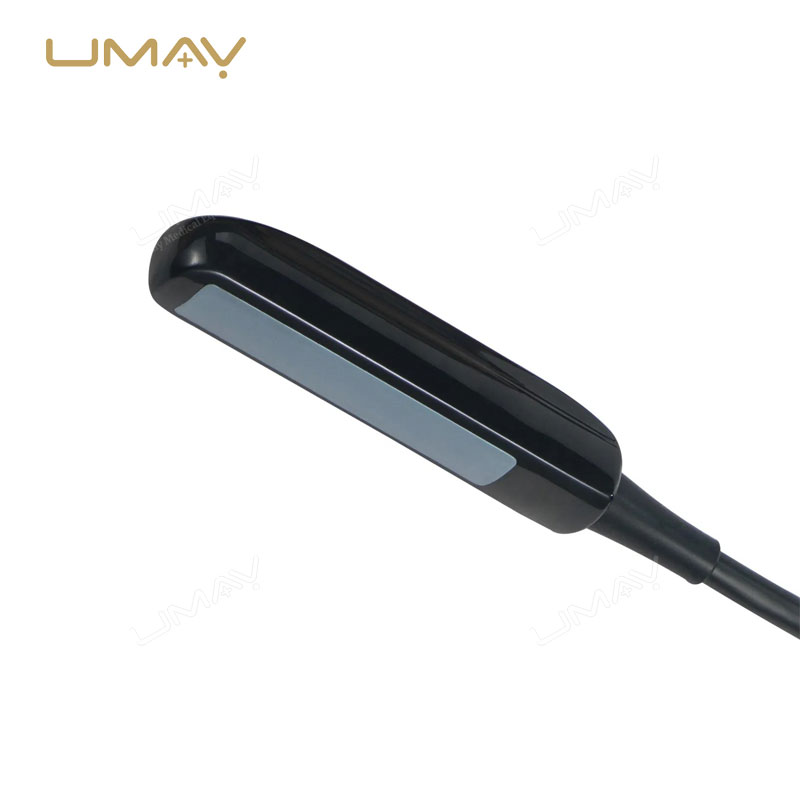

| Transducer Elements | 128 |
| Power Specifications | |
| System Power | AC Power & Battery |
| AC Adapter Model | MSL-15AD |
| Voltage (V) | 100-240 |
| Frequency (Hz) | 50/60 |
| Current (A) | 5 |
| Output (V) | 15 |
| Battery Specifications (Optional) | |
| Type | Lithium-Ion, 11.1V, 7000mAh |
| Charge Time | 6 hours |
| Max Duration | 180 minutes realtime scan |
| Operating Environment | |
| Temperature (°C) | 0-40 |
| Humidity (%) | 30-85 (Non-Condensing) |
| Pressure (hPa) | 700-1060 |
| Storage and Transport | |
| Temperature (°C) | -20 to 55 |
| Humidity (%) | 30-95 (Non-Condensing) |
| Pressure (hPa) | 700-1060 |
