UMDRXY002 Digital Radiography System
Floor-Mounted Dual-Column Digital X-Ray System
The UMDRXY002 is a floor-mounted dual-column digital X-ray system
designed for routine general radiography in hospitals, clinics and diagnostic
imaging departments.

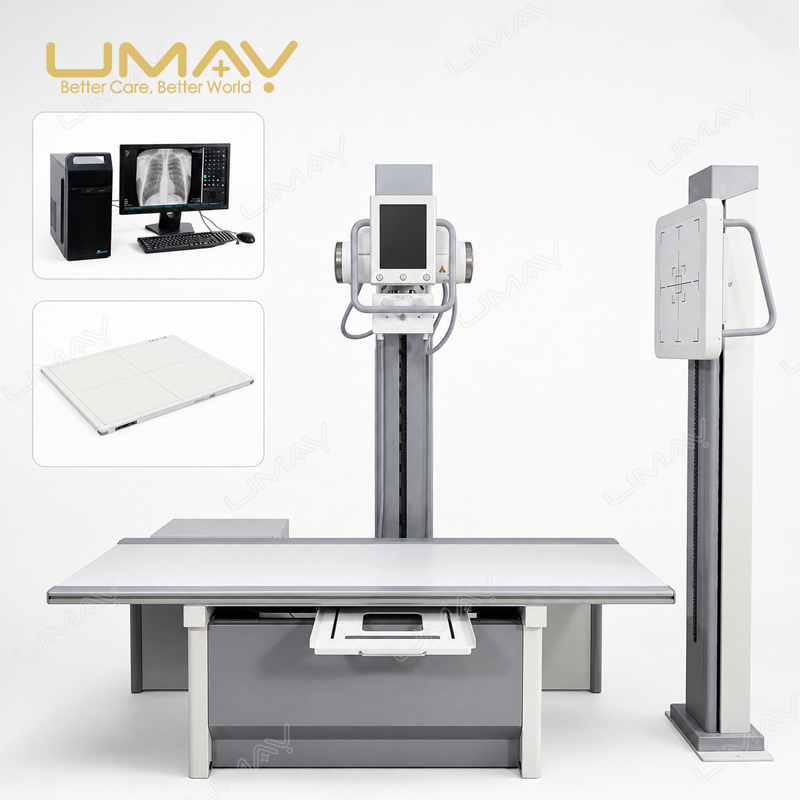

It combines a movable X-ray tube column, 4-way floating examination table,
vertical Bucky stand, digital flat panel detector and imaging workstation in one
integrated DR system.
Flexible tube positioning, wired or wireless detector options and configurable
high-frequency generators allow the system to be selected according to examination
workflow, room conditions and project requirements.
Key Features
180° Tube Rotation
Supports flexible X-ray tube positioning for table, vertical and routine general radiography.
4-Way Floating Table
Supports convenient patient positioning for recumbent radiographic examinations.
1700 mm Tube Rack Arm
Extended positioning range supports different examination positions and room workflows.
17×17 Digital Detector
Available with wired or wireless 17×17 inch flat panel detector configurations.

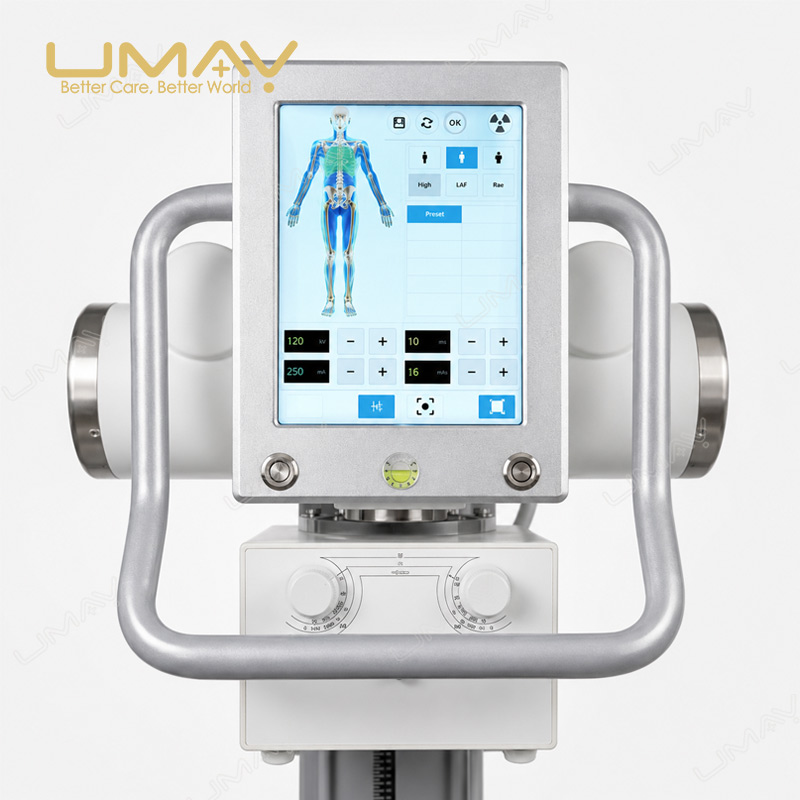

10.4″ TFT Touch Screen
Integrated touch control supports system operation and radiography workflow.
Digital Imaging Software
Supports image acquisition, post-processing, edge enhancement, image rotation and dose reporting.
Flexible Positioning for General Radiography
The floor-mounted dual-column structure combines a movable tube system,
floating examination table and vertical Bucky stand to support both
standing and recumbent examinations.
X-Ray Tube Column
Tube rack vertical movement reaches 990 mm, while column horizontal movement reaches
1380 mm for flexible alignment with the table and vertical stand.
Vertical Bucky Stand
Supports upright examinations including routine chest and other standing radiography.

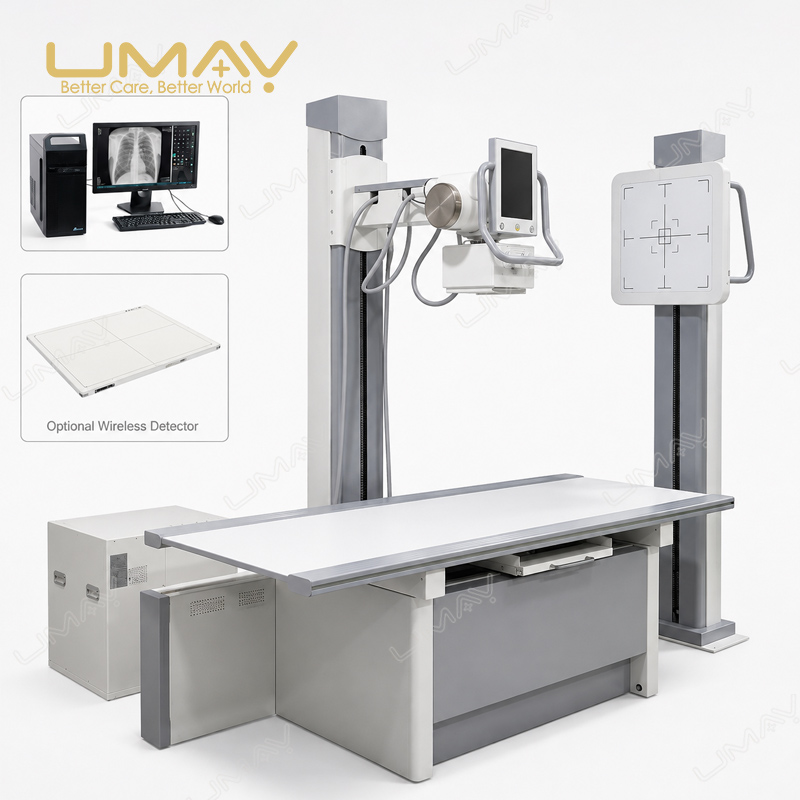

Wired or Wireless 17×17 Flat Panel Detector
The UMDRXY002 can be configured with a wired or wireless
17×17 inch flat panel detector. The specified detector platform uses
amorphous silicon technology with a CsI scintillator, 3072 × 3072 pixel matrix
and 139 μm pixel pitch.
UMY Medical also supplies flat panel detectors separately for DR system configuration,
replacement and retrofit projects.
View X-Ray Flat Panel Detectors →
| Detector Configuration | Wired / Wireless 17×17 FPD |
| Detector Technology | Amorphous Silicon |
| Scintillator | CsI |
| Active Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.4 lp/mm wired / 3.6 lp/mm wireless |
| AD Conversion | 16 bit |
| Full Image Time | 5 s |
High-Frequency Generator & Rotating-Anode X-Ray Tube
Multiple high-frequency generator configurations are available according to
radiography requirements. Depending on the selected system configuration,
tube voltage up to 150 kV and tube current up to
630 mA can be supported.
The system uses a rotating-anode X-ray tube. UMY Medical also supplies selected
X-ray tube assemblies separately for replacement and system-integration projects.
The linked tube below is a separate product option and should not be interpreted
as the standard tube fitted to every UMDRXY002 configuration.
View Rotating-Anode X-Ray Tube →
| kV Range | 40–125 kV / 40–150 kV |
| mA Range | 10–400 mA / 10–500 mA / 10–630 mA |
| mAs Range | 0.1–320 mAs / up to 1000 mAs depending on configuration |
| Exposure Time | 1–10000 ms |
| X-Ray Tube | Rotating-anode X-ray tube |
Digital Imaging Workflow
The imaging workstation integrates patient management, image acquisition,
post-processing and printing functions for routine digital radiography workflow.
UMDRXY002 Key Specifications
| Model | UMDRXY002 |
| System Type | Floor-Mounted Dual-Column Digital X-Ray System |
| Tube Rotation | 180° |
| Tube Rack Arm Length | 1700 mm |
| Tube Rack Vertical Movement | 990 mm |
| Tube Column Horizontal Movement | 1380 mm |
| Flat Panel Detector | Wired / Wireless 17×17 FPD |
| Maximum Tube Voltage | Up to 150 kV* |
| Maximum Tube Current | Up to 630 mA* |
| Touch Display | 10.4″ TFT Touch Screen |
| Operating System | Windows 10 |
* Specifications depend on the selected generator and overall system configuration.
General Radiography Applications

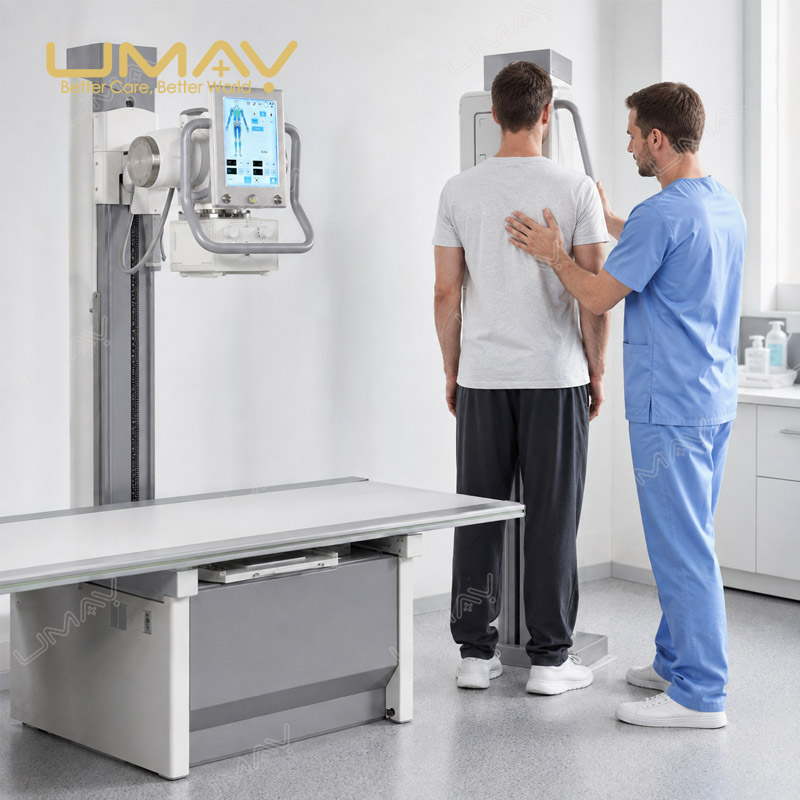

Routine standing chest examinations using the vertical Bucky stand.
Routine hand, arm, leg and other extremity radiography.
Supports routine lumbar and other spinal examinations.
Routine diagnostic radiography for hospitals and imaging departments.
X-Ray Components & System Support
In addition to complete DR systems, UMY Medical supplies selected X-ray components
for replacement, retrofit and system-integration projects.
Rotating-Anode X-Ray Tubes
X-ray tube options can be reviewed according to tube voltage, focal spot,
generator power, housing and thermal requirements.
Flat Panel Detectors
Wired and wireless detector options are available for DR systems,
detector replacement and digital retrofit projects.
X-Ray After-Sales & Remote Technical Support
Digital X-ray systems combine the generator, X-ray tube, detector, workstation,
software and mechanical positioning system. When an operating warning occurs,
effective troubleshooting usually requires equipment information, photos,
operating conditions and technical documentation rather than a single error code.
UMY Medical has documented a real remote troubleshooting case involving a
50kW DR system, showing how our technical team worked with the customer’s local
team to review an ER044 warning and collect the information required for further diagnosis.
Before Ordering
To confirm a suitable UMDRXY002 configuration, please provide:
- Required generator power or radiography workload
- Preferred wired or wireless flat panel detector
- Required tube voltage and tube current range
- Local power supply
- Radiography room dimensions
- Expected examination types
- Required DICOM / workstation configuration
- Required quantity
- Destination country
For replacement tube or detector enquiries, please also provide the existing
equipment model, component label, technical specifications and clear photos
so compatibility can be reviewed before quotation.
UMDRXY002 FAQs
What type of X-ray system is the UMDRXY002?
It is a floor-mounted dual-column digital X-ray system designed for routine general radiography.
Can the UMDRXY002 use a wireless flat panel detector?
Yes. Wired and wireless 17×17 inch detector configurations are available.
What generator configurations are available?
Different generator configurations are available, with system options supporting
up to 150 kV and 630 mA depending on the selected configuration.
Can UMY Medical supply X-ray tubes and flat panel detectors separately?
Yes. Selected X-ray tubes and wired or wireless flat panel detectors can be supplied
for replacement, retrofit and integration projects subject to compatibility review.
What information is required for a quotation?
Please provide the preferred generator and detector configuration, intended
application, local power supply, destination country and required quantity.
Request UMDRXY002 Digital X-Ray System Quotation
Contact UMY Medical with your generator power, detector preference,
radiography requirements and destination country for configuration confirmation and quotation.
