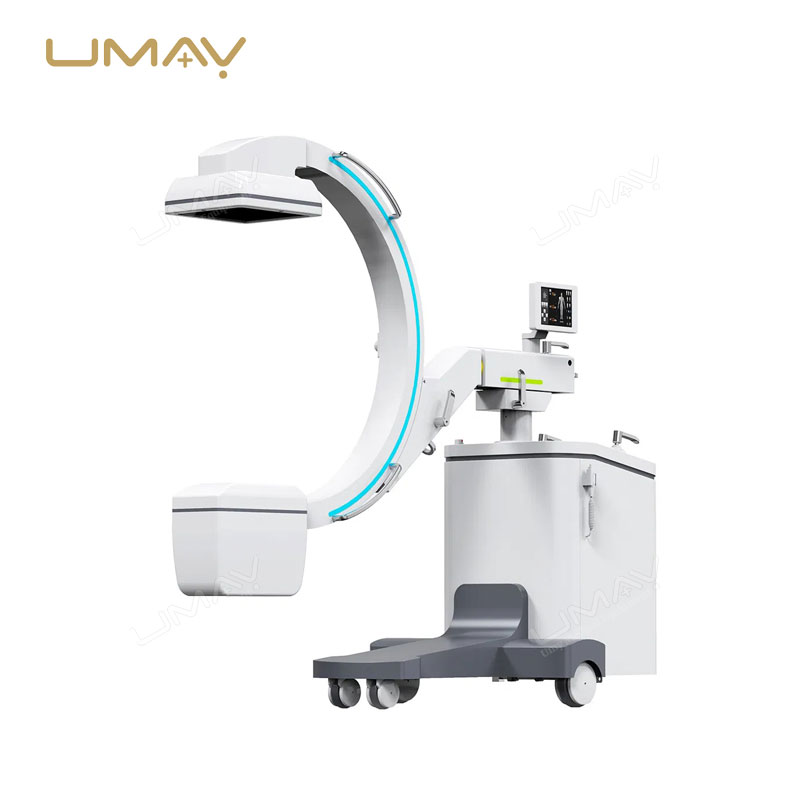

The UMY 5kW Mobile C-Arm System is engineered to meet the demanding requirements of modern operating rooms, orthopedic surgery, and interventional clinical suites. Combining a monolithic amorphous silicon (a-Si) flat panel detector, a powerful 5 kW high-frequency generator, and an integrated high-definition workstation, the system ensures exceptional image quality and smooth clinical maneuverability.
Featuring comprehensive mechanical travel ranges, motorized vertical displacement, and flexible manual C-arm movements, it provides precise anatomical alignment and real-time visualization for complex surgical procedures.
Key Features
Flat Panel Detector (FPD)
Monolithic amorphous silicon TFT detector (210 mm × 210 mm) with a 1024 × 1024 matrix, 200 µm pixel pitch, and 30 fps high-speed real-time imaging.
High-Frequency Generator
Features a 5 kW maximum output power generator supporting up to 125 kV radiography voltage, continuous fluoroscopy, and advanced pulsed modes.
Dual-Focus X-Ray Tube
Equipped with 0.3 mm and 0.6 mm dual focal spots, 125 kV maximum tube voltage, and a 12° anode target angle for sharp radiological detail.
Flexible C-Arm Mechanics
Includes motorized vertical displacement (≥400 mm), manual horizontal displacement (≥200 mm), orbital movement (-30° to +90°), and wide rotation angles.
Motorized Beam-Limiting Collimator
Features an integrated motorized DR beam-limiting device and an aluminum-based 100:1 grid for optimal scatter reduction.

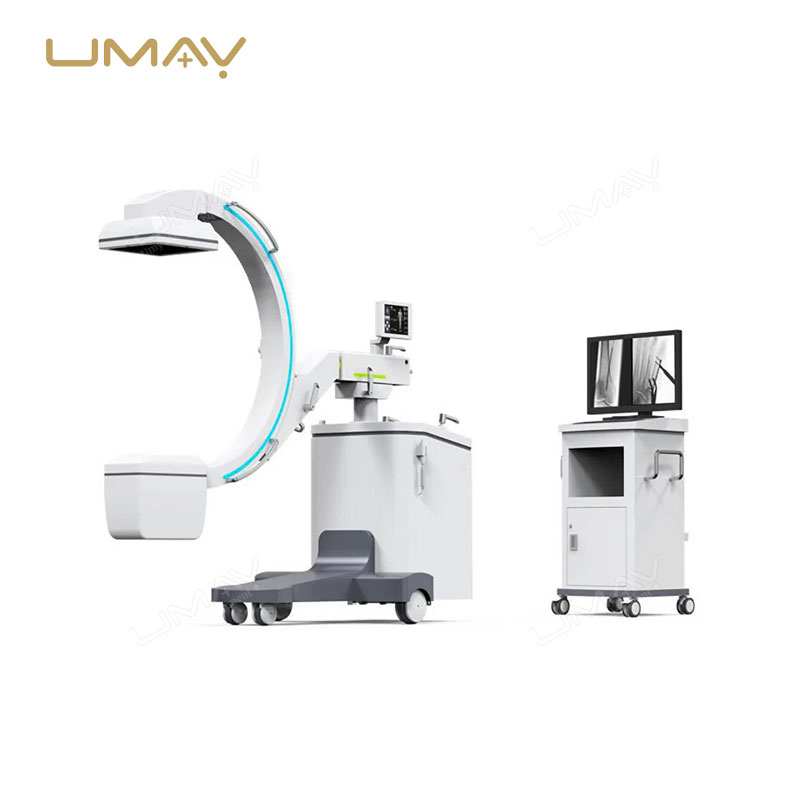

DICOM 3.0 Workstation
Built on a Windows 10 environment with Intel Core i7 processor, 16 GB RAM, 1 TB storage, and Full HD IPS display for complete patient data and image management.
Technical Specifications
| Specification Category | Technical Parameters |
|---|---|
| Detector Type & Size | Monolithic a-Si TFT, 210 mm × 210 mm |
| Pixel Matrix & Pitch | 1024 × 1024 pixels; 200 µm pitch |
| Spatial Resolution & Bit Depth | 2.5 LP/mm; 16-bit grayscale (30 fps) |
| Generator Maximum Power | 5 kW (Input: 220 VAC) |
| Radiography Voltage / Current | 40–125 kV; 10–100 mA |
| Fluoroscopy Modes | Continuous (40–120 kV, 0.5–5 mA); Pulsed (10–30 mA, 1–30 fps) |
| X-Ray Tube Focal Spots | 0.3 mm (small) / 0.6 mm (large); Max 125 kV |
| C-Arm Vertical Displacement | ≥ 400 mm (Motorized) |
| Orbital & Rotational Movement | Orbital: -30° to +90°; Rotation: ≥ ±200° |
| Depth of Arc & SID | Depth of Arc: ≥ 650 mm; SID: ≥ 1000 mm |
| Anti-Scatter Grid | Aluminum-based, 23 cm × 23 cm, Ratio 100:1, 215 LPI |
| Workstation Hardware | Intel Core i7, 16 GB RAM, 1 TB HDD, Windows 10 64-bit |
| Monitor Display | Full HD (1920 × 1080) IPS LCD Medical Monitor |
- Specifications are based on official technical documentation for the UMY 5kW C-Arm System.
- Verify facility power supply standards and doorway clearance requirements prior to installation.
Applications
Orthopedic Surgery
Ideal for bone fracture reduction, internal fixation, spinal surgery, and joint replacement guidance.
Pain Management & Interventional
Supports targeted needle placement, facet injections, and minimally invasive clinical interventions.
Emergency & Trauma Suites
Provides rapid diagnostic imaging and fluoroscopic control during urgent trauma procedures.
Before Ordering
To ensure the correct system configuration and prepare an accurate export quotation, please provide:
- Required order quantity and destination country.
- Specific surgical applications and clinical requirements.
- Local hospital power supply standards (220 VAC configuration).
- Any specific regulatory documentation or DICOM network integration needs.
Request a 5kW C-Arm System Quote
Contact UMY Medical to discuss configurations, delivery schedules, and export pricing for your medical imaging project.
Please include your required quantity and destination hospital details so our team can assist you promptly.
Frequently Asked Questions
What is the power output of this C-arm system?
The system features a 5 kW high-frequency high-voltage generator operating on a standard 220 VAC input power supply.
What kind of detector does it use?
It uses a monolithic amorphous silicon (a-Si) flat panel detector measuring 210 mm × 210 mm with a 200 µm pixel pitch and 16-bit grayscale depth.
Is DICOM 3.0 supported?
Yes, the integrated workstation is fully DICOM 3.0 compliant, supporting network transmission, PACS connectivity, and digital patient data management.
