Italy IMD Brand,fixed anode, dual focus 0.6/1.5mm
| ITEMS | PARAMETERS |
|---|---|
| HF generator | 120kV,5kW ,40kHz |
| Fluoroscopy mode 40~120kV 0.5~5mA | |
| (KV manual and automatic); | |
| Fluoroscopy mode | Pulsd fluoroscopy 40~120kV 0,5-5mA |
| Boost fluoroscopy 40~120kV 5~10mA; | |
| Photography 40~120kV 1~250mAs | |
| X- ray tube | Dual-focus Rotating anode: 0.3mm/0.6mm |
| Image intensifier | Three fields of vision 9, 6, 4.5 French Thales Brand |
| CCD camera | CCD camera, Japanese Watt Brand, 360° rotation |
| Recursive Noise Reduction | |
| Frame freezing | |
| Image system | Multi-frame image storage |
| Image conversing and rotating | |
| Screen display with image comparison | |
| Mechanical motion specifications | Verticaltravel: 0-400mm |
| Horizontaltravel: 0~200mm | |
| Rotation about horizontal axis: ±180° | |
| Distance of focal spot to image generator(SID): 1000mm | |
| Depth in arm≥650mm | |
| Mobile stand : 1800mm*800mm*1850mm | |
| C-arm dimension | Image system: 750mm*530mm*1680mm |
| High resolution CCD camera: 1set | |
| x-ray generator: 1set | |
| 9” image intensifier: 1set | |
| Standard configuration | image processing system: 1set |
| LCD high definition display: 2 sets | |
| Mobile stand : 1set | |
| ITEMS | PARAMETERS |
|---|---|
| Application | x ray machine |
| Function | One step to control dental x ray expose |
| LED | No |
| Current | 3A |
| Housing materials | ABS plastic |
| Operation voltage | 125v |
| Standard core | 2 core |
| Standard Length | 6m wire (60cm spring coil wire) |
| Mechanical life | ≤200,000 times |
| Electrical life | ≤400,000 times |
| Structure | omron inner switch |
| Customization | Available |
| Power Source | Manual |
| Instrument classification | Class I |
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | |
| Voltage | AC220V / 110V (optional) |
| Power Output | 5kW |
| Working Frequency | ≥40kHz |
| Generator Specifications | |
| kV Range | 40 ~ 110kV |
| mA Range | 10 ~ 100mA |
| mAs Range | 0.2 ~ 200mAs |
| Exposure Time | 0.01s ~ 3.2s |
| X-Ray Tube | |
| Anode Heat Storage | 56KHU |
| Focus Size | 1.6mm / 1.8mm |
| Inherent Filtration | 1mm Al @ 75kV |
| Light Source | LED |

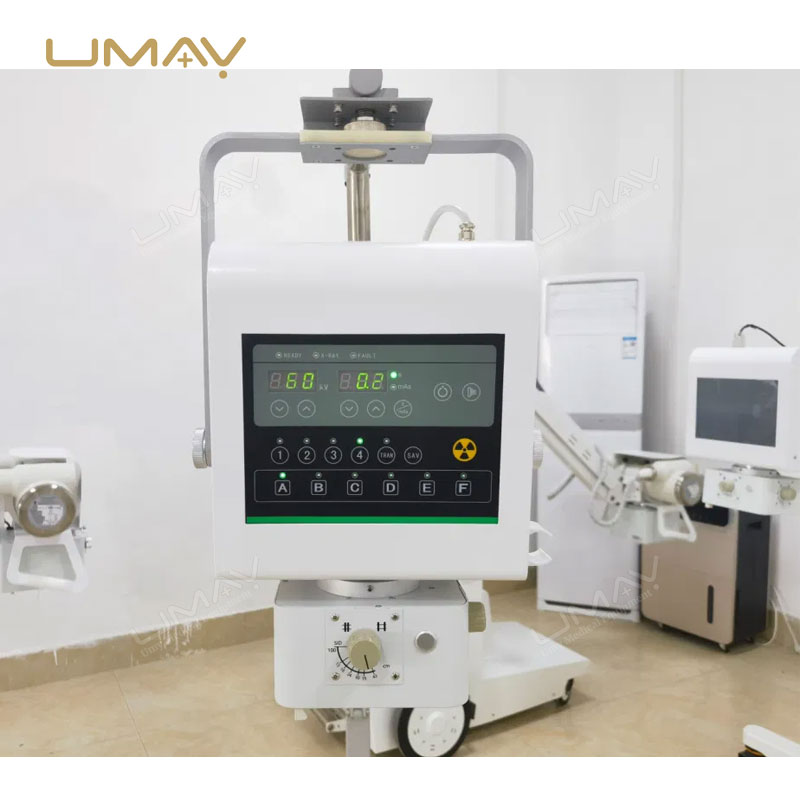

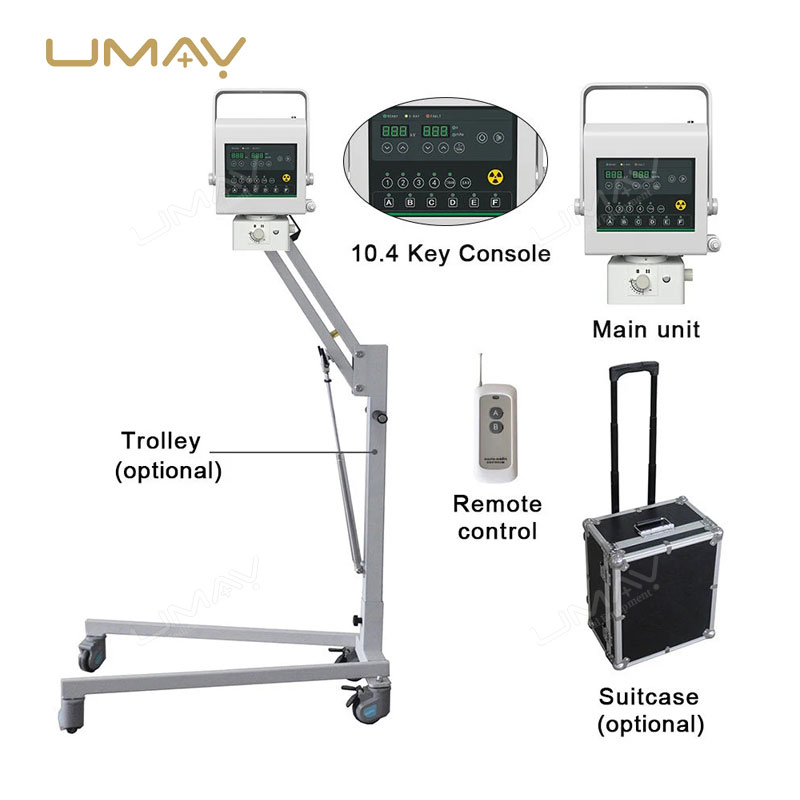

| Key Console Dimension | 10.4 inch |
| Physical Specifications | |
| Weight | 18.8 kg |
| Main Unit Dimensions | 290 × 260 × 230 mm |
Product Details

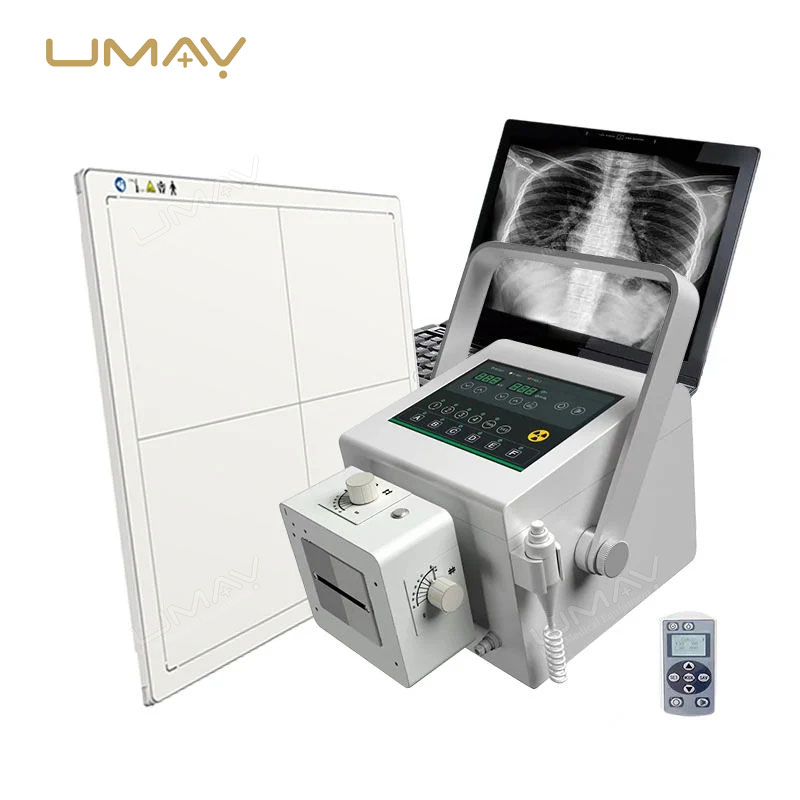

- Mobile X-Ray Machine with Digital Panoramic Ability: Advanced imaging system combining portability with comprehensive radiographic capabilities.
- Dual Imaging Functionality: Supports both standard radiography and panoramic imaging for versatile diagnostic applications.
- High-Resolution Digital Imaging: Produces clear, detailed images for accurate diagnosis and treatment planning.
- Digital Panoramic Technology: Captures wide-field images for comprehensive anatomical evaluation and enhanced diagnostic insight.
- Mobile and Flexible Design: Easily transported between departments, patient rooms, and healthcare facilities.
- Advanced Digital Radiography System: Provides rapid image acquisition and instant image processing for efficient workflow.
- Fast Image Capture: Reduces examination times and enables timely clinical decision-making.
- Reduced Radiation Exposure: Optimized imaging technology minimizes patient dose while maintaining superior image quality.
- Excellent Musculoskeletal Imaging: Delivers detailed visualization of bones, joints, and skeletal structures.
- Supports Full-Body Assessments: Suitable for comprehensive diagnostic examinations across multiple anatomical regions.
- Enhanced Diagnostic Accuracy: High-definition imaging improves detection of abnormalities and clinical conditions.
- Ideal for Bedside Imaging: Enables convenient examinations for patients with limited mobility.
- Reliable Emergency Imaging Solution: Supports rapid diagnostics in emergency departments and critical care settings.
- Superior Image Clarity: Provides excellent contrast resolution and anatomical detail for confident evaluations.
- User-Friendly Control Interface: Simplifies operation and improves workflow efficiency for healthcare professionals.
- Efficient Clinical Workflow: Combines mobility and digital processing to increase productivity and patient throughput.
- Durable Medical-Grade Construction: Designed for long-term reliability in demanding healthcare environments.
- Smooth Mobility and Positioning: Allows easy maneuverability and precise alignment during imaging procedures.
- Digital Image Management Compatibility: Integrates seamlessly with PACS, RIS, and hospital information systems.
- Versatile Clinical Applications: Suitable for orthopedics, trauma care, respiratory diagnostics, and general radiography.
- Excellent Soft Tissue Visualization: Supports detailed assessment of organs and soft tissue structures.
- Suitable for Multiple Healthcare Settings: Ideal for hospitals, clinics, diagnostic centers, emergency units, and mobile medical services.
- Improved Patient Safety: Combines low-dose imaging technology with efficient examination procedures.
- Stable and Consistent Performance: Ensures dependable image quality across routine and advanced diagnostic applications.
- Professional Mobile Imaging Solution: Combines panoramic imaging capability, digital radiography technology, mobility, and diagnostic precision to support high-quality patient care.
Detail Gallery
