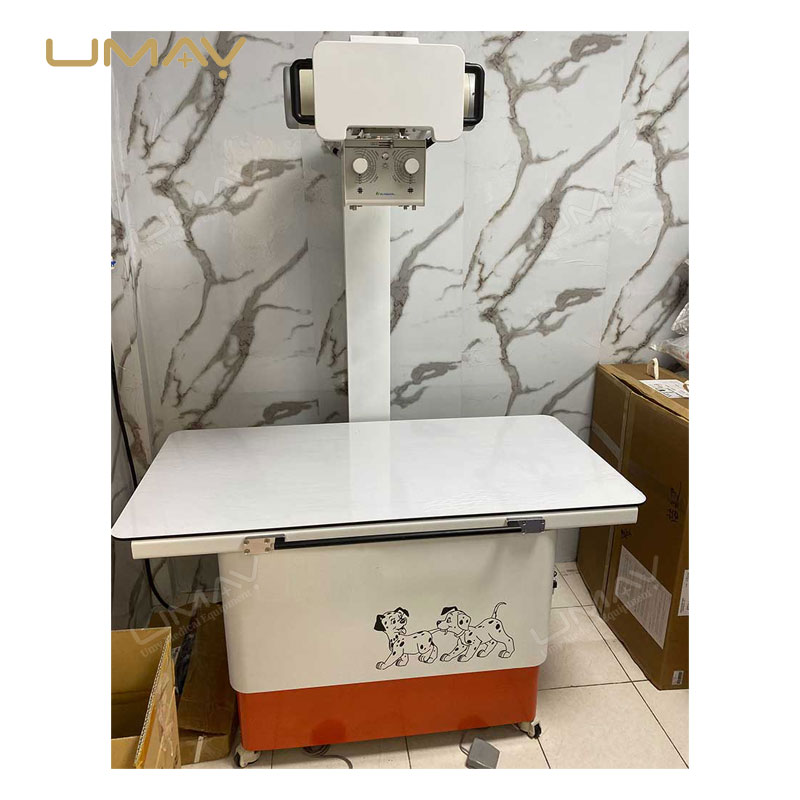

Veterinary Digital X-ray System for Animal Radiography – Ultra-Clear Imaging for Pets

The Veterinary Digital X‑ray System delivers ultra‑clear imaging specifically designed for animal radiography, ensuring accurate diagnoses for pets of all sizes. With high‑resolution digital capture and low‑radiation output, it provides crisp, detailed images while prioritizing the safety and comfort of both the animal and the operator. The system features an intuitive user interface, rapid image acquisition, and seamless integration with existing practice management software, streamlining workflow from capture to diagnosis. Its durable, easy‑to‑clean construction withstands the demands of a busy veterinary clinic, while the flexible positioning accommodates a wide range of species and body types. Backed by reliable factory support and competitive direct pricing, this system offers an exceptional balance of performance, affordability, and peace of mind—making it a valuable addition to any veterinary practice committed to delivering the highest standard of care.

The Veterinary Digital X-ray System is designed for high-resolution animal radiography, providing clear and detailed images to support accurate diagnostics for pets and livestock. This advanced imaging system is ideal for detecting fractures, joint issues, and internal organ abnormalities. With digital technology, it ensures faster image acquisition, reducing wait times and enhancing workflow efficiency in veterinary clinics. The system also minimizes radiation exposure, ensuring safety for both animals and veterinary staff. Reliable and efficient, this digital X-ray system supports better diagnostic outcomes and improves patient care.

Specific Parameters

编辑
ITEMS PARAMETERS
Main Parameters of Generator
kV Range 40~150kV
mA Range 32~630mA
Exposure Time Range 0.003~6.3s
mAs Range 1mAs~640mAs
Operating Frequency 30kHz
Power Supply Three Phases 380V ± 10%
Main Parameters of Tube
Nominal Focal Spot 1.0mm / 2.0mm
Anode Characteristics Rotation anode
Anode Speed 2800rpm
Anode Input Power 50kW @ large focal spot, 20kW @ small focal spot
Main Parameters of Detector
Active Area 427mm × 427mm
Resolution 3072 × 3072
Pixel Pitch 139μm

Product Details

Digital Veterinary X-ray System for Animal Radiography – Advanced Imaging for Pets
Digital Veterinary X-ray System for Animal Radiography – Advanced Imaging for Pets
Digital Veterinary X-ray System for Animal Radiography – Advanced Imaging for Pets
Power Source

Electric

Material

Aluminum and magnesium alloys

Device Classification

Class Ⅱ

MOQ

1

Transport Package

Carton or Wooden Cases

After-Sale Service

Online Technical Support

Warranty

1 Year

Origin

China

Production Capacity

500 Sets/Year
