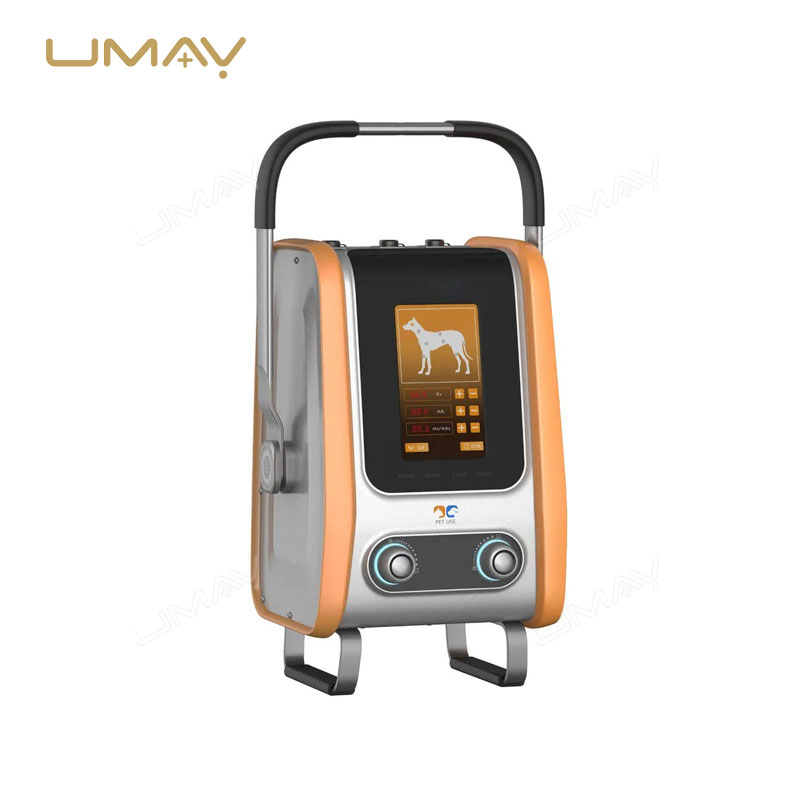

The Portable Cost-Savvy Veterinary X-ray Machine offers an affordable yet reliable solution for accurate diagnostic imaging in veterinary practices. Designed to provide clear and precise X-ray images, it helps veterinarians diagnose conditions such as fractures, joint issues, and internal injuries in both small and large animals. Its portable design allows for flexibility in various settings, including mobile clinics and fieldwork, ensuring fast and efficient imaging. Despite its budget-friendly price, this system delivers high-quality results while minimizing radiation exposure, supporting patient safety. Perfect for veterinary clinics seeking an economical, yet effective imaging solution.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | |
| Extra Power | 5.6kW / 8.0kW |
| Power Source | Supports battery-powered and 220VAC |
| Design | Multipurpose, lightweight; ideal for home medical care or emergencies |
| Application Scene | |
| Emergency | Suitable for use in emergency situations |
| Indoor Shooting | Suitable for indoor imaging |
| Oversea Voyage | Ideal for use during overseas voyages |
| Touch Screen | |
| Display | Integrated 7-inch capacitive display |
| APR Design | Touch screen APR design for convenient application |
| Touch Support | Supports MultiTouch |
| Durability | Wearproof, long service life, low maintenance costs |
| Portable Battery (Optional) | |
| Design | Integrated design, small dimension, lightweight, and large capacity |
| Performance | Fully charged battery can take 200 images |
| Charging | Supports 110V and 220V charging, convenient and fast |
| Dimensions | 111mm × 188mm × 486mm |
| Technical Specifications | |
| kVp Voltage | 40-125kV (increasing rate 1kV) |
| mAp Current Gears | 5.0, 6.3, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160 |
| Exposure Time | 3.2ms – 10s; |
| mAs | 0.1-250mAs |
| Working Frequency | 100kHz |
| X-Ray Tube | 0.6mm-1.5mm (40HU 4.0kW) / 0.6mm-2.8mm (76HU 8.0kW) |
| APR | 20 programs |
| Power Source | 220VAC-240VAC / Battery (optional) |
| Physical Specifications | |
| Weight | 15kg |
| Dimensions | 230mm × 250mm × 220mm |
| Note | Battery is external |
Product Details
- ortable Cost-Savvy Veterinary X-Ray Machine: Affordable imaging solution designed for reliable animal diagnostic examinations.
- Budget-Friendly Investment: Offers excellent imaging performance while helping veterinary practices control equipment costs.
- High-Resolution Digital Imaging: Produces clear, detailed X-ray images for accurate diagnosis and treatment planning.
- Portable and Lightweight Design: Easy to transport between examination rooms, farms, mobile clinics, and remote locations.
- Designed for Veterinary Applications: Specifically developed to meet the imaging needs of animal healthcare professionals.
- Excellent Fracture Detection: Provides detailed visualization of bones and joints for diagnosing fractures and orthopedic conditions.
- Supports Internal Injury Assessment: Enables accurate evaluation of internal organs, soft tissues, and traumatic injuries.
- Suitable for Small and Large Animals: Ideal for pets, companion animals, livestock, and equine patients.
- Fast Imaging Performance: Delivers rapid image acquisition to improve workflow and reduce examination times.
- Reduced Radiation Exposure: Optimized technology minimizes radiation dose while maintaining excellent image quality.
- Reliable Diagnostic Accuracy: High-definition imaging helps veterinarians make informed clinical decisions.
- Ideal for Mobile Veterinary Services: Perfect for farm visits, emergency animal care, and field diagnostic applications.
- User-Friendly Operation: Simple controls make the system easy to operate for veterinary professionals of all experience levels.
- Compact Space-Saving Structure: Fits easily into veterinary clinics, animal hospitals, and mobile medical vehicles.
- Durable Veterinary-Grade Construction: Built to withstand daily use and frequent transportation between locations.
- Flexible Imaging Capability: Allows efficient examinations in a variety of clinical and outdoor environments.
- Excellent Soft Tissue Visualization: Provides detailed imaging of organs and internal anatomical structures.
- Reliable Daily Performance: Ensures consistent image quality and dependable operation during routine examinations.
- Compatible with Digital Imaging Systems: Supports integration with flat panel detectors and veterinary imaging software.
- Enhanced Clinical Workflow: Streamlines radiography procedures and increases overall productivity.
- Supports Emergency Veterinary Care: Enables quick diagnostic imaging for urgent and critical animal health conditions.
- Improved Animal and Staff Safety: Combines low-dose imaging technology with efficient examination procedures.
- Ideal for Veterinary Clinics and Animal Hospitals: Suitable for practices seeking a cost-effective yet professional imaging solution.
- Supports Better Treatment Planning: Provides accurate diagnostic information for effective veterinary care and recovery monitoring.
- Professional Economical Veterinary Imaging Solution: Combines affordability, portability, reliability, and high-quality imaging to support modern animal healthcare and improved patient outcomes.
