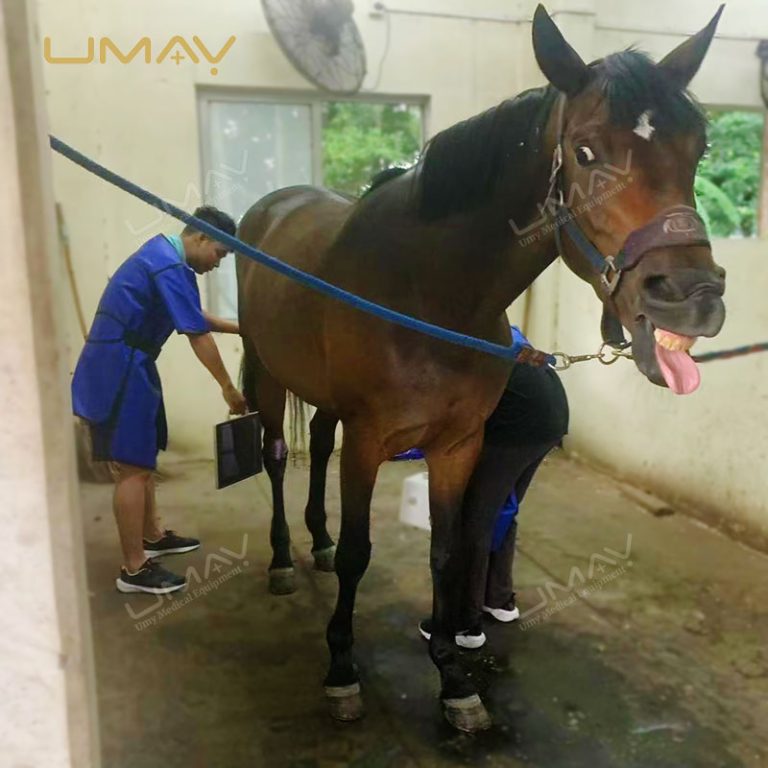

This veterinary compact X ray imaging system integrates a flat panel detector and control unit in a protective case for convenient field use. It is tailored for equine veterinarians, offering accurate diagnostic imaging of horse legs to evaluate bone injuries, joint conditions, and performance related concerns. The digital flat panel detector produces clear images in real time, enhancing clinical decisions and treatment. With its portable box style design, veterinarians can provide stable side or field side imaging without needing heavy equipment. The system is durable, lightweight, and built for equine practice demands. For additional animal diagnostic solutions, discover our Portable Full Digital Veterinary Ultrasound Scanner. Customized shells, OEM, ODM and SKD cooperation are accepted.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | 1.8kW |
| Working Frequency | ≥ 600kHz |
| Power Adaptability | 100~240V |
| Battery | |
| Battery Type | Detachable Li battery |
| Battery Capacity | Provides 300 exposures per charge |
| Exposure & Imaging | |
| Exposure Methods | Wireless / Hand brake (optional) |
| Laser Ranging | More convenient and intelligent |
| Collimator Design | Built-in |
| Electrical Parameters | |
| kV Range | 40-90kV |
| mA Range | 5-40mA |
| mAs Range | 0.1-20mAs |
| Focal Spot | 0.8mm |
| Physical Specifications | |
| Net Weight | 9kg |
| Gross Weight | 12kg |
| Machine Dimensions | 345*148*178mm |
| Carton Packing Dimensions | 490*260*360mm |
| Customization | |
| Shell & Branding | Customized shells accepted |
| OEM / ODM / SKD | Accepted |
Product Details
- Portable Mobile X-Ray System: Compact cart-based design integrates the X-ray generator, imaging workstation, and laptop system for convenient mobile diagnostic operation.
- Lightweight and Easy-to-Move Structure: Equipped with a foldable trolley and flexible wheels for smooth transportation between examination rooms, clinics, farms, and field medical environments.
- Integrated Digital Imaging Workflow: Combined with a laptop imaging workstation for fast image acquisition, real-time viewing, and efficient diagnostic data management.
- High-Precision Imaging Performance: Advanced digital radiography technology provides clear and detailed diagnostic images to support accurate medical and veterinary examinations.
- Ideal for Mobile and Field Applications: Suitable for mobile healthcare services, veterinary clinics, emergency diagnostics, rural medical programs, and outdoor imaging operations.
- Efficient and User-Friendly Operation: Streamlined portable setup allows quick deployment, simplified workflow management, and reliable imaging performance in diverse clinical environments.

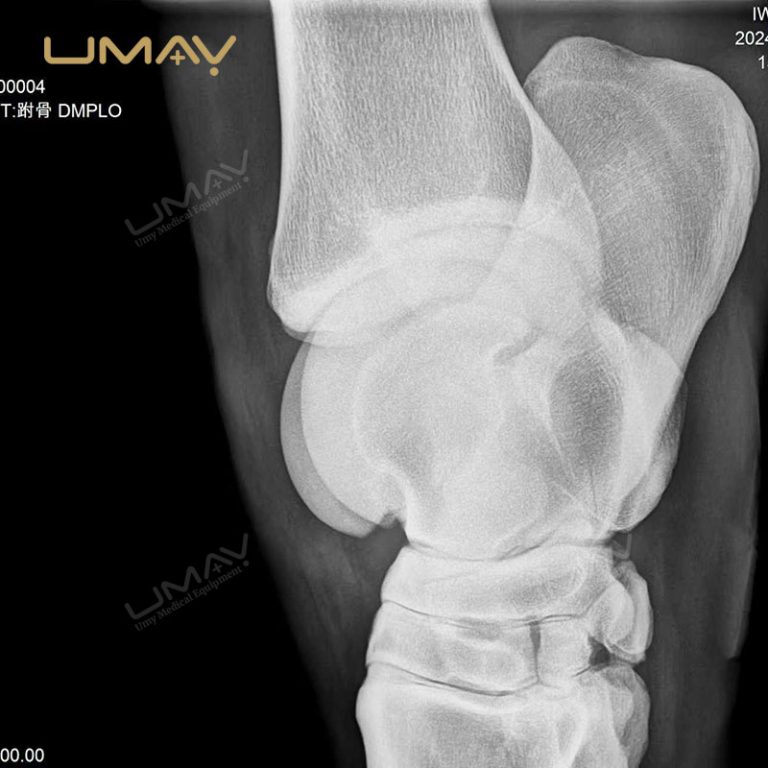

- High-Quality Radiographic Image: Clear and detailed X-ray visualization of bones and joints, supporting accurate diagnostic evaluation.
- Precise Anatomical Detail: Shows sharp bone contours and joint structures, aiding in clinical assessment and treatment planning.
- Optimized for Diagnostic Accuracy: Captures fine skeletal details to assist healthcare professionals in identifying fractures, abnormalities, or other musculoskeletal conditions.
- Digital Imaging Clarity: Produced using a high-resolution digital radiography system for reliable and consistent image quality.
- Versatile Clinical Application: Suitable for human orthopedic evaluation, veterinary diagnostics, and routine musculoskeletal imaging.
- Efficient Workflow Support: High-resolution digital capture ensures quick examination and easy integration into PACS or clinical imaging systems.

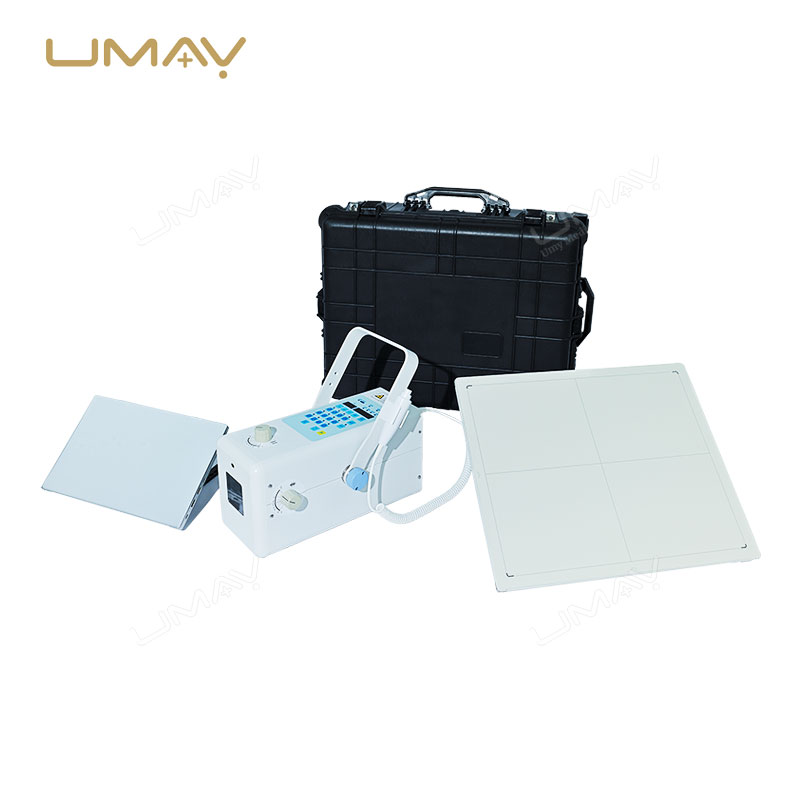

- Portable Digital X-Ray Imaging Kit: Complete mobile radiography solution designed for convenient transportation and rapid deployment in medical and veterinary diagnostic environments.
- Compact and Lightweight Design: Portable X-ray generator and flat-panel detector system allow easy carrying and flexible operation in clinics, hospitals, farms, and field applications.
- High-Resolution Digital Imaging: Equipped with a digital flat-panel detector that delivers clear, detailed, and accurate radiographic images for reliable diagnostic evaluation.

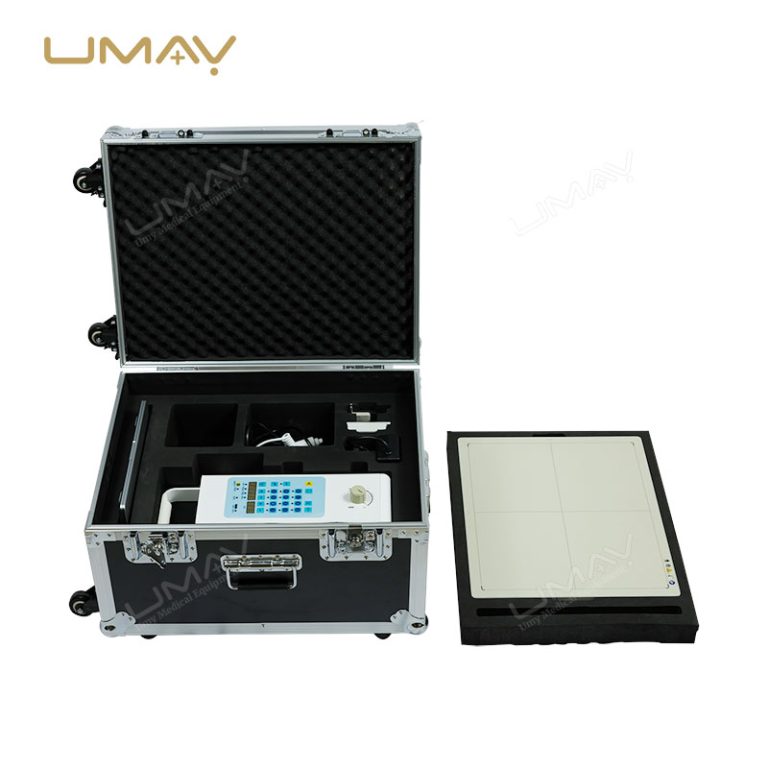

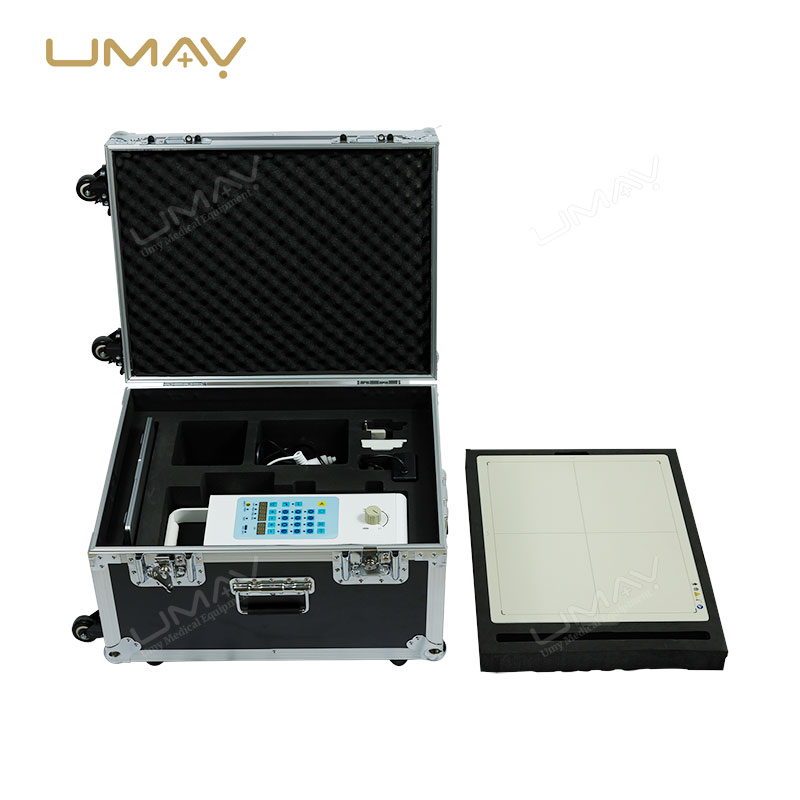

- Protective Carrying Case Included: Durable hard-shell transport case provides secure storage and protects equipment during travel, transportation, and outdoor operations.
- Fast and Efficient Workflow: Supports rapid image acquisition and streamlined diagnostic procedures to improve examination efficiency and patient management.
- Ideal for Mobile and Field Diagnostics: Suitable for emergency care, mobile healthcare services, veterinary clinics, equine examinations, rural medical programs, and outdoor imaging applications requiring dependable portable radiography solutions.
