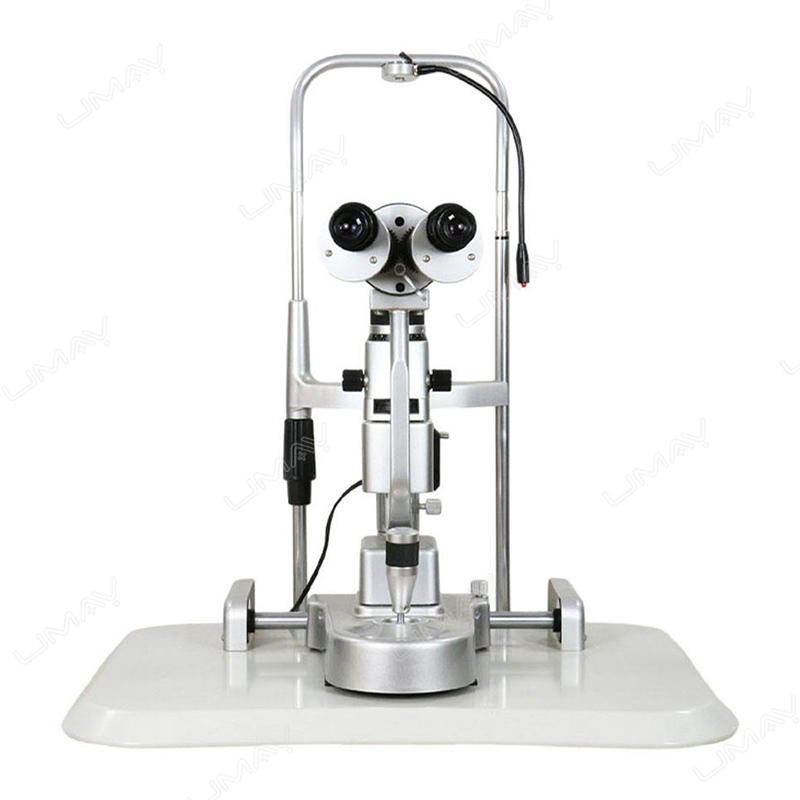

The UMSLPLDK001 LED Slit Lamp Microscope is a compact 2-step
ophthalmic slit lamp system combining a binocular converging stereomicroscope
with LED illumination and adjustable slit controls.
The microscope provides 10X and 16X magnification together with
adjustable slit width, slit length, spot diameter and slit angle. A 3.3V 10W LED
light source and red LED fixation lamp are integrated into the system for routine
slit-lamp observation.
Key Features
- 2-step magnification system: 10X and 16X
- Binocular converging stereomicroscope
- 10X eyepiece
- Field of view: Φ14 mm and Φ17.5 mm
- Adjustable pupil distance: 55–85 mm
- Adjustable diopter: > ±7D
- Slit width adjustable from 0–14 mm
- Slit length adjustable from 1–14 mm
- Five selectable spot diameters
- Slit angle adjustable from 0–180°
- Heat absorption, grey, red-free and cobalt blue filters
- 3.3V 10W LED illumination
- Red LED fixation lamp
- 110V/60Hz or 220V/50Hz power options
- Optional instrument table, applanation tonometer and smartphone adaptor
10X / 16X Two-Step Magnification
UMSLPLDK001 uses a simple two-step magnification design with
10X and 16X observation settings.
The system uses a 10X eyepiece and binocular converging
stereomicroscope configuration. This straightforward optical design is intended
for routine slit-lamp observation without the complexity of a multi-step
magnification system.

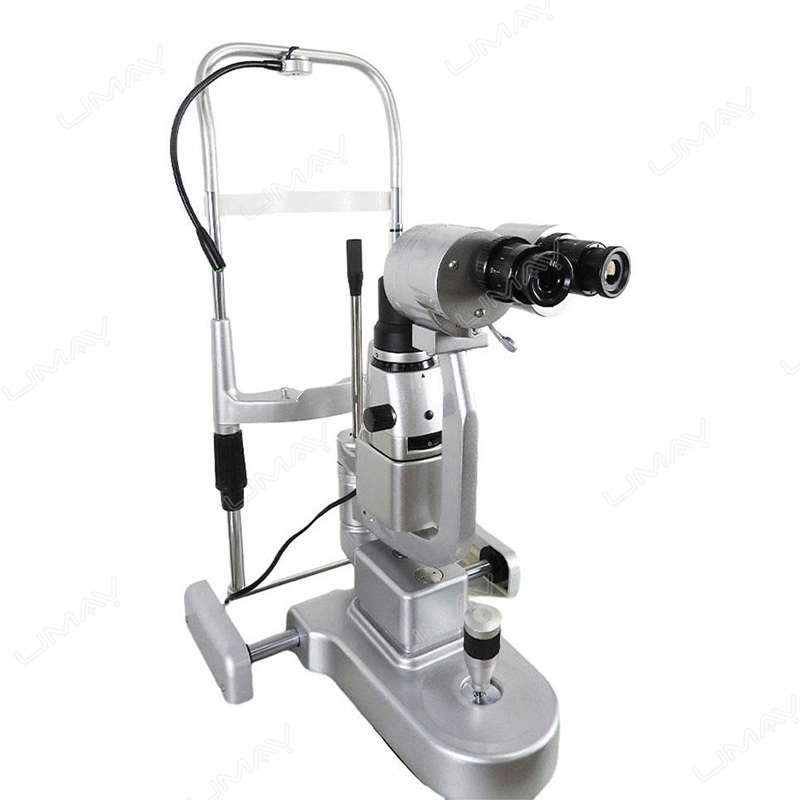

Binocular Observation System
The microscope provides binocular stereoscopic observation with an adjustable
pupil distance of 55–85 mm.
The diopter adjustment range is specified as > ±7D,
allowing the optical system to be adjusted according to the operator’s viewing needs.
| Magnification | Field of View |
|---|---|
| 10X | Φ17.5 mm |
| 16X | Φ14 mm |

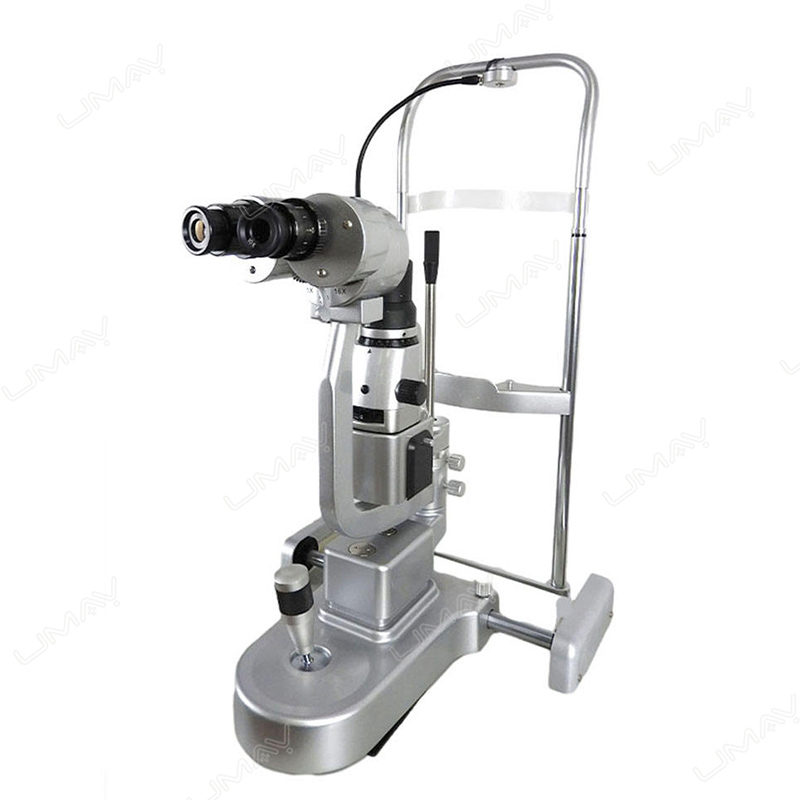

Adjustable Slit Illumination
The slit illumination system can be adjusted according to the required observation
condition.
- Slit Width: 0–14 mm adjustable
- Slit Length: 1–14 mm adjustable
- Slit Angle: 0–180°
Five spot diameters are available:
- Φ0.3 mm
- Φ2 mm
- Φ5.5 mm
- Φ9 mm
- Φ14 mm
LED Illumination System
UMSLPLDK001 uses a 3.3V 10W LED lamp as the main illumination source.
The system also includes a red LED fixation lamp.
The LED illumination configuration eliminates the need for the conventional
halogen bulb specification used on some older slit-lamp platforms.
Optical Filters
The slit lamp includes four filter options for different observation requirements:
- Heat absorption filter
- Grey filter
- Red-free filter
- Cobalt blue filter
Technical Specifications
| Model | UMSLPLDK001 |
|---|---|
| Product Type | LED slit lamp microscope |
| Microscope Type | Binocular converging stereomicroscope |
| Eyepiece | 10X |
| Magnification | 10X, 16X |
| Field of View | Φ14 mm, Φ17.5 mm |
| Adjustable Pupil Distance | 55–85 mm |
| Adjustable Diopter | > ±7D |
| Slit Width | 0–14 mm adjustable |
| Slit Length | 1–14 mm adjustable |
| Spot Diameter | Φ0.3, Φ2, Φ5.5, Φ9, Φ14 mm |
| Slit Angle | 0–180° |
| Filters | Heat absorption, Grey, Red-free, Cobalt blue |
| Main Illumination | 3.3V, 10W LED lamp |
| Fixation Lamp | Red LED |
| Input Voltage | AC110V / 60Hz or AC220V / 50Hz |
| Input Power | 80VA |
Optional Accessories
The UMSLPLDK001 can be configured with optional accessories according to the
required examination and imaging workflow.

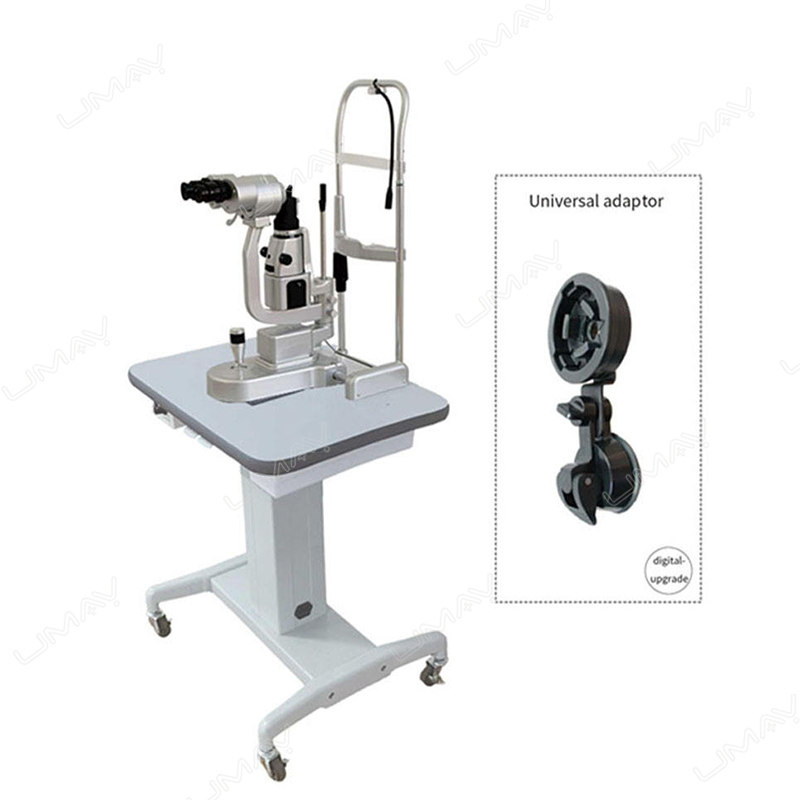

- Instrument table
- Applanation tonometer
- Smartphone adaptor
A digital or smartphone imaging adaptor can be selected when image capture is required.
Please confirm whether the adaptor is required when requesting a quotation.
Before Ordering
For configuration confirmation and quotation, please provide:
- Required quantity
- 110V / 60Hz or 220V / 50Hz power requirement
- Whether an instrument table is required
- Whether an applanation tonometer is required
- Whether smartphone or digital imaging is required
- Destination country
Optional accessories should be confirmed before quotation because they are not
necessarily included in the standard configuration.
Request UMSLPLDK001 Slit Lamp Quotation
Contact UMY Medical with your required quantity, power supply and optional
accessory requirements for configuration confirmation and quotation.
FAQ
What magnifications does the UMSLPLDK001 provide?
The microscope provides two magnification settings: 10X and 16X.
What illumination system does it use?
The UMSLPLDK001 uses a 3.3V 10W LED lamp together with a red LED fixation lamp.
What filters are included?
The specified filter configuration includes heat absorption, grey, red-free
and cobalt blue filters.
Can a smartphone be connected to the slit lamp?
A smartphone adaptor is listed as an optional accessory and can be selected
when digital image capture is required.
Is an applanation tonometer included?
The applanation tonometer is listed as an optional accessory and should be
specified separately when requesting a quotation.
