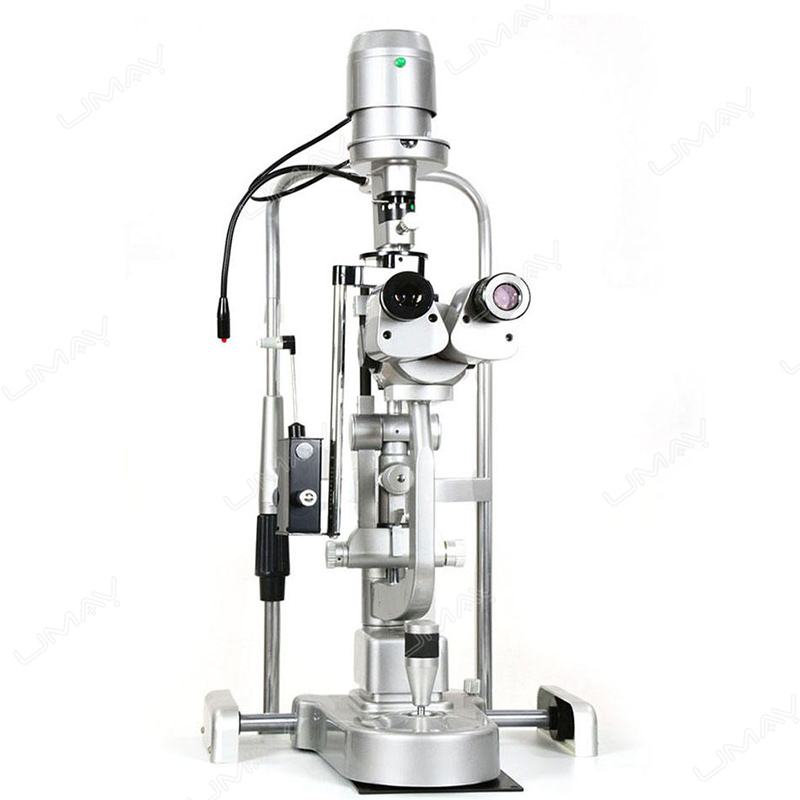

Slit Lamp Microscope for Ophthalmic Examination
This slit lamp microscope is designed for routine ophthalmic examination in hospitals, eye clinics and specialist ophthalmology departments. It combines a converging stereoscopic microscope with adjustable slit illumination to support detailed observation of the anterior segment of the eye.
The optical system provides 10X and 16X magnification with adjustable interpupillary distance and diopter correction. Multi-coated, mildew-resistant and anti-reflection lenses support clear binocular observation during routine clinical use.
The illumination unit provides continuously adjustable slit width and length, selectable spot diameters, multiple filters and adjustable slit inclination. Optional accessories including an applanation tonometer, instrument table and smartphone adaptor can be selected according to the required examination workflow.
Key Features
Converging Stereo Microscope
The converging binocular stereoscopic optical system provides depth perception for routine slit-lamp examination of anterior eye structures.
10X & 16X Magnification
Two selectable magnification levels provide a simple optical configuration for routine examination and more detailed observation.
Multi-Coated Optical System
The lenses use multi-coating treatment together with mildew-resistant and anti-reflection properties to support optical clarity and routine clinical operation.
Adjustable Slit Beam
Slit width can be continuously adjusted from 0–10 mm and slit length from 1–10 mm to suit different ophthalmic observation requirements.
0–180° Slit Rotation
The illumination slit can rotate through 0–180°, while selectable inclination angles support different observation geometries.
Multiple Illumination Filters
Heat-absorption, grey, red-free and cobalt-blue filters are provided for different ophthalmic examination workflows.
Halogen Illumination
The illumination system supports a 12V/30W or 12V/50W halogen bulb together with a red LED fixation lamp.
Optional Clinical Accessories
An applanation tonometer, instrument table and smartphone adaptor can be selected according to the required examination and documentation workflow.
Clinical Applications
The slit lamp microscope is intended for routine eye examination and anterior-segment observation in ophthalmology departments and eye-care facilities.
- Routine ophthalmic outpatient examination.
- Corneal observation.
- Anterior chamber examination.
- Iris observation.
- Lens examination.
- General eye-clinic consultation.
- Contact-lens related observation workflows.
- Fluorescein examination using cobalt-blue illumination when clinically appropriate.
Microscope Optical System
| Microscope Type | Converging Stereomicroscope |
|---|---|
| Eyepiece | 10X |
| Total Magnification | 10X / 16X |
| Magnification Steps | 2 Steps |
| Field of View | Ø14 mm / Ø17.5 mm |
| Interpupillary Distance | 55–85 mm Adjustable |
| Diopter Adjustment | >±7D |
| Lens Treatment | Multi-Coated, Mildew-Resistant and Anti-Reflection |
Slit Illumination System
| Slit Width | 0–10 mm, continuously adjustable |
|---|---|
| Slit Length | 1–10 mm, continuously adjustable |
| Illumination Spot Diameter | Ø0.2 / Ø2 / Ø3 / Ø5 / Ø8 / Ø10 mm |
| Slit Rotation | 0–180° |
| Slit Inclination | 0° / 5° / 10° / 15° / 20° |
| Filters | Heat Absorption / Grey / Red-Free / Cobalt Blue |
| Main Illumination | 12V/30W or 12V/50W Halogen Bulb |
| Fixation Lamp | Red LED |
Illumination Filters
Heat-Absorption Filter
Reduces heat transmission from the illumination system during routine examination.
Grey Filter
Reduces illumination intensity when a lower light level is preferred.
Red-Free Filter
Provides enhanced contrast for selected ophthalmic observation workflows.
Cobalt-Blue Filter
Provides blue illumination for examination workflows that use suitable fluorescent ophthalmic staining methods.
Technical Specifications
| Product Type | Ophthalmic Slit Lamp Microscope |
|---|---|
| Optical System | Converging Binocular Stereomicroscope |
| Magnification | 10X / 16X |
| Eyepiece | 10X |
| Interpupillary Distance | 55–85 mm |
| Diopter Adjustment | >±7D |
| Slit Width | 0–10 mm |
| Slit Length | 1–10 mm |
| Slit Rotation | 0–180° |
| Slit Inclination | 0° / 5° / 10° / 15° / 20° |
| Illumination Filters | Heat Absorption, Grey, Red-Free, Cobalt Blue |
| Light Source | Halogen |
| Halogen Bulb | 12V/30W or 12V/50W |
| Fixation Lamp | Red LED |
| Power Supply | AC110V / 60Hz or AC220V / 50Hz |
| Input Power | 80 VA |
Optional Accessories
The final slit lamp configuration can be selected according to the clinical examination requirements of the hospital or ophthalmology clinic.

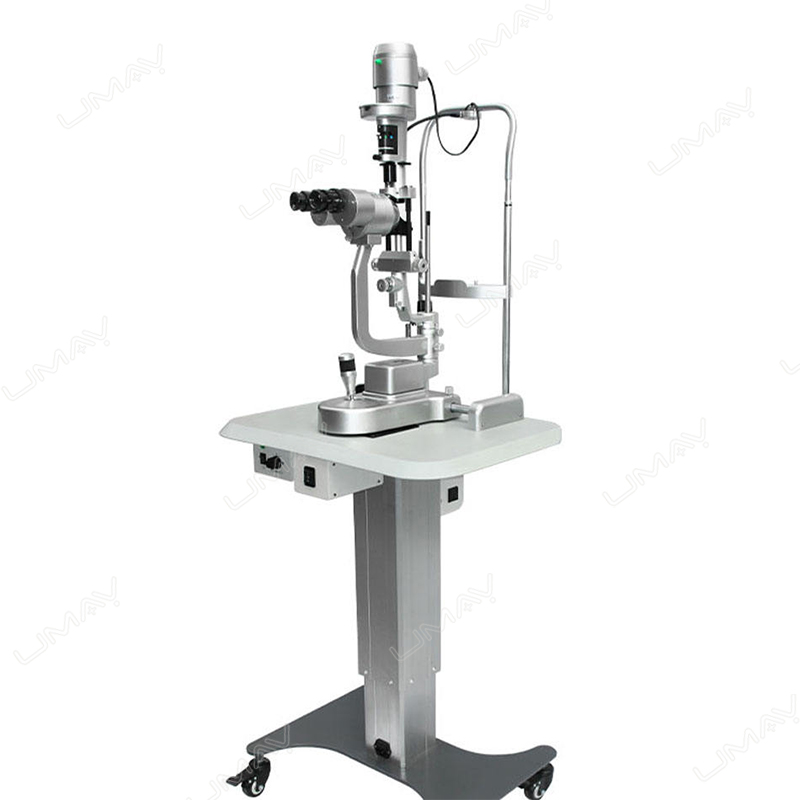

| Instrument Table | Optional |
|---|---|
| Applanation Tonometer | Optional |
| Smartphone Adaptor | Optional |
Accessory compatibility and mounting requirements should be confirmed before ordering.
Applanation Tonometer Option
An optional applanation tonometer can be configured when intraocular-pressure measurement is required as part of the ophthalmology examination workflow.
The tonometer model, mounting bracket and compatibility with the selected slit lamp configuration should be confirmed before quotation.

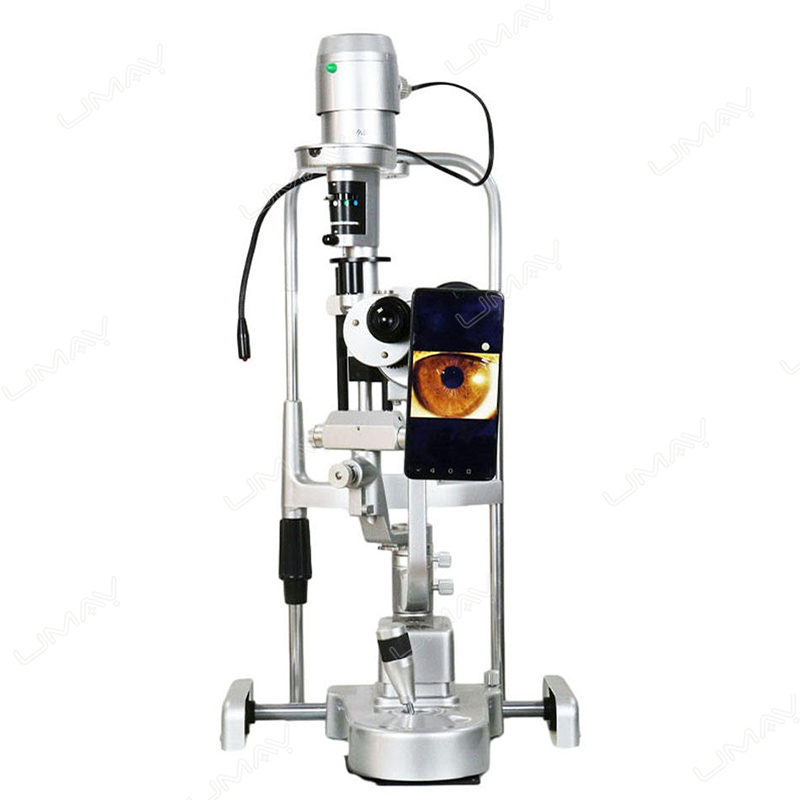

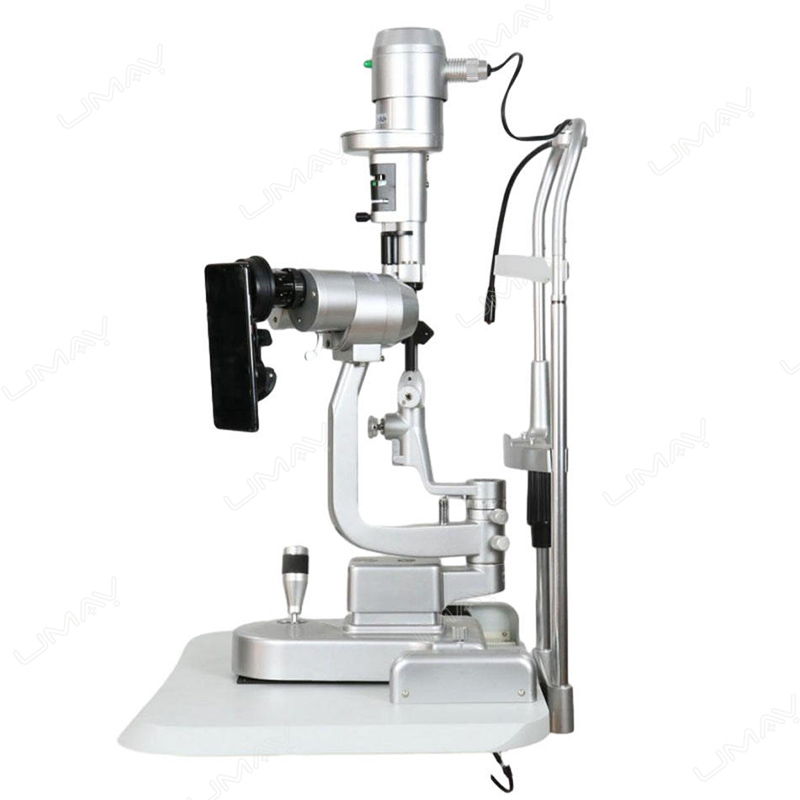

Smartphone Imaging Option
A smartphone adaptor can be added for selected image-documentation workflows. The adaptor allows a compatible smartphone to be positioned with the microscope optical path for basic examination-image capture.
Smartphone compatibility, adaptor type and required mounting components should be confirmed before ordering.
Before Ordering
Please provide the following information so the slit lamp configuration and quotation can be confirmed.
- Required quantity.
- Destination country.
- Required voltage and frequency.
- Preferred illumination configuration.
- Need for an instrument table.
- Need for an applanation tonometer.
- Need for a smartphone imaging adaptor.
- Intended hospital, ophthalmology clinic or distributor application.
- Required tender or technical documentation.
Request a Slit Lamp Quotation
Looking for a slit lamp microscope for an ophthalmology clinic, hospital, distributor project or tender? Send us your quantity, destination and required accessories for configuration review and quotation.
Send Your Requirements
Please provide the required quantity, destination country, local power supply and optional accessory requirements. Tender specifications or equipment lists can also be sent directly for review.
Frequently Asked Questions
Is this a slit lamp or a microscope?
It is a slit lamp microscope, also known as a slit lamp biomicroscope. The system combines a binocular stereomicroscope with an adjustable slit illumination unit for ophthalmic examination.
What magnification levels are available?
The microscope provides two magnification levels: 10X and 16X.
What filters are included?
The illumination system includes heat-absorption, grey, red-free and cobalt-blue filters.
Can an applanation tonometer be installed?
Yes. An applanation tonometer is available as an optional accessory. The compatible tonometer and mounting configuration should be confirmed before ordering.
Can the slit lamp be used with a smartphone?
A smartphone adaptor is available as an optional accessory for selected image-documentation workflows.
What information is required for quotation?
Please provide the required quantity, destination country, power supply, optional accessories and any tender or technical requirements.
