Ophthalmic Ultrasound A-Scan/B-Scan/Pachymetry Systems UMH-3000A & UMH-2000AP
The UMH-2000AP Ultrasound Systems are engineered to provide ophthalmologists and clinical practitioners with high-resolution imaging and precise biometric measurements for comprehensive eye care evaluations. Available in 3-in-1 (UMH-3000A) and 2-in-1 (UMH-2000AP) configurations, the series ensures accurate diagnosis of intraocular structures, axial length, corneal thickness, and pathology.
Equipped with advanced closed-loop magnetic-driven B-scan probes, high-frequency 20MHz pachymetry probes, and intuitive touchscreen interfaces, the systems streamline clinical workflows and patient comfort.
Supported by versatile IOL calculation formulas, dynamic range adjustments, and built-in or external reporting options, the series integrates seamlessly into modern ophthalmic practices and hospital departments.
Key Features
3-in-1 & 2-in-1 Configurations
UMH-3000A combines A-Scan, B-Scan, and Pachymetry, while UMH-2000AP offers a compact A-Scan and Pachymetry solution.
High-Frequency Pachymetry
Equipped with a 20MHz P-probe delivering high sensitivity, fast marking, and precision corneal thickness measurement accuracy under 5μm.
Dynamic Range Adjustment
Allows 106 ultrasound images with different gains to be saved in one freezing moment for optimal lesion observation (UMH-3000A).
Advanced IOL Calculations
Includes multiple common formulas (SRK-II, SRK-T, Hoffer Q, Holladay, Haigis, Binkhorst II) plus post-refractive methods.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Models | UMH-2000AP (A/P) |
| B-Scan (UMH-3000A) | Frequency: 10MHz; Scan Mode: Closed-loop Magnetic-driven; Depth: 40mm, 60mm; Gain: 0-105dB |
| A-Scan (Both Models) | Frequency: 10MHz; Depth: 0-40mm; Accuracy: <0.05mm |
| Pachymetry (Both Models) | Frequency: 20MHz; Accuracy: <5μm; Depth: 0.15mm-1.5mm |
| IOL Calculation Methods | SRK-II, SRK-T, Binkhorst II, Hoffer Q, Holladay, Haigis (+ post-refractive methods on UMH-3000A) |

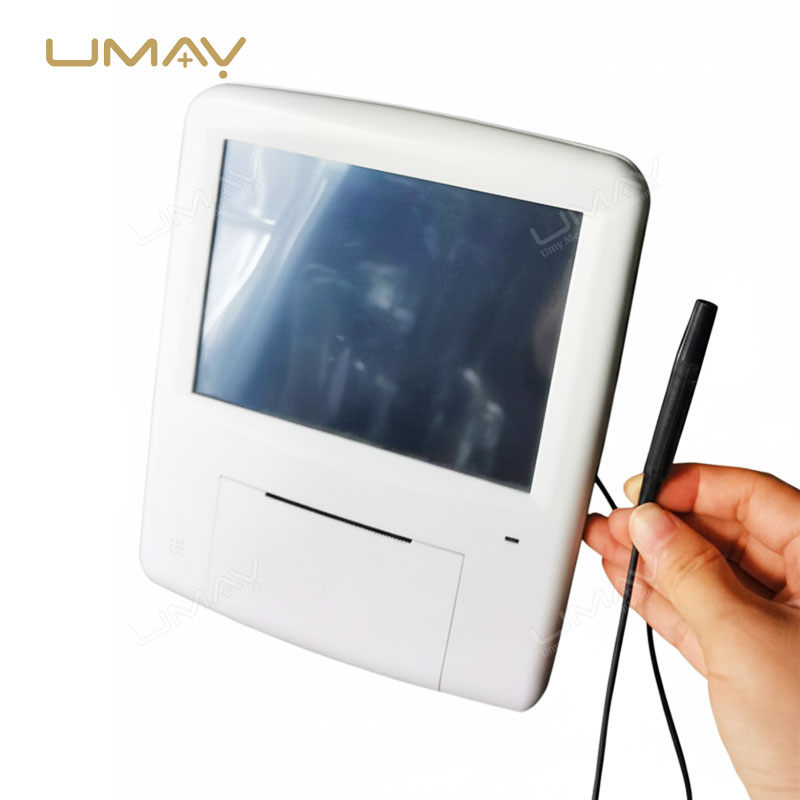

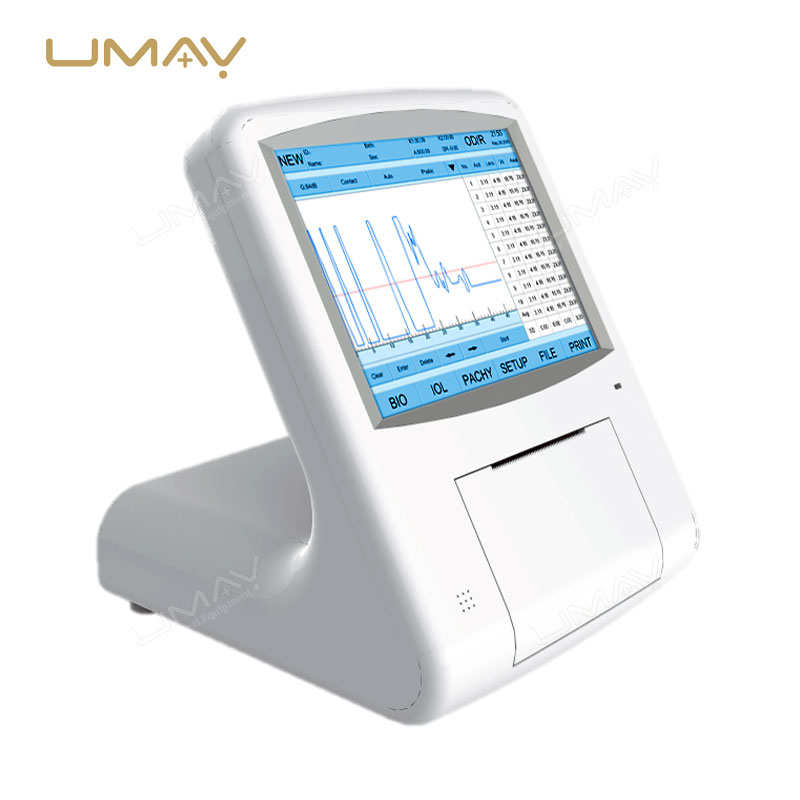

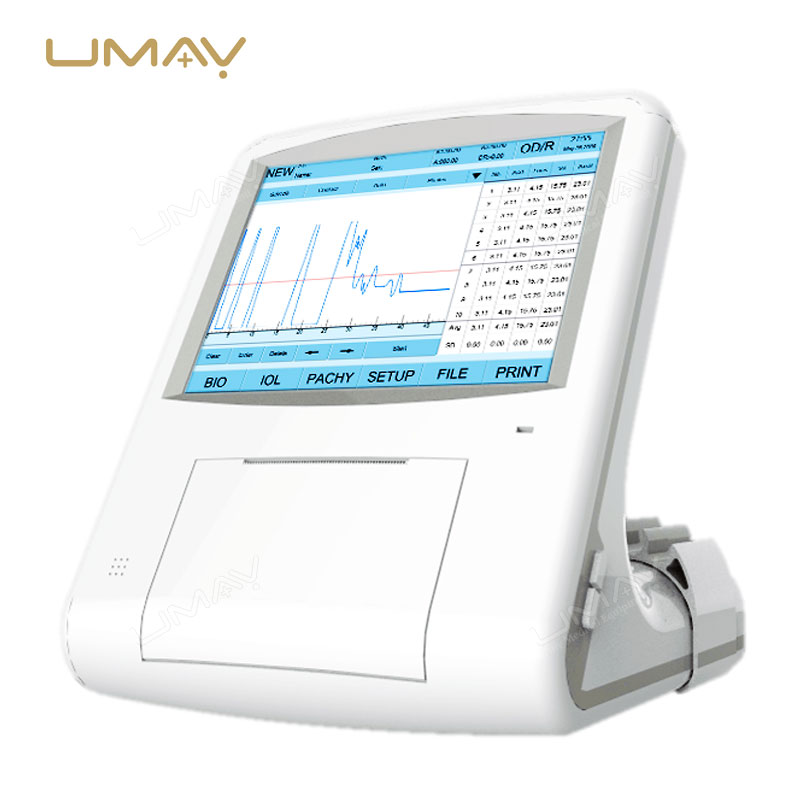

| Display & System | UMH-3000A: 12.1-inch touch screen, embedded system; UMH-2000AP: 6.5-inch color touch screen |
| Data Storage & Print | UMH-3000A: PC software & HP regular printer; UMH-2000AP: 200 copies exam data & built-in thermal printer |
- Specifications are based on official technical datasheets for the UMH-2000AP Ultrasound Systems.
- Please verify required model selection prior to ordering.
Applications
Ophthalmic Biometry & IOL Power Calculation
Provides accurate axial length measurements and intraocular lens power calculations for cataract surgery planning.
Vitreoretinal & Intraocular Pathology Diagnosis
Enables detailed B-scan structural evaluation of the vitreous body, retina, and intraocular lesions.
Corneal Thickness Measurement (Pachymetry)
Offers high-precision pachymetry essential for glaucoma evaluation, refractive surgery screening, and corneal pathologies.
System Configuration

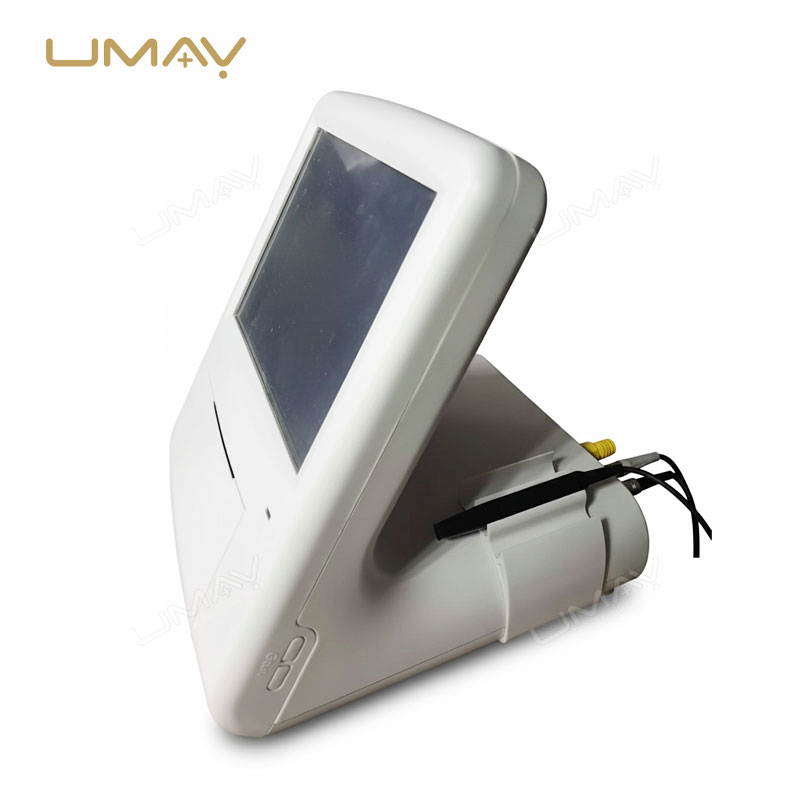

The UMH-2000AP Ophthalmic Ultrasound systems are supplied complete with the main console unit, ultrasonic probes (A, B, and P as configured), footswitch, power cords, and software package.
Please confirm your selected model version UMH-2000AP and printer requirements prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Model selection: UMH-2000AP (2-in-1).
- Clinic room power standards and printer compatibility preferences.
Request an Ophthalmic Ultrasound Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your eye clinic or hospital.
Frequently Asked Questions
What are the main differences between the UMH-3000A and UMH-2000AP?
The UMH-3000A features a 3-in-1 system (A-Scan, B-Scan, Pachymetry) with a 12.1-inch touch screen, while the UMH-2000AP is a 2-in-1 system (A-Scan and Pachymetry) with a 6.5-inch touch screen.
What is the advantage of the closed-loop magnetic-driven B-scan probe?
It provides noise-free, low-vibration operation with mechanical abrasion avoidance, significantly extending probe service life and scanning accuracy.
What is the measurement accuracy of the pachymetry probe?
The 20MHz pachymetry probe delivers measurement accuracy of less than 5μm.
What IOL calculation formulas are supported?
Both systems support standard formulas including SRK-II, SRK-T, Hoffer Q, Holladay, Haigis, and Binkhorst II.
