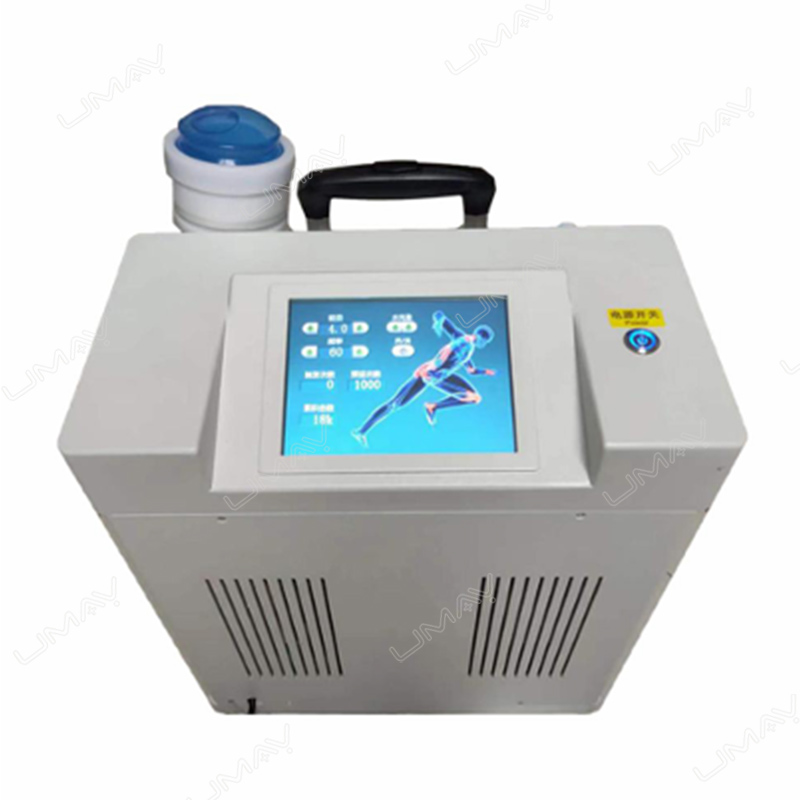

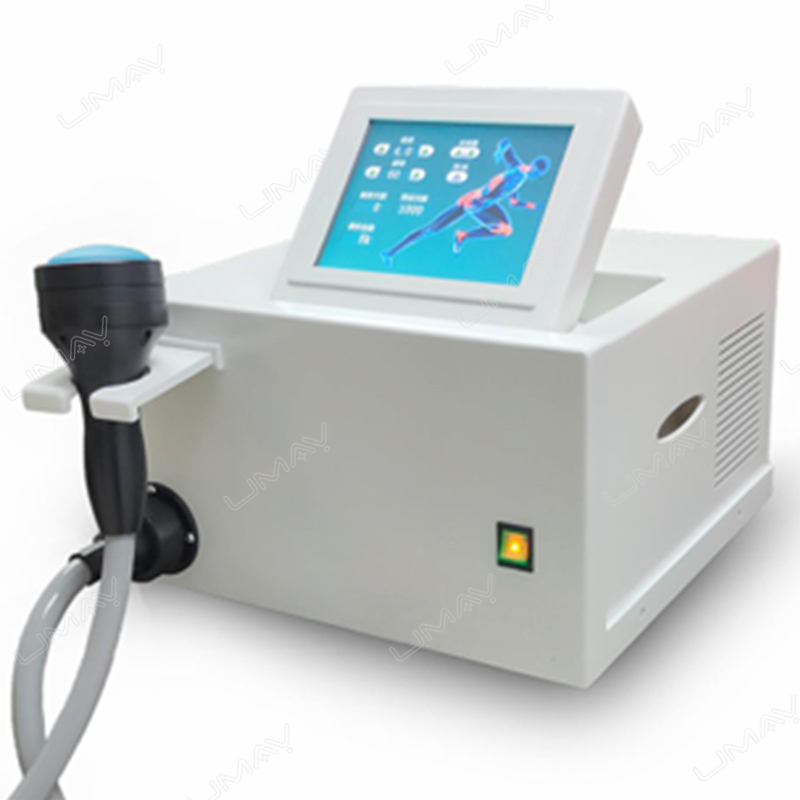

The Electromagnetic Focused ESWT Machine is a focused
extracorporeal shock wave therapy system designed for musculoskeletal rehabilitation
and physiotherapy applications.
The system uses an electromagnetic coil to generate shock waves.
The generated wave passes through a water-coupled treatment head and is concentrated
by a concave acoustic focusing structure before being delivered to the selected
treatment area.
The system provides a treatment depth of up to 80 mm and supports
adjustable energy settings with continuous shock-wave triggering for controlled
therapy procedures.
Key Features
- Electromagnetic focused shock wave technology
- Water-coupled focused treatment head
- Maximum treatment depth: up to 80 mm
- Adjustable energy range: 4E–10E
- High-voltage pulse energy storage: 4.5–50 J
- Continuous trigger mode
- Trigger frequency: 60–120 shocks/min
- Electromagnetic shock-wave source
- Touchscreen operating interface
- Designed for orthopedic rehabilitation and physiotherapy workflows
Electromagnetic Focused Shock Wave Technology
The system generates a strong magnetic field through an electromagnetic coil.
Through electromagnetic induction, a plane shock wave is produced and transmitted
through the water-coupled section behind the treatment membrane.
The shock wave is then concentrated by a concave acoustic focusing structure,
allowing energy to be delivered to a defined treatment area rather than being
distributed broadly over the skin surface.
Focused ESWT vs. Radial Shock Wave
This product uses focused extracorporeal shock wave technology.
It should not be confused with pneumatic radial pressure-wave devices commonly
marketed as radial shock wave machines.
- Focused ESWT: concentrates acoustic energy at a defined
focal area below the skin surface. - Radial pressure wave: distributes mechanical energy outward
from the applicator surface with a different energy profile.
The appropriate treatment technology should be selected according to the intended
clinical application and local medical practice requirements.
Up to 80 mm Treatment Depth
The specified treatment depth is up to 80 mm, allowing focused
shock-wave energy to reach deeper musculoskeletal treatment areas compared with
surface-focused mechanical massage devices.
Actual treatment settings and target depth should be selected by a qualified
operator according to the treatment site, patient condition and applicable
clinical protocol.
Adjustable Shock Wave Energy
The system supports adjustable energy settings from 4E to 10E.
Its high-voltage pulse-energy storage range is specified at
4.5–50 J.
Adjustable output allows the operator to select treatment parameters according
to the intended protocol rather than using a single fixed energy setting.
Continuous Shock Wave Triggering
The therapy system operates in continuous trigger mode with a
trigger frequency of approximately 60–120 shocks per minute.
Treatment duration and total shock count should be determined according to the
relevant clinical protocol and operator assessment.
Typical Application Areas
The supplied product documentation lists the system for musculoskeletal
rehabilitation applications involving areas such as:
- Joint-related musculoskeletal discomfort
- Neck and shoulder areas
- Lower back and lumbar areas
- Heel and plantar regions
Use of extracorporeal shock wave therapy should be determined by qualified
healthcare professionals according to the patient’s condition, contraindications
and applicable treatment guidelines.
Technical Specifications
| Product Type | Electromagnetic focused extracorporeal shock wave therapy system |
|---|---|
| Shock Wave Technology | Electromagnetic focused shock wave |
| Focusing Method | Water-coupled acoustic focusing system |
| Maximum Treatment Depth | Up to 80 mm |
| Energy Range | 4E–10E |
| High-Voltage Pulse Energy Storage | 4.5–50 J |
| Trigger Mode | Continuous |
| Trigger Frequency | 60–120 shocks/min |
| Operating Voltage | AC 220V ±10% |
| Power Frequency | 50 Hz ±1 |
| Rated Power | ≤500 VA |
| Operating Temperature | 10–30°C |
| Operating Relative Humidity | ≤80% |
| Operating Atmospheric Pressure | 860–1060 hPa |
Operating Environment
For stable operation, the therapy system should be installed in a clean,
well-ventilated indoor environment within the specified operating conditions.
- Room temperature: 10–30°C
- Relative humidity: ≤80%
- Atmospheric pressure: 860–1060 hPa
- Power supply: AC 220V ±10%, 50 Hz ±1
Before Ordering
For configuration confirmation and quotation, please provide:
- Required quantity
- Intended clinical or rehabilitation application
- Required treatment depth
- Required energy configuration
- Local voltage and frequency
- Required accessories or treatment head configuration
- Required technical or regulatory documentation
- Destination country
Product configuration, approved indications and regulatory status may vary by
market. Please confirm the required documentation and local registration
requirements before ordering.
Request Focused ESWT Machine Quotation
Contact UMY Medical with your required application, configuration,
quantity and destination country for technical confirmation and quotation.
FAQ
What type of shock wave technology does this system use?
It uses an electromagnetic focused shock wave source with a water-coupled
acoustic focusing structure.
What is the maximum treatment depth?
The specified treatment depth is up to 80 mm.
What is the shock frequency?
The system supports continuous triggering at approximately 60–120 shocks per minute.
Is this a radial shock wave machine?
No. This system uses focused electromagnetic extracorporeal shock wave technology,
which differs from pneumatic radial pressure-wave systems.
Can treatment parameters be adjusted?
Yes. The system provides adjustable energy settings from 4E to 10E.
Actual treatment parameters should be selected by qualified operators according
to the intended clinical protocol.
