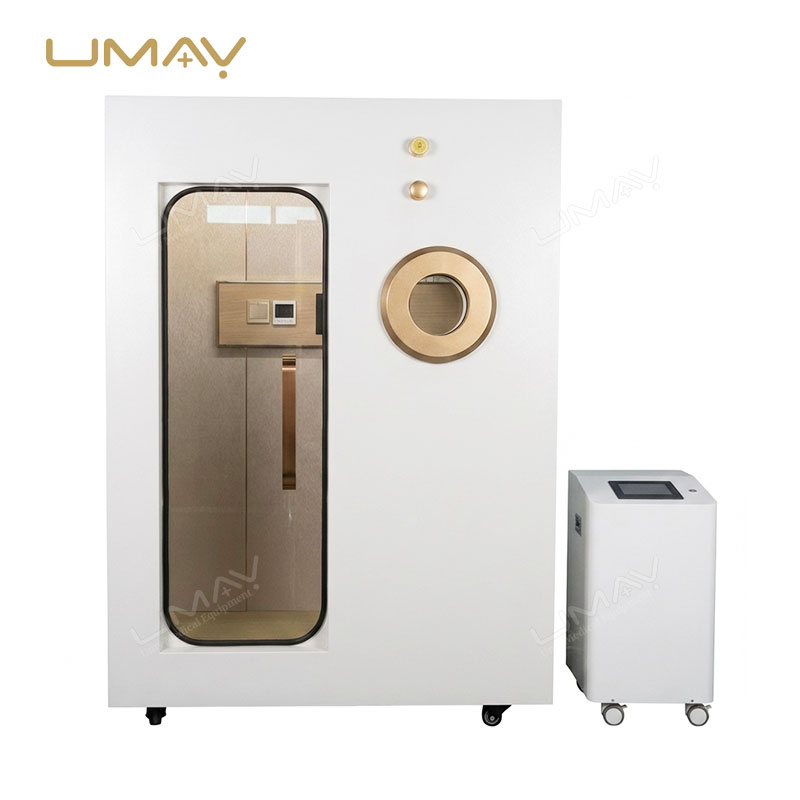

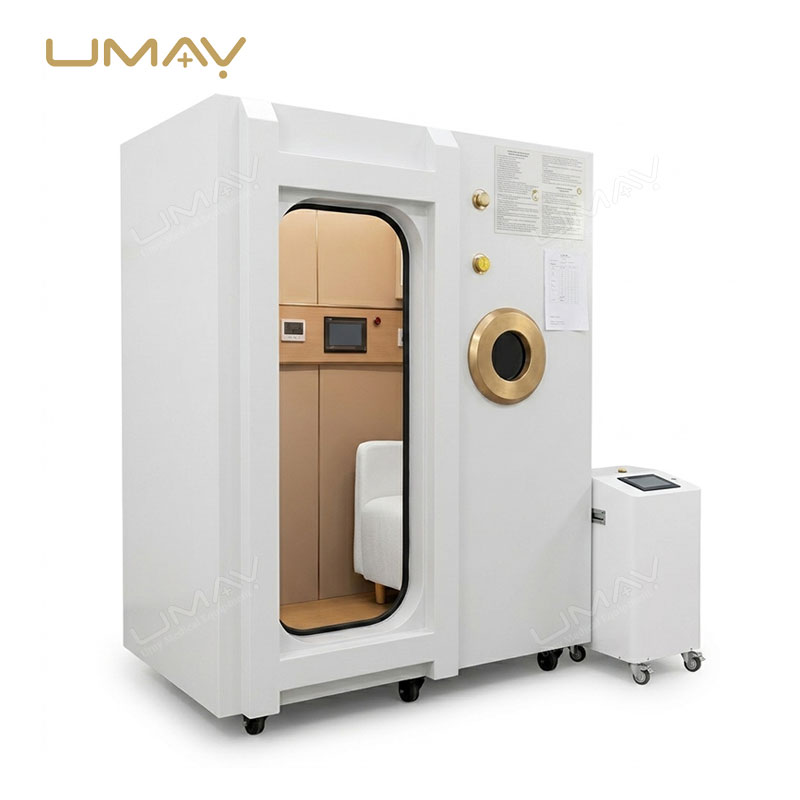

Mini Vertical Hyperbaric Oxygen Chamber UMH-C1
The UMH-C1 Mini Vertical Hyperbaric Oxygen Chamber is designed to provide high-performance hyperbaric oxygen therapy within a compact vertical footprint. Built with a robust carbon steel composite structure and an explosion-proof PC/steel door, the system ensures exceptional safety and durability during treatments.
Equipped with an intelligent all-in-one oxygen generator unit, the UMH-C1 maintains an in-cabin oxygen concentration of 25% while delivering a stable 93%±3% oxygen output at a working pressure ranging from 1.3 to 2.0 ATA.

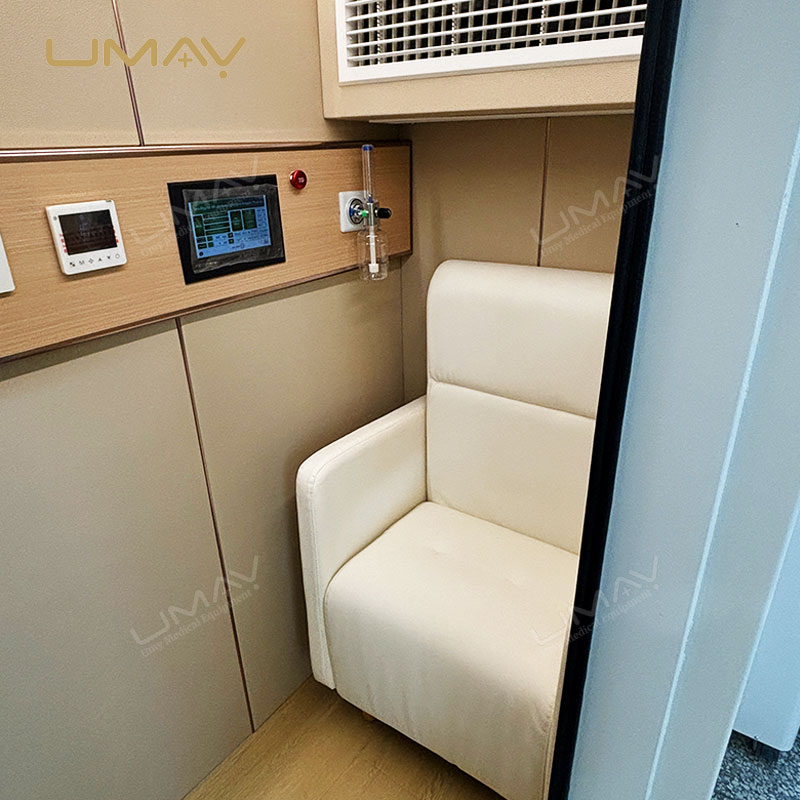

Supported by internal and external touch screens, ultra-low operating noise below 20 dB inside the cabin, and a comfortable internal sofa, the UMH-C1 offers an optimal balance of relaxation and therapeutic efficacy.
Key Features
Compact Vertical Design
Space-saving vertical architecture with dimensions of L1500 × W900 × H2000 mm (approx. 59.05 × 35.43 × 78.74 inches).
Adjustable Working Pressure
Supports a therapeutic working pressure range from 1.3 to 2.0 ATA for customized micro-hyperbaric sessions.
Robust Composite Structure
Constructed from high-grade carbon steel composite materials with an explosion-proof PC and steel door.
Ultra-Quiet Operation
Engineered for exceptional acoustic comfort with operating noise levels under 20 dB inside the chamber.

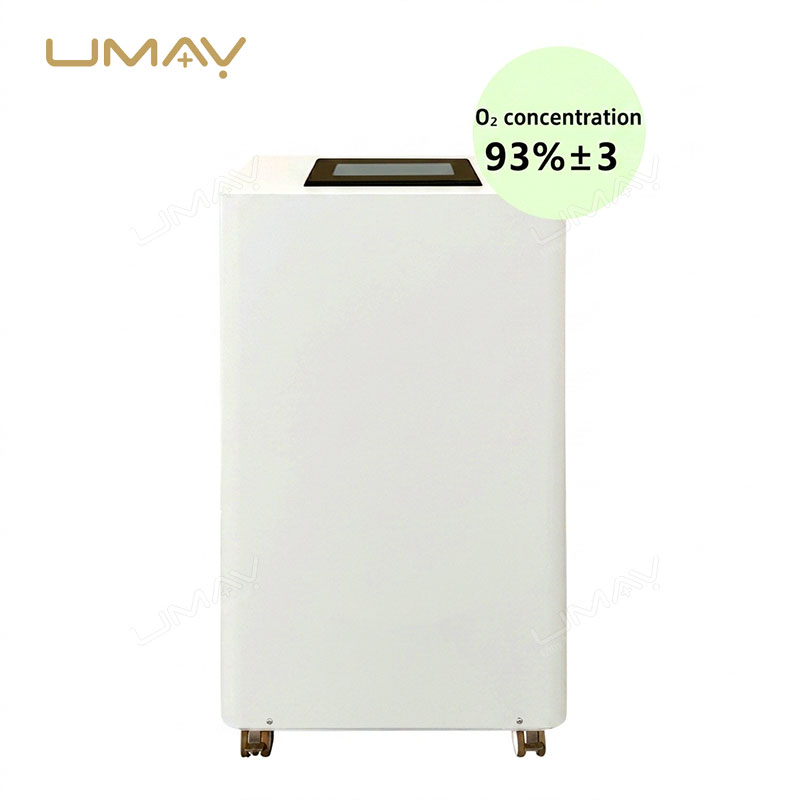

Intelligent Oxygen Generator
Features an integrated intelligent oxygen unit delivering 93% ± 3% oxygen concentration with dual voltage compatibility.

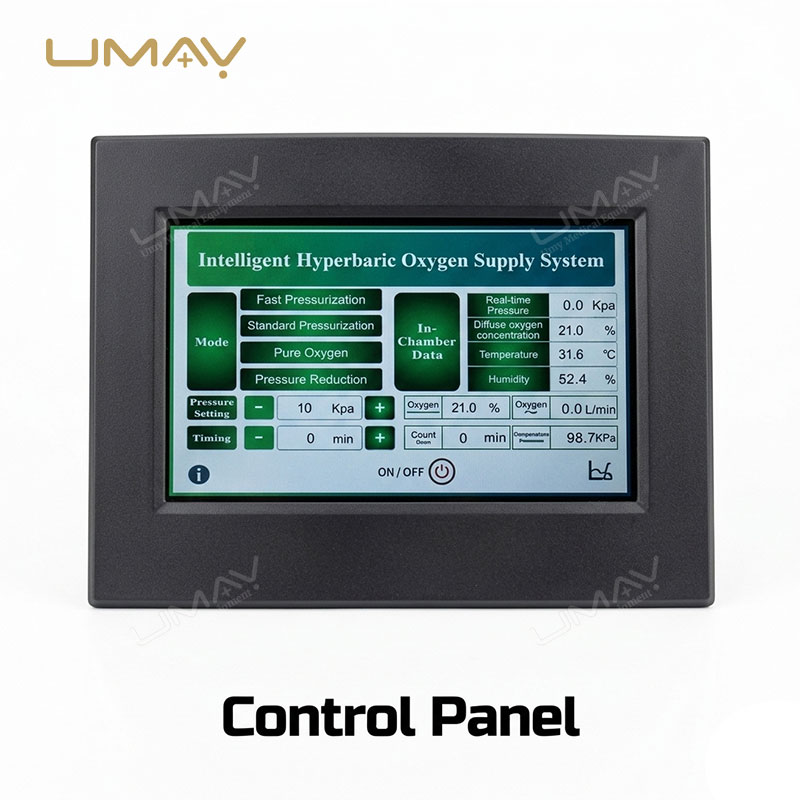

Dual Touch Screen Controls
Equipped with both internal and external touch screen interfaces for seamless operation by the user or supervisor.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model & Type | UMH-C1 Mini Vertical Chamber (All-in-one type) |
| Working Pressure | 1.3 – 2.0 ATA |
| Chamber Material & Door | Carbon steel composite | Door: Explosion-proof PC / Steel |
| Chamber Size & Weight | L1500 × W900 × H2000 mm (Approx. 800 – 1400 KG) |
| Diffused Oxygen & Noise | In-cabin diffused oxygen: 25% | Operation noise: < 20 DB inside |
| Working Environment | Humidity: 20% – 80% RH | Temperature: Ambient Temperature +3°C |
| Safety Valves | Manual and automatic safety release valves |
| Oxygen Generator Specs | Size: L550 × W500 × H900 mm | Weight: 150 KG | Power: ~1100W | Purity: 93% ± 3% |
| Electrical Supply | 220V / 50HZ & 110V / 60HZ compatible |
- Specifications are based on official technical datasheets for the UMH-C1 Mini Vertical Chamber.
- Standard configuration includes the vertical chamber unit, intelligent oxygen generator, internal sofa, and dual touch screens.
- Please verify local electrical power standards prior to placing an order.
Applications
Wellness & Health Spas
Provides targeted micro-hyperbaric oxygen sessions to help customers relieve fatigue and restore vitality.
Compact Clinics & Rehabilitation Centers

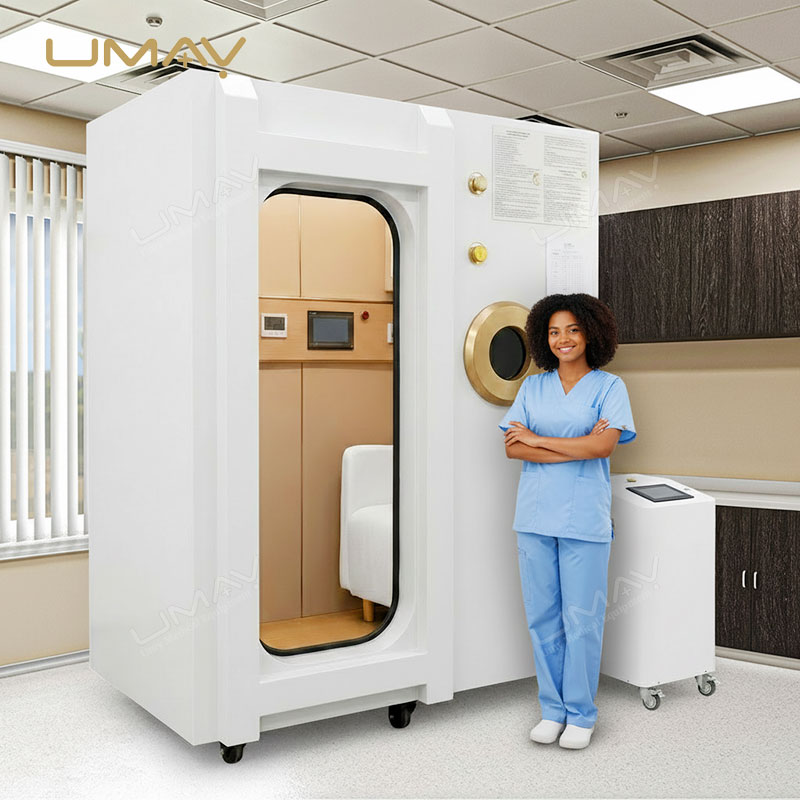

Vertical footprint makes it ideal for medical and physical therapy clinics with limited floor space.
High-End Residential Use
Delivers private, professional-grade oxygen wellness therapy directly in home environments.
System Configuration
The UMH-C1 Mini Vertical Chamber is supplied complete with the vertical composite cabin, integrated oxygen generator unit, internal comfort sofa, internal and external touch screens, intercom system, and ventilation accessories.
Please confirm your required electrical voltage specifications (220V or 110V) prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Installation room ceiling height and doorway clearance (Unit height: 2000 mm / 78.74 in).
- Electrical power supply standards (220V/50HZ or 110V/60HZ).
Request a Vertical Oxygen Chamber Quote
Contact UMY Medical to discuss system configurations, pricing, and global export delivery for your business or facility.
Frequently Asked Questions
What are the physical dimensions of the UMH-C1 vertical chamber?
The chamber dimensions are L1500 × W900 × H2000 mm (approx. 59.05 × 35.43 × 78.74 inches), offering a space-saving vertical design.
What is the working pressure range of the chamber?
The UMH-C1 operates at a therapeutic working pressure of 1.3 to 2.0 ATA.
How loud is the chamber during operation?
It is engineered for high acoustic comfort, maintaining an internal operating noise level of less than 20 dB.
What accessories are included in the standard setup?
The standard package includes the vertical cabin, oxygen generator, internal sofa, internal/external touch screens, intercom, masks, and nasal oxygen tubes.
