UMH-ADV Neonatal CPAP and HFNC System
The UMH-ADV is a neonatal and pediatric respiratory support system combining nasal CPAP (nCPAP), bubble CPAP (bCPAP), and high-flow nasal cannula (HFNC) therapy in one compact platform. Designed for clinical use in neonatal and pediatric care settings, it supports pressure, flow, and oxygen concentration adjustment with digital monitoring.
Its 10.1-inch touchscreen, integrated flow generator and air–oxygen blending, rechargeable battery, and configurable mounting options make the UMH-ADV suitable for NICU, PICU, special newborn care units, labor rooms, and appropriately equipped patient transport workflows.
Key Features
- Three respiratory support modes: nCPAP, bCPAP, and HFNC for neonatal and pediatric care requirements.
- Integrated flow generation and oxygen blending: Adjustable FiO2 from 21% to 100%, in 1% increments.
- Digital pressure, flow, and FiO2 monitoring: Settings and measurements are presented through the touchscreen interface.
- 10.1-inch IPS touchscreen: 1024 × 600 display resolution with a single control knob/button.
- Rechargeable backup power: 11.1 V, 6000 mAh internal battery, with up to 7 hours of operation stated in the product brochure.
- Patient-interface compatibility: Designed to work with suitable standard patient interfaces, including nasal prongs and compatible cannulas.
- Humidifier integration: Compatible with most standard humidifiers, subject to the selected therapy circuit and accessory configuration.
- Safety monitoring: Alarms for patient disconnection, pressure, flow, and FiO2, plus electronic cut-off and mechanical pressure relief.
- Flexible mounting: Portable, trolley-mounted, or ambulance-related configurations, depending on the accessories and installation requirements.
Typical Clinical Applications
The UMH-ADV is intended for neonatal and pediatric CPAP or HFNC support in clinical settings where the required gas supply, patient interface, humidification, and monitoring are available.
- Neonatal intensive care units (NICU)
- Pediatric intensive care units (PICU)
- Special newborn care units (SNCU)
- Labor-room CPAP support
- Intra-hospital transport, such as transfer from a labor room to the NICU
- Inter-hospital transport configurations using appropriately equipped vehicles
Clinical mode selection, patient monitoring, circuit setup, and suitability for transport should be determined by qualified healthcare professionals and the applicable hospital protocols.
nCPAP, bCPAP and HFNC Therapy Modes
One UMH-ADV platform provides three operating modes. The adjustable range differs by mode and should not be interpreted as one common setting for every therapy.
| Mode | Setting Range | Stated Accuracy / Notes |
|---|---|---|
| nCPAP | Pressure: 2–10 cmH2O | ±1 cmH2O |
| bCPAP | Flow: 2–15 L/min Pressure: 3–10 cmH2O |
Pressure set using the bubble CPAP generator; stated pressure accuracy ±1 cmH2O |
| HFNC | Flow: 2–15 L/min | ±1 L/min |
The bubble CPAP generator and the correct patient circuit must be specified for bCPAP operation. Final circuit and humidification requirements depend on the selected configuration.
Digital Control, Oxygen Blending and Monitoring
The integrated system is designed for setting and monitoring therapy parameters through a large touchscreen and a single physical control knob/button. The brochure specifies an air–oxygen blending range of 21–100% FiO2.
| FiO2 Setting Range | 21–100% |
|---|---|
| Adjustment Step | 1% |
| FiO2 Accuracy | ±5% full scale (FS), as specified in the brochure |
| Display | 10.1-inch IPS touchscreen, 1024 × 600 pixels |
| Operating Interface | Touchscreen plus a single knob/button |
Patient Safety Features
- Patient disconnection alarm
- Pressure alarm
- Flow alarm
- FiO2 alarm
- Electronic pressure cut-off
- Mechanical pressure relief valve
Electronic cut-off: The brochure lists a 12–18 cmH2O condition lasting more than 2 seconds, or a pressure of at least 18 cmH2O. The exact trigger logic should be confirmed in the operating manual before clinical deployment.
Mechanical relief: 50 kPa as stated in the product technical specifications.

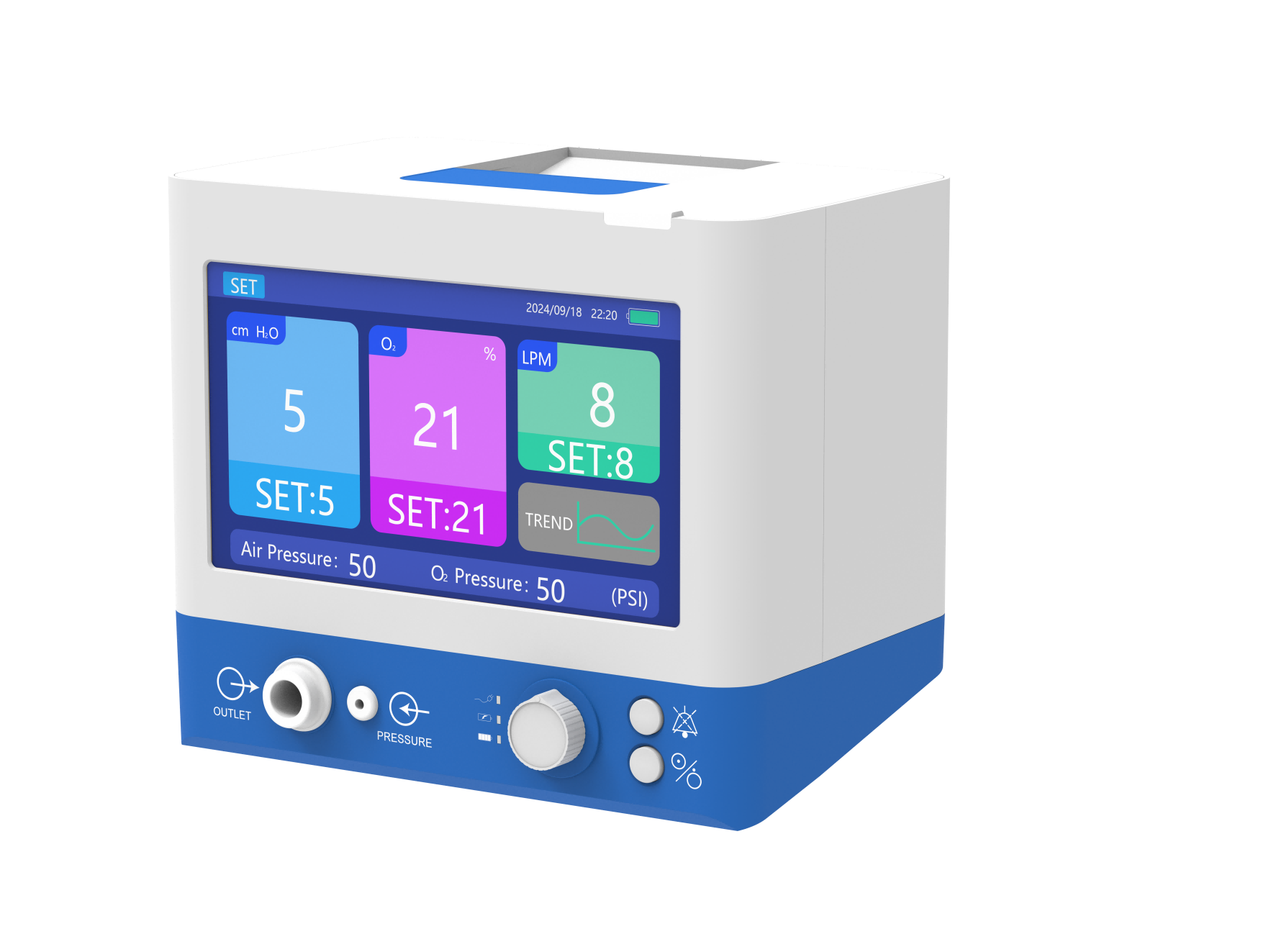

Compact Main Unit and Transport Configuration
The main unit measures 235 × 280 × 240 mm and weighs approximately 4.6 kg. Its rechargeable internal battery is specified for up to 7 hours of operation; actual operating time depends on the therapy configuration, battery condition, and usage.

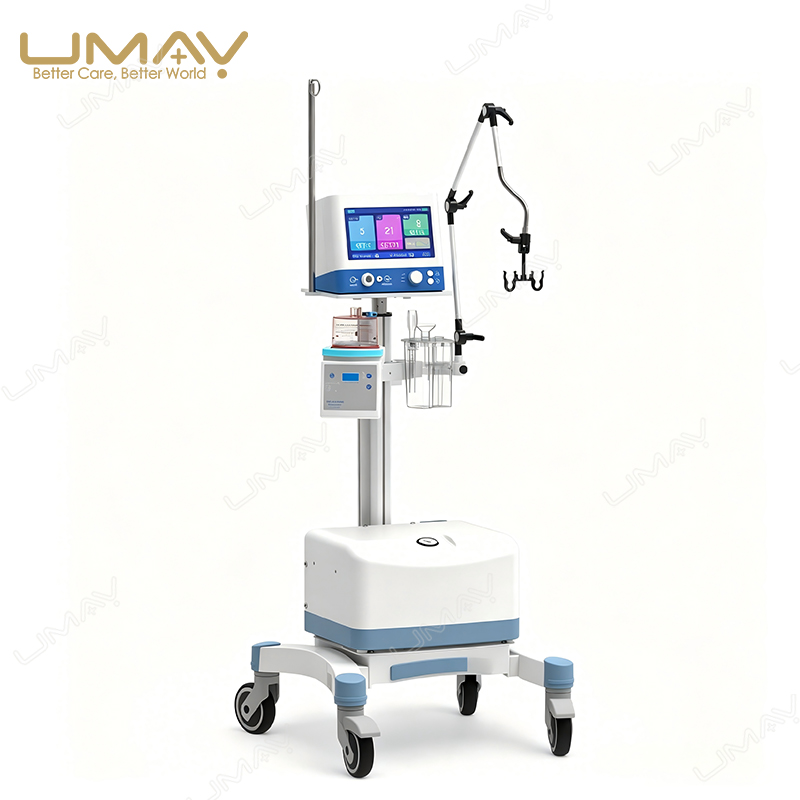

The brochure illustrates a complete trolley-based setup with an IV pole, support arm, humidifier, bubble CPAP generator, and medical air compressor. These components should be confirmed as part of the requested package rather than assumed to be included with the main unit.
UMH-ADV Technical Specifications
| Model | UMH-ADV |
|---|---|
| Product Type | Neonatal and Pediatric CPAP + HFNC System |
| Patient Population | Neonates and pediatric patients |
| Operating Modes | nCPAP / bCPAP / HFNC |
| nCPAP Pressure | 2–10 cmH2O; ±1 cmH2O |
| bCPAP Flow | 2–15 L/min |
| bCPAP Pressure | 3–10 cmH2O, set by bubble CPAP generator; ±1 cmH2O |
| HFNC Flow | 2–15 L/min; ±1 L/min |
| Oxygen Concentration | FiO2 21–100%; 1% steps; ±5% FS accuracy |
| Oxygen Supply Pressure | 41–70 psi (0.28–0.48 MPa) |
| Touchscreen | 10.1-inch IPS, 1024 × 600 |
| User Interface | Touchscreen; single knob/button |
| Electrical Input | 90–250 V AC, 50–60 Hz |
| Power Consumption | 65 VA |
| Internal Battery | 11.1 V, 6000 mAh rechargeable; up to 7 hours |
| Main Unit Dimensions | 235 × 280 × 240 mm |
| Main Unit Weight | Approximately 4.6 kg |
| Storage Temperature | 0–50 °C |
| Mounting Options | Trolley / portable / ambulance-related configurations |

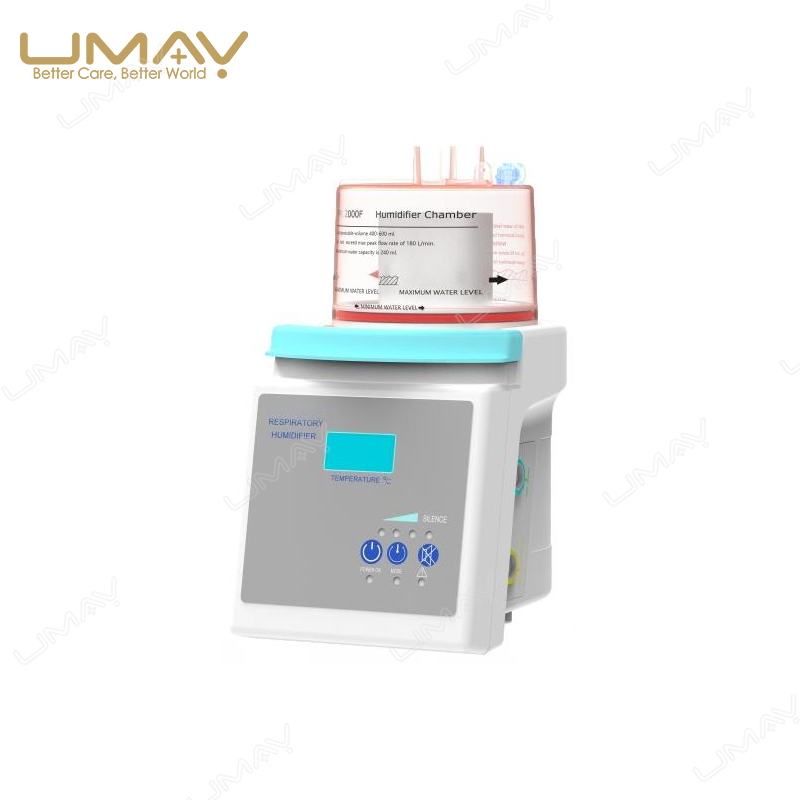

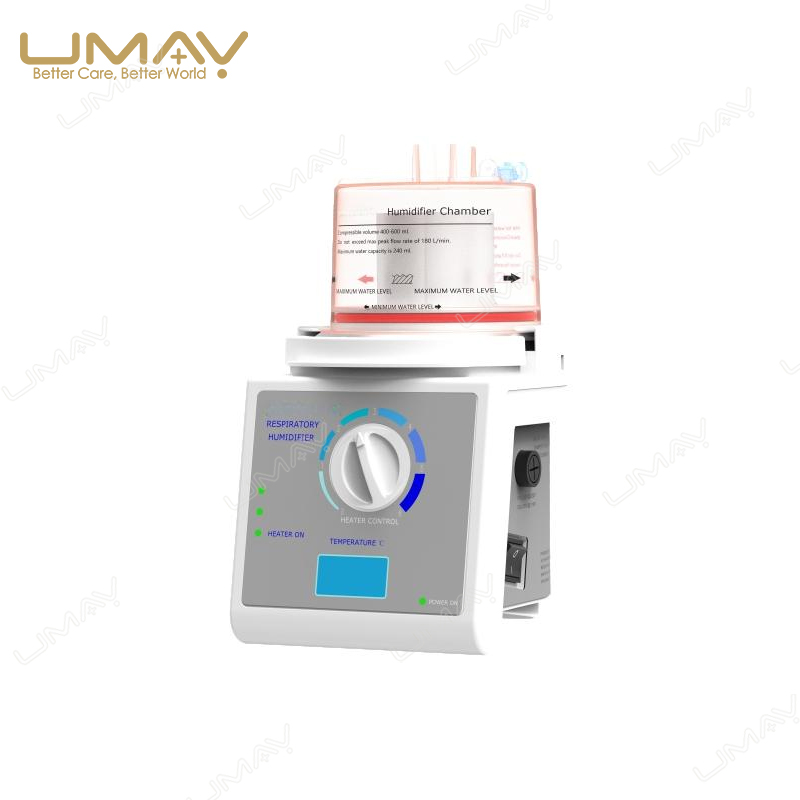

Compatible Humidifier Options
The brochure presents the UMH-2000F/FA, UMH-2000FB, and UMH-2000FC850 humidifiers as related system components. Their power, heating, and alarm features differ. Selection and delivery scope should be confirmed with the final patient circuit and clinical requirements.
| Specification | UMH-2000F/FA | UMH-2000FB | UMH-2000FC850 |
|---|---|---|---|
| Power Supply | AC 110/220 V, 50–60 Hz | AC 110/220 V, 50–60 Hz | AC 110/220 V, 50–60 Hz |
| Servo Control | No | Yes | Yes |
| Heating Wire Output | Not specified | 22 V, 2.73 A, 60 W | 22 V, 2.73 A, 60 W |
| Power Rating | 150 VA | 220 VA | 220 VA |
| Alarm | No | Yes | Yes |
| Temperature Control | Plate: 45–75 °C (levels 1–6) | Heated-wire and non-heated-wire settings | Invasive and noninvasive mode settings |
The humidifier specification sheet also states a 0–70 °C measurement range, with ±2 °C accuracy within 25–45 °C. This specification belongs to the optional humidifiers, not to the UMH-ADV main unit.
Medical Air Compressor and Trolley Options
For sites that require an external medical air supply and mobile mounting, the brochure illustrates optional compressor and trolley components. Final compatibility and included accessories must be confirmed for the requested system.

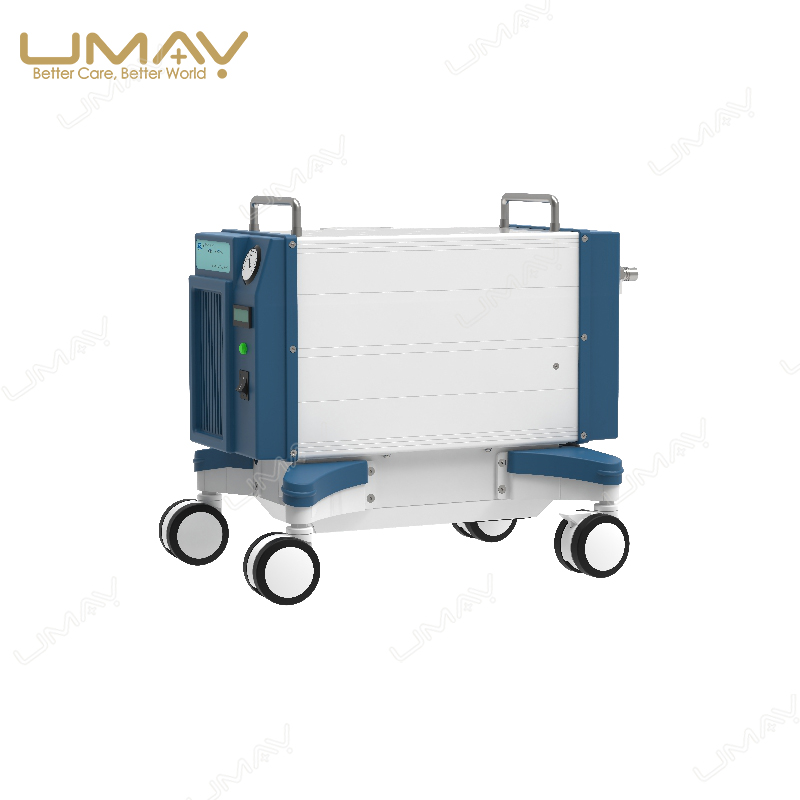

Medical Air Compressors
| Specification | UMH-3000 | UMH-4000 |
|---|---|---|
| Output Pressure | 0.25–0.4 MPa | 0.25–0.4 MPa |
| Output Flow | 60 L/min | 25 L/min |
| Peak Flow | >120 L/min | >60 L/min |
| Noise | ≤55 dB(A) | ≤55 dB(A) |
| Power Rating | 500 VA | 250 VA |
| Power Supply | AC 110/220 V, 50–60 Hz | AC 110/220 V, 50–60 Hz |
| Thermal Protection | 120 °C | 120 °C |

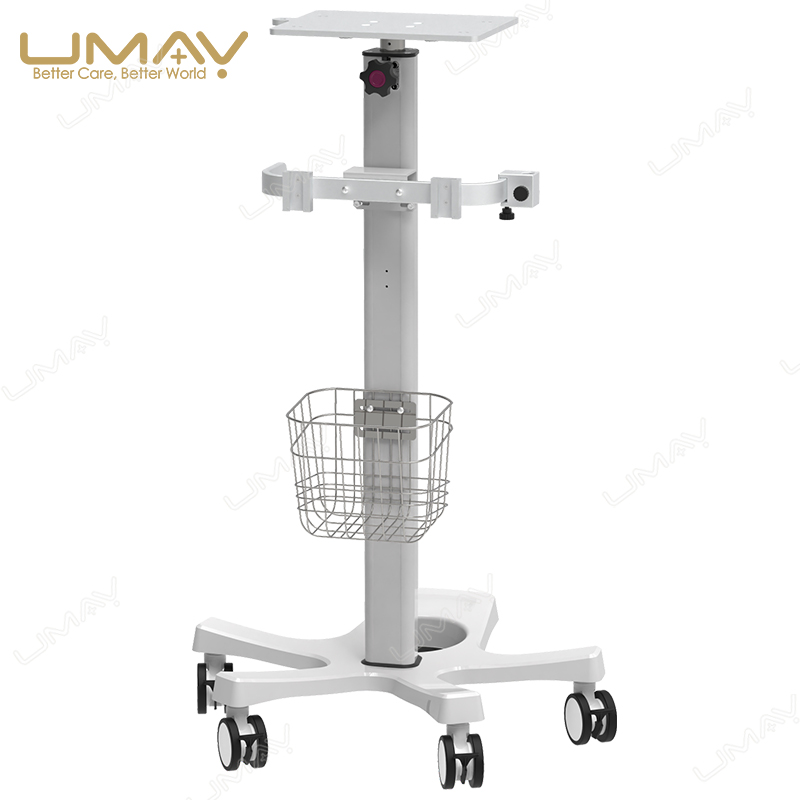

UMH-ADL01 Trolley
| Worksurface | 330 × 230 mm (±50 mm) |
|---|---|
| Base | 620 × 620 mm (±50 mm) |
| Height | 1050–1300 mm |
| Casters | 3 inches |
| Rated Load | 10 kg |
| Trolley Weight | 13 kg |
System Configuration and Compatibility
UMH-ADV supports integration into hospital respiratory care workflows, but the illustrated trolley system should not be treated as a fixed standard package. Request confirmation of the required components:
- UMH-ADV main unit and power accessories
- Suitable oxygen source and inlet connections
- Compatible patient interfaces and breathing circuits for the selected treatment mode
- Bubble CPAP generator, when bCPAP is required
- Humidifier and compatible heated circuit, where required
- Medical air compressor, if required by the gas supply arrangement
- Trolley, IV pole, support arm, and mounting accessories
- Transport configuration and compatible power arrangements, where needed
Before Ordering
To prepare a technically accurate UMH-ADV quotation, please provide:
- Destination country and intended use location (NICU, PICU, labor room, or transport)
- Required modes: nCPAP, bCPAP, HFNC, or a combined configuration
- Patient group and preferred patient interface/circuit
- Available oxygen and medical air supplies
- Required humidifier model, if any
- Requirement for a bubble CPAP generator and/or medical air compressor
- Portable, trolley, or transport mounting preference
- Quantity, mains voltage, and required documentation
Request a Quote for the UMH-ADV Neonatal CPAP and HFNC System
Tell UMY Medical which therapy modes, patient interfaces, humidifier, compressor, and mounting options your hospital requires. Our team can confirm the configuration, documentation, lead time, and quotation for your project.
UMH-ADV Neonatal CPAP and HFNC System FAQ
What therapy modes does the UMH-ADV support?
The UMH-ADV provides nasal CPAP (nCPAP), bubble CPAP (bCPAP), and high-flow nasal cannula (HFNC) modes. Each mode has its own specified pressure or flow range.
Can the UMH-ADV be used for neonatal transport?
The product brochure lists intra-hospital and inter-hospital transport among its intended clinical use settings. An appropriate gas supply, patient circuit, mounting arrangement, and transport protocol must be established for the selected configuration.
How long can the UMH-ADV operate on its internal battery?
The brochure specifies a rechargeable 11.1 V, 6000 mAh battery with up to 7 hours of running time. Actual duration depends on use conditions and battery condition.
Are the humidifier, air compressor, and trolley included?
The brochure shows these as system components and configuration options. Their inclusion is not confirmed as standard for every order. Please specify the required accessories before quotation.
