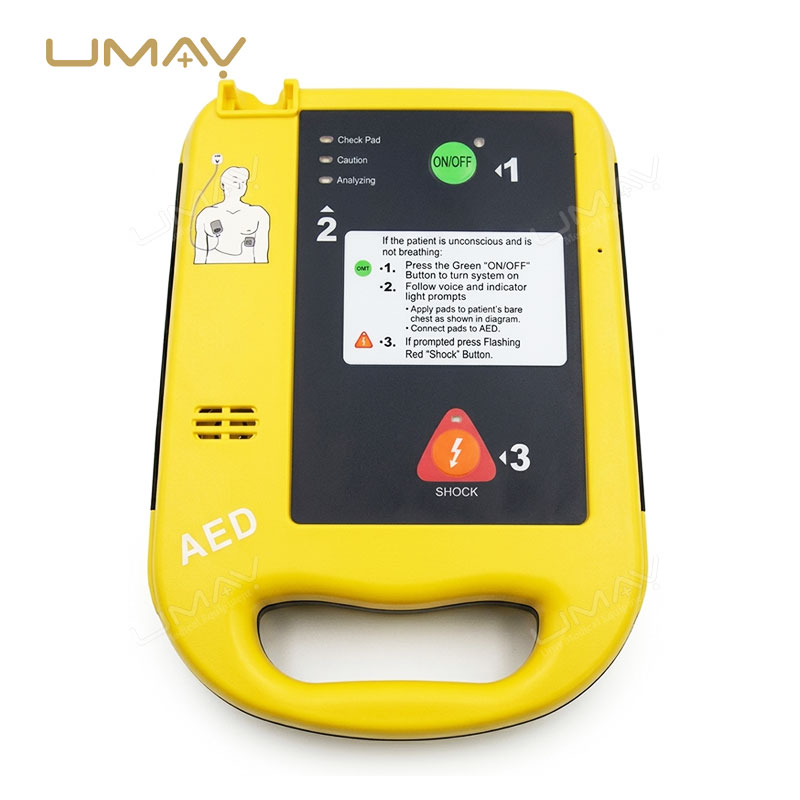

Lightweight AED With Voice Prompts Self-Inspection and Pediatric Mode
Quick Info.
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online Service and Delivering Spare Parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Origin: Guangzhou City, Guangdong, China
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-ED-006
- Warranty: 1 Year
- Origin: Guangzhou City, Guangdong, China
Designed for accessible emergency cardiac care, this automatic external defibrillator empowers first responders and facility operators to deliver a reliable shock in the critical minutes following sudden cardiac arrest. The device uses a clinically validated biphasic waveform AED system drawing on an MBA database of ECG data from over 5,000 inpatients to ensure fast and accurate heart rhythm identification. Charging to maximum energy in under 8 seconds, it supports 250 discharges at 200J or 320 discharges at 150J — delivering consistent performance throughout its service life.
Built for real-world deployment. The IP55-rated hard case and 1.5m drop protection make this unit well-suited to challenging indoor and outdoor environments encountered by emergency services, schools, and remote facilities. Infrared transmission capability allows recorded ECG data to be extracted for post-event review and clinical analysis.
Practical and cost-effective for wide-scale deployment. This portable AED for public use operates on a unique lithium battery power system providing up to five years of standby, reducing maintenance burdens across multi-site installations. Daily and monthly self-inspection reports keep operators informed of device readiness without manual checks.
Buyers looking at broader emergency cardiac solutions may also consider the Easy To Carry AED With Bluetooth and Self Test Functionality available in the UME range. This automatic external defibrillator delivers the speed, reliability, and ease of use that procurement teams and healthcare operators demand for frontline cardiac emergency preparedness.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| General Specification | |
| Size | 303mm*216mm*89mm |
| Weight | About 2.0kg |
| Working Humidity | Temperature: 0°C~40°C, Relative humidity: 95% (non-condensing) |
| Altitude | -91m to 4573m |
| Pressure | 70kPa~106kPa |
| Power Supply | Lithium Battery, 12V, 2800mAh |
| Current Risk Level | Internal power supply BF type (according to GB9706.1/IEC60601-1) |
| Analysis Time | 7s |
| Charging Times | 250 discharges at 200J or 320 discharges at 150J |
| Defibrillation Parameter | |
| Waveform | Biphasic |
| Energy Sequence | Adult: (150, 150, 200) J |
| Charging Time | When the battery is used less than 15 times, reach to the maximum charging energy in less than 8 seconds |
| Operation Prompts | Voice and LED prompts |
| Energy Accuracy | ±5% (under 50 ohm load) |
| Maximum Voltage | 1100±50V |
| Impedance Range | 20Ω to 200Ω |
Feature list for UMY-ED-006
* Biphasic Waveform With MBA Real Clinical Database Validation
* Pediatric Mode Auto-Activation via Electrode Swap
* 5-Year Standby Battery With Unique Power Supply System
* Infrared Transmission for ECG Data Output and Review
* IP55 Rated Casing With 1.5m Drop Protection for Harsh Environments
Application
This automatic external defibrillator is suited for procurement by hospitals, government health facilities, emergency services, and private sector operators requiring dependable cardiac first-response tools across multiple sites. It performs effectively in public-access installations such as airports, shopping malls, hotels, and sports facilities, as well as in clinical environments including outpatient departments and primary care centers. Its lightweight design and voice-guided operation make it a strong fit for facilities where staff may have limited medical training. The automated pediatric mode further extends its applicability to schools, pediatric clinics, and any mixed-use environment where patients of varying age groups may be present.
Q1: Does this AED support data transfer to external systems for event documentation and audit compliance?
A1: Yes, the built-in infrared transmission function outputs recorded ECG information, allowing event data to be retrieved and used for documentation or clinical audit purposes.
Q2: How does the internal power supply system maintain device readiness over long standby periods?
A2: The unique lithium battery power supply system is engineered to sustain device readiness for up to five years of standby, with automatic daily and monthly self-inspection reports confirming operational status.
Q3: How can buyers arrange an order or request technical support for this AED?
A3: Contact the UME team directly for lead time, configuration, and after-sales support, or browse the full range of cardiac emergency devices at the Defibrillator category on umymedicalequip.com.
