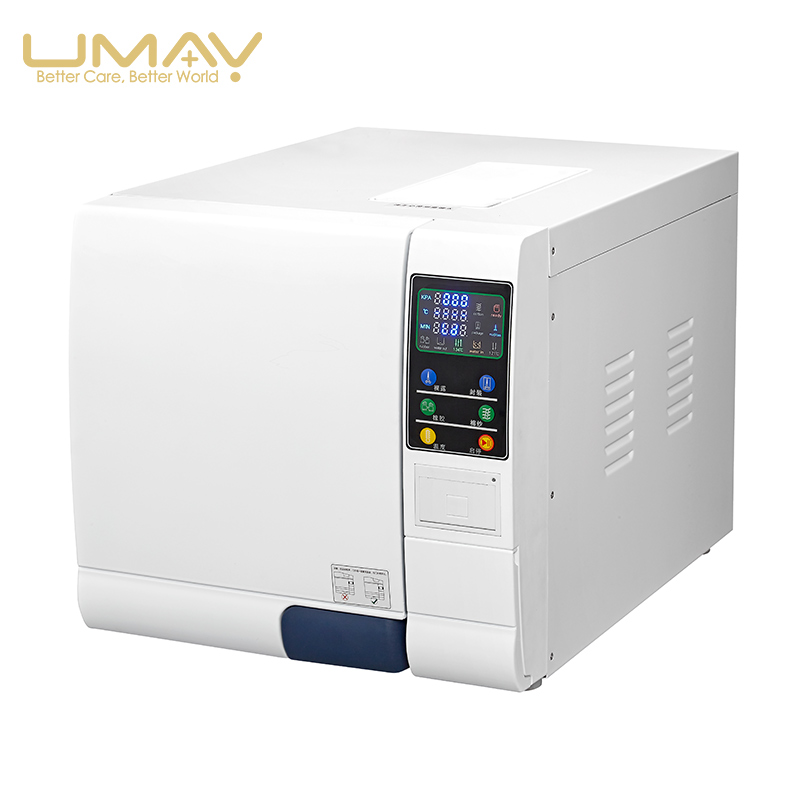

UMH-18B 18L Class B Autoclave Steam Sterilizer
The UMH-18B is an 18L Class B steam autoclave with 121°C and 134°C sterilization settings, vacuum drying, digital operation, vacuum testing, and sterilization record printing.
The system uses separate 3L clean-water and 3L waste-water tanks and includes safety functions such as a safety valve, pressure lock, and fault self-diagnosis.
Key Features
18L Class B Sterilization
18-liter chamber capacity with Class B sterilization configuration for routine steam sterilization operation.
121°C and 134°C Operation
Supports sterilization temperatures of 121°C and 134°C for different sterilization cycle requirements.
Vacuum Drying and Vacuum Test
Powerful vacuum drying is combined with a vacuum test function for routine equipment operation.
Digital Display
The digital display provides operating information and cycle status during use.
Built-in Printer
The integrated printer records the sterilization process and date for routine cycle documentation.
Water Tanks and Safety Functions
Separate 3L clean-water and 3L waste-water tanks are combined with a safety valve, pressure lock, and fault self-diagnosis.
Technical Specifications
| Model | UMH-18B (Digital) |
|---|---|
| Product Type | Class B Steam Autoclave |
| Capacity | 18L |
| Voltage | 220V |
| Frequency | 50Hz |
| Power | 1700W |
| Sterilization Level | Class B |
| Sterilization Temperature | 121°C / 134°C |
| Drying Process | Powerful Vacuum Drying |
| Display | Digital Display |
| Test Function | Vacuum Test |
| Safety Functions | Safety Valve, Pressure Lock, Fault Self-Diagnosis |
| Sterilization Record | Built-in Printer Records Sterilization Process and Date |
| Clean Water Tank | 3L |
| Waste Water Tank | 3L |
Before Ordering
To help us confirm the appropriate product configuration and prepare an accurate quotation, please provide the following information with your inquiry.
- Required quantity.
- Destination country or delivery location.
- Local power supply and electrical requirements.
- Intended sterilization application and typical load type.
- Any documentation, installation, or procurement requirements for your project.
Frequently Asked Questions
What is the capacity of the UMH-18B autoclave?
The UMH-18B has an 18L sterilization capacity.
What sterilization temperatures does the UMH-18B support?
The specified sterilization temperatures are 121°C and 134°C.
Does the UMH-18B include vacuum drying?
Yes. The specification includes powerful vacuum drying and a vacuum test function.
Can sterilization cycle information be recorded?
Yes. The built-in printer records the sterilization process and date for routine documentation.
