UMDRXY005 5.6kW Portable Digital X-Ray Machine
The UMDRXY005 is a portable digital X-ray system designed for mobile radiography and general diagnostic imaging workflows. The 5.6kW X-ray generator provides a working voltage range of 40–125 kV, tube current from 5–100 mA and dual focal spots of 0.6 / 1.8 mm.
The 5.6kW configuration uses a 300 kHz high-frequency generator and features a 10-inch touchscreen for direct system control. It can operate from 110/220 VAC input or 48 VDC according to the supplied system configuration.

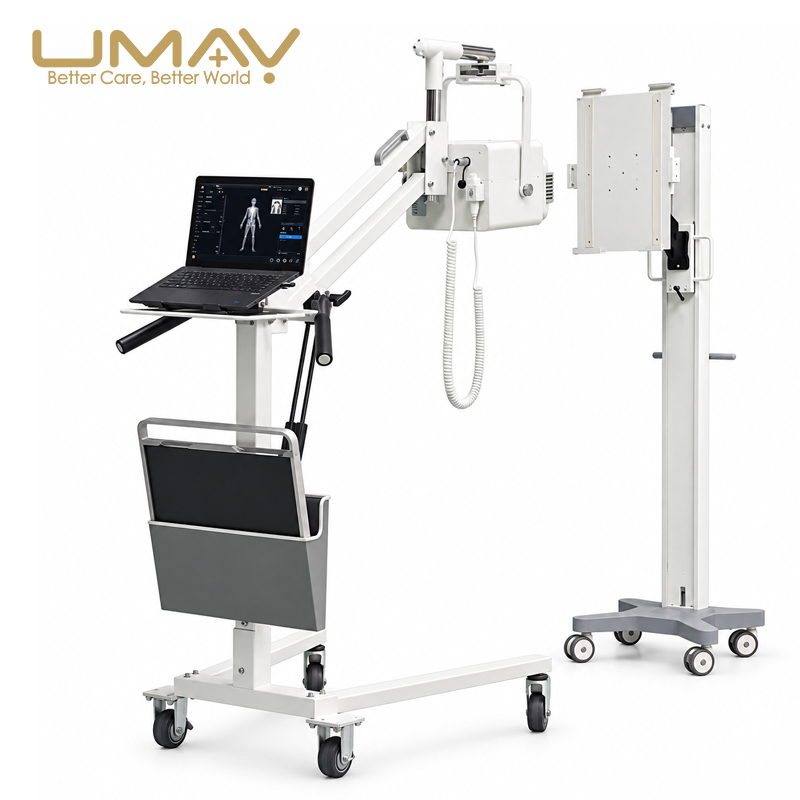

The system can be configured with wired or wireless 17 × 17-inch flat panel detectors, a mobile X-ray stand, radiographic imaging table and workstation software for digital image acquisition and post-processing.
Key Features
5.6kW High-Frequency Generator
The portable X-ray head provides 5.6kW nominal and maximum output power with a high-frequency generator operating at 300 kHz.
40–125 kV Output Range
The tube voltage can be adjusted from 40 to 125 kV to support different radiographic examination requirements.
Dual 0.6 / 1.8 mm Focal Spots
The X-ray tube uses dual focal spot sizes of 0.6 mm and 1.8 mm for flexible exposure configuration.
10-Inch Touchscreen

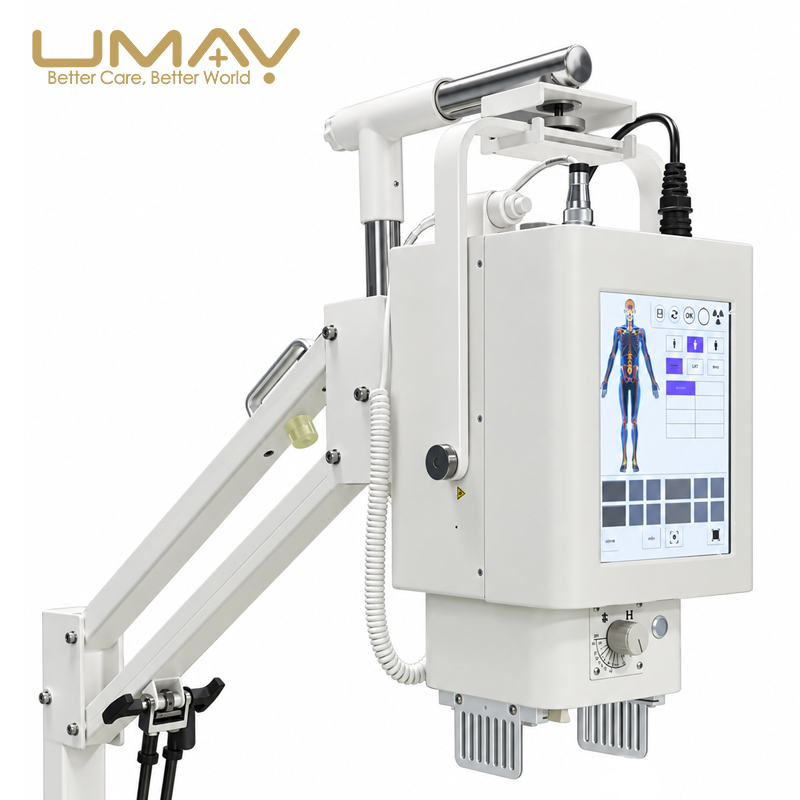

An integrated 10-inch touchscreen provides direct access to exposure settings and system operation.
AC & DC Power Input
The supplied 5.6kW configuration supports 110/220 VAC ±10% input and 48 VDC operation.
Wired or Wireless FPD
The system can be configured with 17 × 17-inch amorphous-silicon flat panel detectors using CsI scintillators in wired or wireless versions.
Flexible Positioning

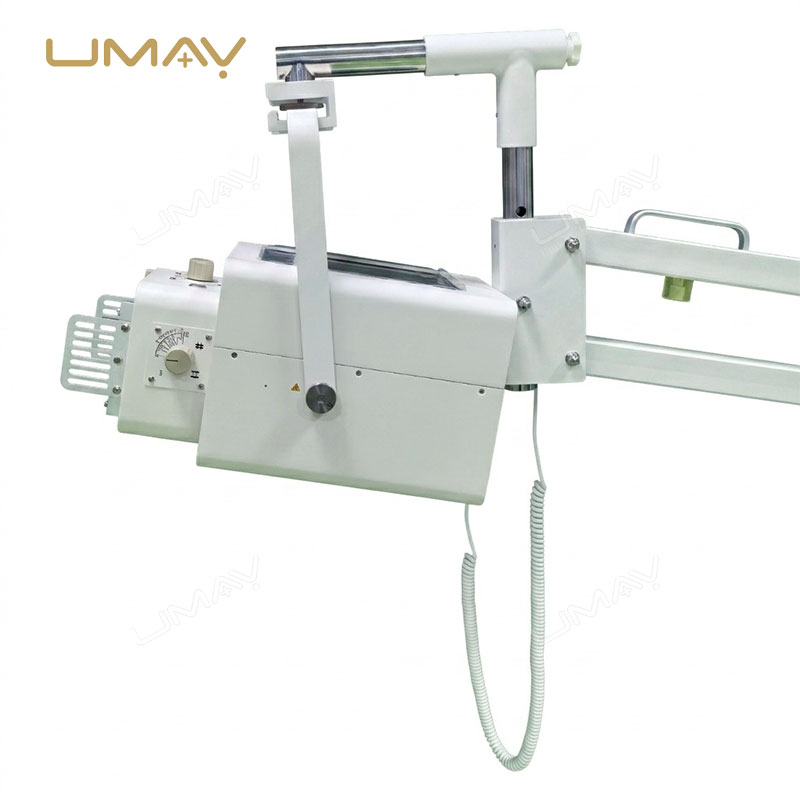

The mobile stand supports 360° X-ray head rotation and approximately 120° vertical tilt for flexible positioning around the patient.
Digital Imaging Software
The imaging workstation supports patient management, image acquisition, post-processing, image rotation, edge enhancement and radiation dose reporting.
Clinical Imaging Applications

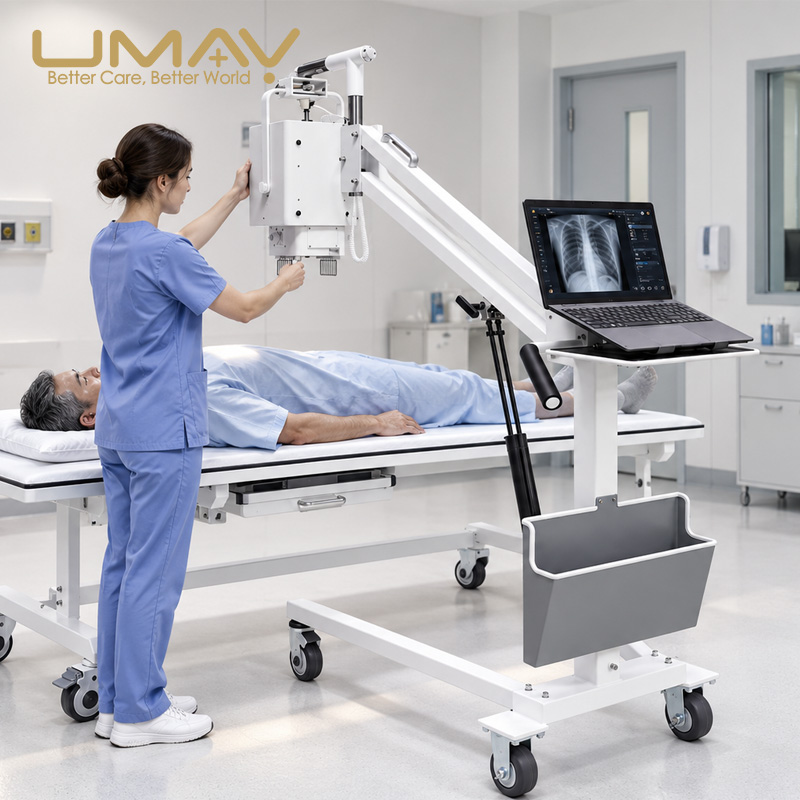

The UMDRXY005 is designed for portable and mobile digital radiography workflows. The supplied product materials demonstrate use for multiple anatomical regions.

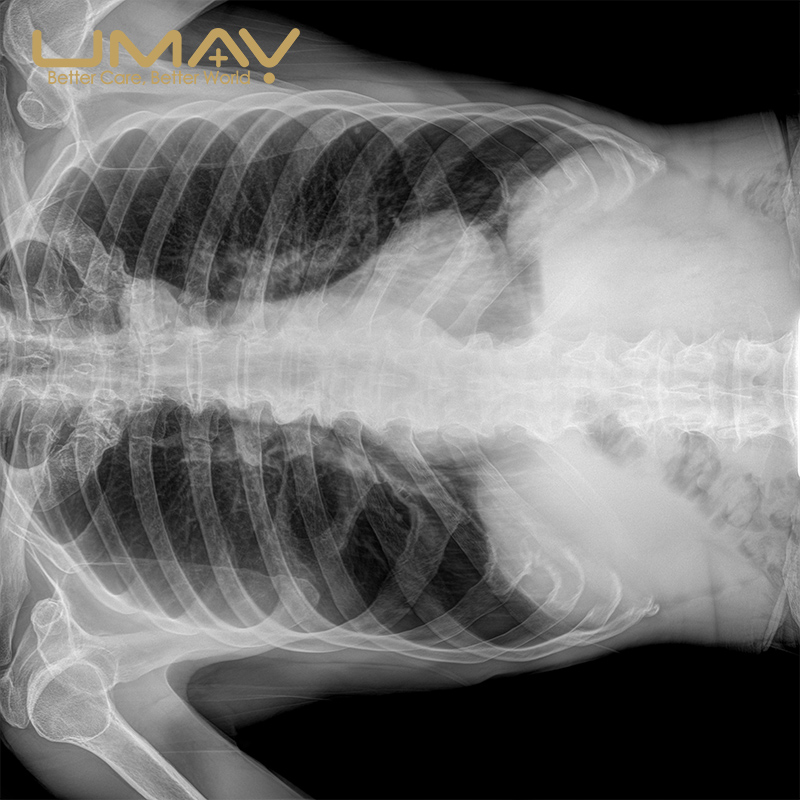

- Chest radiography.
- Hand and wrist imaging.
- Foot and ankle imaging.
- Knee imaging.
- Extremity radiography.
- General hospital mobile radiography.
5.6kW X-Ray Generator Specifications
| Model | UMDRXY005 |
|---|---|
| Configuration | 5.6kW Portable Digital X-Ray |
| Working Voltage | 40–125 kV |
| Nominal Focus | 0.6 / 1.8 mm |
| Nominal Power | 5.6 kW |
| Maximum Power | 5.6 kW |
| Tube Model | KL10SB-0.6/1.8-125 |
| kV Rising Time | ≤1 ms @ 100 kV (10%–90%) |
| Working Frequency | 300 kHz |
| Tube Current Range | 5–100 mA |
| mAs Range – AC | 0.1–320 mAs |
| mAs Range – DC | 0.1–100 mAs |
| Input Voltage | 110/220 VAC ±10% / 48 VDC |
| Display | 10-Inch Touchscreen |
| X-Ray Head Dimensions | 383 × 240 × 215 mm |
| X-Ray Head Weight | Approx. 15 kg |
Flat Panel Detector Options
The UMDRXY005 can be configured with either wired or wireless 17 × 17-inch flat panel detectors. Both detector options use amorphous silicon technology with a CsI scintillator and 3072 × 3072 pixel matrix.
| Specification | Wired 17 × 17 FPD | Wireless 17 × 17 FPD |
|---|---|---|
| Detector Technology | Amorphous Silicon | Amorphous Silicon |
| Scintillator | CsI | CsI |
| Active Area | 17 × 17 inch | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 | 3072 × 3072 |
| Pixel Pitch | 139 μm | 139 μm |
| Spatial Resolution | 3.4 lp/mm | 3.6 lp/mm |
| A/D Conversion | 16 bit | 16 bit |
| Data Transmission | GigE | Wi-Fi 2.4G / 5G |
| Trigger Mode | AED Optional / Software / Prep | AED Optional / Software |
| Preview Image Time | Approx. 3 s | – |
| Full Image Time | Approx. 5 s | Approx. 5 s |
| Battery Runtime | – | Approx. 8 hours |
| Dimensions | 460 × 460 × 15 mm | 460 × 460 × 15 mm |
| Weight | Approx. 4 kg | Approx. 4.3 kg |
Mobile Stand and Positioning

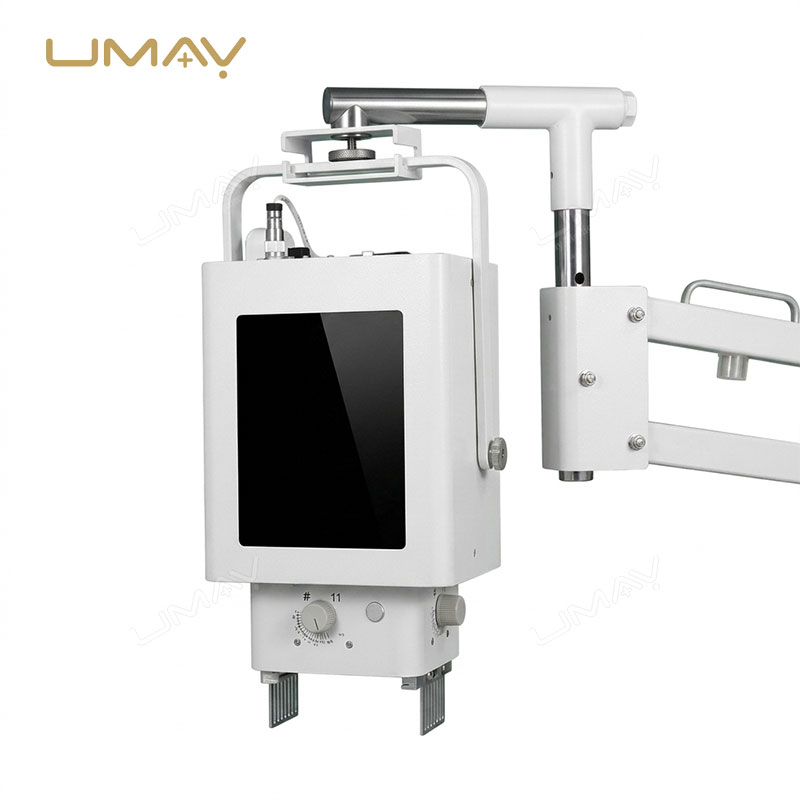

360° Head Rotation
The X-ray head can rotate through 360° to support different patient and examination positions.
120° Vertical Tilt
Vertical head adjustment supports standing, seated and recumbent positioning workflows.
15 cm Ground Clearance
The mobile stand provides approximately 15 cm ground clearance to assist movement around common hospital obstacles.
Foot-Operated Brakes
Caster-mounted foot brakes provide secure positioning of the mobile stand during radiographic operation.
FPD Storage
Integrated detector storage provides a dedicated position for the flat panel detector when not in use.
Laptop Mount
An adjustable laptop platform supports the digital imaging workstation during mobile radiography workflows.
Radiographic Imaging Table
A mobile radiographic imaging table is available according to project configuration. The table supports use with 14 × 17-inch or 17 × 17-inch flat panel detectors.
| Table Dimensions | 2000 × 703 × 695 mm |
|---|---|
| Caster Height | 150 mm |
| Table Weight | Approx. 132 kg |
| Detector Compatibility | 14 × 17 or 17 × 17-inch FPD |
| Mobility | 360° swivel with foot brakes |
Digital Imaging Software
The supplied digital imaging software supports routine radiography workflow from patient management and image acquisition through post-processing and image output.
- Patient information management.
- Digital image acquisition.
- Advanced edge enhancement.
- Free image rotation.
- Zoom and pan functions.
- Radiation dose reporting.
- Image post-processing.
- Film printing workflow.
Workstation Configuration
The listed workstation configuration includes a laptop for image acquisition and system operation. Final hardware specifications should be confirmed according to project configuration.
| Processor | Intel i5-8210Y |
|---|---|
| Memory | 16 GB DDR3 |
| Storage | 512 GB SSD, upgrade to 1 TB available |
| Display | 16-Inch Display |
Before Ordering
The final UMDRXY005 configuration depends on the required detector, stand, imaging table, workstation and local electrical conditions. Please provide the following information when requesting a quotation.
- Required quantity.
- Destination country.
- Required 5.6kW configuration.
- Wired or wireless flat panel detector.
- Preferred FPD size.
- Need for mobile stand.
- Need for radiographic imaging table.
- Required workstation configuration.
- Local power supply conditions.
- Intended clinical applications.
- Required installation or training support.
- Required tender or regulatory documentation.
