UMDRXY003 Veterinary Digital X-Ray Machine
The UMDRXY003 is an integrated veterinary digital radiography system designed for routine animal X-ray examinations in veterinary clinics, animal hospitals and diagnostic imaging facilities.
The system combines a high-frequency X-ray generator, rotating-anode X-ray tube, 17 × 17-inch flat panel detector, 4-way floating examination table, touch-screen control and veterinary imaging software in one platform. Wired and wireless detector configurations are available according to the required workflow.
Key Features
20 kW / 32 kW Generator Options
The high-frequency generator is available in 20 kW and 32 kW configurations with up to 125 kV radiography output.
17 × 17-Inch Digital Detector
Wired or wireless amorphous-silicon flat panel detectors with CsI scintillator are available for digital image acquisition.

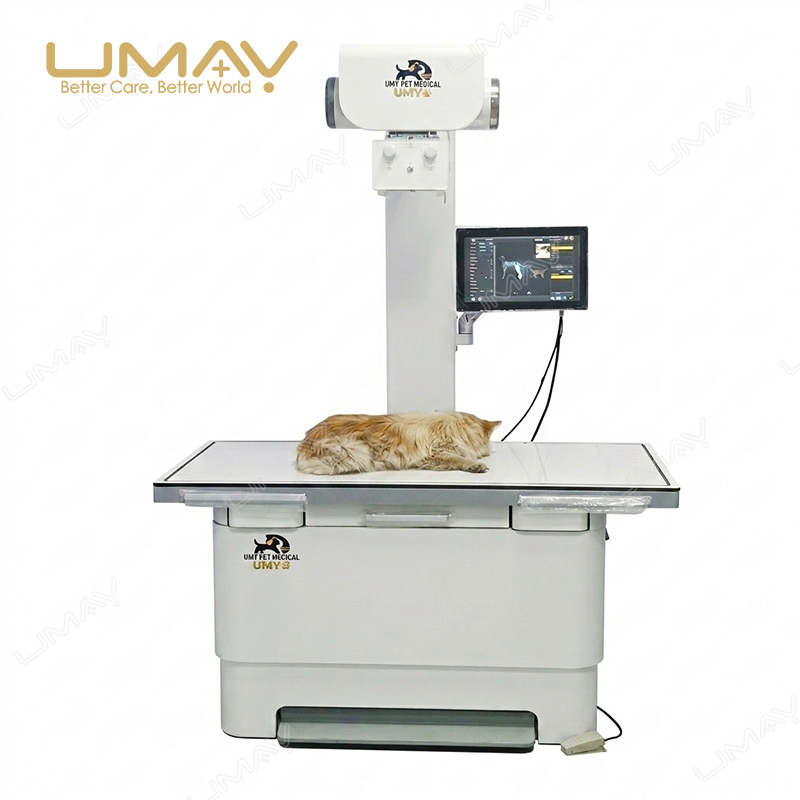

4-Way Floating Table
The integrated examination table supports smooth four-way movement for flexible animal positioning during radiographic examinations.
15.6-Inch Touch Screen
A high-resolution capacitive touch screen allows operators to adjust exposure and imaging parameters directly at the examination table.
Veterinary Imaging Software
The software platform supports veterinary patient management, image acquisition, image rotation, edge enhancement, post-processing and radiation dose reporting.
Flexible Display Positioning
The adjustable monitor arm allows the touch screen to be repositioned according to the operator’s preferred working position.

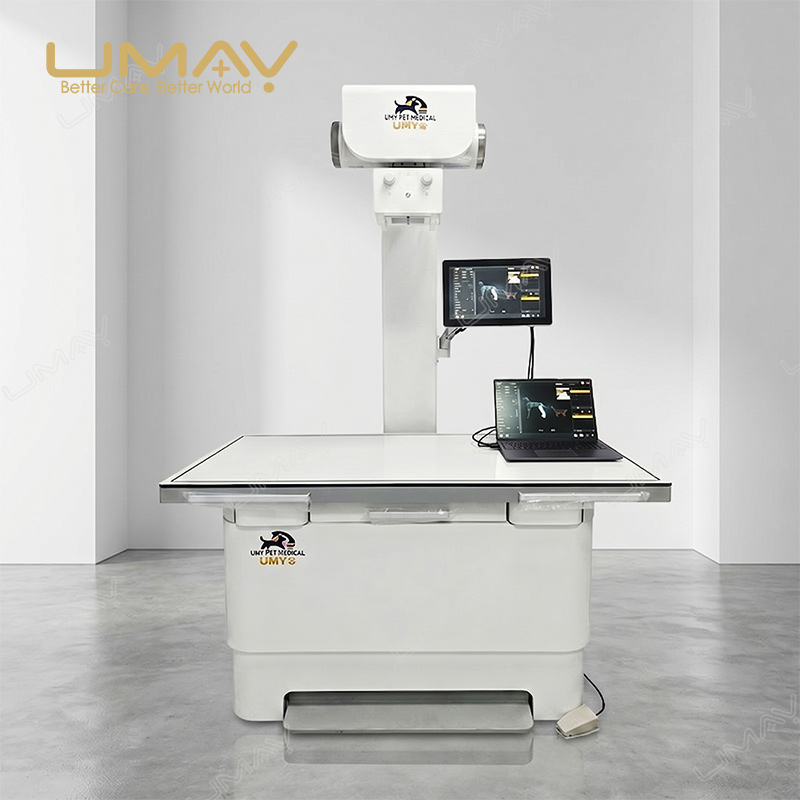

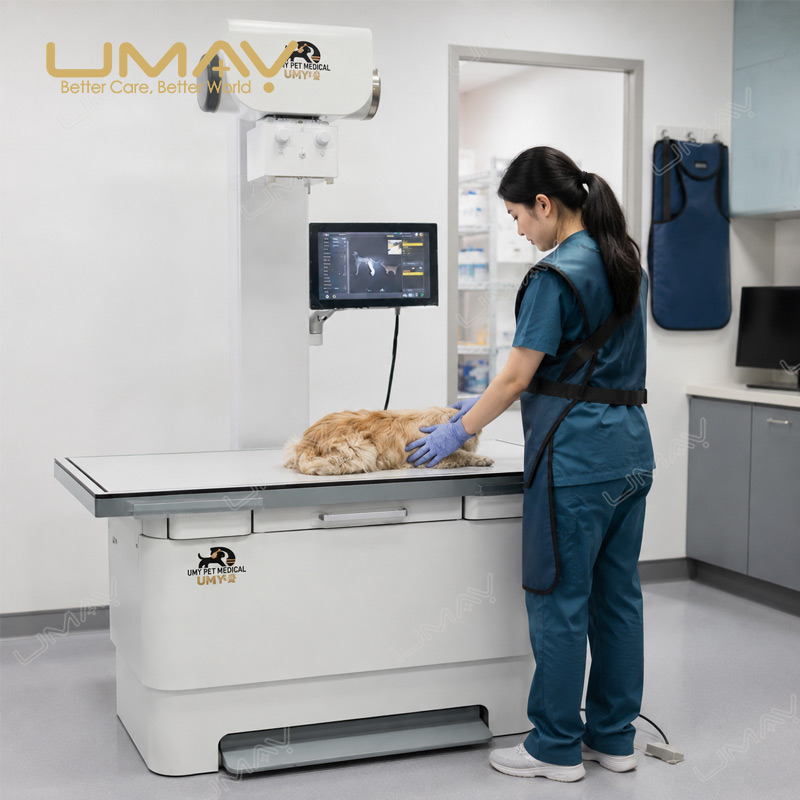

Integrated Veterinary DR Workflow
The UMDRXY003 combines the X-ray source, detector, examination table and image-control interface into a compact veterinary DR platform. This configuration reduces movement between separate equipment during positioning, exposure and image review.
Images can be reviewed immediately after acquisition, allowing the operator to evaluate positioning and exposure before proceeding with the next examination.
High-Frequency X-Ray Generator
The system uses a high-frequency generator with a specified inverter frequency of 500 kHz. Both 20 kW and 32 kW configurations are available according to examination requirements.
| Generator Options | 20 kW / 32 kW |
|---|---|
| Communication | RS232 |
| Power Supply | AC 220V ±10%, 16A, 50/60Hz |
| Inverter Frequency | 500 kHz |
| Radiography kV Range | 40–125 kV ±5% |
| Radiography mA Range | 10–320 mA for selected 20 kW configuration; up to 10–400 mA for selected 32 kW configuration |
| Exposure Time | 1–10,000 ms ±5% |
| Calibration | Automatic / Manual |
| Exposure Control | Hand / Foot / Remote |
| Generator Dimensions | 450 × 450 × 350 mm |
| Generator Weight | 45 kg |

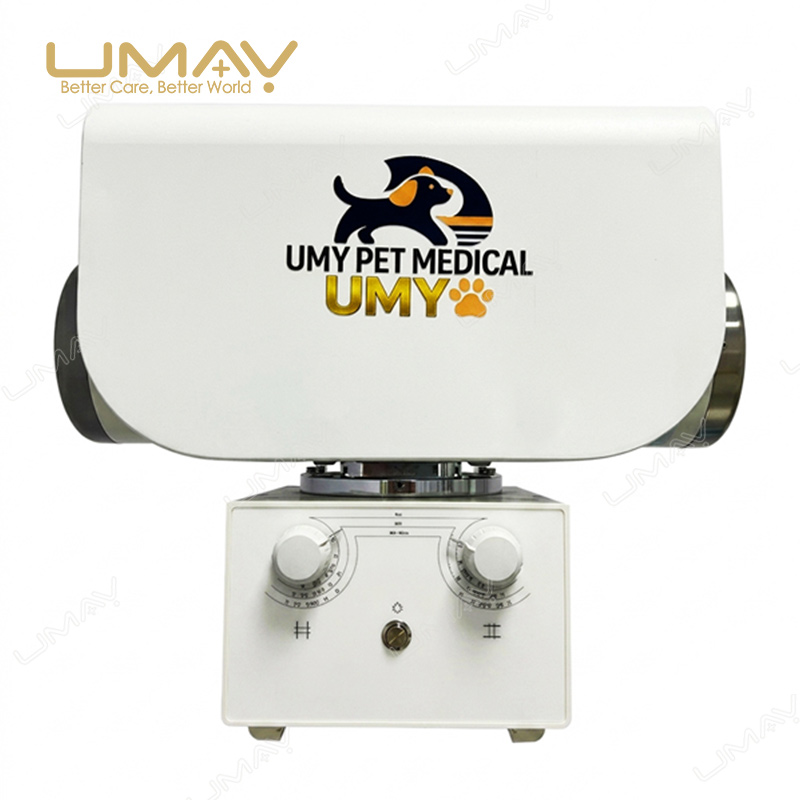

Rotating-Anode X-Ray Tube
The veterinary X-ray system uses a rotating-anode tube designed for routine digital radiography. The tube configuration should be matched with the selected generator power.
| Working Voltage | 40–125 kV for the standard ≤32 kW configuration |
|---|---|
| Focal Spot | Large Focus 2.0 mm / Small Focus 1.0 mm |
| Anode Speed | 2800 rpm at 50 Hz |
| Inherent Filtration | 1.0 mm Al / 75 kV |
| Tube Housing Heat Capacity | 900 kJ / 1300 kHU |
| Maximum Power at 0.1 s | 20 kW Small Focus / 40 kW Large Focus |
| Anode Angle | 12° |
| Anode Heat Content | 110 kJ / 150 kHU |
17 × 17-Inch Flat Panel Detector
The UMDRXY003 can be configured with either a wired or wireless 17 × 17-inch digital flat panel detector. Both configurations use amorphous-silicon detector technology with a CsI scintillator.
Wired Flat Panel Detector
| Detector Technology | Amorphous Silicon |
|---|---|
| Scintillator | CsI |
| Active Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.4 lp/mm |
| AD Conversion | 16 bit |
| Data Transmission | GigE |
| Preview Image Time | 3 s |
| Full Image Time | 5 s |
| Detector Dimensions | 460 × 460 × 15 mm |
| Weight | 4 kg |
Wireless Flat Panel Detector
| Detector Technology | Amorphous Silicon |
|---|---|
| Scintillator | CsI |
| Active Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.6 lp/mm |
| AD Conversion | 16 bit |
| Wireless Connection | 2.4 GHz / 5 GHz Wi-Fi |
| Battery Runtime | Up to 8 hours |
| Full Image Time | 5 s |
| Detector Dimensions | 460 × 460 × 15 mm |
| Weight | 4.3 kg |
| Static Loading | 150 kg uniformly distributed |
| Ingress Protection | IPX1 |

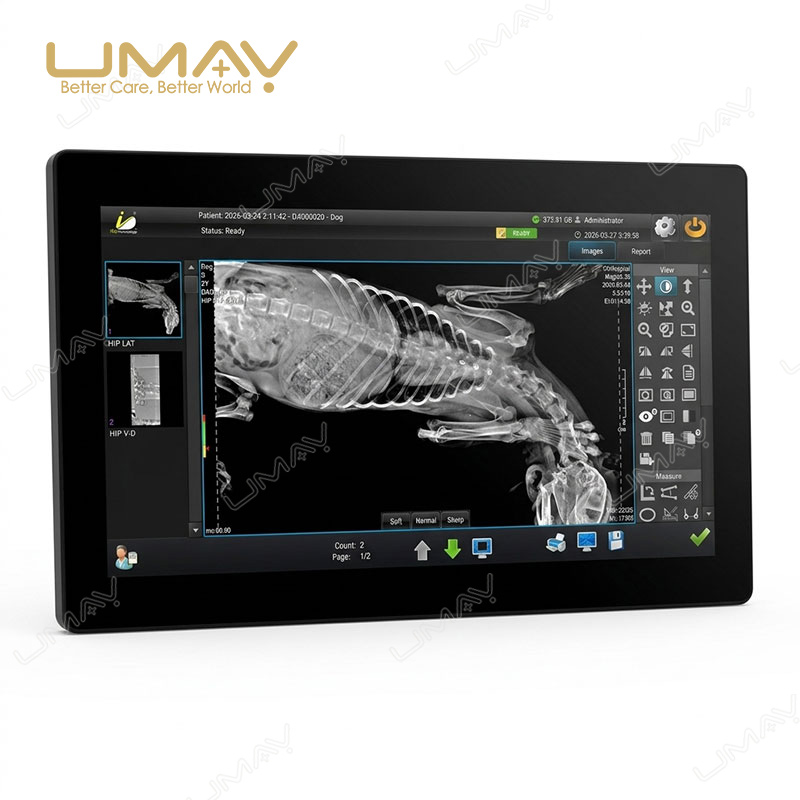

15.6-Inch Touch-Screen Control
The examination-side touch display provides direct access to radiographic parameters and image controls, allowing operators to manage the examination without repeatedly moving to a separate workstation.
| Screen Size | 15.6 inch |
|---|---|
| Resolution | 1920 × 1080 |
| Color Depth | 16.7 million colors |
| Panel Type | IPS |
| Touch Type | Capacitive Touch Panel |
4-Way Floating Veterinary X-Ray Table
The integrated floating table provides horizontal movement for animal positioning and is designed to support common veterinary radiography workflows.
| Table Type | 4-Way Floating Examination Table |
|---|---|
| Bed Length | 1400 mm |
| Bed Width | 720 mm |
| Bed Height | 740 mm |
| Detector Tray | Synchronized Detector Tray |

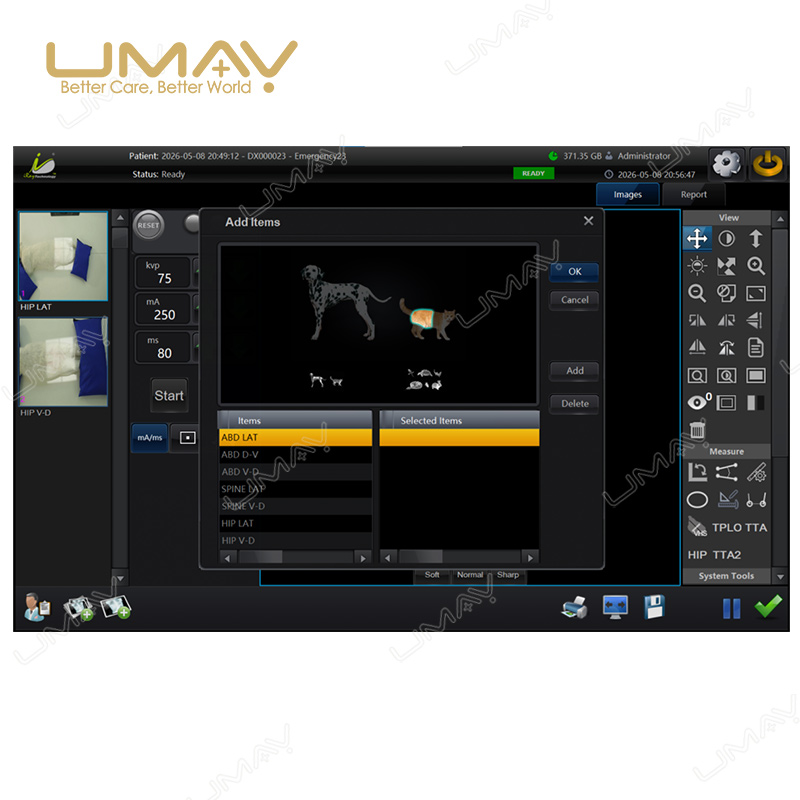

Veterinary Imaging Software
The digital imaging software provides a unified interface for veterinary patient registration, exposure control, image acquisition and post-processing.
- Veterinary patient and examination management.
- Digital image acquisition and preview.
- Advanced edge enhancement.
- Free image rotation.
- Zoom, pan and multi-touch image interaction.
- Radiation dose reporting.
- Window and level adjustment.
- Image measurement and annotation tools.
- Post-processing workflow.
- Flexible film-printing workflow.
Workstation Configuration
| Processor | Intel Core i5 |
|---|---|
| Memory | 8 GB |
| Graphics | 2 GB Dedicated Graphics |
| Storage | 128 GB SSD + 1 TB HDD |
| Network | Dual Gigabit Ethernet |
| Display | 22.5-inch Professional Monitor |
| Operating System | Windows 10 |
A laptop configuration is also available with an Intel Core i5 processor, 16 GB memory and 512 GB SSD, with storage upgrade options available.
Typical Veterinary Applications
The system is designed for digital radiography of animals of different sizes and can be configured for routine veterinary diagnostic imaging workflows.
- Small-animal veterinary radiography.

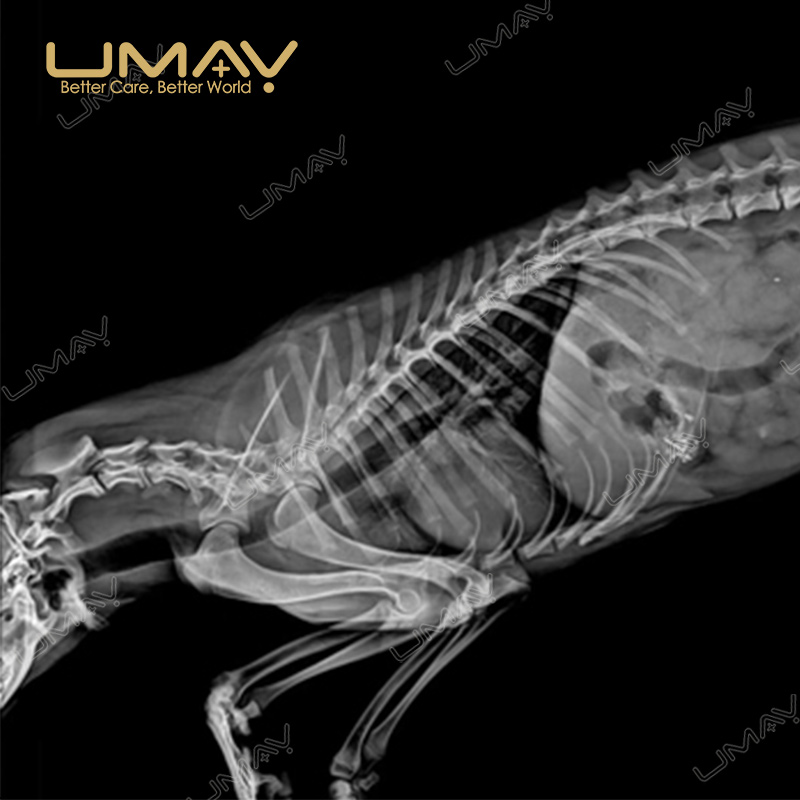

- Dog and cat skeletal imaging.
- Thoracic and abdominal radiography.
- Spine and joint examinations.
- Extremity imaging.

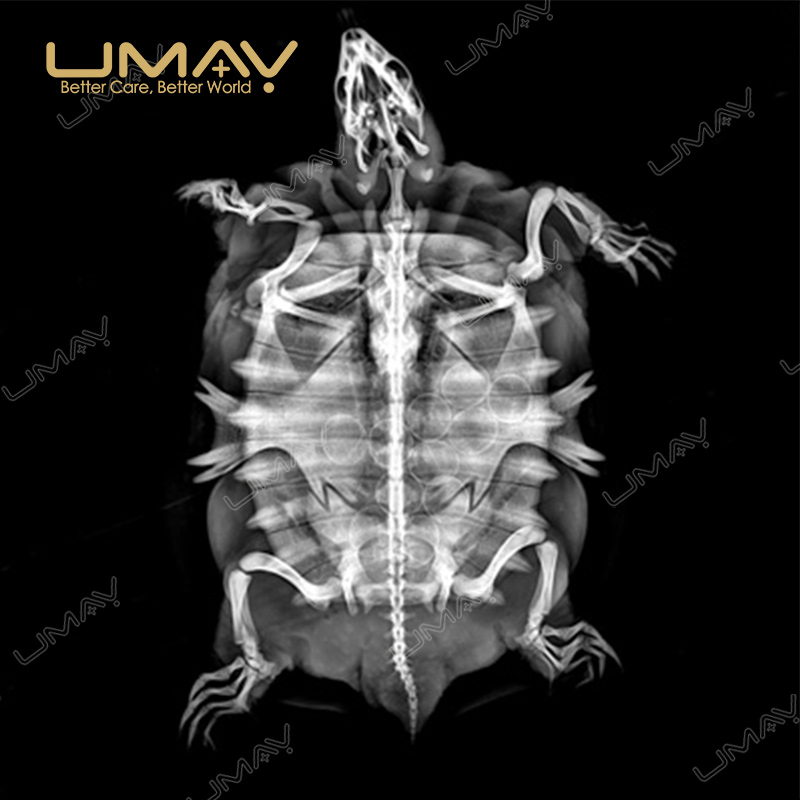

- Exotic-animal radiography.
- Veterinary teaching and research imaging.
Product Configuration Notes
The UMDRXY003 can be supplied in different configurations according to the veterinary facility’s examination requirements and budget.
- 20 kW or 32 kW high-frequency generator.
- Wired or wireless 17 × 17-inch flat panel detector.
- Integrated touch-screen display.
- Desktop workstation or laptop configuration.
- Single-screen or dual-screen operating arrangement.
- Final X-ray tube specification matched to generator configuration.
Fluoroscopy-related parameters shown in some generator configurations should be confirmed separately if fluoroscopy capability is required.
Before Ordering
Please provide the following information so UMY Medical can confirm the appropriate veterinary X-ray configuration and prepare an accurate quotation.
- Required quantity.
- Destination country.
- Main animal types and approximate patient sizes.
- Preferred 20 kW or 32 kW generator.
- Wired or wireless flat panel detector requirement.
- Desktop workstation or laptop requirement.
- Local voltage and electrical conditions.
- Required DICOM, PACS or image-printing workflow.
- Installation and training requirements.
- Local registration, tender or documentation requirements.
Frequently Asked Questions
What generator power options are available?
The UMDRXY003 can be configured with either a 20 kW or 32 kW high-frequency X-ray generator.
What size flat panel detector is used?
The system supports a 17 × 17-inch digital flat panel detector with a 3072 × 3072 pixel matrix and 139 μm pixel pitch.
Is a wireless detector available?
Yes. Both wired GigE and wireless Wi-Fi flat panel detector configurations are available.
Does the system include a touch screen?
Yes. The system can be configured with a 15.6-inch Full HD IPS capacitive touch screen for examination-side control.
Can the system be used for different animal sizes?
Yes. Exposure parameters can be adjusted according to animal size, anatomy and examination requirements.
What should be confirmed before ordering?
Please confirm generator power, detector type, workstation configuration, animal examination requirements, local power supply and any installation or documentation requirements.
