The Single/Dual Syringe Injection System with Syringe Kit is designed to ensure precise and efficient delivery of contrast agents for CT, MRI, and DSA procedures. This system offers flexibility with dual syringes, enabling simultaneous injections or independent administration for varied clinical needs. Ideal for complex imaging tasks, it enhances image quality by providing consistent contrast delivery. The included syringe kit ensures compatibility and ease of use, streamlining the injection process during critical diagnostic imaging. This injection system is a reliable tool for healthcare professionals performing advanced imaging procedures with high precision and safety.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electrical Requirements | |
| Voltage | a.c. 220V, 50Hz |
| Power | 800VA |
| Console | |
| Type | Color Touch Screen |
| Operation Interface | Selectable in English, French, German, and Chinese |
| Flow Rate | 0.1 to 50 mL/sec in 0.1 mL/sec increments |
| Volume | 0.1 mL to max. syringe capacity |
| Rise Time | 0.1 to 1.0 sec in 0.1 sec increments |
| Syringe Capacity | 150 mL |
| Pressure | |
| Limit | Settable from 300 psi to 1200 psi (2070~8280 kPa) in 1 psi increments |
| Display | Display real-time pressure curve |
| Threshold | Automatically stops injection when pressure exceeds the threshold |
| Warning | Alarm and stops injection when over preset pressure limit |
| Injection or Scan | |
| Delay | 0 to 3599 seconds in 1 sec increments |
| Autofill | Settable flow rate from 3 mL/sec to 8 mL/sec, volume from 10 mL to syringe capacity |
| Multi-Phase | 1-8 phases per injection |
| Pause | 0 to 999 seconds in 1 sec increments |
| Hold Capability | More than 30 minutes |
| Storage Capabilities | 100 protocols |
| DSA Injector Machine Dimensions | |
| Length | 27.6″ (70.0 cm) |
| Width | 21.3″ (54.0 cm) |
| Height | 53.6″ (136.0 cm) |
| Weight | 27.5 kg |
| Control Room Console | Optional |
| Touch Screen | |
| Dimension (L × W × H) | 4.55″ × 12.68″ × 9.77″ (11.55 cm × 31.8 cm × 24.81 cm) |
| Weight | 4.1 kg |
Product Details
- Single/Dual Syringe Injection System: Designed for precise and efficient delivery of contrast agents during CT, MRI, and DSA imaging procedures.
- Flexible Dual Syringe Operation: Allows simultaneous injections or independent administration to meet diverse clinical imaging requirements.
- Enhanced Image Quality: Provides consistent and controlled contrast delivery for high-resolution imaging results.
- Included Syringe Kit: Comes with a compatible syringe kit to simplify setup, ensure safety, and streamline the injection process.
- Reliable High-Precision Injection: Maintains accurate contrast volume and flow rate for consistent diagnostic performance.
- User-Friendly Control Interface: Intuitive controls allow quick parameter adjustments and easy operation for healthcare professionals.
- Programmable Injection Protocols: Supports customizable settings for different patients and imaging procedures.
- Integrated Safety Features: Equipped with pressure monitoring and alarms to ensure safe and controlled contrast administration.

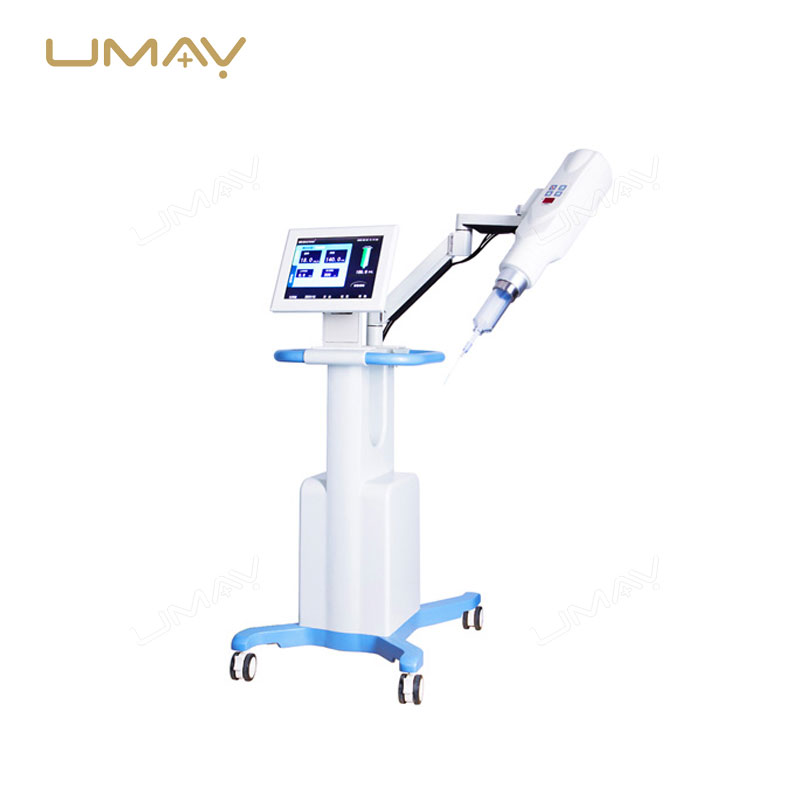

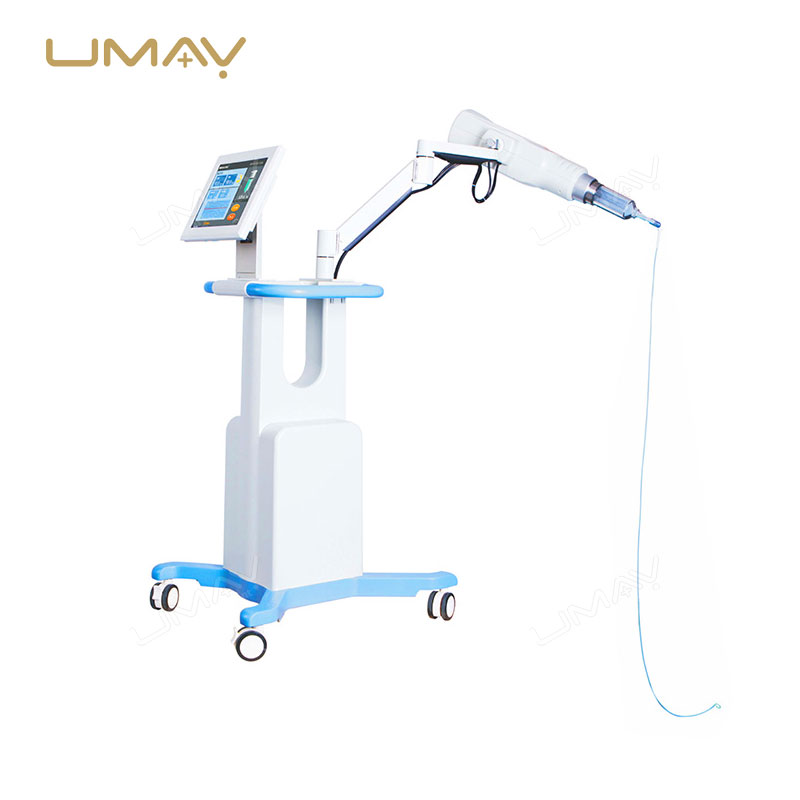

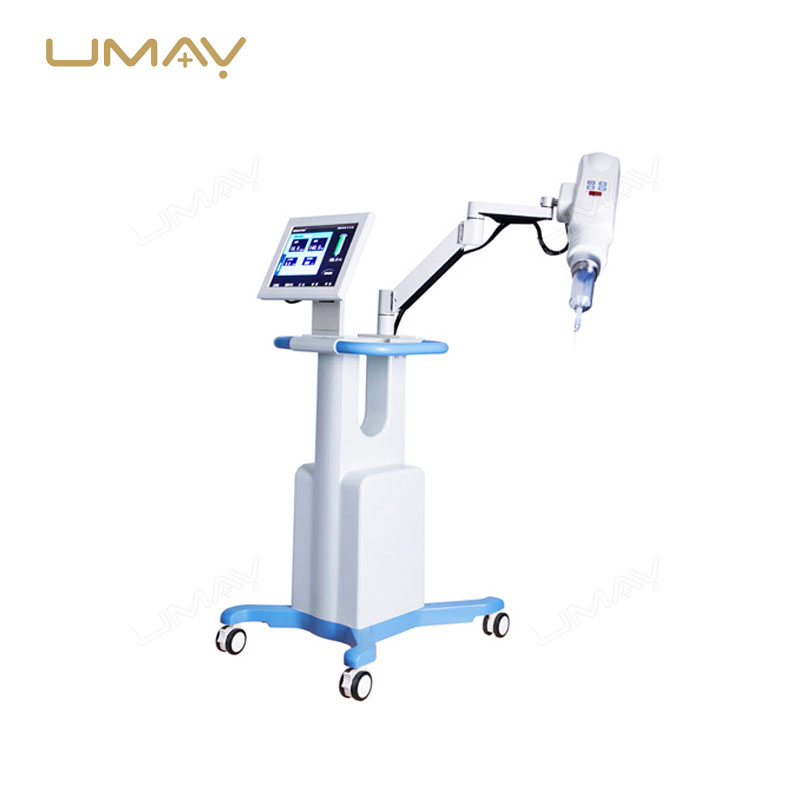

Detail Gallery
