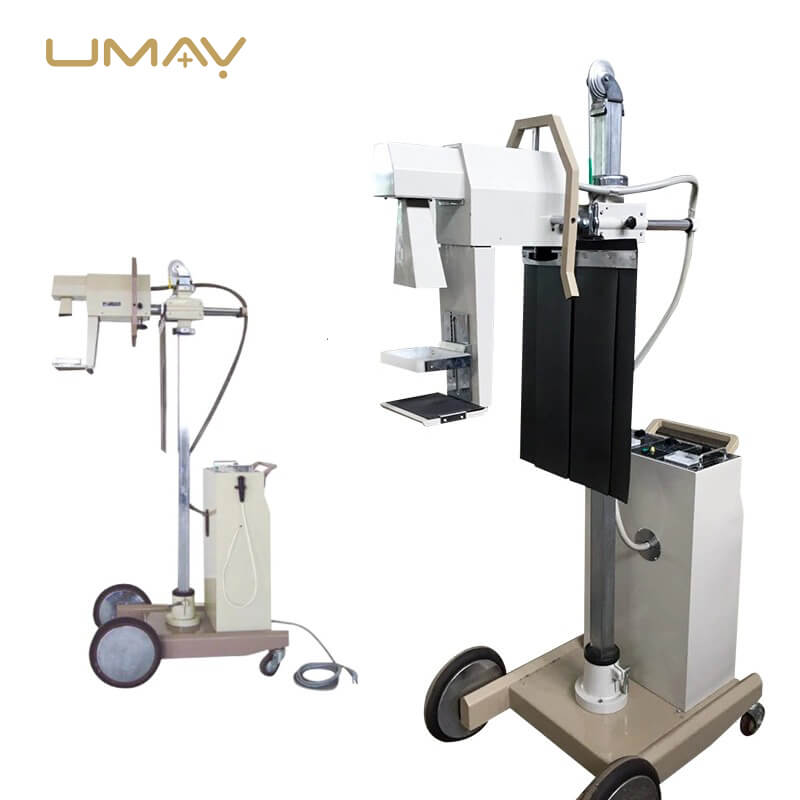

Mobile Mammography X-Ray Unit for Diagnostic Breast Imaging
The Mobile Mammography X-Ray Machine is designed to provide clear diagnostic imaging for clinical breast examination. Constructed with a high-efficiency molybdenum target X-ray tube, high-voltage generator, stable mobile base, and accurate system controller, this mobile unit delivers consistent beam quality and flexible positioning in hospital and clinical settings.
The machine features precise tube voltage selection between 20 kV and 34 kV, 9-step exposure timing adjustment, and an adjustable stand mechanism supporting 655 mm vertical height travel with +90° to -90° rotation to accommodate different patient postures during examinations.
Key Features
Molybdenum Target Tube
Utilizes a specialized molybdenum target X-ray tube designed for low-energy breast radiography and clear tissue contrast.
Flexible Stand Positioning
Features an adjustable arm with 655 mm vertical elevation and +90° to -90° rotation range for precise position adjustment.
Precise Tube Voltage Selection
Provides a tube voltage range of 20 kV to 34 kV across no less than 8 selectable steps, maintaining actual voltage accuracy within 95%–105%.
9-Step Exposure Timer
Offers electronic timer control from 0.4s to 2.0s with 9 steps, with actual exposure time accuracy within 90%–110% of nominal values.
Compact Mobile Base
Integrated mobile base structure allows smooth relocation and flexible use in outpatient departments and wards.
Analog Meter Monitoring
Includes voltmeter and ammeter indicators with accuracy levels not lower than Grade 2.5 for reliable parameter monitoring.
Technical Specifications
| Specification | Technical Data |
|---|---|
| System Components | Molybdenum target X-ray tube, high-voltage generator, mobile base, controller |
| Power Supply | AC 180–240 V, 50 Hz, Instantaneous Current 6 A |
| Maximum Rated Capacity | 35 kVp, 30 mA, 2 s |
| Tube Voltage Adjustment Range | 20 kV – 34 kV (≥ 8 steps) |
| Tube Voltage Accuracy | Actual value within 95% – 105% of nominal value |
| Exposure Time Adjustment | 0.4 s – 2.0 s (9 steps) |
| Exposure Time Accuracy | Actual value within 90% – 110% of nominal value |
| Film Size | 127 mm × 178 mm |
| Vertical Travel Range | 655 mm |
| Rotation Angle | +90° ~ 0° ~ -90° |
| Meter Indicator Accuracy | Voltmeter & ammeter grade ≥ 2.5 |
- Specifications are based on product technical parameters provided in the factory manual.
- Please confirm local supply voltage standards and compatible film/cassette configurations prior to ordering.
Applications
Mammography Screening
Suitable for routine clinical breast examination and soft tissue X-ray imaging.
Outpatient Radiology
Ideal for small clinics, mobile health screening units, and general radiology departments.
Before Ordering
To help us process your inquiry and prepare an accurate quotation, please provide the following details:
- Required order quantity and destination country.
- Destination facility power supply standards (AC 180-240V, 50Hz compatibility).
- Whether additional cassettes, film processors, or protection accessories are required.
- Local medical device importation and registration requirements.
Request a Mobile Mammography Machine Quote
Contact UMY Medical to discuss product details, export pricing, delivery times, and technical support.
Please include your destination country and required quantity so our sales team can prepare a formal quotation.
Frequently Asked Questions
What type of X-ray tube does this mammography system use?
It uses a specialized molybdenum target X-ray tube designed for clinical breast imaging.
What is the adjustment range for tube voltage and exposure time?
The tube voltage can be adjusted between 20 kV and 34 kV across no less than 8 steps, while the exposure timer ranges from 0.4 s to 2.0 s in 9 steps.
What is the movement range of the stand arm?
The stand arm supports 655 mm of vertical elevation travel and a rotation range from +90° to -90°.
