Precision Manual Phoropter UMH-VT5CB for Ophthalmic Diagnostic Refraction
The UMH-VT5CB Manual Phoropter View Tester is engineered to provide ophthalmologists, optometrists, and eye care practitioners with reliable, high-precision refractive testing for daily clinical vision evaluations. Built with robust mechanical precision and high-grade optical lenses, the UMH-VT5CB ensures accurate measurement of sphere, cylinder, axis, and astigmatism.
Equipped with comprehensive auxiliary lens combinations, intuitive tactile dial adjustments, and smooth inter-pupillary distance controls, this view tester streamlines clinic workflows while maximizing patient comfort.
Designed for seamless integration into vision testing rooms, refractometer units, and ophthalmic stands, the UMH-VT5CB meets international optometric testing standards for modern eye care facilities.
Key Features
Wide Sphere Power Range
Offers a broad power testing range from +16.75D to -19.00D with precise minimum readings down to 0.25D or 0.12D steps.
Extended Cylinder Range
Supports standard cylinder measurements from 0 to -6.00D, expandable up to -8.00D using auxiliary lenses for versatile astigmatic testing.
360° Astigmatic Axis Calibration
Features an intuitive astigmatic axis scale from 0° to 180° with precise 5° increments for accurate axis alignment.
Auxiliary & Cross-Cylinder Lenses
Includes integrated auxiliary lenses (+0.12D / -2.00D) and cross-cylinder mechanisms to streamline subjective refraction testing.
Smooth Ergonomic Controls
Engineered with durable dial controls and tactile feedback for fast, comfortable, and accurate lens switching during exams.
Versatile Color Options
Available in clean clinical white and sleek matte black options to match diverse optical shop and examination room decor.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMH-VT5CB |
| Sphere Powers Range | +16.75 to -19.00D (Minimum reading 0.25D or 0.12D when +0.12D auxiliary lens or optional ±0.12D lens is in use) |
| Cylinder Powers Range | 0 to -6.00D (Minimum reading 0.25D or 0.12D when auxiliary lens is in use); 0 to -8.00D (when -2.00D auxiliary lens is in use) |
| Astigmatic Axis Scale | 0° to 180°, each step is 5° |
| Operation Mode | Manual mechanical rotation and dial control |
- Specifications are based on the official technical datasheets for the UMH-VT5CB Phoropter.
- Standard configuration includes the main phoropter body, cross-cylinder lens assembly, near vision card, and mounting hardware.

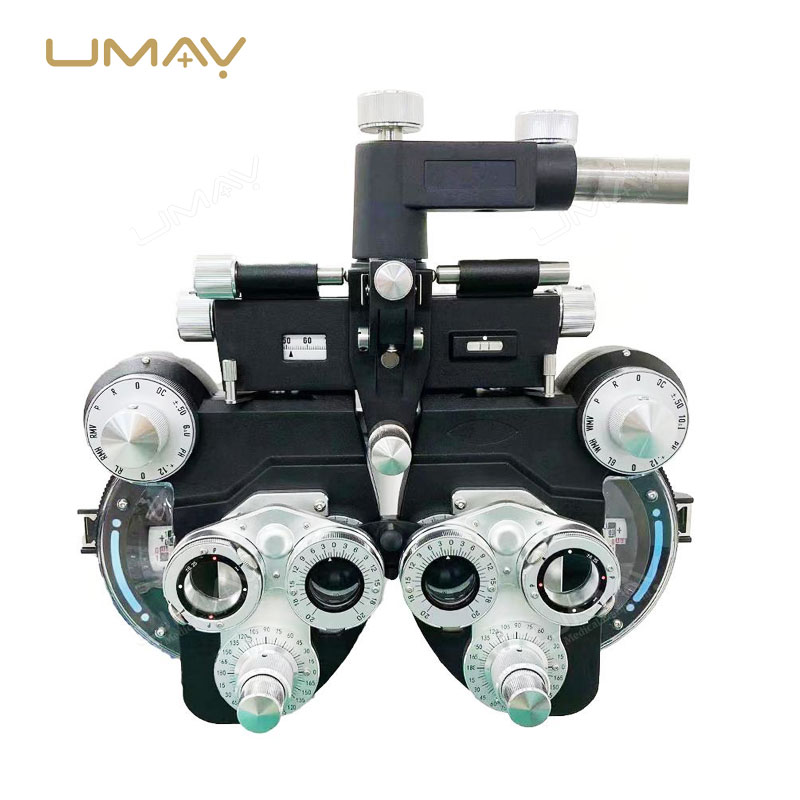

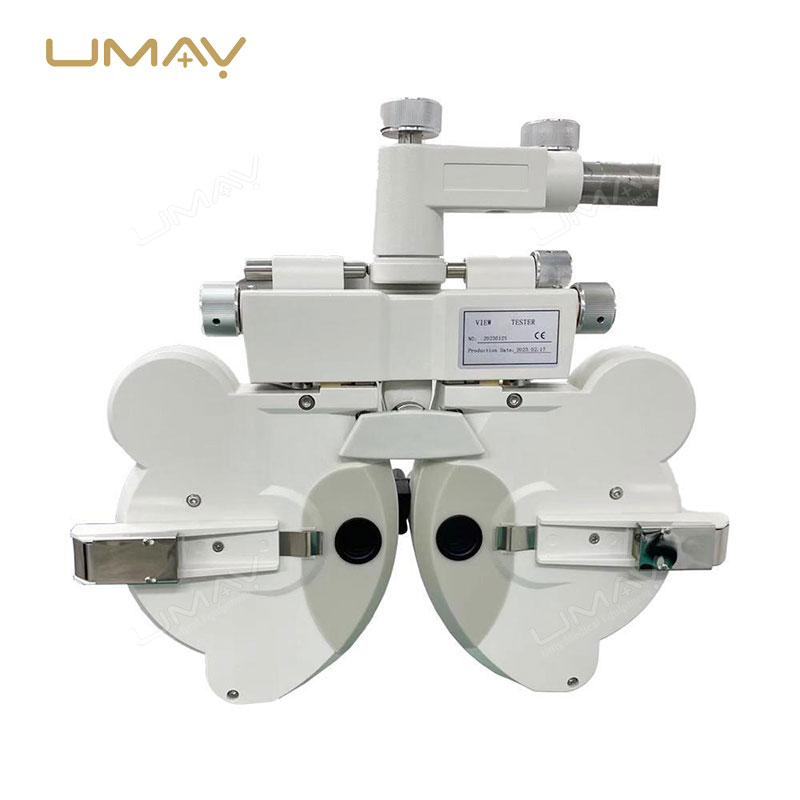

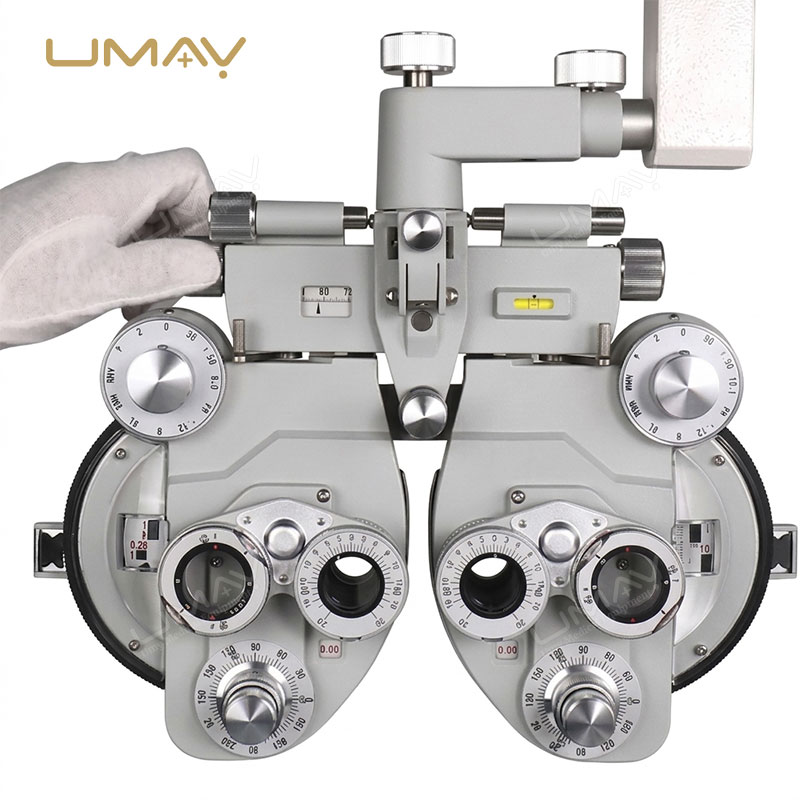

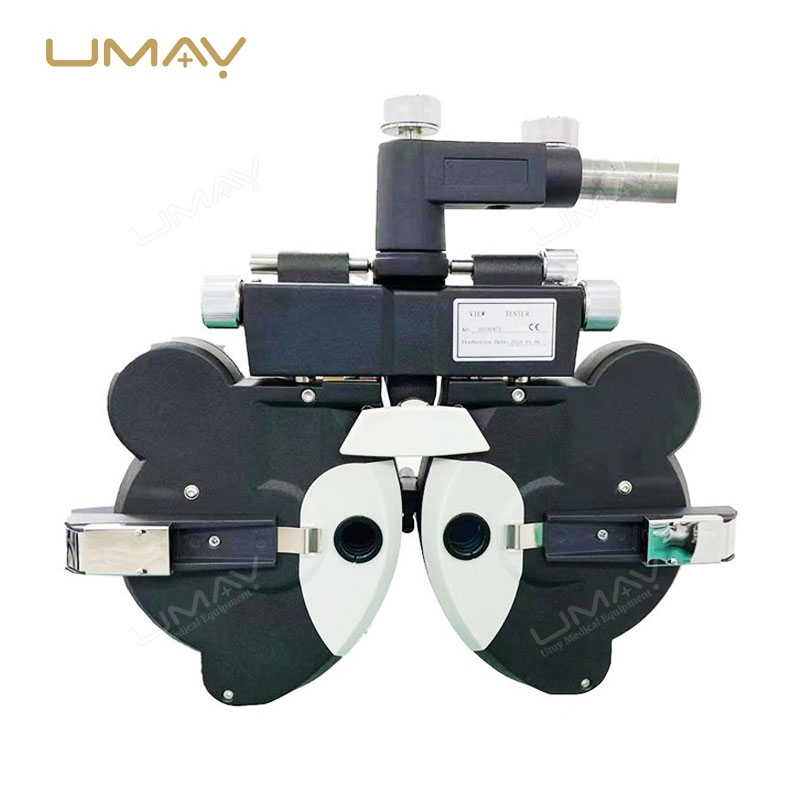

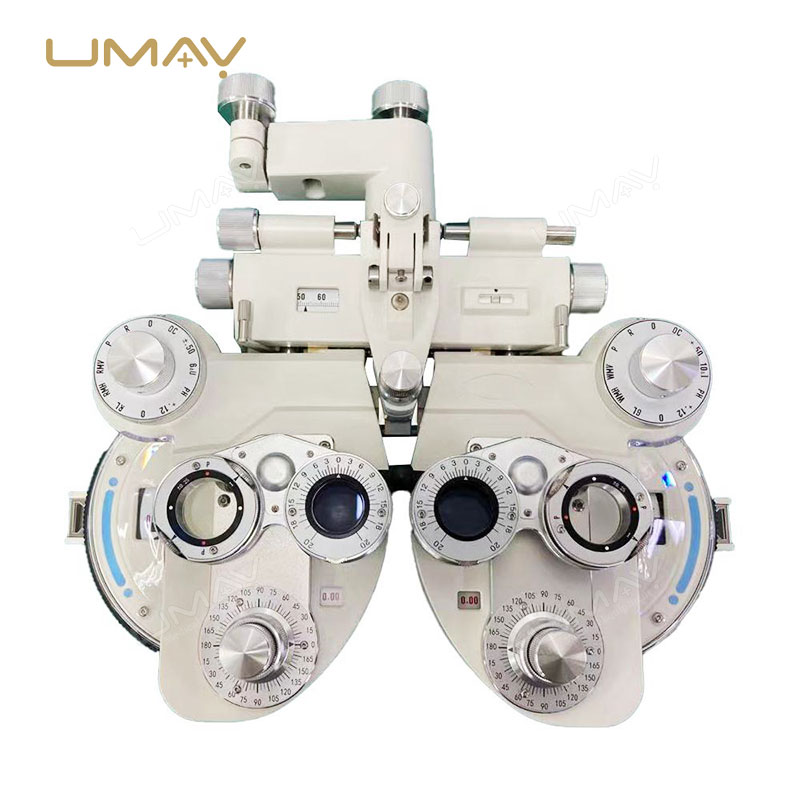

- Available in classic white and black body configurations.
Applications
Routine Optometric Examinations
Provides essential subjective refraction measurements for prescribing corrective eyeglasses and contact lenses.
Astigmatism & Axis Diagnostics
Enables precise detection and fine-tuning of cylindrical power and axis for complex astigmatic prescriptions.
Hospital & Clinic Eye Care
Serves as an indispensable diagnostic instrument for hospital ophthalmic wards, outpatient clinics, and optical chains.
System Configuration
The UMH-VT5CB Phoropter View Tester is supplied complete with the main optical refraction body, near vision rod and card kit, forehead rest assembly, dust cover, and user manual.
Please confirm your preferred color selection (White or Black) and arm stand mounting compatibility prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Color selection preference: White or Black unit housing.
- Compatibility with your current ophthalmic unit stand or wall mount arm.
Request a Phoropter UMH-VT5CB Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your optical shop or medical facility.
Frequently Asked Questions
What is the measurement range for sphere power on the UMH-VT5CB?
The sphere power ranges from +16.75D to -19.00D with minimum steps of 0.25D or 0.12D when using auxiliary lenses.
How high can the cylinder power be extended?
The standard cylinder power range is 0 to -6.00D, which can be extended up to -8.00D using the included -2.00D auxiliary lens.
What color choices are available for the UMH-VT5CB?
The system is available in both medical white and classic black finishes to match your consultation room aesthetics.
Is the UMH-VT5CB compatible with standard ophthalmic refraction arms?
Yes, it features standard mounting fittings suitable for standard refractor arm mounts and ophthalmic workstation stands.
