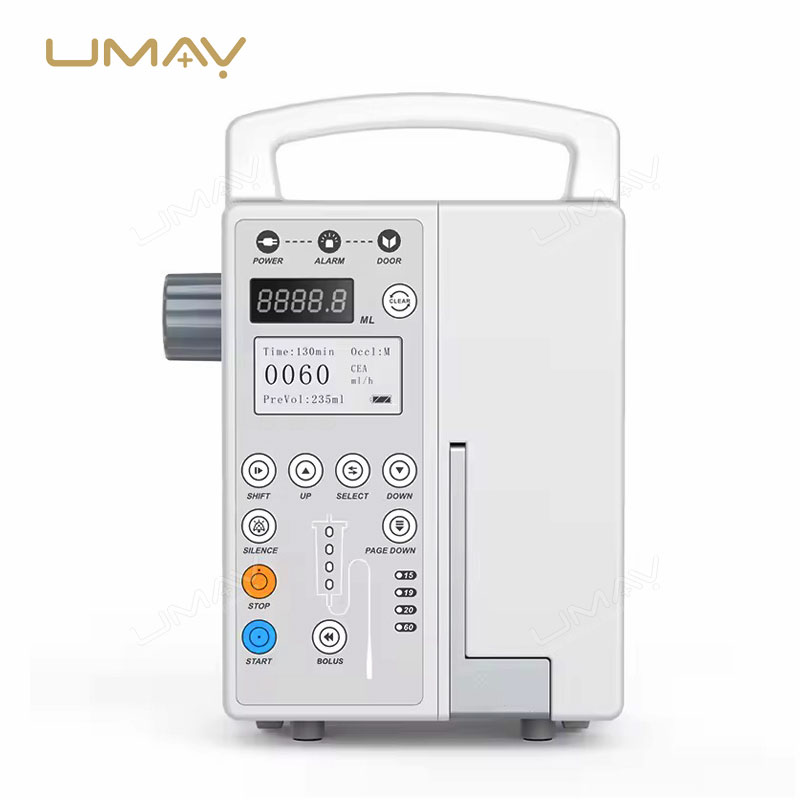

UMIP008 Veterinary Infusion Pump for Animal Intravenous Infusion
The UMIP008 Veterinary Infusion Pump is engineered to offer precise and safe intravenous infusion for veterinary clinics and animal care facilities. Adopting imported motor and dual‑CPU safety design, this veterinary infusion equipment supports flexible infusion parameter setup, rich alarm functions and large‑capacity data storage. It complies with international medical certification standards to streamline daily animal infusion workflows.
Key Features
Stable Running Performance
Equipped with imported motor for low‑noise and low‑vibration operation. Automatic self‑detection will be executed upon boot‑up.
Easy‑to‑Operate Infusion Workflow
Multiple infusion modes are available, free setting of infusion volume, with infusion habit memory function. Compatible with mainstream‑brand infusion sets.
Optional Drop Sensor
Supports remote infusion process control to achieve safer and more precise infusion treatment.
Adjustable Occlusion Pressure Monitoring
Three‑level occlusion pressure options including high, medium and low for real‑time pipeline blockage monitoring.
Dual‑CPU Safety Design
Dual‑CPU hardware structure improves overall system safety for veterinary infusion.
Multi‑Modal Voice Alarm System
Proprietary alarm technology combining human voice, text prompt and indicator light warning.
Large‑Capacity History Record Cassette
Stores up to 2000 records covering operation logs, alarm events and parameter modification, enabling full traceability for animal infusion treatments.
Built‑in Rich Drug Library
Comes with drug library containing more than 1000 drug entries for quick parameter recall.
Reliable Certification
TUV Rheinland certified and meets EN ISO13485:2016 standard.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Infusion Rate | ml/h mode: 1 ~ 1200 ml/h |
| VTBI (Volume To Be Injected) | 0 ~ 9999.9 ml |
| Infusion Accuracy | d/min mode: ≤±3% (after calibration); ml/h mode: ≤±5% (after calibration) |
| IP Protection Level | IP24 |
| Drug Library Capacity | ≥1000 drug entries |
| History Record Storage | Up to 2000 records |
| Alarm Items | Working state alert, equipment failure, power fault, replace infusion set, drop related alarm |
| Power Supply | 100‑240VAC, 50/60Hz; External DC 12V power supply supported |
| Certifications | TUV Rheinland, EN ISO13485:2016, CE |
- Specifications are based on the official technical datasheets for the UMIP008 Veterinary Infusion Pump.
- Standard configuration includes main pump unit; drop sensor is optional accessory.
- Infusion sets need to be purchased separately, compatible with mainstream‑brand infusion sets.
Applications
Veterinary Clinic Daily Treatment
Accurate intravenous fluid infusion for routine animal diagnosis and treatment.
Animal Hospital In‑patient Care
Controlled infusion for hospitalized animals with full treatment‑log traceability.
Veterinary Emergency Scenarios
Reliable infusion support for emergency rescue of companion and farm animals.
System Configuration
The UMIP008 Veterinary Infusion Pump is supplied complete with main pump unit, power adaptor and user manual. Drop sensor is optional. Please confirm your optional accessory requirements and local power supply standard before placing an order.
Before Ordering
- Required order quantity and destination country.
- Confirm whether optional drop sensor is required.
- Local voltage standard for clinic or hospital installation environment.
Request a UMIP008 Veterinary Infusion Pump Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your veterinary clinic or animal hospital.
Frequently Asked Questions
What safety design does UMIP008 veterinary infusion pump adopt?
It applies dual‑CPU safety architecture, multi‑level occlusion pressure monitoring plus combined voice‑light‑text alarm system to guarantee infusion safety.
What infusion accuracy can this pump achieve?
d/min mode ≤±3% after calibration; ml/h mode ≤±5% after calibration.
How many historical treatment records can the device store?
It can store up to 2000 pieces of logs including operation, alarm and modification records for treatment traceability.
Does it support external DC power supply?
Yes, besides AC mains power, external DC 12V power supply is supported for flexible deployment.
