Type: Veterinary Products
Animal: Goat, Cat, Dog
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Gas System | |
| Gas Supply | O₂ + Air |
| Backup Cylinder Yokes | 2 |
| Flow Meter | Dual tubes, Air/O₂: 0–1L/min, 1–15L/min, 1–10L/min |
| Oxygen Flush | 25 – 75 L/min |
| CO₂ Canister | 1.5 L |

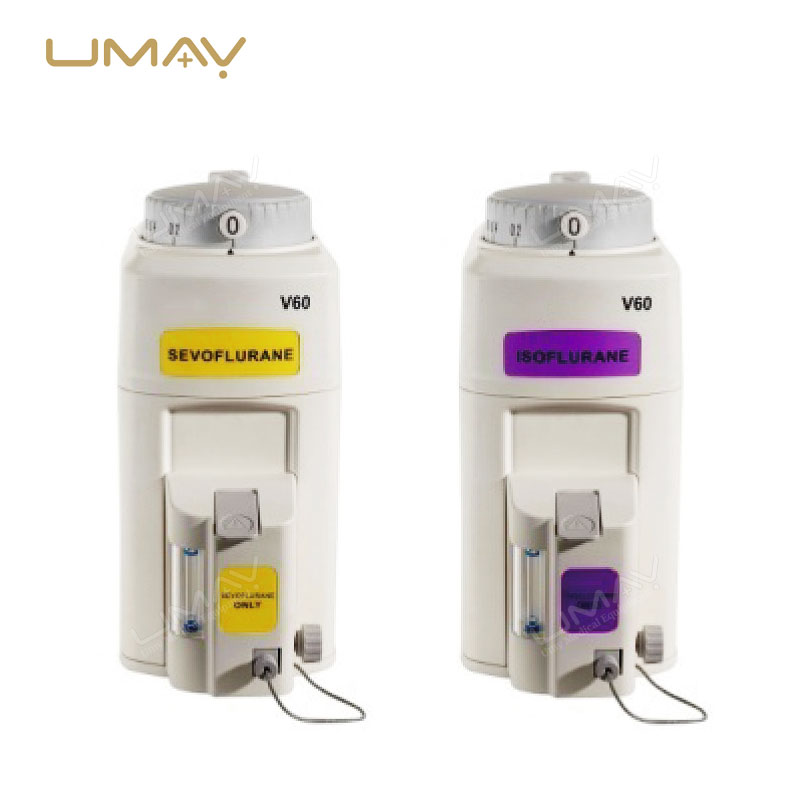

| Position for Vaporizer | 1 or 2 |
| Vaporizer Mounting System | Selectatec with interlocking function |

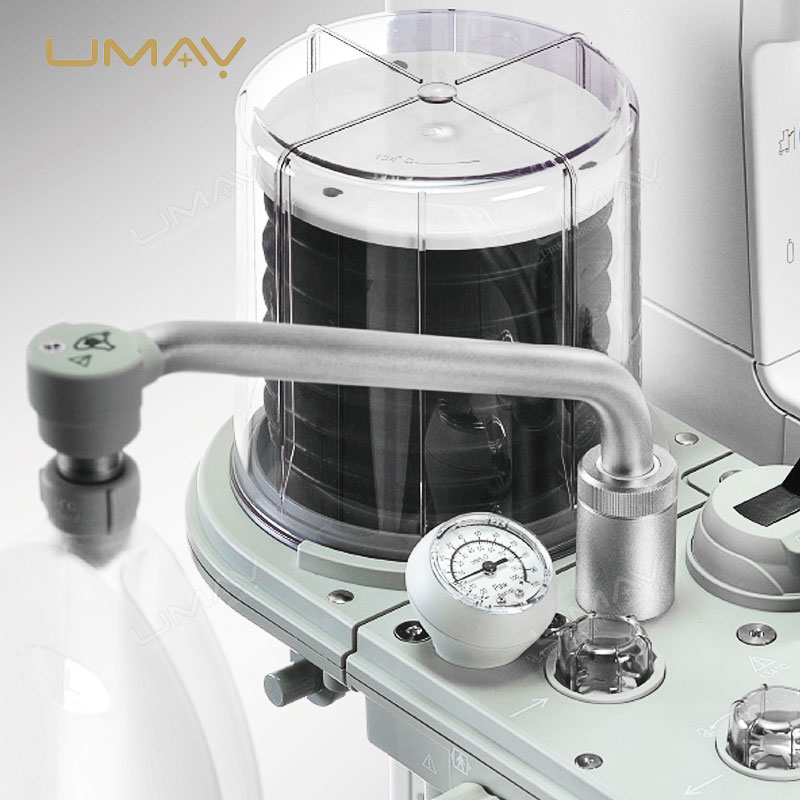

| Pressure Gauge | -20 cmH₂O to 100 cmH₂O |
| Ventilator | |
| Ventilator | Electronic control |
| Ventilation Mode | VCV, PCV, Spontaneous, Manual, SIMV (opt), PSV (opt), PCV-VG (opt) |
| Tidal Volume | 20 – 1500 ml (Volume mode), 5 – 1500 ml (Pressure mode, PCV-VG) |
| Monitoring Parameters | |
| Monitor Parameter | Tidal volume, O₂ concentration, airway pressure, breathing frequency, minute volume, PEEP |
| Waveform | P-T, F-T, V-T |
| Trend | Up to 48 hours |
| Alarm System | |
| Alarm Types | Low airway pressure, High airway pressure, Oxygen failure alarm, Apnea alarm, Breathing rate alarm, O₂ concentration |
| Optional Features | |
| Oxygen Sensor | Opt |
| CO₂ Monitoring | Opt, side-stream or main-stream |
| Anesthesia Gas Monitoring | Opt |
| ACGO | Opt |
| AGSS | Opt, Passive or Active |
| Physical Specifications | |
| Weight | 319.7 lbs (145 kg) (without vaporizer and cylinder) |
| Dimensions | 1410(H) x 945(W) x 690(D) mm |

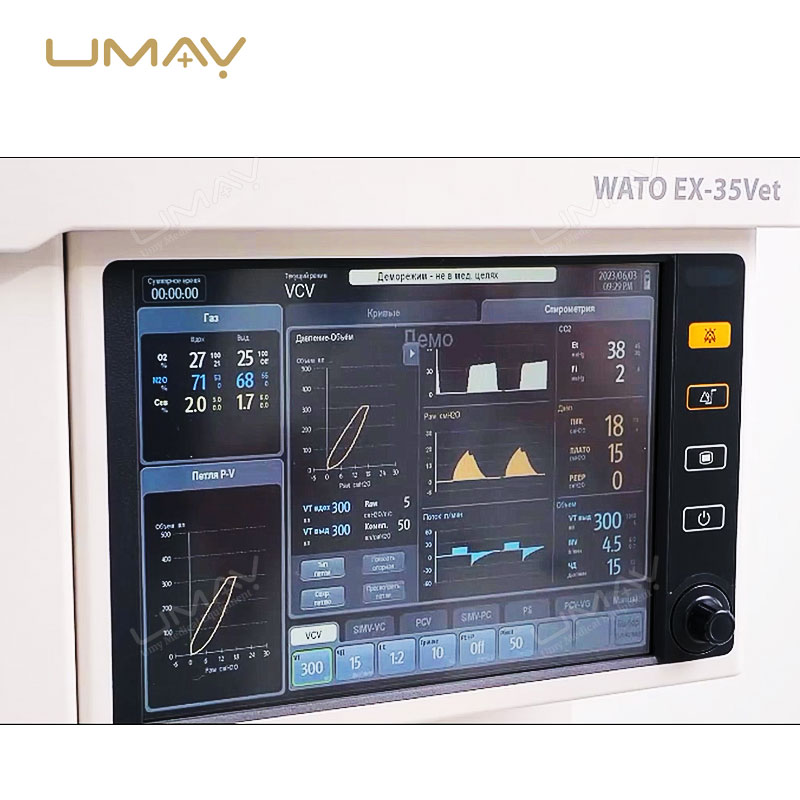

| Display | 10.4-inch color touchscreen |
| Drawer | 3 |
| Power | |
| Power Supply | 100 – 240 V, 50/60 Hz |
| Backup Battery | 90 min (one battery), 240 min (two batteries) |
