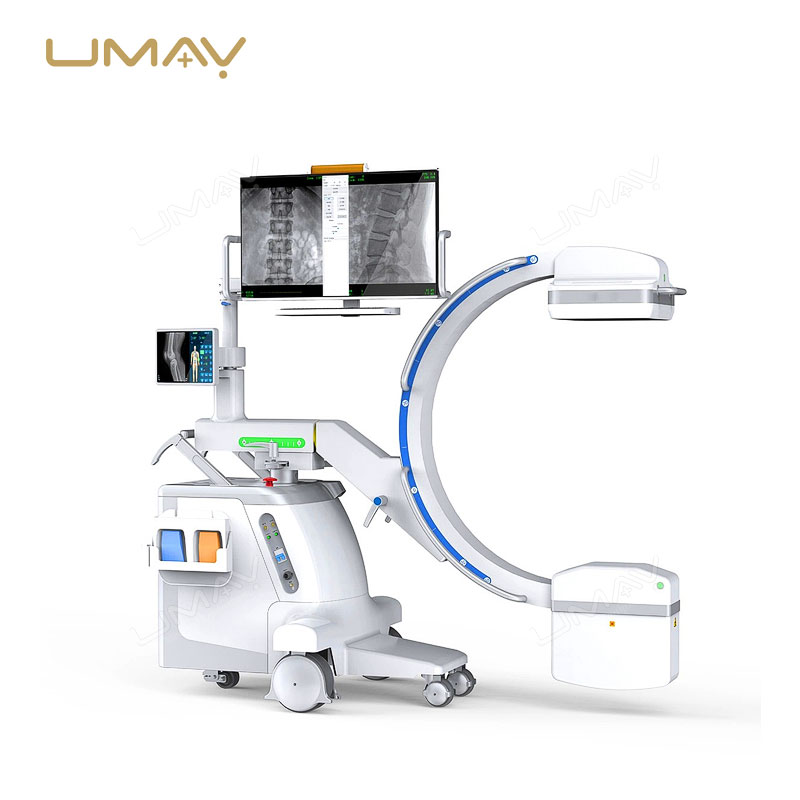

The Mobile All-in-One C-Arm System with FPD is designed to offer versatile imaging solutions for orthopedics, urology, and gynecology procedures. Featuring a Flat Panel Detector (FPD), it provides high-resolution, real-time imaging to assist in surgical planning and precision during operations. This mobile system is ideal for use in various medical environments, offering flexibility and ease of movement during procedures such as fracture reductions, kidney stone removal, and gynecological surgeries. The C-arm’s compact design and advanced imaging capabilities enhance workflow and improve patient outcomes. It is an indispensable tool for healthcare professionals seeking high-quality imaging in a variety of clinical applications.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Generator | |
| Power Supply | High frequency inverter |
| Power Output | 5.0kW |
| Inverter Frequency | 110kHz |
| Automatic Fluoroscopy | |
| Tube Voltage | 40kV ~ 120kV (adjust automatically) |
| Tube Current | 0.3mA ~ 4mA (adjust automatically) |
| Manual Fluoroscopy | |
| Tube Voltage | 40kV ~ 120kV (continuous) |
| Tube Current | 0.3mA ~ 4mA (continuous) |
| Pulse Fluoroscopy | |
| Tube Voltage | 40kV ~ 120kV (continuous) |
| Tube Current | 0.3mA ~ 30mA (continuous) |
| Photography Tube Voltage, mA | |
| Voltage | 40kV ~ 120kV |
| Current | 25mA ~ 100mA |
| mAs | 1.0mAs ~ 280mAs |
| X-Ray Tube | |
| Type | Dual focus: 0.6/2.0mm |
| Thermal Capacity | 650kJ (867kHU) |
| Imaging System | 9″ × 9″ Dynamic Flat Panel Detector |
Product Details
- Mobile All-in-One C-Arm System: Designed to provide flexible and high-quality real-time imaging for a wide range of surgical and diagnostic procedures.
- Advanced Flat Panel Detector (FPD): Equipped with high-resolution FPD technology for clear, detailed, and accurate fluoroscopic imaging.
- Real-Time Dynamic Imaging: Supports continuous live imaging to assist healthcare professionals during surgical and interventional procedures.
- Ideal for Orthopedic Applications: Provides precise imaging guidance for fracture reduction, implant positioning, and orthopedic surgeries.
- Suitable for Urology Procedures: Assists in procedures such as kidney stone removal, ureteral interventions, and other urological examinations.
- Optimized for Gynecological Surgeries: Supports accurate imaging during gynecological diagnostic and surgical procedures.
- Compact and Mobile Design: Flexible mobile structure allows convenient positioning and easy movement between operating rooms and clinical environments.
- High-Resolution Image Quality: Delivers sharp anatomical visualization for improved diagnostic confidence and surgical precision.
- Efficient Workflow Enhancement: Streamlines imaging procedures and improves operational efficiency in busy medical facilities.
- User-Friendly Control Interface: Intuitive operating system simplifies parameter adjustment, image acquisition, and workflow management.
- Smooth C-Arm Movement: Ergonomic arm design allows flexible positioning and multiple imaging angles during procedures.
- Supports Minimally Invasive Procedures: Real-time imaging guidance improves precision during interventional and minimally invasive treatments.
