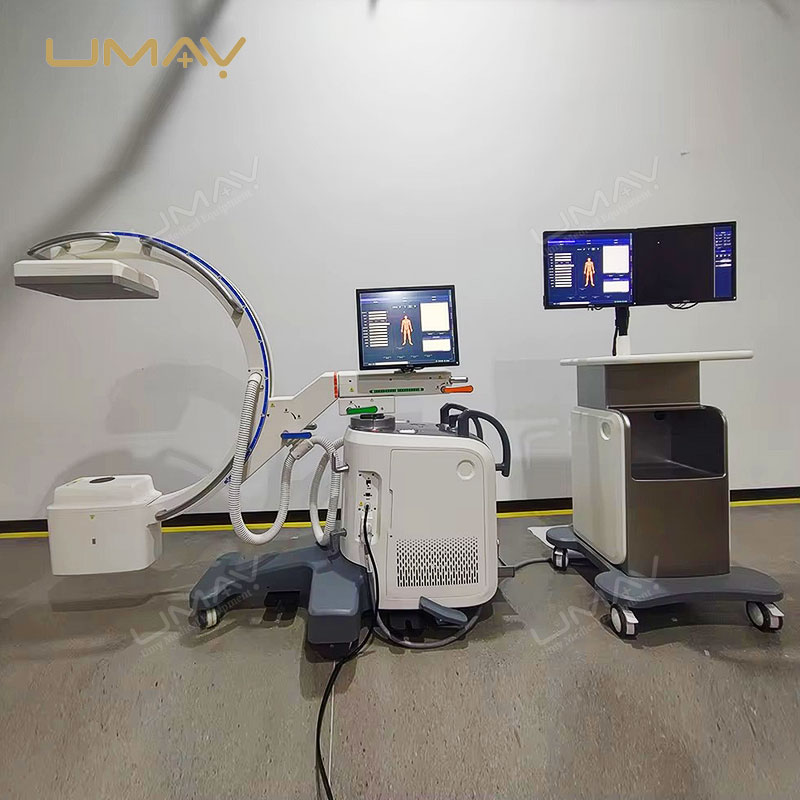

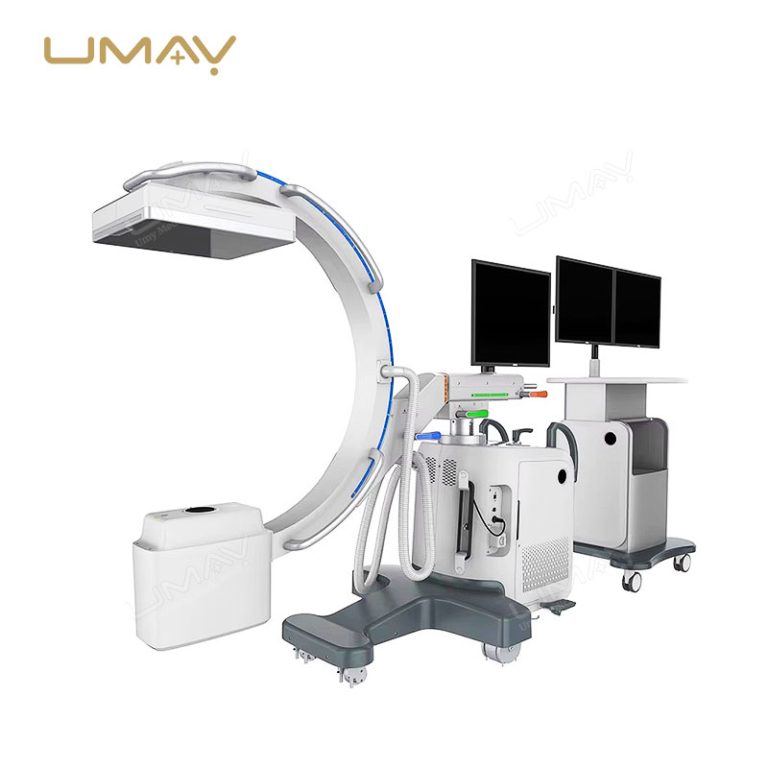

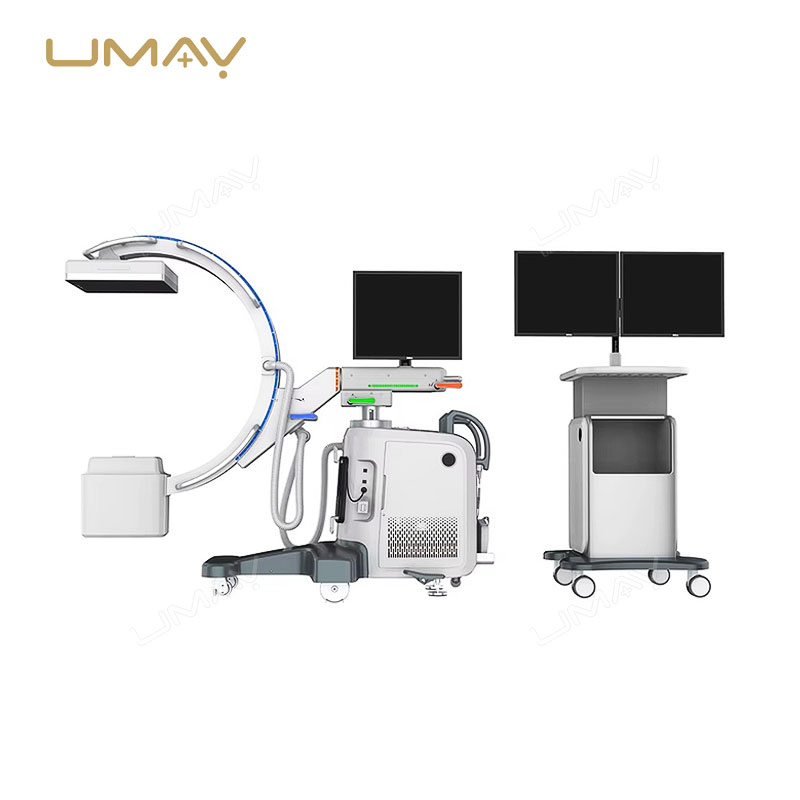

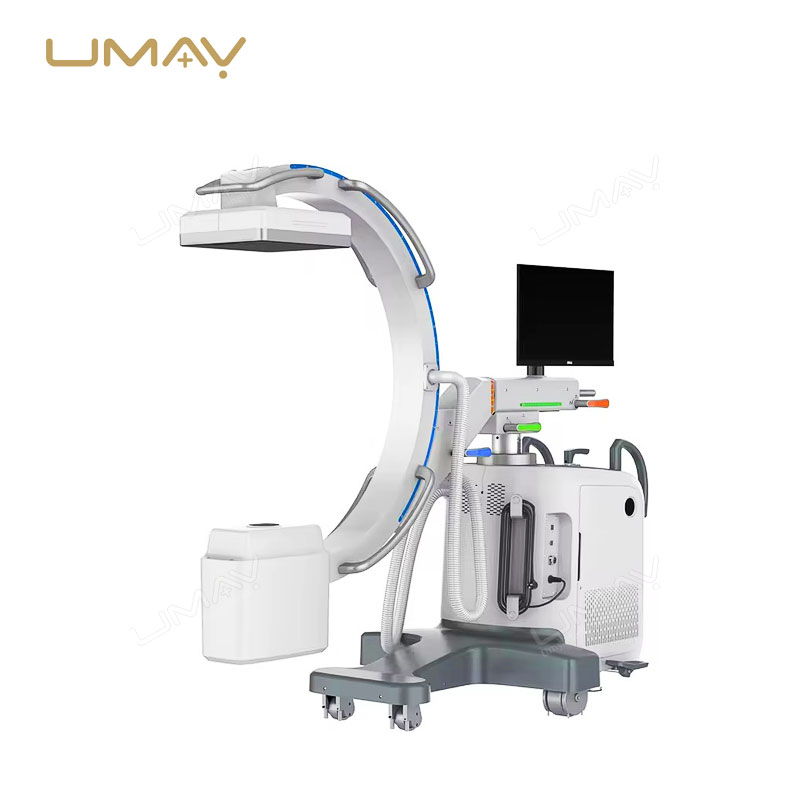

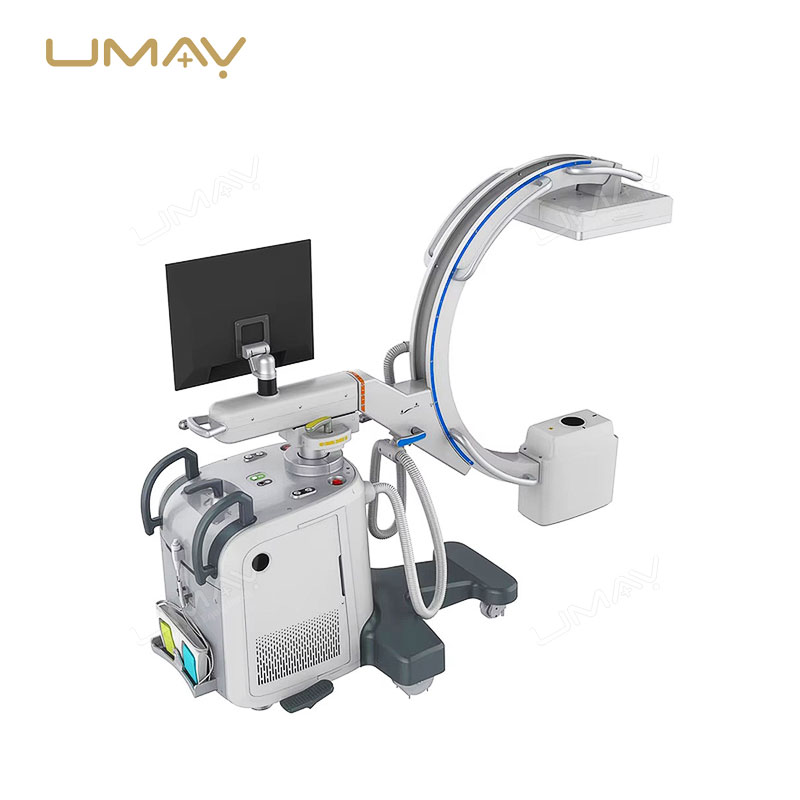

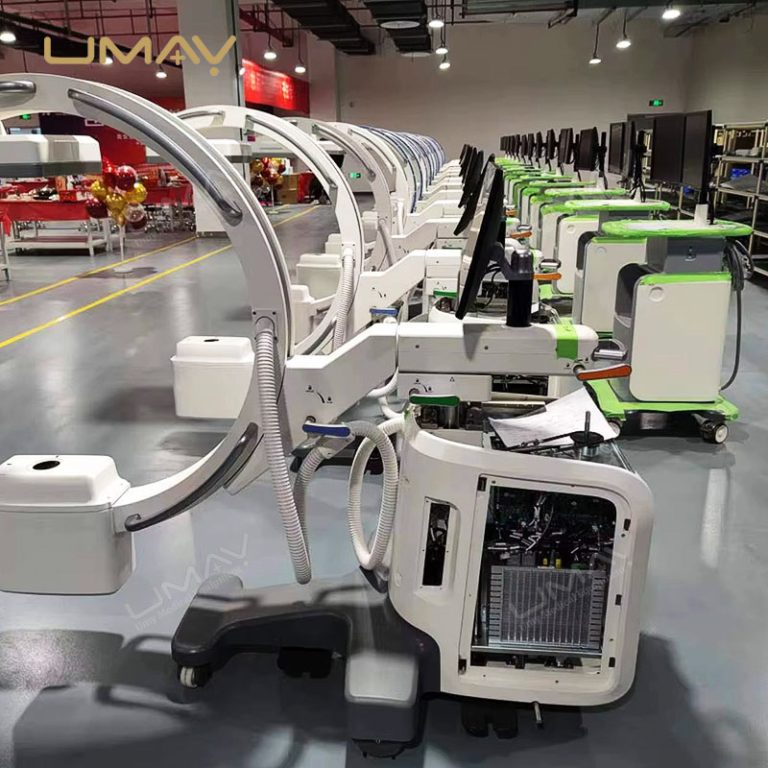

The UMY-XM-005 5kW Mobile C-Arm X-Ray System is designed
for real-time fluoroscopic imaging during surgical and image-guided procedures.
It combines a 5kW high-frequency X-ray generator, dual-focus X-ray tube,
continuous and pulsed fluoroscopy, digital image acquisition and touchscreen
exposure control in a mobile C-arm platform.
The system is suitable for operating-room applications including orthopedics,
trauma, spine procedures, general surgery and pain-management imaging.
Key Features
- 5kW high-frequency mobile C-arm X-ray system
- High-frequency inverter frequency ≥200 kHz
- Dual focal spots: 0.6 mm / 1.2 mm
- 40–120 kV tube voltage range
- Continuous and pulsed fluoroscopy modes
- Continuous fluoroscopy current up to 10 mA
- Pulsed fluoroscopy current up to 50 mA
- Image acquisition up to 25 fps
- Maximum radiographic current: 80 mA
- Digital acquisition matrix ≥1024 × 1024
- Pixel size ≤205 μm
- Spatial resolution ≥2.0 lp/mm
- Dynamic range ≥16 bit
- Color graphical LCD touchscreen
- Real-time exposure parameter adjustment
- Intelligent multi-dimensional laser positioning
- Removable high-density anti-scatter grid
5kW High-Frequency X-Ray Generator
The UMY-XM-005 uses a high-frequency inverter power supply with an integrated
X-ray tube assembly.
The specified output power is 5 kW, with an inverter frequency
of ≥200 kHz.
The tube voltage can be adjusted from 40 to 120 kV to support
different fluoroscopic and radiographic imaging requirements.
Dual-Focus X-Ray Tube
The X-ray tube provides two focal spot sizes for different imaging conditions.
- Small focal spot: 0.6 mm
- Large focal spot: 1.2 mm
The tube housing has a specified heat capacity of
480 kJ (648 kHU).
The anode heat capacity is specified at
60 kJ (81 kHU).
Continuous and Pulsed Fluoroscopy
The UMY-XM-005 supports both continuous and pulsed fluoroscopy for
real-time procedural imaging.
Continuous fluoroscopy supports a maximum tube current of
10 mA.
Pulsed fluoroscopy supports a maximum tube current of
50 mA and image acquisition at up to
25 frames per second.
| X-Ray Parameter | Specification |
|---|---|
| Tube Voltage | 40–120 kV |
| Continuous Fluoroscopy Current | Up to 10 mA |
| Pulsed Fluoroscopy Current | Up to 50 mA |
| Pulse Acquisition Rate | Up to 25 fps |
| Maximum Radiographic Current | 80 mA |
Digital Image Acquisition
The digital imaging system supports real-time fluoroscopic visualization
and image acquisition during surgical procedures.
The specified acquisition matrix is at least
1024 × 1024 pixels.
Pixel size is specified at ≤205 μm, with spatial resolution
of ≥2.0 lp/mm and dynamic range of
≥16 bit.
| Acquisition Matrix | ≥1024 × 1024 |
|---|---|
| Pixel Size | ≤205 μm |
| Spatial Resolution | ≥2.0 lp/mm |
| Dynamic Range | ≥16 bit |
| Grid Density | ≥80 lines/cm, removable |
Touchscreen Exposure Control
The system incorporates a color graphical LCD touchscreen for operating
the C-arm and adjusting exposure parameters.
Parameters can be viewed and modified directly through the interface during
procedural setup and imaging.
Laser-Assisted Positioning
An intelligent multi-dimensional laser positioning system assists the operator
with alignment of the imaging area.
The integrated design helps position the C-arm over the required anatomical
region before fluoroscopic acquisition.
Technical Specifications
| Model | UMY-XM-005 |
|---|---|
| Product Type | Mobile C-arm X-ray system |
| Generator Power | 5 kW |
| Inverter Frequency | ≥200 kHz |
| Focal Spot Size | 0.6 mm / 1.2 mm |
| Tube Housing Heat Capacity | 480 kJ (648 kHU) |
| Anode Heat Capacity | 60 kJ (81 kHU) |
| Tube Voltage | 40–120 kV |
| Continuous Fluoroscopy Current | Up to 10 mA |
| Pulsed Fluoroscopy Current | Up to 50 mA |
| Maximum Pulse Rate | 25 fps |
| Maximum Radiographic Current | 80 mA |
| Acquisition Matrix | ≥1024 × 1024 |
| Pixel Size | ≤205 μm |
| Spatial Resolution | ≥2.0 lp/mm |
| Dynamic Range | ≥16 bit |
| Anti-Scatter Grid | ≥80 lines/cm, removable |
| Positioning | Intelligent multi-dimensional laser positioning |
Typical Applications
- Orthopedic surgery
- Trauma procedures
- Spine procedures
- General surgery
- Pain-management procedures
- Operating-room fluoroscopy
Related C-Arm X-Ray Systems
For facilities requiring a C-arm system with an integrated flat panel detector,
compare the
UMY-XM-047 5kW Mobile C-Arm Fluoroscopy System
.
You can also browse our complete
C-Arm X-Ray Machine
range for additional surgical imaging configurations.
Before Ordering
Please provide the intended surgical application and required imaging configuration.
Our team can review the required system configuration before quotation.
- Required quantity
- Intended surgical or fluoroscopy application
- Required imaging configuration
- Required workstation functions
- Required accessories
- Local voltage and frequency
- PACS / DICOM requirements, if required
- Required technical or regulatory documentation
- Destination country
Request UMY-XM-005 C-Arm Quotation
Contact UMY Medical with your surgical imaging requirements,
required quantity and destination country.
FAQ
What is the generator power of the UMY-XM-005?
The UMY-XM-005 has a specified high-frequency generator output of 5 kW.
What is the tube voltage range?
The specified tube voltage range is 40–120 kV.
Does the system support pulsed fluoroscopy?
Yes. Pulsed fluoroscopy supports up to 50 mA with image acquisition
at up to 25 fps.
What is the digital image acquisition matrix?
The specified acquisition matrix is at least 1024 × 1024 pixels.
What applications is the UMY-XM-005 designed for?
Typical applications include orthopedic, trauma, spine, general surgery
and other operating-room procedures requiring real-time fluoroscopic imaging.
