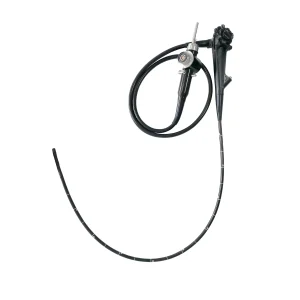

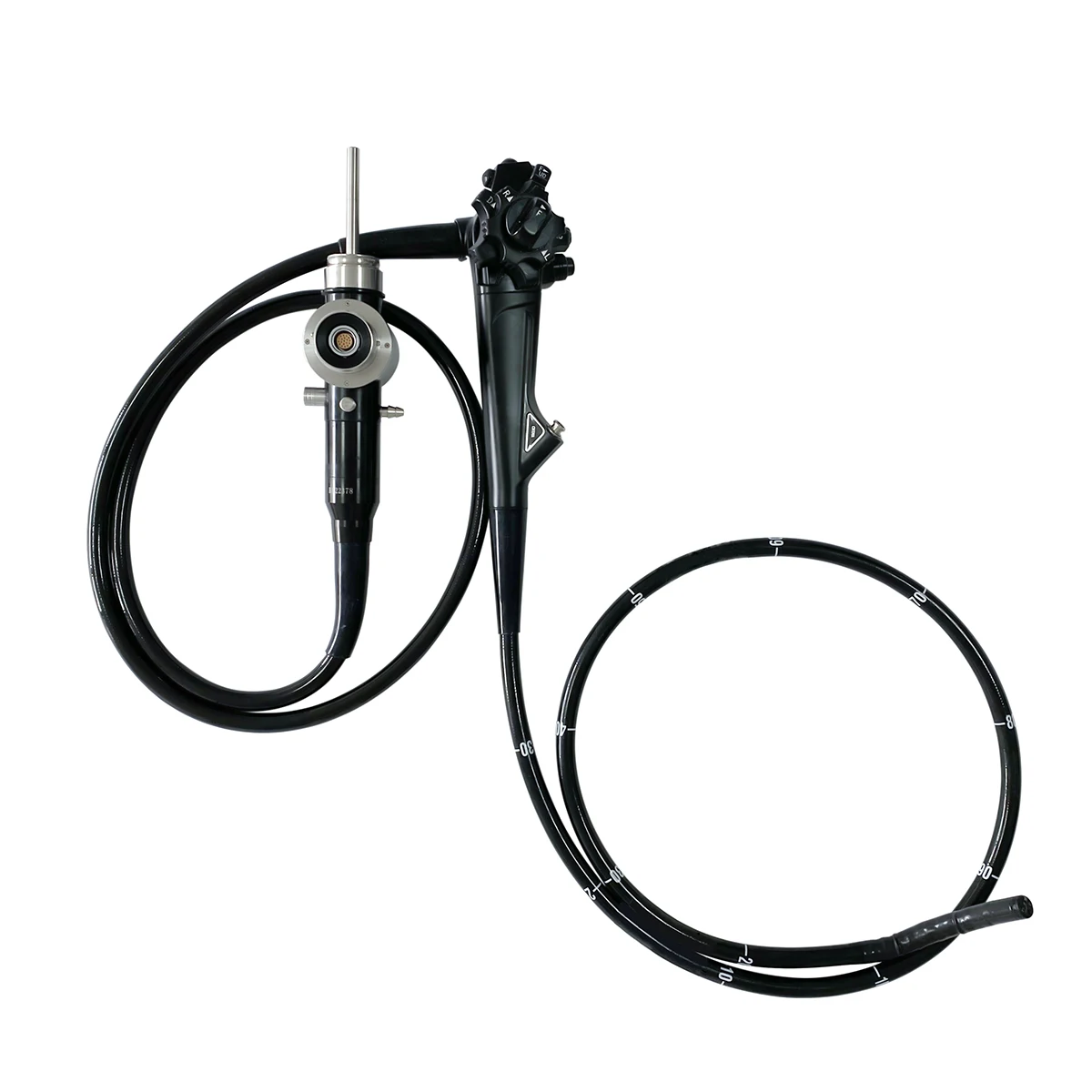

UMGE005 HD Video Gastroenteroscope and Colonoscope Workstation System
The UMGE005 Video Gastroenteroscope and Colonoscope System is engineered to provide gastroenterologists and clinical practitioners with high-definition imaging, reliable traction-chain bending structures, and comprehensive diagnostic capabilities. Available in complete workstation configurations including HD video endoscopes, processor, cold light source, medical monitor, and cart, the system ensures accurate diagnosis and therapeutic interventions throughout the upper and lower gastrointestinal tract.
Equipped with a 1,000,000-pixel high-resolution CMOS sensor, adjustable sharpness and white balance, and digital picture-in-picture functions, the system streamlines clinical workflow and enhances visualization.
Supported by versatile USB video recording, split machine design, and user-friendly interface options, the UMGE005 integrates seamlessly into modern hospital endoscopy suites.
Key Features
1 Million Pixels High Resolution
Leverages advanced CMOS technology to deliver crisp, clear high-definition images for precise gastrointestinal examinations.
Complete Workstation Solution
Includes video colonoscope, video gastroscope, image processor, cold light source, 22-inch LCD monitor, and professional equipment cart.
Sealed Waterproof Bending Structure
Features a robust traction chain structure with fully sealed waterproof design for enhanced durability and infection control.
Advanced Image Processor & Light Source
80W white LED lamp with adjustable brightness, contrast, tone, and saturation (0-100 grades), plus auto/manual white balance.
Digital Screen & USB Recording
Supports large screen freeze, split-screen display, widescreen format, picture-in-picture, and direct USB image/video recording.
Flexible Ergonomic Operation
Wide tip deflection angles and optimized working channel apertures support smooth therapeutic and diagnostic procedures.
Technical Specifications
| Technical Parameter | Video Colonoscope | Video Gastroscope |
|---|---|---|
| Diameter of Distal-End | Φ 13.0 mm | Φ 9.2 / 9.8 mm |
| Diameter of Insert Tube | Φ 12.8 mm | Φ 9.2 / 9.6 mm |
| Clamp Aperture | Φ 3.2 / 3.7 mm | Φ 2.8 mm |
| Working Length | 1350 mm | 1030 mm |
| Total Length | 1650 mm | 1330 mm |
| View of Field | 140° | |
| Depth of View | 3 – 100 mm | |
| Resolution | CMOS 1,000,000 Pixels High Resolution | |
| Tip Deflection | Up 180° / Down 180° / Left / Right 160° | Up 210° / Down 90° / Left / Right 100° |
- Processor & Light Source: 80W white LED lamp, color temperature ≥5300K, HDMI x2 and DVI video outputs.
- Monitor: 22-inch LCD display with 1920×1080 resolution, 16:9 display ratio.
- OEM and customization services are available upon request.
Applications
Gastrointestinal Diagnostics
Provides high-resolution visualization for routine upper and lower GI examinations, mucosal evaluations, and lesion detection.
Interventional Therapy
Optimized clamp apertures support endoscopic accessories for biopsy collection, polypectomy, and hemostasis.
Hospital Endoscopy Suites
Comprehensive workstation configuration with mobile cart enables efficient deployment in hospital endoscopy departments.
System Configuration
The UMGE005 Workstation System is supplied complete with video gastroscope, video colonoscope, image processor, cold light source, 22-inch LCD monitor, and professional equipment cart.
Please confirm your required scope specifications and regional power standards prior to placing an order.
Before Ordering
- Required order quantity and export destination country.
- Scope model preferences (Gastroscope, Colonoscope, or full workstation combination).
- Electrical supply voltage standards (220-240V, 50-60Hz).
Request a Video Endoscope System Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your clinic or hospital.
Frequently Asked Questions
What is included in the UMGE005 workstation system?
The system includes video gastroscope, video colonoscope, endoscopic image processor, cold light source, 22-inch LCD monitor, and mobile equipment cart.
What is the camera resolution of the endoscopes?
The scopes feature a high-resolution CMOS sensor with 1,000,000 pixels.
Does the system support image and video recording?
Yes, it features built-in USB interfaces supporting image capture and video recording functions.
Are OEM and customized services available?
Yes, UMY Medical provides OEM services and technical details can be customized upon request.
