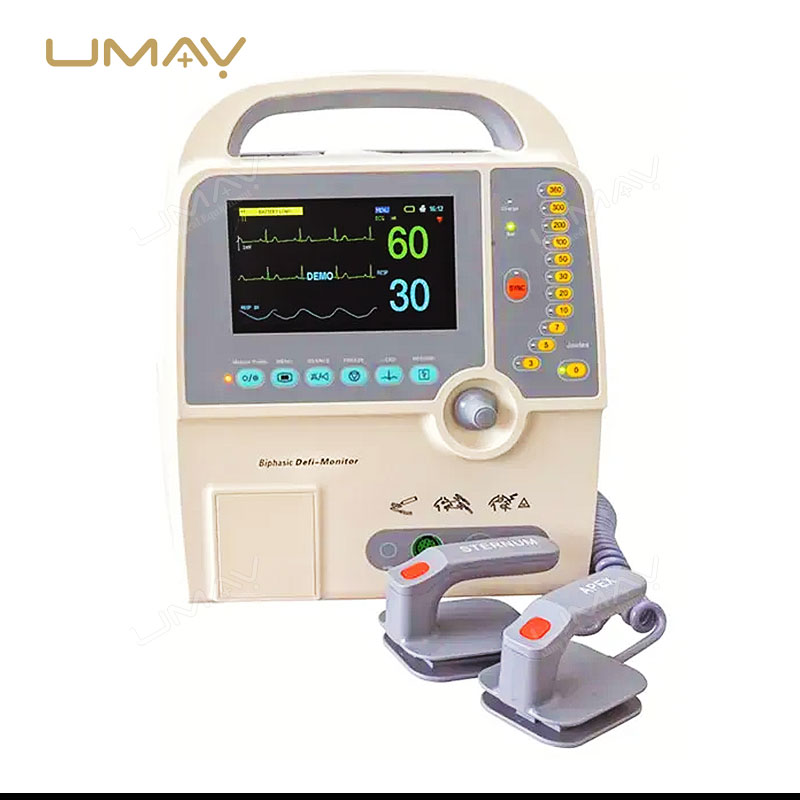

UMH-8000D Defibrillator Monitor for Advanced Cardiac Resuscitation
The UMH-8000D Defibrillator Monitor is designed to provide clinicians and emergency first responders with a versatile, high-performance cardiac resuscitation and patient monitoring solution. Built with advanced biphasic technology, the system integrates manual defibrillation, AED mode, and multi-lead ECG monitoring into a single compact unit.
Equipped with a high-resolution 7-inch color TFT screen, intuitive control interface, and comprehensive voice/visual prompts, the UMH-8000D enables rapid decision-making during critical life-saving interventions.
Supported by dual AC/DC power options, rechargeable high-capacity batteries, and optional transcutaneous pacing capabilities, the defibrillator monitor is ideal for emergency departments, ICUs, ambulances, and mobile transport care.
Key Features
Advanced Biphasic Technology
Utilizes efficient biphasic waveform energy delivery for optimal defibrillation efficacy and reduced myocardial injury.
Multi-Mode Resuscitation (Manual & AED)
Supports manual external synchronous/asynchronous defibrillation alongside AED mode with automated analysis and voice guidance.

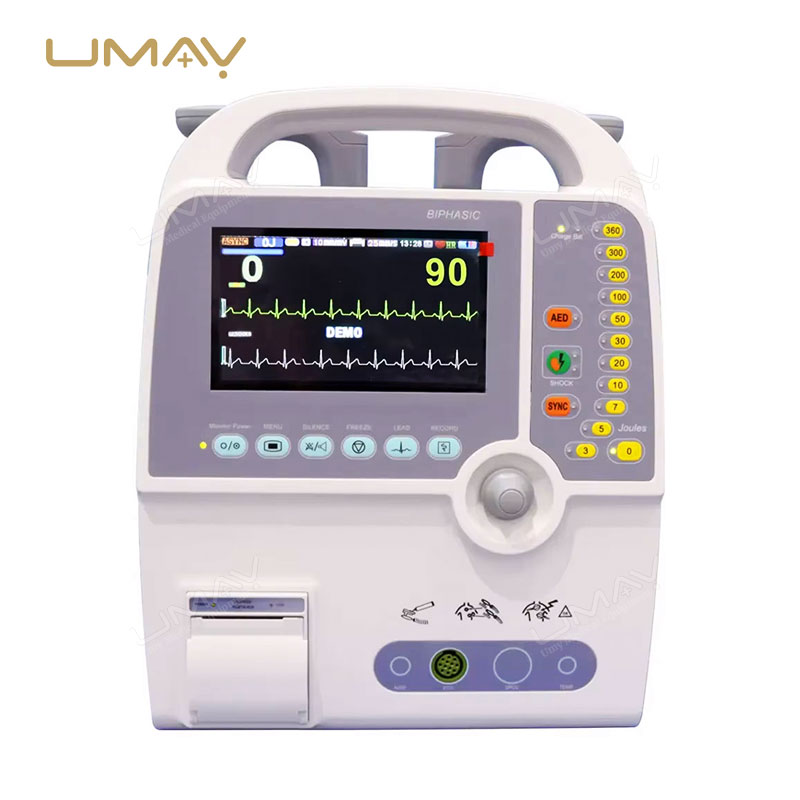

7-Inch High-Resolution Color TFT Display
Displays clear ECG waveforms, vital signs numerical parameters, alarm status, and operation prompts simultaneously.
Comprehensive Multi-Parameter Monitoring
Includes multi-lead ECG, SpO2, NIBP, Respiration, and Temperature monitoring to continuously track patient vital status.
Rapid Energy Delivery
Charges to full 360 Joules in less than 10 seconds to maximize emergency intervention speed.

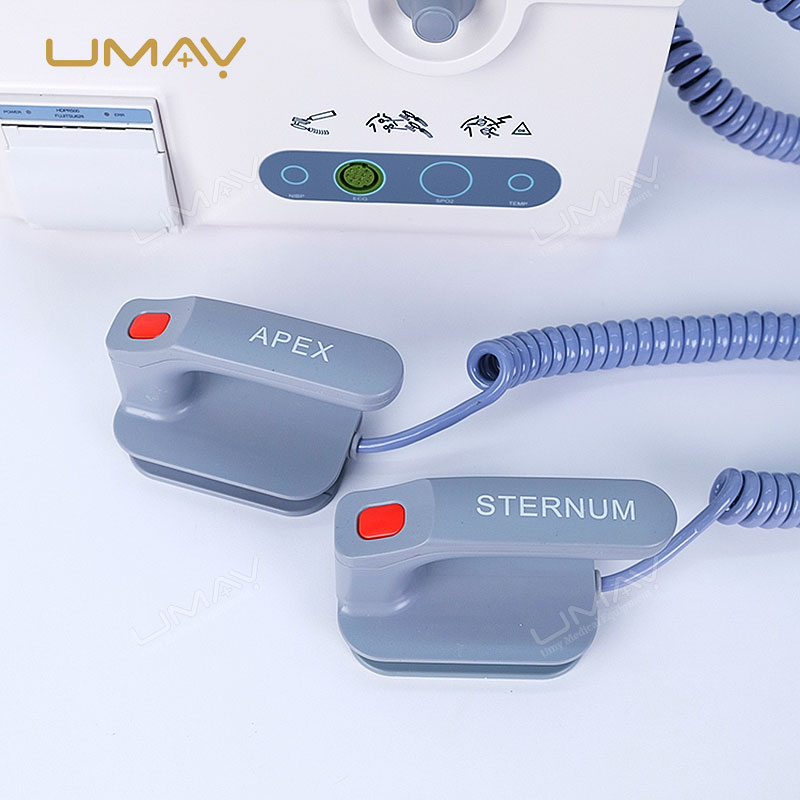

Integrated Adult & Pediatric Paddles
Features reusable external adult defibrillator paddles with integrated snap-on pediatric paddles for patient versatility.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMH-8000D (Defibrillator Monitor) |
| Display Screen | 7-inch Color TFT Display Screen |
| Defibrillator Waveform | Biphasic Waveform |
| Operating Modes | Manual Asynchronous/Synchronous, AED Mode, Monitoring Mode |
| Energy Selection | 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joules |
| Charge Time | Less than 10 seconds to 360 Joules |
| ECG Monitoring | 5-Lead / 3-Lead ECG input, HR display, Arrhythmia analysis, ST segment evaluation |
| Monitored Parameters | ECG, SpO2, NIBP, Respiration (Resp), Temperature (Temp) |
| Batteries & Power Supply | Rechargeable lithium battery backup | AC 100V~240V, 50/60 Hz / DC 12V vehicle power support |
| Optional Features | Transcutaneous Non-Invasive Pacemaker (Pacer), Built-in Recorder/Thermal Printer |
- Specifications are based on official technical datasheets for the UMH-8000D Defibrillator Monitor.
- Standard configuration includes the defibrillator monitor console, ECG cables, SpO2 sensor, NIBP cuff, rechargeable battery, and reusable paddles.
- Optional accessories include transcutaneous pacing modules, external thermal printers, and vehicle power cables.
Applications
Emergency Room & Trauma Centers
Provides fast resuscitation and continuous vital signs monitoring for cardiac arrest patients in hospital emergency wards.
Intensive Care Units (ICU) & CCU
Offers multi-parameter cardiac surveillance, synchronized cardioversion, and pacing capabilities for critical care.
Ambulances & Emergency Transport
Portable, rugged chassis with AC/DC and 12V vehicle power support ensures pre-hospital life support during patient transport.
System Configuration

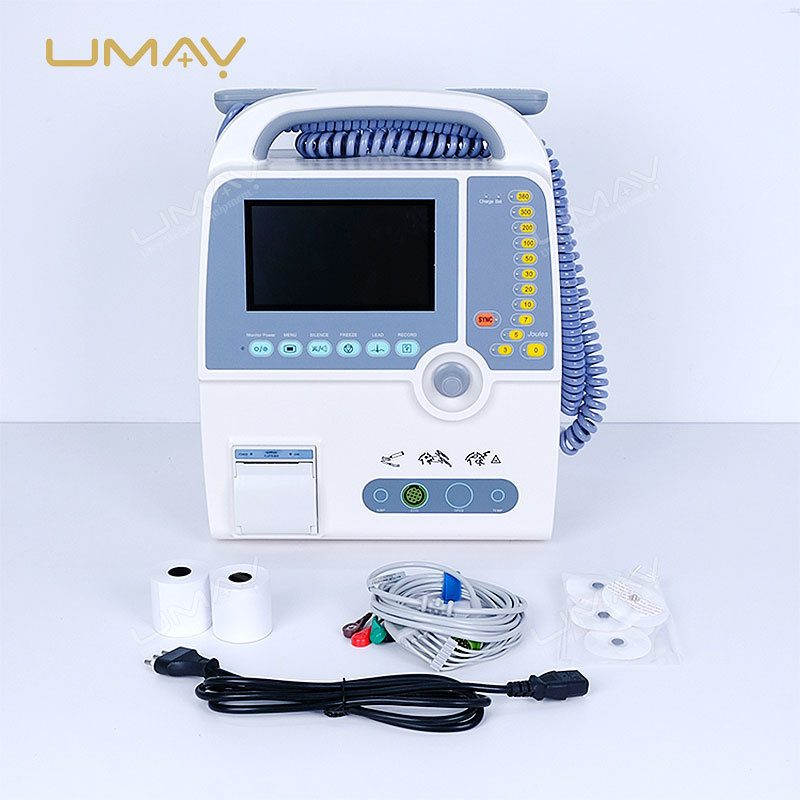

The UMH-8000D Defibrillator Monitor is supplied complete with the central monitor unit, integrated adult/pediatric external paddles, rechargeable lithium battery, 5-lead ECG cable, NIBP hose/cuff, and SpO2 sensor.
Please confirm your required optional modules (Transcutaneous Pacer or Thermal Printer) and local electrical power requirements prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Optional module selection (Non-invasive Pacer mode, Thermal Recorder/Printer).
- Electrical power supply standards and transport accessory preferences (e.g., carrying bag or wall mount).
Request a Defibrillator Monitor Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your clinic or hospital.
Frequently Asked Questions
What resuscitation modes are supported by the UMH-8000D?
The system supports manual external defibrillation (asynchronous and synchronous), automated external defibrillation (AED) mode, and continuous monitoring mode.
What screen size and parameters does it display?
It features a 7-inch color TFT display that shows ECG waveforms, heart rate, SpO2, NIBP, Respiration, and Temperature.
How fast can the defibrillator charge to 360 Joules?
The defibrillator charges to its maximum energy setting of 360 Joules in less than 10 seconds.
Is external non-invasive pacing available?
Yes, transcutaneous pacing (Pacer) is available as an optional feature.
