UMH-8000A Biphasic Defibrillator for Advanced Cardiac Resuscitation
The UMH-8000A Biphasic Defibrillator is designed to provide medical practitioners and emergency departments with dependable defibrillation performance for critical life-support applications. Combining advanced biphasic waveform technology with manual external asynchronous defibrillation, the system ensures rapid energy delivery and effective resuscitation outcomes.
Equipped with comprehensive voice and visual prompts, dual AC-DC power options, and reusable adult/pediatric integrated paddles, the UMH-8000A streamlines emergency workflows and enhances patient safety.
Supported by a portable, lightweight design and robust battery backup, the defibrillator integrates seamlessly into hospital wards, emergency ambulances, and point-of-care emergency environments.
Key Features
Biphasic Waveform Technology
Delivers advanced biphasic energy delivery for efficient and effective cardiac defibrillation.
Manual External Asynchronous Defibrillation
Provides precise manual control for asynchronous defibrillation during emergency cardiac arrest scenarios.
Rapid Charge Performance
Achieves full charging to 360 Joules in less than 10 seconds to support rapid emergency response.
Voice & Visual Prompts
Features clear audio and visual prompt guidance to assist operators throughout the charging and shock delivery process.
Versatile Energy Selection
Offers wide energy selection ranging from 0 up to 360 Joules (0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 J).
Integrated Adult & Pediatric Paddles

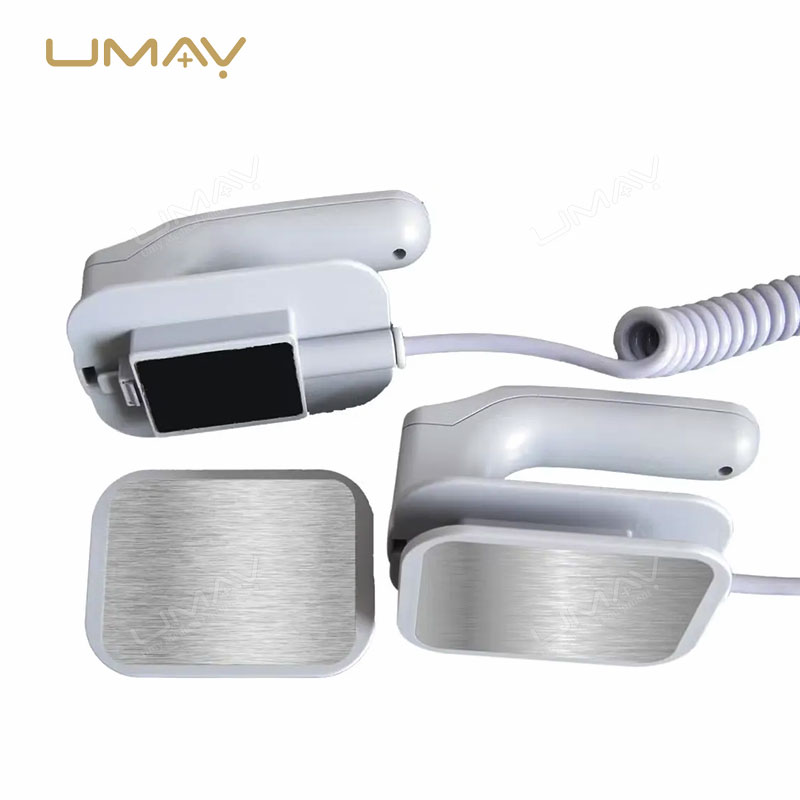

Includes reusable external adult paddles with built-in pediatric paddle attachments for versatile patient care.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMH-8000A |
| Waveform | Biphasic |
| Defibrillator Type | Manual External Asynchronous Defibrillation |
| Charge Time | Less than 10 seconds to 360 Joules |
| Energy Selection | 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joules |
| Battery Description | Sealed lead battery FP1223C 12Vdc 2300mAh X2 (Up to 40 full-energy discharges) |
| Power Supply | AC-DC dual-use: AC 100V~240V, 50/60 Hz; Vehicle Voltage Option: DC 12V |
| Maximum Power | 600W |
| Dimensions & Weight | L330 x W220 x H410 mm | Weight: 7.5 kg |
- Specifications are based on the official technical datasheets for the UMH-8000A Biphasic Defibrillator.
- Standard configuration includes the portable main unit, rechargeable batteries, and reusable adult/pediatric paddles.
- Optional vehicle DC 12V power adapter is available for ambulance and mobile transport use.
Applications
Emergency Departments
Provides rapid life-saving defibrillation and cardiac arrest management in hospital emergency rooms.
Ambulance & Patient Transport
Portable design with AC-DC dual-use and optional vehicle voltage support ensures reliable pre-hospital care.
Clinical Wards & ICU
Supports routine emergency response and cardiac monitoring across various hospital departments.
System Configuration
The UMH-8000A Biphasic Defibrillator is supplied complete with the portable main unit, rechargeable battery packs, and integrated adult/pediatric paddles.
Please confirm your required power standards and optional vehicle voltage accessories prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Power supply requirements (AC 100V~240V and optional DC 12V vehicle voltage).
- Accessory confirmation including paddle types and backup battery requirements.
Request a Defibrillator System Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your clinic or hospital.
Frequently Asked Questions
What waveform does the UMH-8000A use?
The system utilizes advanced biphasic waveform technology for efficient defibrillation.
How long does it take to charge to maximum energy?
It charges to 360 Joules in less than 10 seconds.
What is the battery capacity and discharge count?
It uses dual sealed lead batteries (FP1223C 12Vdc 2300mAh) supporting up to 40 full-energy discharges.
Does it support vehicle power for ambulances?
Yes, it features AC-DC dual-use power (AC 100V~240V) with an optional DC 12V vehicle voltage capability.
