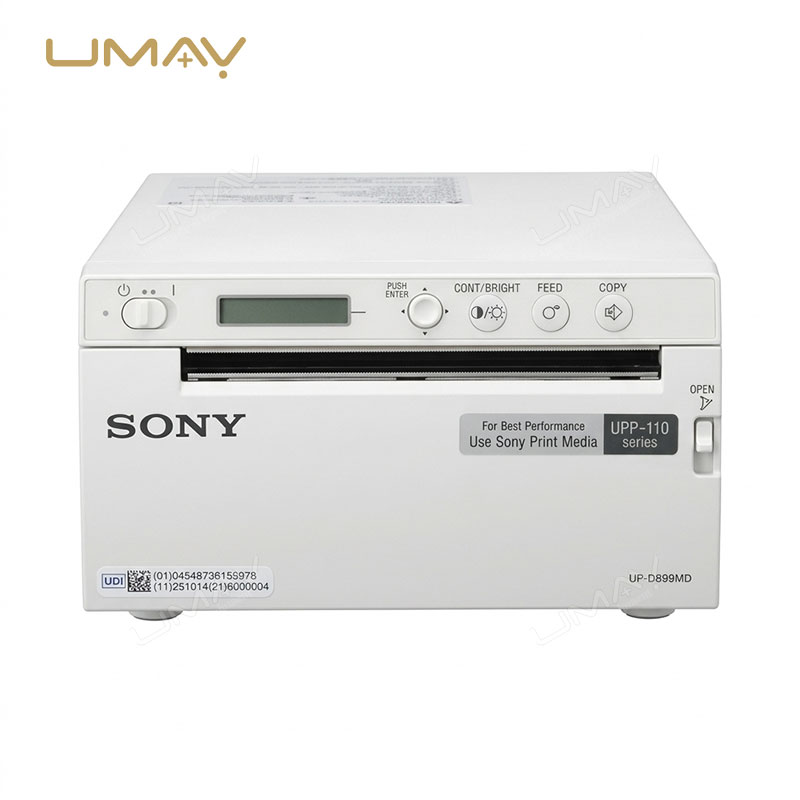

Lightweight A6 Thermal Printer for Ultrasound and Mobile Imaging Systems With USB Storage
Quick Info.
- SKU NO.: UMY-US-057
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: Guangzhou City, Guangdong, China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year

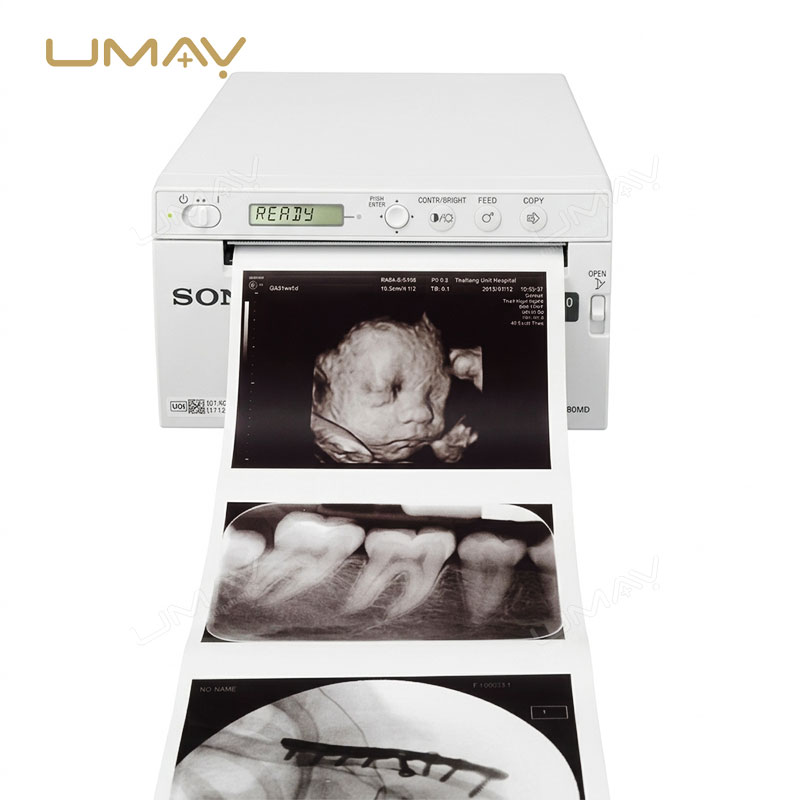

Engineered for demanding clinical workflows, this medical thermal printer produces A6 black and white prints at up to 325 dpi with 256 gray levels, delivering consistent and precise output for diagnostic imaging environments. It accepts both analog composite video and digital USB input, functioning as a capable ultrasound image printer that integrates with a wide variety of modality devices across imaging departments. New gamma curve settings improve monitor-matching accuracy, and the flat control buttons with backlit LCD reduce training time for clinical staff.
Efficient image capture and storage:

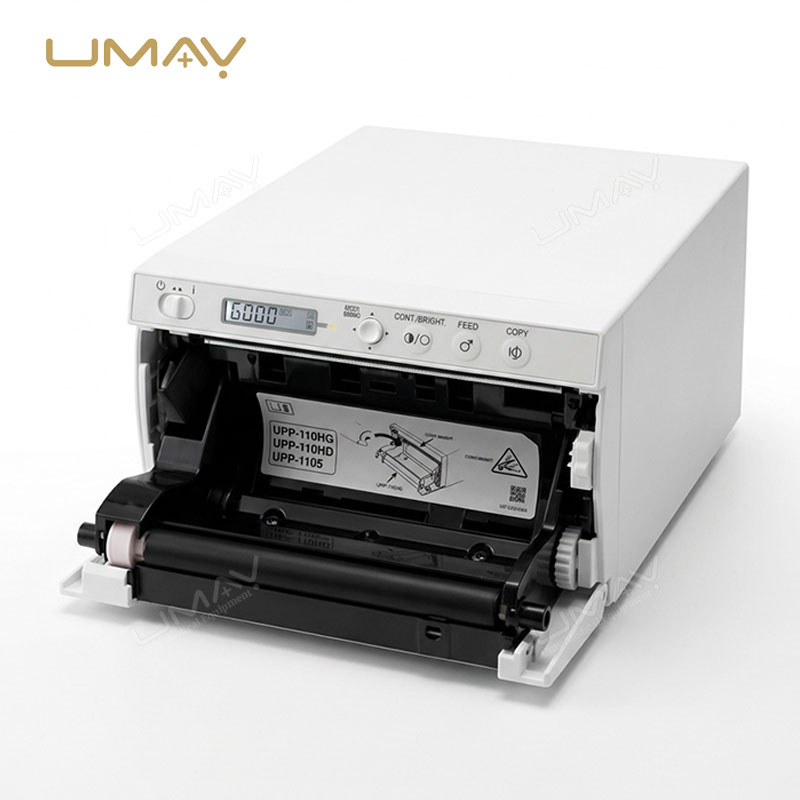

Still images from both digital and video sources are automatically stored to a connected USB flash drive, streamlining documentation without additional archiving equipment. The redesigned dual cutter mechanism supports upward and downward print cutting, maintaining smooth operation even in space-constrained console installations.
Simplified cable-free connectivity:

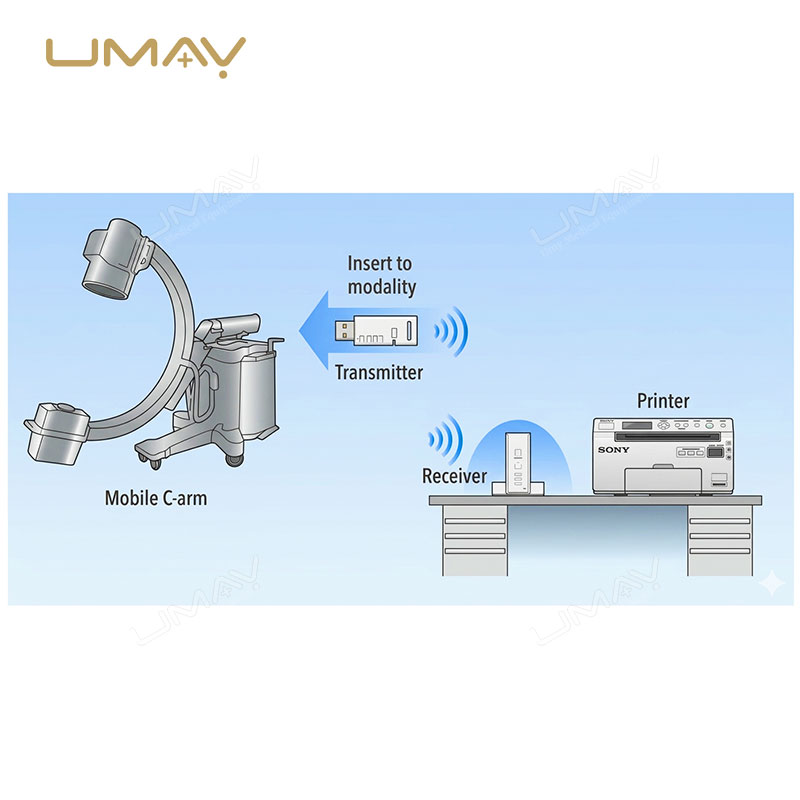

Wireless printing capability removes the need for USB cabling in the operating room or ultrasound suite, using stable ultra-wide-band technology that requires no routers or software drivers. Compact and energy-efficient, this printer supports imaging centers and hospitals managing multi-modality workflows with limited bench space. For a related imaging print solution, explore the Value Priced Medical Image Printer for CR DR MRI and CT Imaging Systems. Reliable across fixed and mobile clinical settings, this medical thermal printer delivers the output quality and workflow flexibility modern imaging departments depend on.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Printing Performance | |
| Printing Method | Direct thermal printing |
| Resolution | 325 dpi |
| Gradation | 8 bits (256 levels) processing |
| Printing Time | High-speed mode: Approx. 2 seconds/image (960 x 1,280 dots) |
| Image & Media | |
| Picture Elements | Digital: 1,920 x 1,280 dots |
| Picture Area | 150 x 100 mm (5 7/8 x 3 7/8 inches) |
| Paper Size | Paper width of 110 mm (4 3/8 inches) |
| Technical Specifications | |
| Interface | Hi-Speed USB connector (USB 2.0): type C (x1) |
| Printer Driver Software | Microsoft Windows 10, 11 |
| Power | |
| Power Requirements | AC 100 V to 240 V, 50/60 Hz |
| Input Current | 0.75 A to 0.5 A |
| Environmental Specifications | |
| Operating Temperature | 10°C to 40°C (50°F to 104°F) |
| Operating Humidity | 20% to 80% (no condensation allowed) |
| Physical Specifications | |
| Dimensions (W x H x D) | 154 x 88 x 208 mm (6 1/8 x 3 1/2 x 8 1/4 inches) |
| Mass | 2.0 kg (4 lb 6.5 oz) (printer only) |
| Supplied Accessories | Thermal head cleaning sheet, CD-ROM, Instructions, Service Contact List |
Feature list for UMY-US-057
* High Resolution 325 DPI A6 Thermal Printing With 256 Gray Levels
* Automatic USB Flash Drive Image Storage From Digital and Video Sources
* Optional Wireless Printing Using Ultra-Wide-Band Technology Without Routers
* Improved Dual Cutter Supporting Both Upward and Downward Print Cutting
* Compatible With Analog Composite Video and Digital USB Input Modalities
Application
Designed for hospital imaging departments, surgical operating rooms, mobile C-arm suites, and outpatient diagnostic clinics. Suitable for sonographers, radiology technicians, and OR imaging staff requiring fast and reliable A6 thermal print output with flexible connectivity and optional cable-free operation.
Q1: Is the optional wireless adapter compatible with other medical printers beyond this unit, or is it exclusive to this printer?
A1: The optional wireless adapter is compatible with this printer and other compatible medical printers in the same product line, offering flexible deployment across imaging suites.
Q2: What materials and design considerations make this printer suitable for use in sterile or semi-sterile clinical environments?
A2: The compact sealed casing and flat-button front panel minimize surface gaps where contaminants can accumulate, supporting cleanliness standards in clinical imaging areas.
Q3: How can I arrange a purchase or request after-sales technical support for this imaging printer?
A3: Contact our team through the Industry Favorite Inkjet Printer for Medical X Ray Blue Film CT and MRI Imaging page to discuss ordering, lead times, and support options.
