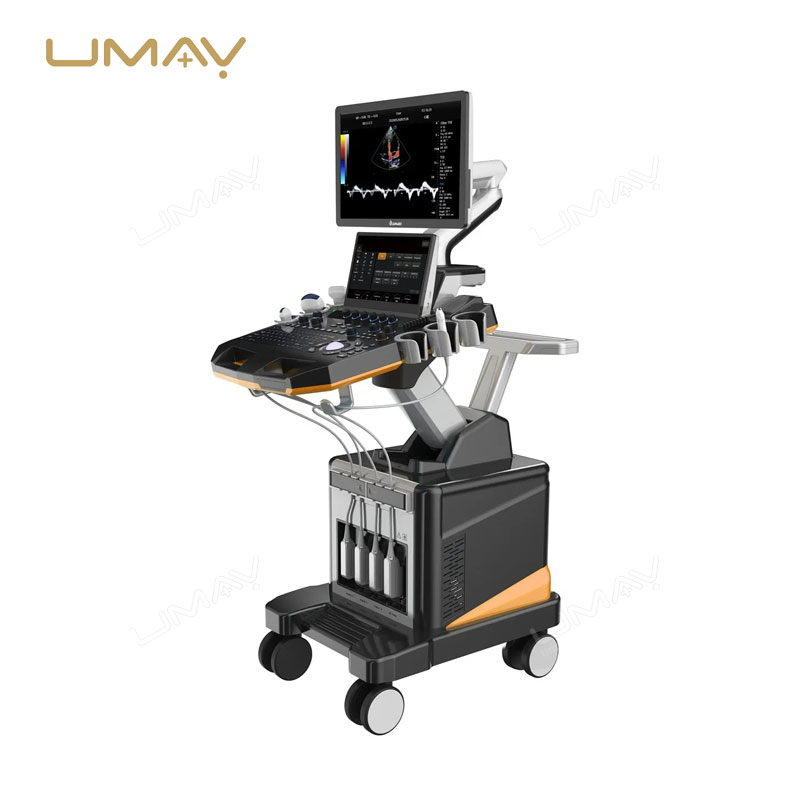

The UMY-US-006 Trolley Doppler Ultrasound Device offers reliable, high-quality imaging for cardiovascular and vascular assessments. Manufactured by a trustworthy producer, it combines advanced Doppler technology with a mobile trolley-based design, making it easy to move within clinical environments. This system provides clear, real-time images for evaluating blood flow and detecting vascular conditions such as blockages, aneurysms, and other cardiovascular issues. Its user-friendly interface and portability improve workflow and patient care efficiency in hospitals and clinics. Ideal for diagnostic imaging, this ultrasound device is an essential tool for healthcare providers seeking reliable performance and precision.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| System Configuration | |
| Operating System | Windows 10 |
| Monitor | 21.5 inches + 13.3 inches |
| System Language | Supports Chinese, English, French, Russian, Spanish |
| Certificate | CE ISO13485 |
| Mainframe Type | Trolley type all digital color Doppler ultrasonic mainframe |
| Hard Drive | 128GB solid-state hard drive |
| Report Types | ≥ 16, Provide photo proof |
| Display & Interface | |
| Monitor Size | 21.5 inch high definition ultrasonic display |
| Touch Screen | 13.3 inch touch screen |
| Clipboard | Physical clipboard for saving or deleting images |
| System Upgrade | On-the-spot upgrade functionality |
| Preset Options | Preset inspection conditions for optimized imaging |
| Language Support | Chinese, English, French, Spanish, Russian, Vietnamese, Arabic, Portuguese, Indonesian, German |
| Imaging Technology | |
| TGC | 8-segment TGC |
| Imaging Mode | B, 2B, BM, 4B |
| Functions | Spectral Pulse Doppler (PW), Directional Energy Doppler, Real-time triple synchronization, Spatial composite imaging, Tissue harmonic imaging, Trapezoidal imaging, One-click intelligent optimization |
| Imaging Features | Color Doppler imaging (C), Pulse Doppler Imaging (PW), Continuous wave Doppler imaging (CW), Real-time three synchronous imaging (B/C/D), Power Doppler imaging (PDI), Direct power Doppler imaging (DPDI), Tissue Doppler imaging (TDI), Strain rate imaging (SRI), Tissue harmonic imaging (THI), Free hand 3D, Real time 3D imaging (3D/4D), DICOM 3.0 |
| Extended Imaging | Extended imaging capability |
| Depth | ≥ 360mm |
| Probe & Measurement | |
| Probe Interface | 4 active |
| Probes | Convex probe, Transvaginal probe, Linear probe, Micro-convex probe, Cardiac probe, 4D Volume probe |
| Measurement Software | Carotid artery intima measurement thickness (IMT), Automatic spectral envelope measurement |
| Application Scene | |
| Applications | Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal |
