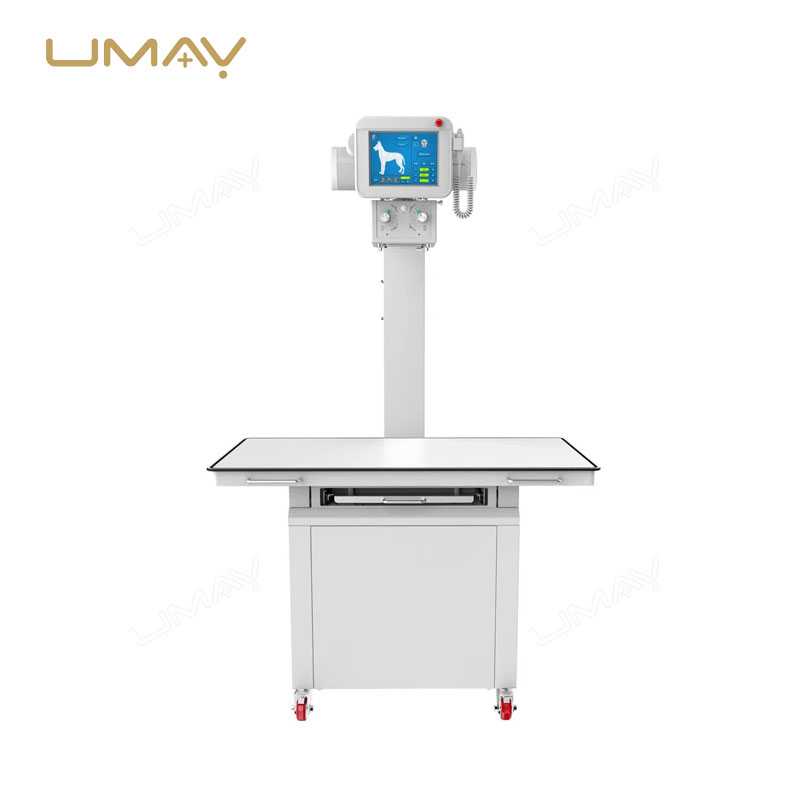

The Full Digital 320mA Veterinary X-ray Machine is designed specifically for pet radiography, providing high-resolution images for accurate diagnostic results. With its 320mA power output, it delivers clear, detailed images of both small and large animals, aiding in the diagnosis of fractures, infections, and internal conditions. The full digital system ensures fast image acquisition, reducing processing time and enhancing workflow efficiency in veterinary clinics. This machine is easy to use and minimizes radiation exposure, promoting safety for both pets and veterinary staff. Ideal for veterinary practices, it supports reliable and efficient diagnostic imaging for better patient care.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Max Photograph Tube Voltage | 90kV / 22mA |
| Power Output | 2.0kW |
| Exposure Time Range | 0.01s – 4.0s |
| mAs Scope | 0.5mAs – 160mAs with 46 alternations |
| Voltage Scope | 40-90kV with 26 alternations |
| Main Frequency | 30kHz |
| Min Light Field | ≤5cm × 5cm @ 100cm SID |
| Max Light Field | ≤35cm × 35cm @ 65cm SID |
| Focus Size | 2.3mm |
| Power Supply | 220V ± 10%, single-phase alternating current, 50Hz ± 1Hz |
| Resistance | ≤1.0Ω |
| Power Capability | ≥2.5kVA |
| Electricity Protection Type | Class I, Type B |
| Weight | 19kg |
Product Details
- Full Digital 320mA Veterinary X-Ray Machine: Professional veterinary radiography system designed for accurate and efficient animal diagnostics.
- Powerful 320mA Output: Provides strong and stable X-ray performance for high-quality imaging across a wide range of veterinary applications.
- High-Resolution Digital Imaging: Produces clear, detailed radiographic images for precise diagnosis and treatment planning.
- Designed Specifically for Veterinary Use: Optimized for imaging companion animals, livestock, and exotic species.
- Fast Digital Image Acquisition: Delivers images within seconds, improving diagnostic efficiency and reducing examination time.
- Excellent Fracture Detection: Provides detailed visualization of bones and joints for diagnosing fractures, dislocations, and orthopedic disorders.
- Supports Internal Organ Examination: Enables accurate assessment of thoracic, abdominal, and soft tissue conditions.
- Suitable for Small and Large Animals: Accommodates a wide variety of animal sizes, from pets to large livestock.
- Advanced Digital Radiography Technology: Enhances image quality while streamlining veterinary imaging workflows.
- Reduced Radiation Exposure: Optimized imaging system minimizes radiation dose while maintaining excellent diagnostic performance.
- User-Friendly Operating Interface: Simplifies image acquisition, parameter adjustment, and system operation for veterinary professionals.
- High Diagnostic Accuracy: Delivers sharp anatomical detail for confident clinical evaluation and treatment decisions.
- Reliable and Stable Performance: Designed for continuous daily use in busy veterinary clinics and hospitals.
- Efficient Workflow Optimization: Fast processing and digital image management improve productivity and patient throughput.
