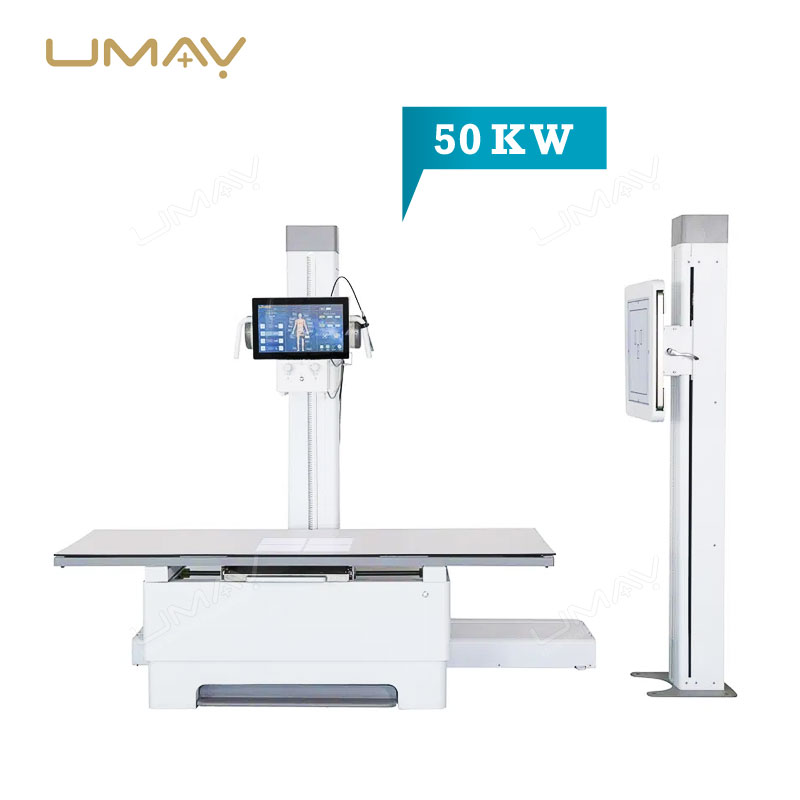

Engineered for high-demand clinical environments, this 50 kW DR X ray system delivers sharp, consistent imaging across a wide range of diagnostic exams. Its advanced high-frequency generator ensures low-dose radiation while maintaining exceptional image clarity. Suitable for thoracic, abdominal, and orthopedic radiography, it integrates easily with PACS and RIS systems for seamless workflow. For smaller facilities or portable needs, check out our compact 3.5 kW high-frequency portable X ray machine for hospital use designed for mobile diagnostics. The unit’s robust build and digital compatibility make it a reliable choice for both primary and emergency imaging.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| X-ray Generator Specifications | |
| Power Output | 50KW / 630mA |
| Generator Frequency | 30kHz / 200kHz (optional) |
| Power Supply | 50Hz or 60Hz, wire diameter >4mm², internal resistance <0.50; supports 50kW (220V(SY)/380V(D)) |
| Exposure Control | |
| Tube Current (mA) | 10–630 |
| Tube Current-Time Product (mAs) | 0.4–1000 |
| Tube Voltage (kV) | 40–150kV (1kV step) |
| Exposure Time | 1ms–10000ms |
| X-ray Tube and Heat Capacity | |
| Focus Size | Default 0.6×0.6mm / 1.2×1.2mm dual focus (Toshiba option) |
| Anode Rotating Speed | 8400rpm |
| Anode Heat Capacity | 1300kHU |
| Radiography Table | |
| Table Dimensions | 73cm (W) × 200cm (L) |
| Table Movement | 74cm left/right, 20cm back/front |
| Flat Panel Detector | |
| Image Size | 17×17 inch (14×17 inch option available) |
| Pixel Matrix | 140μm |
| A/D Conversion | 16 bits |
| Spatial Resolution | 3.6 Lp/mm |
| Software | Professional Imaging Software |
| Computer Configuration | CPU: 15, 8G memory, 1T solid state drive, 2 pcs Gigabit network card |
Product Details
- 50kW High-Power Digital Radiography System: Equipped with a powerful 50kW generator to deliver stable, high-efficiency X-ray output for professional diagnostic imaging applications.
- Integrated DR Imaging Solution: Combines an advanced radiographic table, digital imaging workstation, and vertical stand system for comprehensive and streamlined diagnostic workflow management.
- High-Resolution Digital Imaging Performance: Advanced DR technology provides clear, detailed, and accurate radiographic images to support reliable clinical diagnosis and treatment planning.
- Ergonomic and User-Friendly Design: Adjustable imaging components and intuitive control interface improve operational convenience and enhance examination efficiency for medical professionals.
- Stable and Durable Construction: Built with a robust medical-grade structure to ensure smooth operation, long-term reliability, and dependable performance in busy clinical environments.
- Ideal for Comprehensive Clinical Applications: Suitable for hospitals, imaging centers, orthopedic clinics, emergency departments, and veterinary facilities requiring high-quality digital radiography solutions.

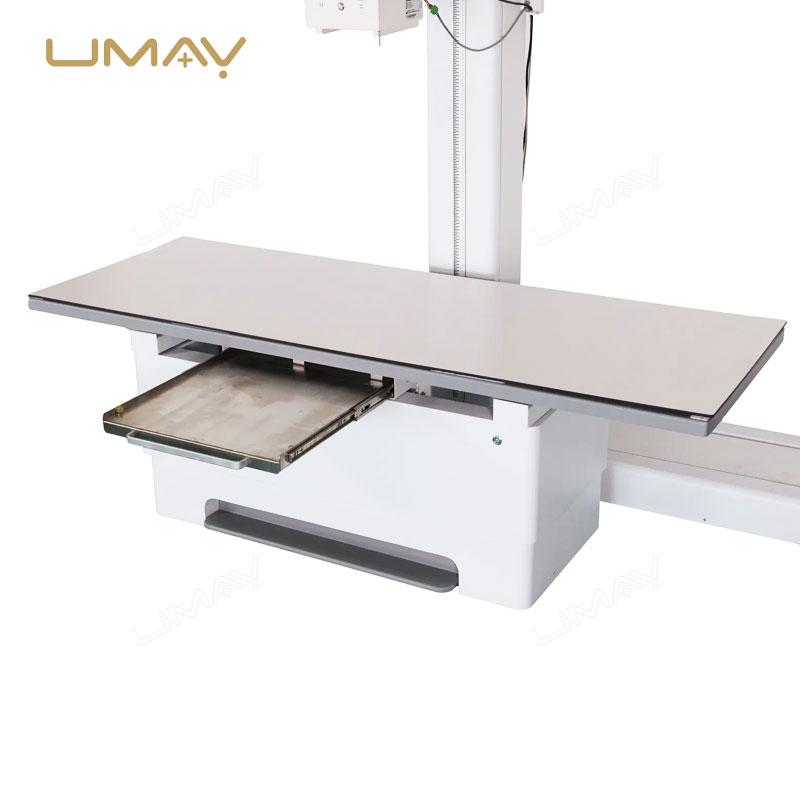

- High-Quality Radiographic Table System: Designed for professional digital radiography applications, providing stable and reliable support for patient positioning and imaging.
- Integrated DR Detector Tray: Features a pull-out digital flat-panel detector tray for precise image capture and efficient workflow in medical imaging procedures.
- Spacious Examination Surface: Large table surface accommodates a wide range of patient sizes, improving comfort and positioning flexibility during radiographic exams.
- Durable and Robust Construction: Built with medical-grade materials to ensure stability, longevity, and reliable performance in hospitals, clinics, and imaging centers.
- Ergonomic and User-Friendly Design: Smooth table operation and easily accessible detector tray simplify positioning and reduce operator effort.
- Ideal for Clinical and Veterinary Use: Suitable for hospitals, imaging centers, orthopedic clinics, veterinary facilities, and other environments requiring professional digital radiography solutions.
- Advanced Digital Radiography Control System: Equipped with an intelligent touchscreen workstation that enables efficient imaging control, exposure adjustment, and streamlined diagnostic workflow management.
- High-Resolution Medical Display: Large HD monitor provides clear visualization of patient positioning, imaging parameters, and radiographic data for improved operational accuracy.
- Integrated User-Friendly Interface: Intuitive touchscreen operation simplifies system control, examination setup, and workflow navigation for enhanced clinical efficiency.

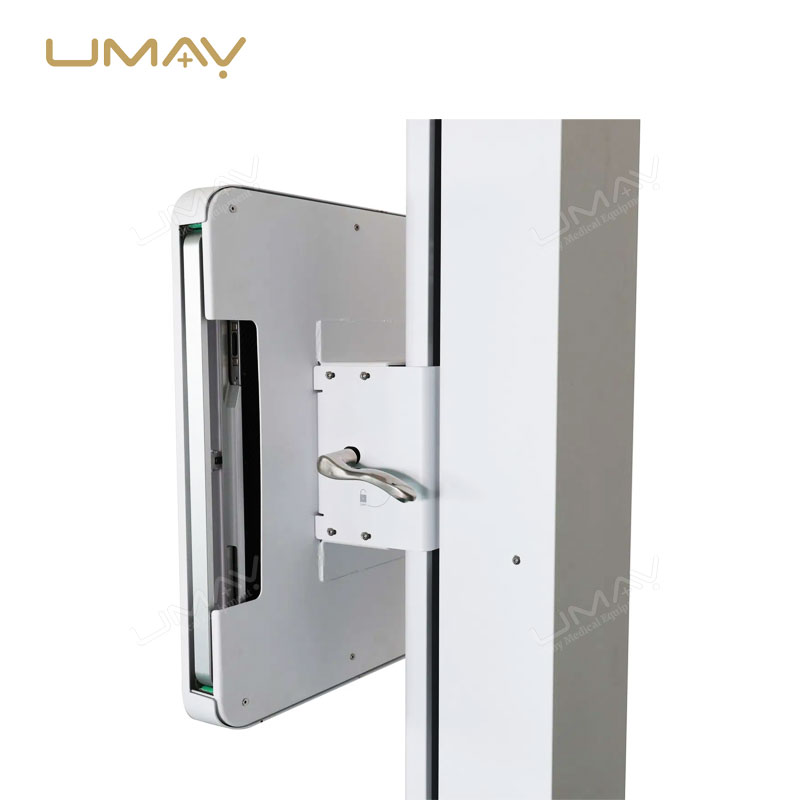

- Ergonomic Vertical Stand Design: Adjustable vertical structure supports flexible positioning for chest, orthopedic, and general radiographic examinations in diverse clinical environments.
- Efficient Digital Imaging Workflow: Supports rapid image acquisition, real-time system monitoring, and seamless integration with digital radiography systems to improve productivity.
- Ideal for Modern Diagnostic Applications: Suitable for hospitals, imaging centers, outpatient clinics, orthopedic departments, and veterinary facilities requiring professional DR imaging control solutions.
Detail Gallery
