Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Optical Design | Apochromatic optical system |
| Magnification System | |
| Zoom Ratio | Continuous zoom 0.4x – 2.5x |
| Total Magnification | 1.6x – 19x |
| Binocular Tube | |
| Tube Type | 0°–180° variable angle binocular tube with interpupillary adjustment |
| Interpupillary Distance | Adjustable from 55 – 75 mm |
| Eyepiece | High eye point 12.5x wide angle eyepiece with adjustable eye cup height and diopter compensation ±7D |
| Zoom Objective System | |
| Working Distance | Variable working distance from 190 – 480 mm |
| Lighting System | |
| Light Source | Integrated TruColor LED illumination with color temperature 5700 K and CRI ≥90 |
| Filters | Green filter with five spot light modes in three sizes large medium small |
| Imaging System | |
| Built-in Camera Module | 4K quad camera system with beamsplitter 45° extender and pendulum system |

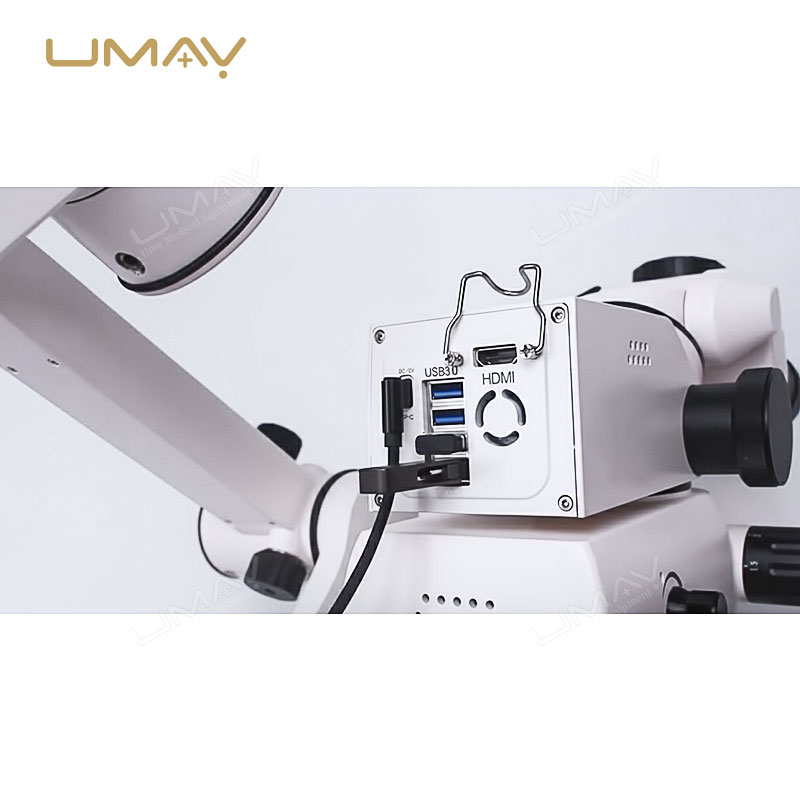

| Image Output | Built-in 4K live image output 3840 x 2160 with image management software |
| Beamsplitter | Integrated beamsplitter with split ratio 2:8 or 5:5 |
| External Imaging System | |
| Camera Interface | Digital camera tube with knob style camera focus adjustment |
| Beamsplitter Design | Triple beamsplitter with 45° extender pendulum system and 2:8 or 5:5 split ratio |
| Mechanical Balance System | |
| Force Adjustment | Host balance force adjustment device and balance arm force adjustment device |
| Bracket System | |
| Swivel Arm | Swivel radius 508 mm with 330° rotation |
| Balance Arm | Swivel radius 735 mm with 330° rotation and vertical movement range up to 600 mm |
| Balance Wall Mount | Swivel radius 317 mm with rotation angle 325° |
| Maximum Arm Span | 1743 mm |
| Base System | Integrated base with 4 inch silent medical casters base size 590 x 590 mm |
| Monitor System | |
| Monitor Bracket | Integrated monitor bracket |
| Monitor Options | 24 inch HD monitor or 27 inch 4K UHD monitor |
| Accessories | |
| Camera Options | Optional camera brands Canon or Sony |
| Power Supply | Direct camera power supply |

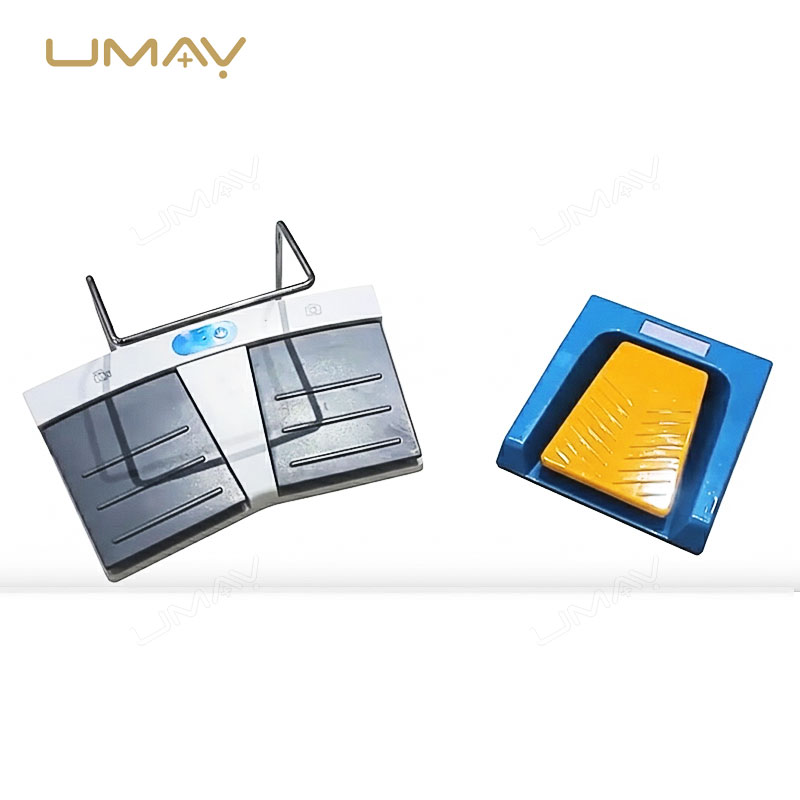

| Foot Control | 4K wireless foot pedal assembly |
| Imaging Accessories | Wireless photography system |
| Protection | Objective lens protective cover |
Product Details

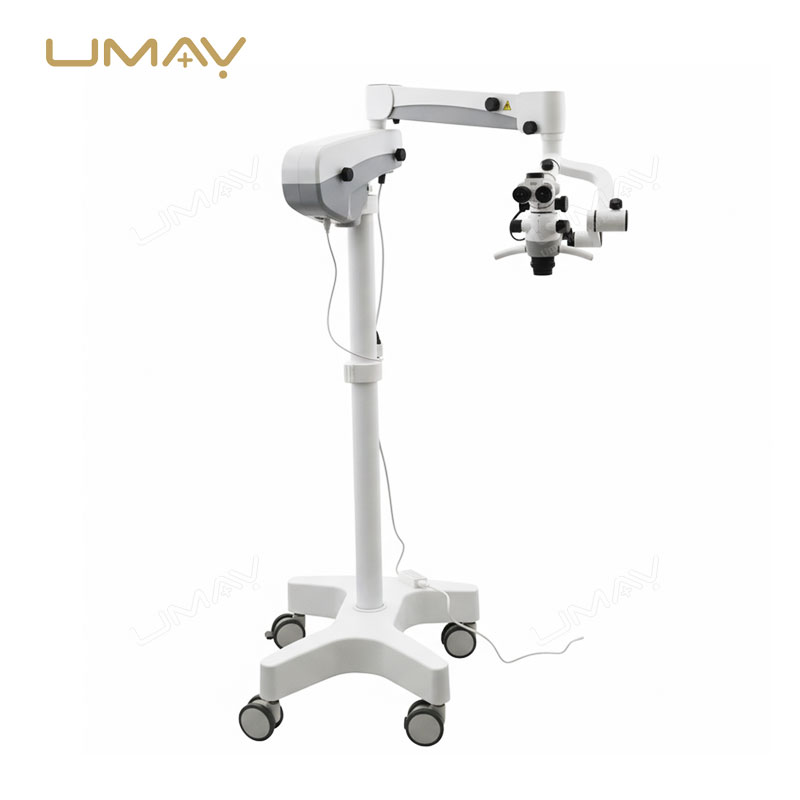

- Portable Trolley Design: Features a mobile trolley structure for flexible movement and convenient positioning in dental clinics, surgical rooms, and multi-operatory environments.
- Clear Optical Imaging System: Equipped with a high-quality optical system and continuous magnification adjustment to provide clear visualization and detailed observation during dental examinations and surgical procedures.
- Digital Imaging Documentation Support: Supports digital imaging connectivity for image capture, clinical documentation, case analysis, and patient record management.

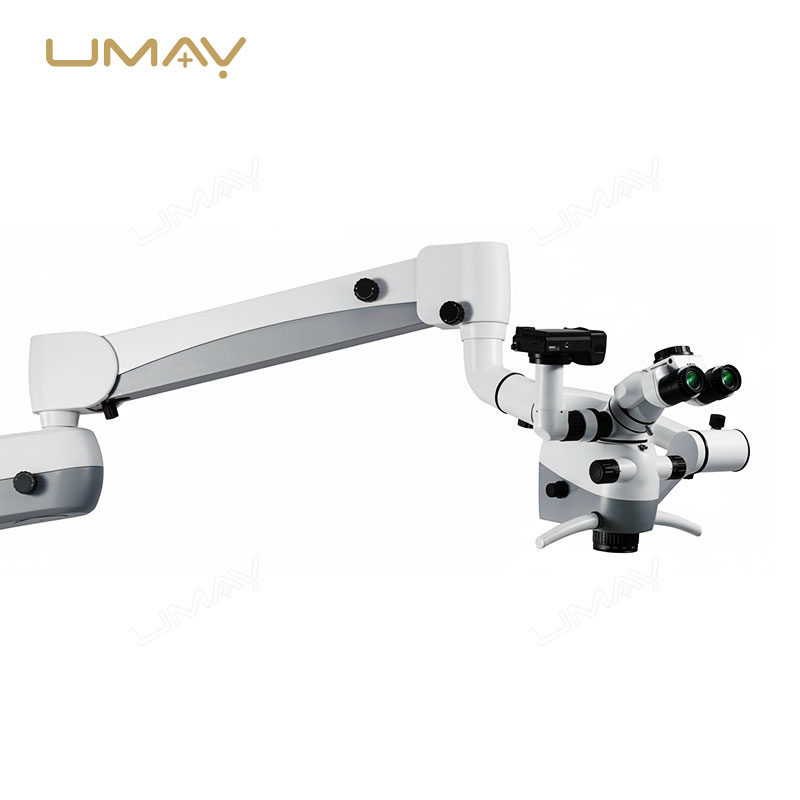

- Smooth Suspension Arm System: Designed with a balanced suspension arm and precise movement control for stable positioning, flexible operation, and improved ergonomic comfort during procedures.
- Optimized for Daily Dental Workflows: Built for routine dental surgical and clinical applications with reliable performance, convenient operation, and workflow efficiency suitable for high-frequency daily use.
- Dental Clinic and Hospital Applications: Ideal for dental clinics, outpatient dental centers, and hospital dental departments requiring a mobile and reliable operating microscope for precise dental procedures.
- Endodontics and Restorative Dentistry Support: Provides clear magnification and detailed visualization to assist in endodontic treatments, restorative procedures, and minor oral surgeries.
- Mobile and Flexible Operation: Features a portable trolley design allowing easy repositioning within the clinic or surgical room, improving workflow efficiency and accessibility during dental procedures.
- Enhanced Visualization and Accuracy: Equipped with a high-quality optical system to ensure sharp, continuous magnification, aiding dental professionals in performing accurate and precise treatments.
- Optimized for Routine Dental Surgical Workflows: Designed to support daily dental operations with stable performance, ergonomic handling, and compatibility with standard dental clinic environments.
