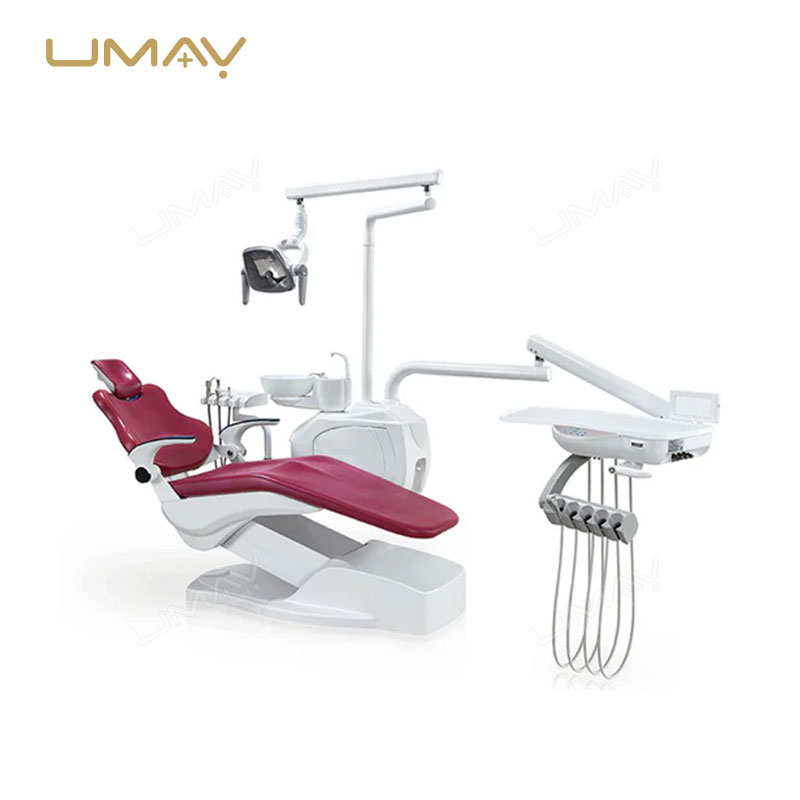

Advanced Dental Chair Comprehensive Treatment Unit for Modern Clinics
The UMDC008 Dental Chair Unit integrates cutting-edge ergonomics, digital control systems, and precision mechanics to provide an exceptional operating environment for dental professionals. Built with precision-molded ASA industrial plastics and premium medical-grade components, the system offers high durability, excellent chemical resistance, and stable daily performance.
Equipped with imported low-noise motors, solenoid valves, and pipes, a seamless PU cushion, a bending chair frame, and a luxurious AY cold light lamp, the UMDC008 ensures supreme patient comfort and operator convenience.
Key Features
Seamless PU Cushion
Features an ergonomic seamless PU cushion for easy cleaning, disinfection, and superior patient comfort during treatments.
Imported Core Components
Equipped with high-reliability imported motors, imported solenoid valves, and premium imported pipeline systems.
Luxurious AY Cold Light Lamp
Features a high-intensity AY cold light operating lamp to provide clear, shadow-reduced illumination for precise dental procedures.
G-Type Physician Chair
Includes a matching ergonomic G-type medical doctor stool designed for posture support during long working hours.
Rotatable Ceramic Spittoon
Supplied with a set of rotatable ceramic spittoons that are easy to detach and clean for optimal hygiene maintenance.
Ergonomic Bending Frame & Metal Backrest
Features a robust bending chair frame and a durable metal backrest providing optimal structural stability and leg clearance.
Technical Specifications
| Specification Category | Technical Parameters |
|---|---|
| Power Supply & Rating | AC 220V / 50Hz, single-phase three-wire; Rated Power: 1200VA |
| System Noise Level | Less than 70 dB(A) |
| Water & Air Filtration | Water filter pore size ≤ 90 μm; Air filter pore size ≤ 25 μm |
| Water Heater Unit | AC 24V; Rated Power: 80W; Constant Temperature: 40°C ± 5°C |
| Saliva Ejectors | Weak suction: ≥ 400 ml/min (at 200kPa); Strong suction: ≥ 1000 ml/min (at 500kPa) |
| Patient Chair Motor | Imported DC low-noise motor (DC 24V) |
| Load Capacity & Travel | Total load capacity ≤ 180 kg; Cushion height: 480 mm to 780 mm; Backrest tilt: 115° ~ 175° |
| Operating Environment | Temperature: 5°C – 40°C; Relative Humidity: ≤ 80%; Atmospheric Pressure: 200kPa – 400kPa |
- Specifications are based on standard factory technical documentation of the UMDC008 dental chair unit.
- Ensure water and air supply requirements (Water pressure: 0.2–0.6 MPa; Air pressure: 0.6–0.8 MPa) are met before installation.
Standard Configuration
1. Seamless PU Cushion
Durable, comfortable, and easy-to-sanitize ergonomic cushion surface.
2. Imported Motors & Valves
High-performance imported motor, imported solenoid valve, and imported pipeline layout.
3. Luxurious AY Cold Light Lamp
Professional medical examination cold light lighting system.
4. G-Type Physician Chair
Ergonomic doctor stool designed for clinical comfort.
5. Rotatable Ceramic Spittoons
Detachable and rotatable ceramic bowl for effortless cleaning.
6. Bending Chair Frame
Optimized chair frame architecture for smooth patient positioning.
7. Metal Backrest
Sturdy metal backrest design ensuring long-lasting durability.
8. Rotatable Mobile Phone Hanger
Flexible instrument handpiece hanger for convenient four-handed operation.
Before Ordering
To ensure proper clinic preparation and prepare an accurate export quotation, please provide the following:
- Required order quantity and destination country.
- Clinic utility specifications (Voltage, water/air pipeline layout).
- Any special configuration or packaging requirements.
- Local medical device registration or certification requirements.
Request a UMDC008 Dental Chair Quote
Contact UMY Medical to discuss configurations, color options, shipping schedules, and export pricing for your clinic or hospital project.
Please include your destination country and required quantity so our sales team can assist you promptly.
Frequently Asked Questions
What type of cushion is included in the standard configuration?
The UMDC008 comes standard with an ergonomic seamless PU cushion for enhanced durability and sanitation.
Are imported parts used in this dental chair?
Yes, it features imported motors, imported solenoid valves, and imported pipeline networks for superior long-term stability.
What kind of operating lamp is equipped?
It is equipped with a luxurious AY cold light operating lamp designed to provide bright and clear clinical illumination.
