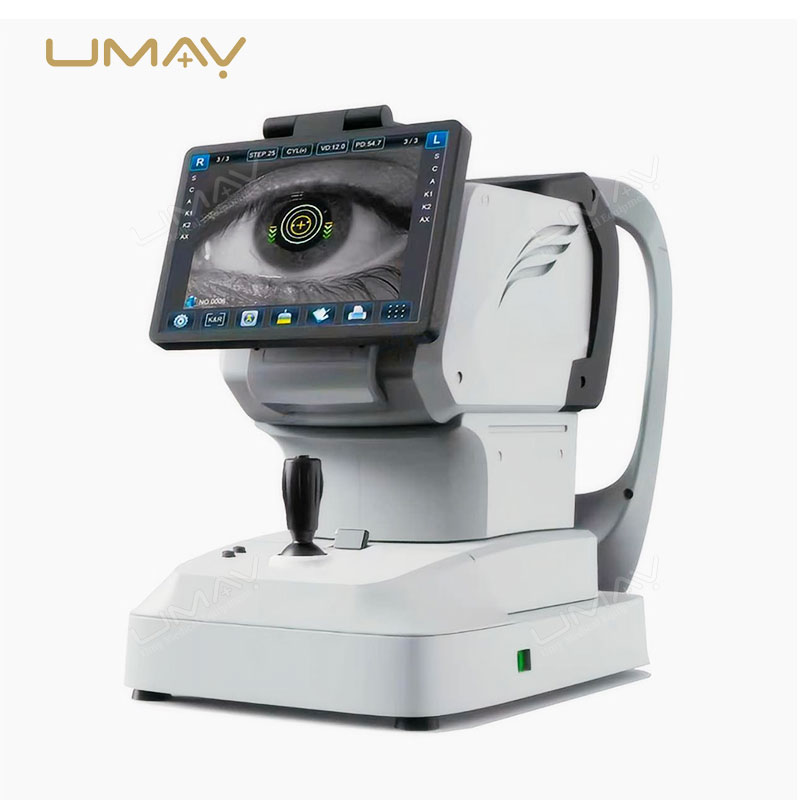

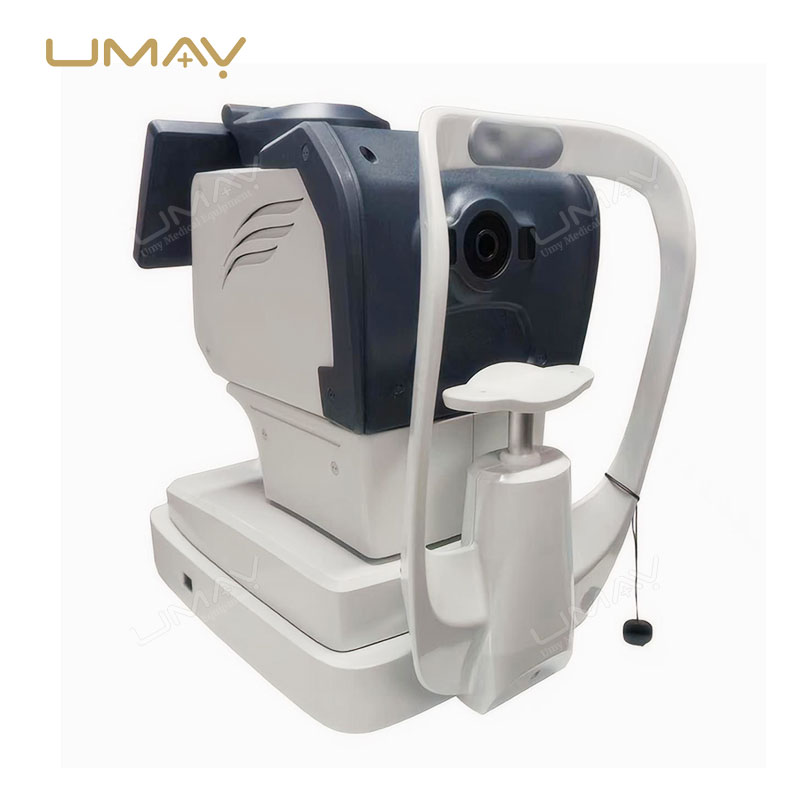

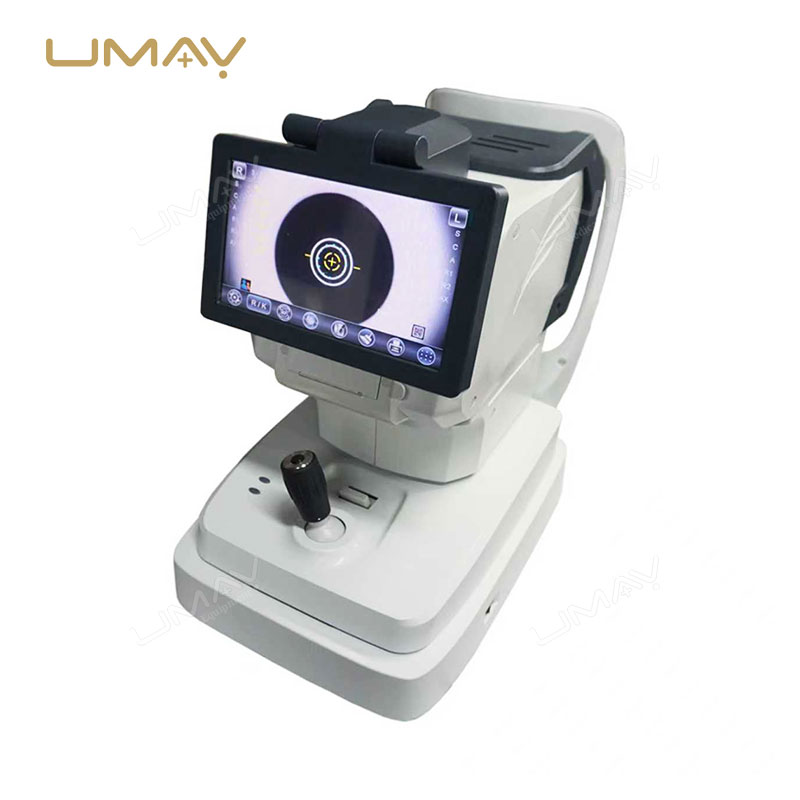

UMH-RK600 Advanced Auto Ref/Keratometer for Comprehensive Eye Examinations

The UMH-RK600 is an advanced auto ref/keratometer designed for rapid, high-precision measurement of refractive error and corneal curvature in optometric practices, eye hospitals, and optical clinics. Equipped with an auto-focus (AF) mode, IOL measurement capabilities for mild cataracts and artificial lenses, a 9-inch adjustable capacitive touchscreen, and built-in thermal printing, the UMH-RK600 streamlines clinical diagnostics and enhances patient throughput.

Advanced Auto Ref/Keratometer UMH-RK600 for Precise Ophthalmic Diagnostics

The UMH-RK600 Auto Ref/Keratometer is engineered to provide optometrists, ophthalmologists, and clinical practitioners with exceptional measurement accuracy and rapid refractive data for daily eye evaluations. Available in a compact, ergonomic design with motorized adjustments, the system ensures accurate measurement of sphere power, cylinder power, axis, and corneal curvature.

Equipped with advanced image processing technology, an automatic focus (AF) measurement mode, and a newly designed 9-inch capacitive touchscreen, the system streamlines workflow and ensures patient comfort.

Supported by versatile data transmission options including Wi-Fi, Bluetooth, and VGA external screen support, the UMH-RK600 integrates seamlessly into modern ophthalmic practices and digital health records.

Key Features

High-Accuracy Measurement

Delivers exceptional resolution with 0.01D sphere power resolution and 0.01mm curvature radius precision to assist in accurate eye diagnostics.

Wide Measurement Range

Supports an extensive range covering sphere powers from -30D to +30D, cylinder powers up to 12D, and corneal curvature from 6.5mm to 10.5mm.

IOL Measurement Capability

Equipped with specialized measurement modes capable of evaluating artificial lenses and eyes with mild cataracts.

Auto-Focus (AF) Measurement Mode

Leverages advanced auto-focus technology to deliver rapid and stable measurements in under 0.5 seconds per read.

9-Inch Capacitive Touch Screen

Allows intuitive operation through a 180° up-and-down adjustable 9-inch capacitive screen that displays real-time results.

Built-In Thermal Printer & Connectivity

Features a 57mm thermal printer with automatic paper cutting, along with Wi-Fi, Bluetooth, and VGA data transmission support.

Technical Specifications

Technical Parameter Specification Details
Product Model UMH-RK600
Sphere Power Range -30D to +30D (Resolution: 0.01D)
Cylinder Power Range 0 to 12D (Absolute value, Resolution: 0.12D)
Cylinder Axis 0° to 180° (Resolution: 1°)
Curvature Radius 6.5 to 10.5mm (Resolution: 0.01mm)
Corneal Refractive Power 32.1D to 51.9D
Pupil Diameter & Distance Pupil diameter: 2 to 14mm | Pupillary distance: 10 to 85mm
Measurement Repeatability Sphere power: ≤0.13D | Curvature radius: ≤0.02mm
Measurement Speed ≤0.5s
Display & Printer 9-inch capacitive screen, 57mm thermal printer with automatic paper cutting
  • Specifications are based on the official technical datasheets for the UMH-RK600 Auto Ref/Keratometer.
  • Standard configuration includes the main unit, 9-inch touch screen, built-in printer, chin rest assembly, and power cable.
  • Data transfer supported via built-in Wi-Fi, Bluetooth, and external VGA monitor output.

Applications

Routine Optometric Refraction

Provides rapid and accurate objective refractive data for everyday eye exams and optical prescription screening.

Corneal Curvature Analysis

Enables precise keratometry measurements essential for contact lens fitting and preoperative surgical evaluations.

Cataract & IOL Screening

Supports specialized patient groups including individuals with mild cataracts or implanted artificial lenses.

System Configuration

The UMH-RK600 Auto Ref/Keratometer is supplied complete with the main optometric measurement unit, integrated touch display, chin rest paper roll, power cord, and dust cover.

Please confirm your local electrical supply standards and external display preferences prior to placing an order.

Before Ordering

  • Required order quantity and destination country.
  • Clinic room spatial layout and electrical power requirements.
  • Optional accessories or external monitor connectivity requirements.

Request an Auto Ref/Keratometer Quote

Contact UMY Medical to discuss system configurations, pricing, and export delivery for your eye clinic or hospital.

Frequently Asked Questions

What measurements can the UMH-RK600 perform?

It performs both automatic refraction measurement (sphere, cylinder, axis) and keratometry measurement (corneal curvature and power).

Can the UMH-RK600 measure patients with cataracts?

Yes, it features a specialized IOL measurement mode capable of measuring artificial lenses and eyes with mild cataracts.

What data transmission methods are supported?

The system supports Wi-Fi and Bluetooth data transmission, as well as an external VGA screen output.

Does the unit include a printer?

Yes, it features a built-in 57mm thermal printer with automatic paper cutting for instant result printouts.

MOQ

1

Warranty

1 Year

Origin

Guangzhou City, Guangdong, China
