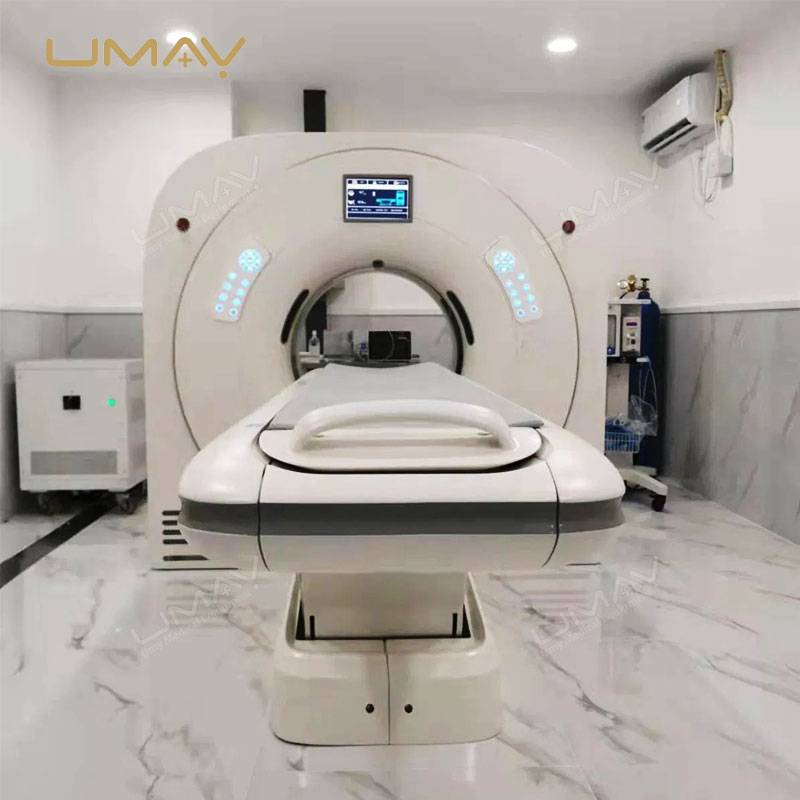

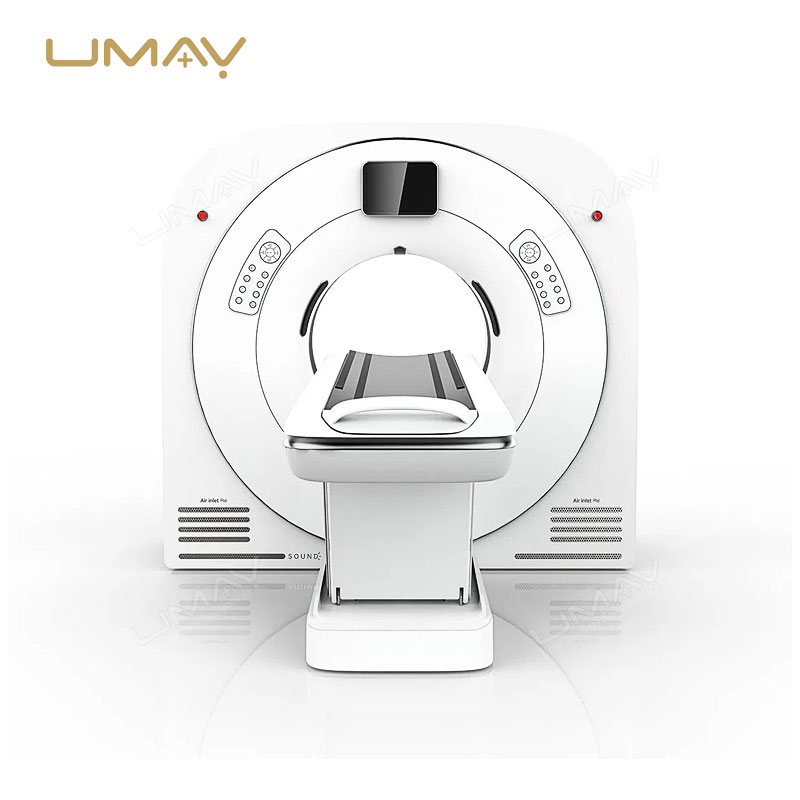

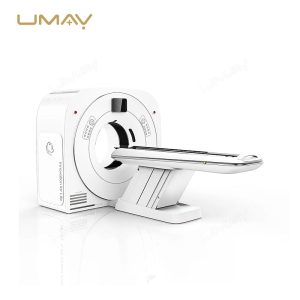

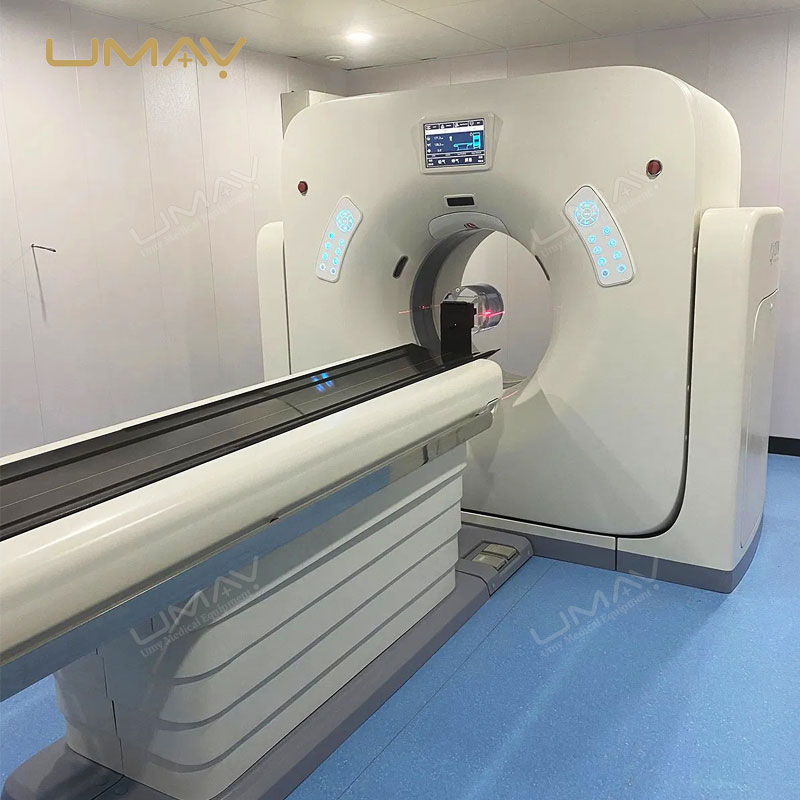

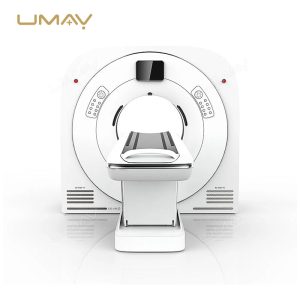

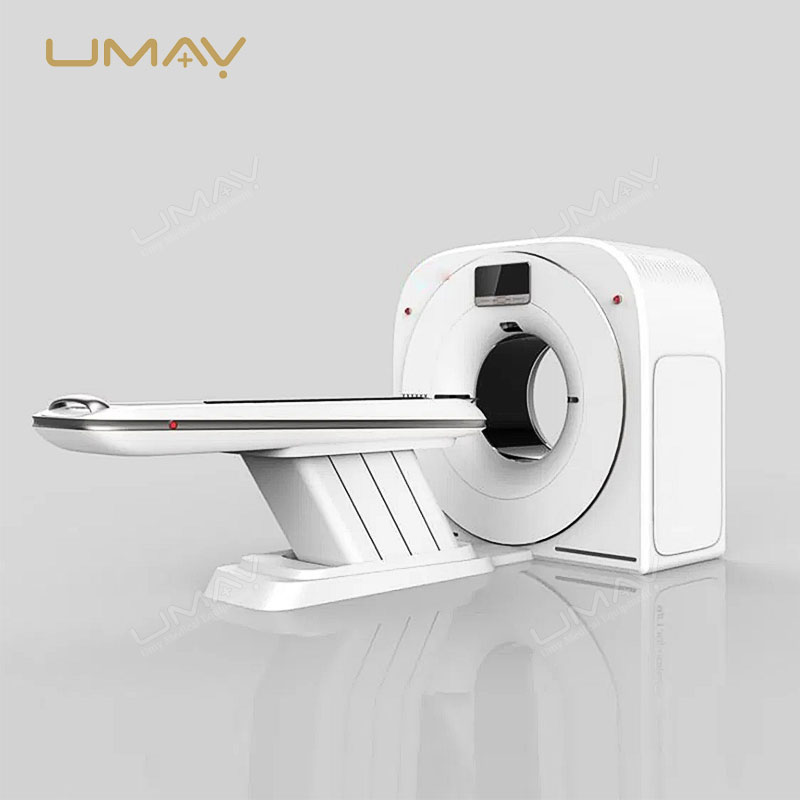

Advanced 32-Slice Medical CT Scanner System for Comprehensive Diagnostics
The UMY 32-Slice CT Scanner System integrates cutting-edge hardware components and intelligent software platforms to provide exceptional image quality and diagnostic confidence. Designed with a wide 800mm gantry aperture and a heavy-duty patient table supporting up to 205kg, the system ensures patient comfort and clinical flexibility.
Powered by an imported original Varex tube (3.5MHU heat capacity), a 42kW American Spellman high-voltage generator, and 5 types of collimated adaptive filters designed to minimize low-energy photon radiation, the UMY CT delivers high-definition 32-row imaging while maintaining strict patient safety and low-dose efficiency.
Key Features
High-Performance Varex Tube & Generator
Equipped with an imported Varex tube (3.5MHU heat capacity, 735kHU/Min cooling rate) and a 42kW American Spellman high-voltage generator for stable, high-output scanning.
32-Row Advanced Detector System
20mm Z-axis coverage with 0.625mm thinnest acquisition slice, delivering high spatial resolution (18.38 lp/cm) and detailed anatomical visualization.
Industry-Leading 5 Adaptive Filters
Features 5 collimated adaptive filters specially configured to reduce low-energy radiation below 50keV, increasing X-ray beam average energy and protecting patients.
Spacious 800mm Gantry Aperture
Ergonomic golden-ratio design with a 0.75-second shortest rotation time to reduce motion artifacts and accommodate diverse patients.
Comprehensive Clinical Software Suite
Includes MPR, CPR, SSD, VR, MIP, MinIP, Virtual Endoscopy, and advanced vascular and bone-joint analysis tools.
Smart Low-Dose Solutions
Features Auto mA automatic exposure adjustment, pediatric-specific protocols, and 70kVp low-dose lung examination technology.
Technical Specifications
| Specification Item | Technical Parameters |
|---|---|
| System Model | UMY 32-Slice CT Scanner System |
| X-Ray Tube | Manufacturer: Varex; Anode Heat Capacity: 3.5MHU; Cooling Rate: 735kHU/Min |
| Focal Spot Size | Small focal spot: 0.8 mm × 0.7 mm; Large focal spot: 1.4 mm × 1.2 mm |
| High-Voltage Generator | Manufacturer: American Spellman; Maximum Power: 42kW |
| Tube Voltage & Current | Voltage: 70kVp, 80kVp, 100kVp, 120kVp, 140kVp; Current: 10–350mA |
| Detector System | 32-row acquisition, 20mm width, 0.625mm thinnest slice, 784 units/row |
| Gantry Specifications | Aperture: 800mm; Shortest 360° scan time: 0.75s |
| Patient Scanning Bed | Horizontal movement: ≤ 1750 mm; Vertical lifting: 490–925mm; Max load: 205kg |
| Console & Reconstruction | Intel i7 processor, 27″ 4K LCD display (3840×2160), 1TB Image / 1TB Data hard drives, 1024 × 1024 matrix |
| Power Requirements | 3-phase 380V (±10%), frequency 50Hz±1Hz, capacity ≥ 100 kVA |
- Specifications are based on the official configuration list for the UMY 32-slice CT scanner system.
- Ensure proper site preparation, power distribution (PDU), and room dimensions meet hospital installation requirements.
Applications
General Radiology & Emergency Care
Provides rapid whole-body scanning, high-resolution trauma assessment, and routine daily diagnostics.
Vascular Angiography (CTA)
Advanced multi-phase contrast-enhanced tracking and CTA 3D imaging for vascular branches and cardiovascular evaluations.
Orthopedic & Special Imaging
Specialized osteoarticular multi-plane reconstruction, CTU urinary imaging, colonic CTE, and high-resolution inner ear/sinus scanning (1024 × 1024 matrix).
Before Ordering
To help us prepare a comprehensive export quotation and site planning guide, please provide the following details:
- Required order quantity and hospital destination country.
- Site room layout and power supply specifications (3-phase 380V availability).
- Required clinical software packages or specialized options.
- Local medical device registration and import compliance requirements.
Discover more options in our CT Scanner Systems for Hospitals and Diagnostic Centers range.
Request a UMY 32-Slice CT Scanner Quote
Contact UMY Medical to discuss site preparation, delivery lead times, installation services, and export pricing for your hospital or imaging center project.
Please include your destination country and project details so our sales team can assist you promptly.
Frequently Asked Questions
What tube and generator are installed in the UMY 32-slice CT?
The system is equipped with an imported original Varex tube featuring a 3.5MHU anode heat capacity and a 42kW American Spellman high-voltage generator.
What is the gantry aperture and table weight capacity?
It features an 800mm wide gantry aperture for patient comfort and a heavy-duty patient table supporting up to 205 kg.
What low-dose technologies are included?
It includes Auto mA automatic exposure control, pediatric-optimized examination protocols, and 70kVp low-dose lung scanning technology.
