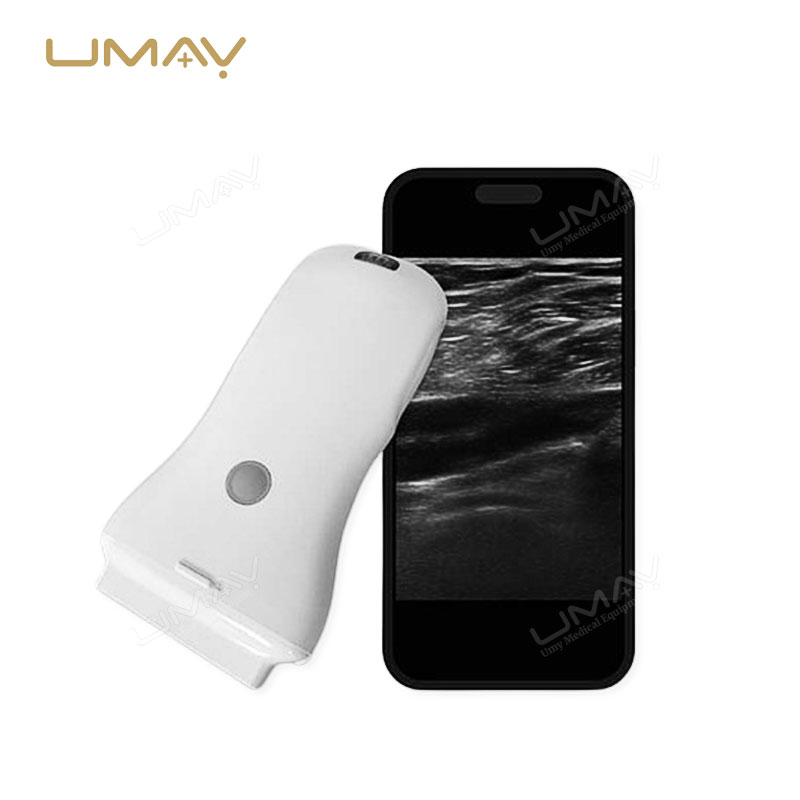

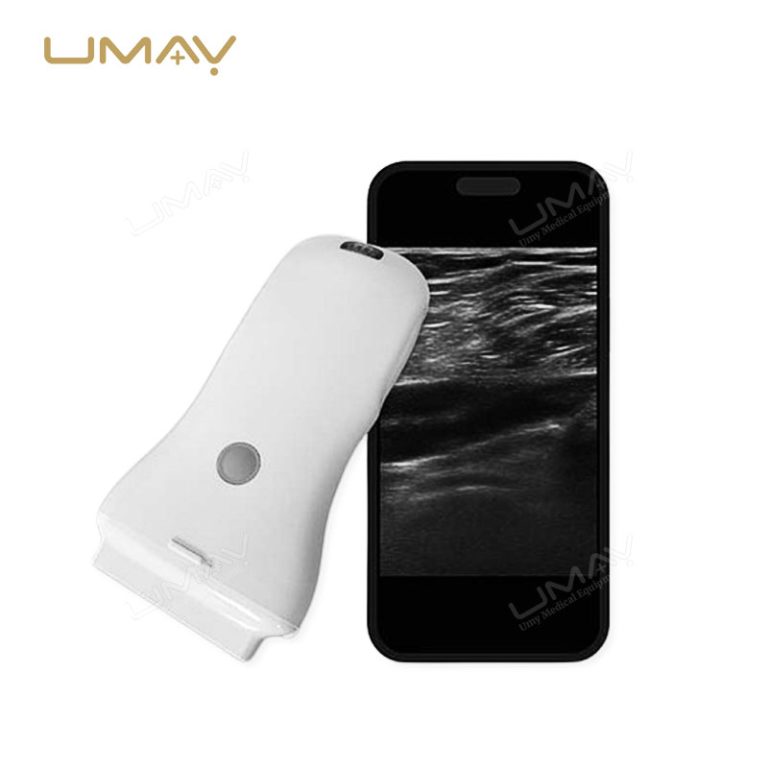

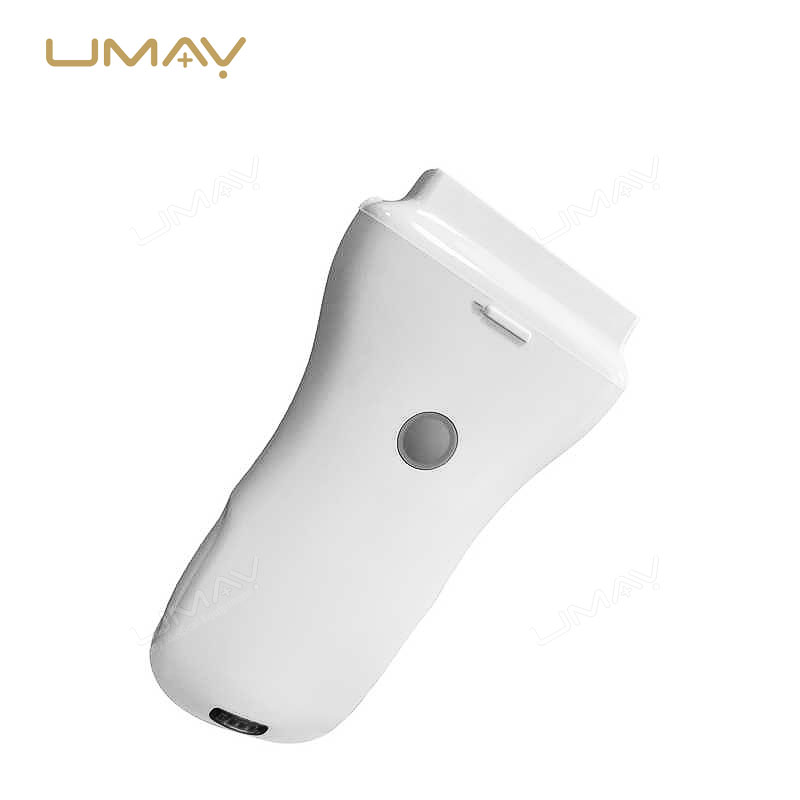

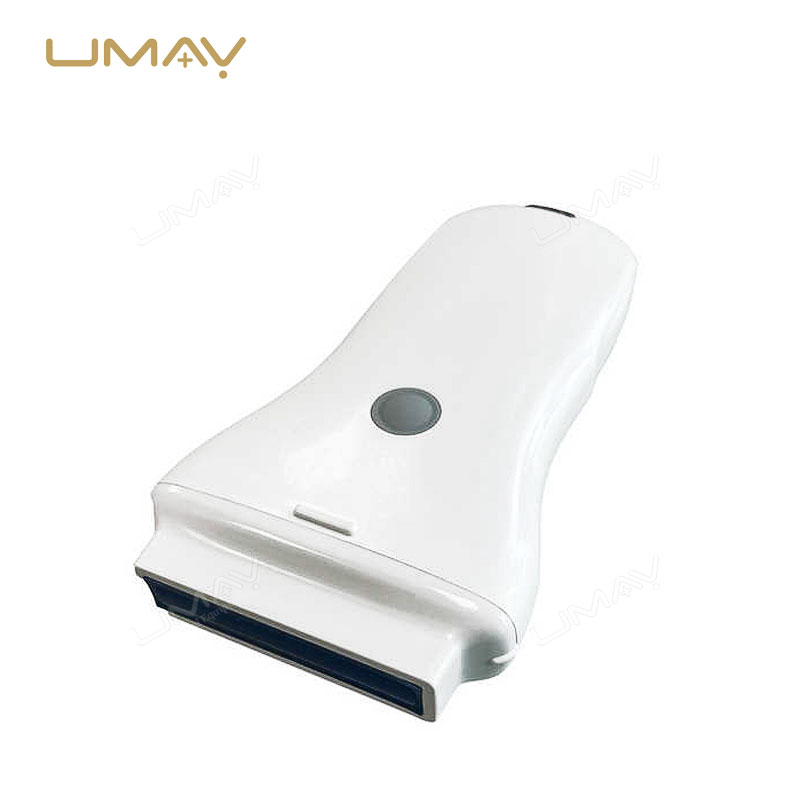

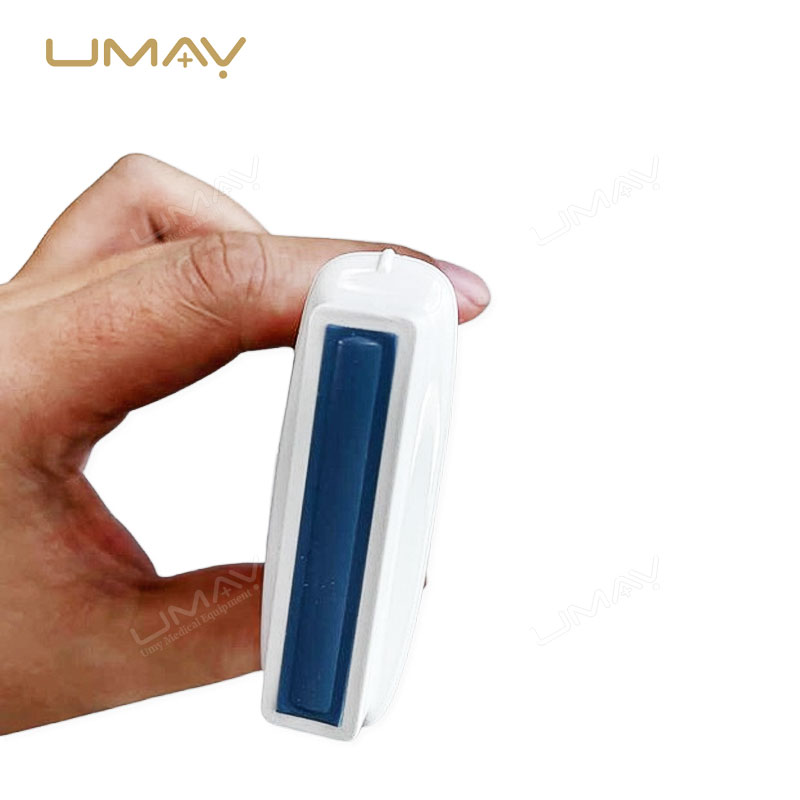

This wireless handheld color Doppler ultrasound system is equipped with a linear probe and multiple imaging modes, making it a versatile tool for various diagnostic needs. It offers high-quality imaging for applications such as musculoskeletal, vascular, and obstetric assessments. Its portable, wireless design enhances mobility, making it ideal for use in clinics, hospitals, or fieldwork. The system provides clear and precise visuals, aiding in accurate diagnosis and treatment planning. This device is a trusted choice for professionals requiring flexibility and high-performance imaging in their practice.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Scanning Mode | Electronic Array Scanning |
| Array Element | 128 |
| Display Mode | B, B/M, Color, PW |
| Probe Frequency | Line Array 7~10MHz |
| Software Support System | Apple iOS and Android |
| Cine-loop | 1000 frames movie playback stored |
| Power | |
| Battery Working Time | 120 minutes |
| Battery Charge | Wireless & Wired Charge |
| Connection | Wireless & Wired |
| Physical Specifications | |
| Dimensions | 115mm x 63mm x 21mm |
| Weight | 190g |
| Waterproof Grade | IPX7 |
| Configuration | |
| Standard Configuration | Wireless Ultrasound Scanner x 1 unit, USB Charging Cable x 1 pcs |
| Optional | Android or iOS Tablet |
