UMH-C10QT Double Head Wireless Probe Ultrasound Scanner for Maternal & Child Health
The UMH-C10QT Double Head Wireless Color Doppler Ultrasound Scanner is designed to provide clinicians, obstetricians, and gynecologists with a portable and affordable imaging solution for maternal and child care. Combining both a convex probe and a trans-vaginal probe into a single versatile device, it enables comprehensive abdominal and pelvic examinations anytime, anywhere.
Equipped with a whole waterproof design, the unit allows convenient sterilization in operating fields. Built-in WiFi connectivity supports seamless connection to iPhones, iPads, Android devices, and Windows tablets for real-time diagnostic visualization.
Powered by a built-in 4200mAh lithium battery with wireless charging support, the UMH-C10QT streamlines point-of-care workflows and saves both time and costs for medical staff and patients.
Key Features

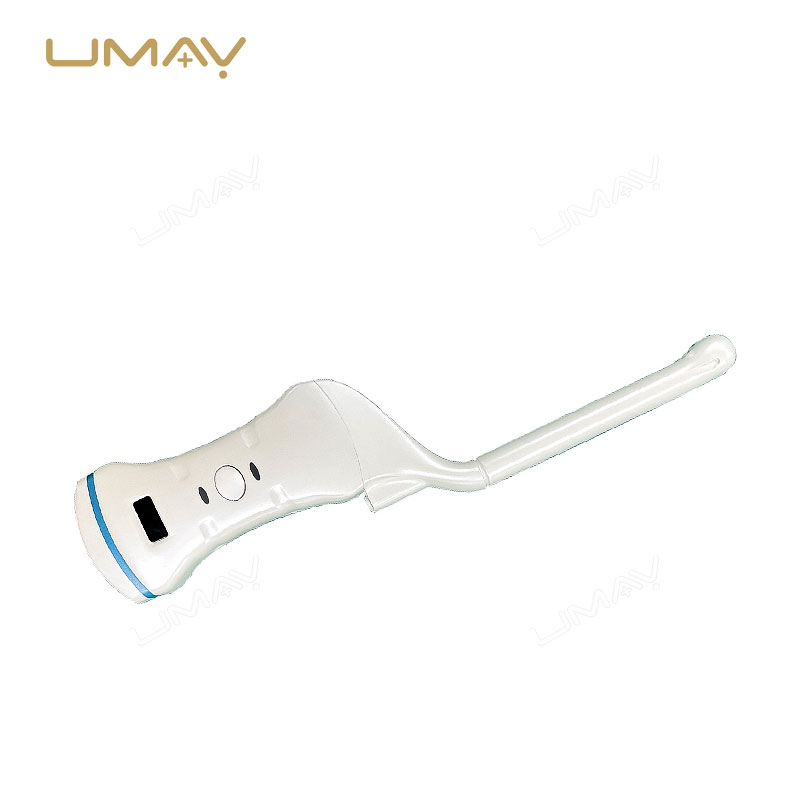

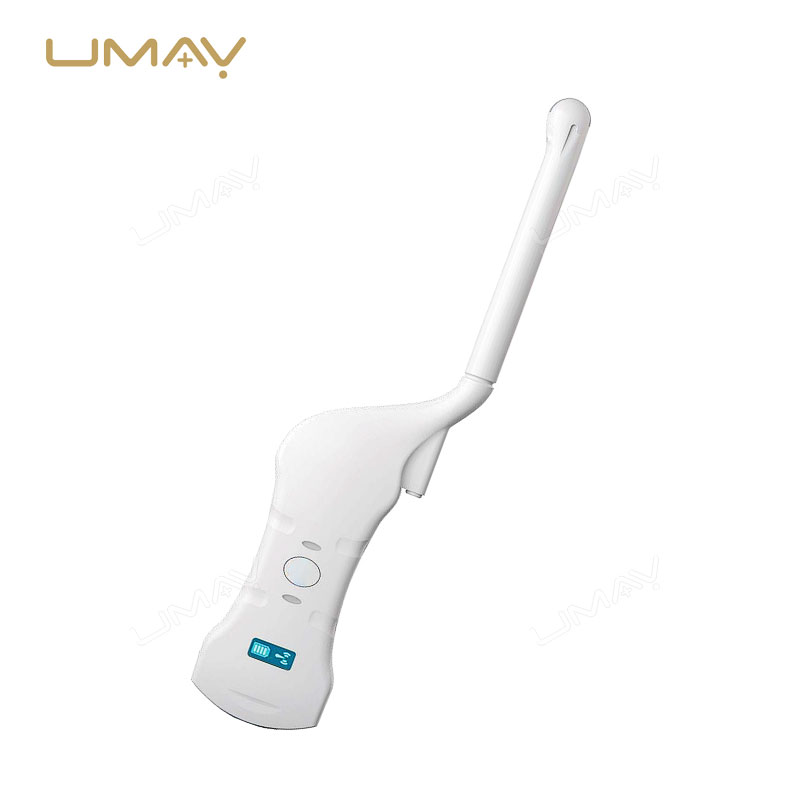

Dual-Head Probe Design
Integrates both convex array and trans-vaginal probes into a single device for complete abdominal, pelvic, and gynecological scanning.
Whole Waterproof Design
Constructed with a fully waterproof casing to enable fast, convenient disinfection and sterilization in sterile operating environments.

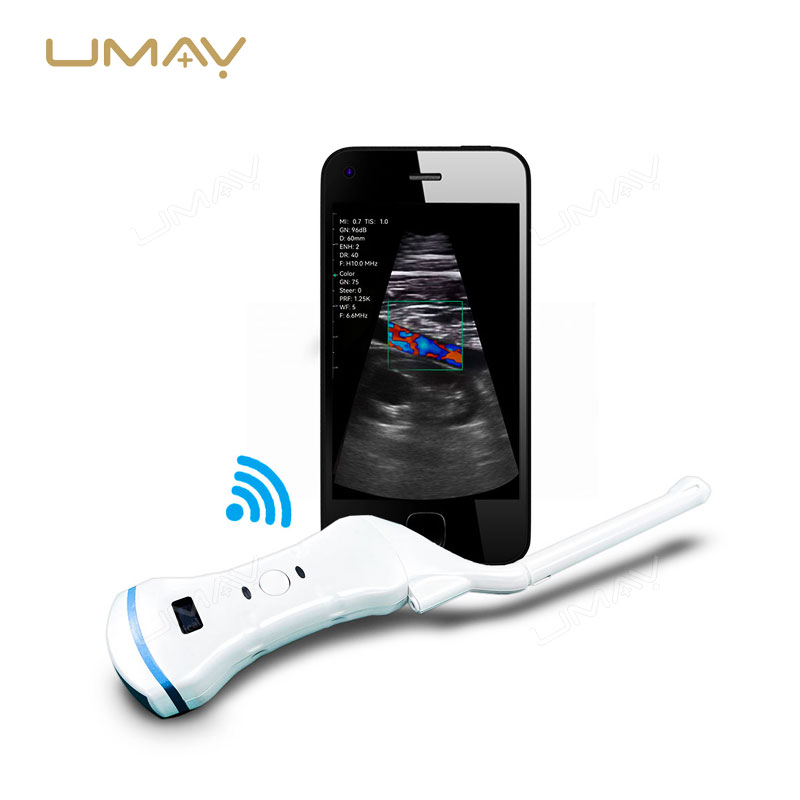

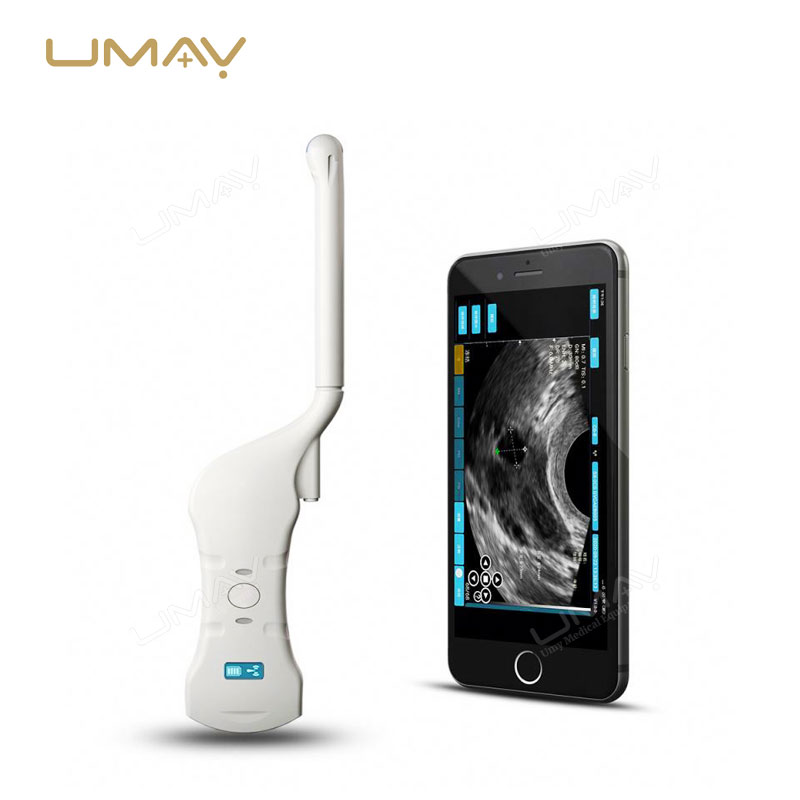

Wireless Device Compatibility
Supports multi-platform wireless connectivity across iOS, Android, and Windows smartphones, tablets, and computers.
Built-in WiFi & Long Battery Life
Features 802.11g/20MHz/5G/450Mbps dual-band WiFi and a built-in 4200mAh battery providing up to 5 hours of continuous working time.
Wireless Charging & Replaceable Battery
Supports convenient wireless charging and features a user-replaceable battery design to extend continuous operation.
Advanced Measurement Packages
Offers rich measurement functions for OB (GA, BPD, GS, FL, HC, AC, EFW), cardiac, depth, area, circumference, and Doppler velocity.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Product Model | UMH-C10QT (Double Head Wireless Color Doppler Ultrasound) |
| Scanning Mode | Electronic Array |
| Channels & Elements | 64 Channels | 192 Probe Elements |
| Probe Frequencies & Radii | Convex probe: 3.5 / 5.0 MHz, R60 | Trans-vaginal probe: 6.5 / 8.0 MHz, R10 |
| Scanning Depths | Convex probe: 90 / 160 / 220 / 305 mm | Trans-vaginal probe: 40 / 60 / 80 / 100 mm |
| Display Modes | B, B/M, Color, PW, PDI |
| WiFi & Transmission | 802.11g / 20MHz / 5G / 450Mbps |
| Supported Languages | English, Russian, Italian, Spanish, Chinese, Portuguese (Brazil) |
| Battery & Working Time | Built-in 4200mAh Lithium battery | Working time: 5 hours | Standby: >5 hours |
| Dimensions & Weight | 347 mm x 55 mm x 30 mm | Head Width: 60 mm | Net Weight: 304 grams |
- Specifications are based on official technical datasheets for the UMH-C10QT Wireless Ultrasound Scanner.
- Standard configuration includes the wireless ultrasound probe, portable wireless charger, USB charging cable, and operator’s manual.
- Optional accessories include a Bluetooth printer, biopsy needle guide, and iPad trolley stand.
Applications
Maternal & Fetal Assessment
Supports obstetric screenings, fetal growth tracking, GA calculations, and routine maternal checkups.
Gynecology & Pelvic Imaging
Trans-vaginal probe capabilities provide high-resolution imaging for uterus, ovaries, and early pregnancy diagnostics.
General Point-of-Care Ultrasound
Enables rapid bedside screenings for abdominal organs, kidneys, urology, cardiac, and lung assessments.
System Configuration
The UMH-C10QT Double Head Wireless Probe Scanner is supplied complete with the double-head wireless probe unit, wireless charging pad, USB charging cable, and user manual.
Please confirm your required optional accessories (such as iPad trolley stand, Bluetooth printer, or biopsy needle guides) prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Target operating device platform (iOS, Android, or Windows).
- Optional accessory requirements (e.g., biopsy needle guide, mobile trolley stand).
Request a Double Head Wireless Ultrasound Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your clinic or hospital.
Frequently Asked Questions
What two probe types are integrated into the UMH-C10QT?
The system features an integrated convex probe on one end and a trans-vaginal probe on the other end.
How long does the battery last and how is it charged?
The built-in 4200mAh lithium battery supports up to 5 hours of continuous working time and features wireless charging support.
Is the device waterproof for clinical sterilization?
Yes, it features a whole waterproof design, making it convenient for sterilization in operating fields.
What image formats are supported for saving scans?
Scanned images and videos can be saved directly on smart devices in JPG, AVI, MP4, and DICOM formats.
