This wireless 1717 flat panel detector offers a cassette-sized design optimized for integration with digital radiography systems. With a fast image acquisition time and superior resolution, it supports streamlined workflows in busy radiology departments. Its wireless connectivity reduces clutter and improves setup flexibility in diagnostic environments. The detector works in tandem with imaging systems like our 50kW high frequency DR X ray machine to enable dependable and consistent image quality. Durable, lightweight, and compatible with various configurations, it suits hospitals seeking reliable digital imaging upgrades.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Detector Specifications | |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area | 17 × 17 inch |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch | 139 μm |
| Spatial Resolution | 3.6 lp/mm |
| AD Conversion | 16 bit |
| Connectivity & Interface | |
| WiFi | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
| Trigger Mode | AED (Optional) / Software |
| Power & Battery | |
| Battery Autonomy | 8 hours |
| Imaging Performance | |
| Full Image Time | 5 seconds |
| Physical Specifications | |
| Dimensions | 460 × 460 × 15 mm |
| Weight | 4.3 kg |
| Static Loading | 150 kg Uniformly |
| Ingress Protection | IPX1 |
| Environmental Conditions | |
| Operating Temperature | 5 ~ 35 °C |
| Storage & Transport Temperature with Package | -20 ~ 55 °C |
| Operating Humidity | 10 ~ 90% (Non-Condensing) |
| Storage & Transport Humidity with Package | 5 ~ 95% (Non-Condensing) |
Product Details
- High-Quality X-Ray Flat Panel Component: Designed for reliable digital radiography performance, providing stable image acquisition and accurate diagnostic support for medical imaging systems.
- Compact and Lightweight Structure: Slim panel design allows convenient integration into portable X-ray systems, DR workstations, and veterinary imaging equipment.
- Durable Protective Housing: Manufactured with reinforced outer casing to enhance durability, improve equipment protection, and support long-term clinical use.
- Optimized Digital Imaging Performance: Supports clear and detailed radiographic image capture for improved diagnostic visualization and workflow efficiency.
- Easy Installation and System Compatibility: Designed for seamless connection with compatible digital radiography systems, supporting efficient equipment setup and operation.
- Suitable for Medical and Veterinary Applications: Ideal for hospitals, imaging centers, veterinary clinics, and mobile diagnostic environments requiring dependable digital X-ray imaging components.

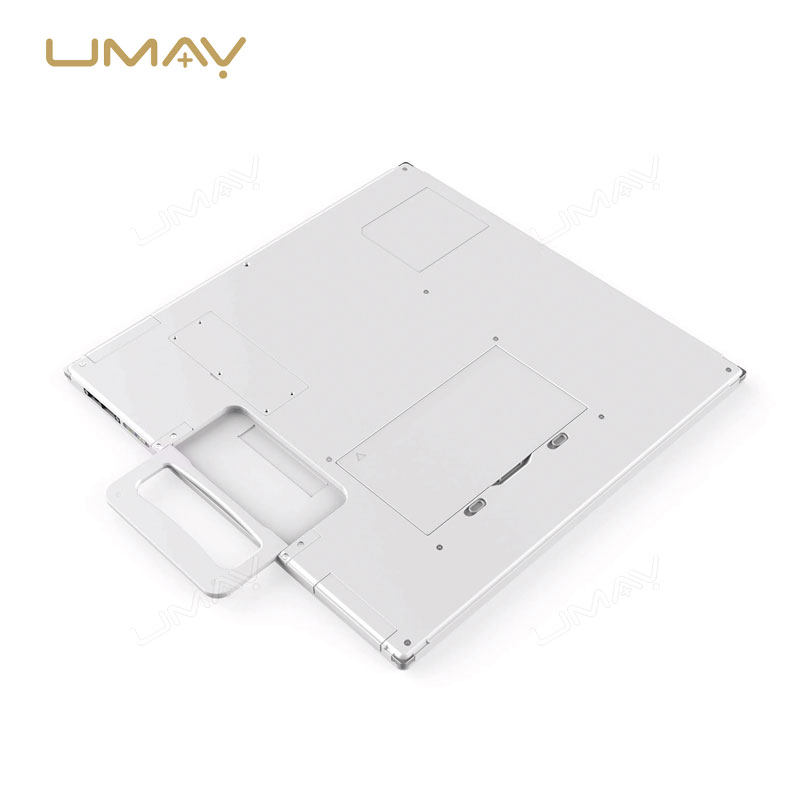

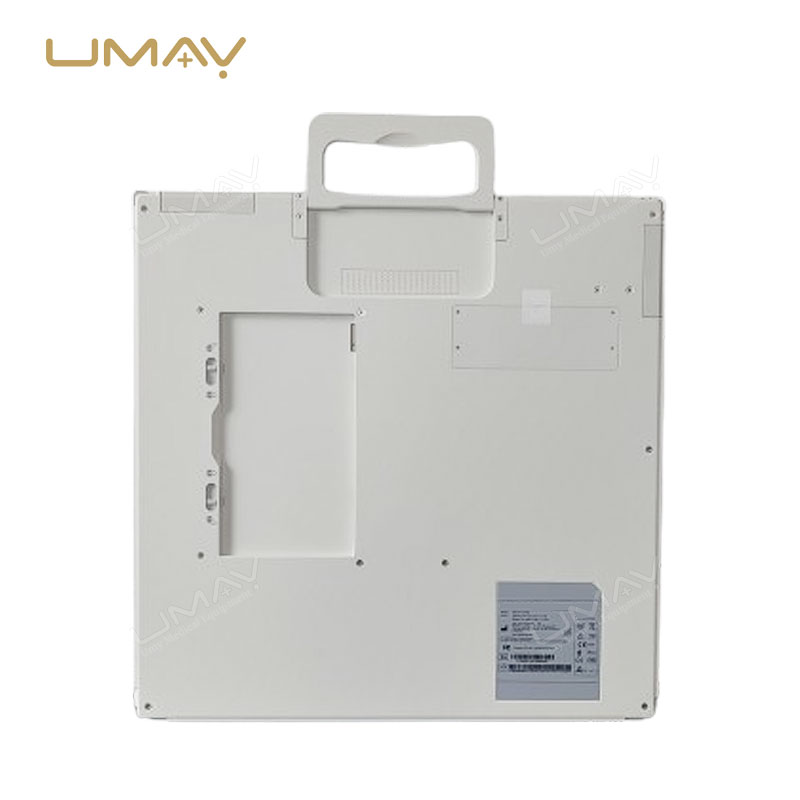

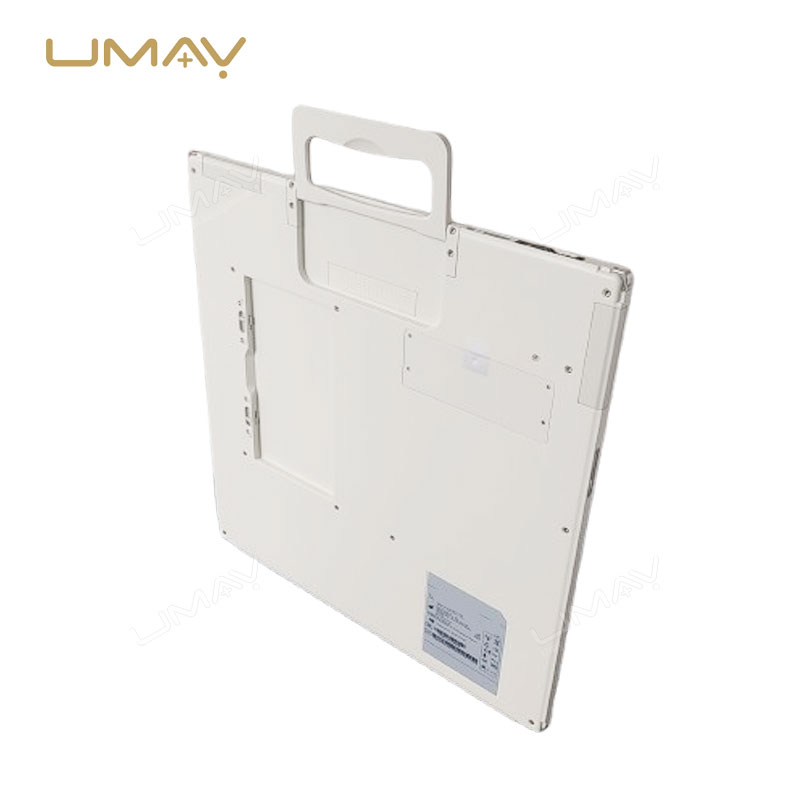

- Portable Digital Flat-Panel Detector: Designed with an integrated carrying handle for convenient transportation and flexible use in hospitals, clinics, mobile healthcare units, and veterinary environments.
- High-Resolution Imaging Performance: Advanced digital detector technology delivers clear, sharp, and detailed radiographic images for accurate diagnostic evaluation.
- Slim and Lightweight Construction: Compact panel structure allows easy positioning, efficient handling, and seamless integration into various digital radiography systems.
- Fast Image Acquisition and Transmission: Supports rapid digital image capture and efficient data transfer to improve workflow efficiency and reduce examination time.
- Durable and Reliable Design: Built with high-quality materials and reinforced housing to ensure stable performance and long-term reliability in demanding clinical settings.
- Wide Clinical Compatibility: Suitable for medical and veterinary DR systems, supporting orthopedic, thoracic, abdominal, emergency, and routine radiographic examinations.

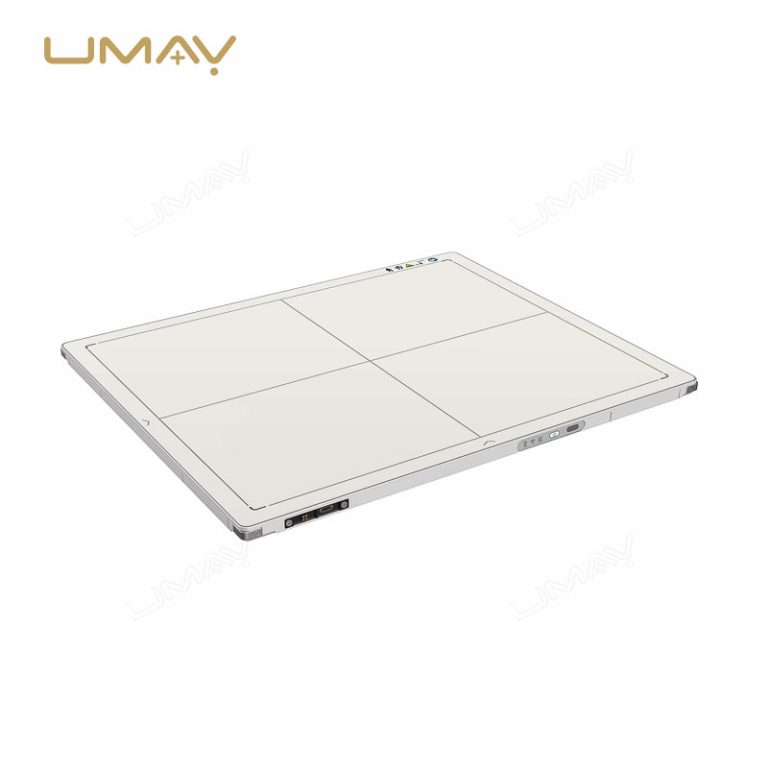

- Slim and Lightweight Digital Flat-Panel Detector: Ultra-thin design allows easy handling, flexible positioning, and seamless integration into portable X-ray and DR systems.
- High-Resolution Imaging Performance: Provides clear, detailed, and accurate radiographic images to support reliable medical and veterinary diagnostics.

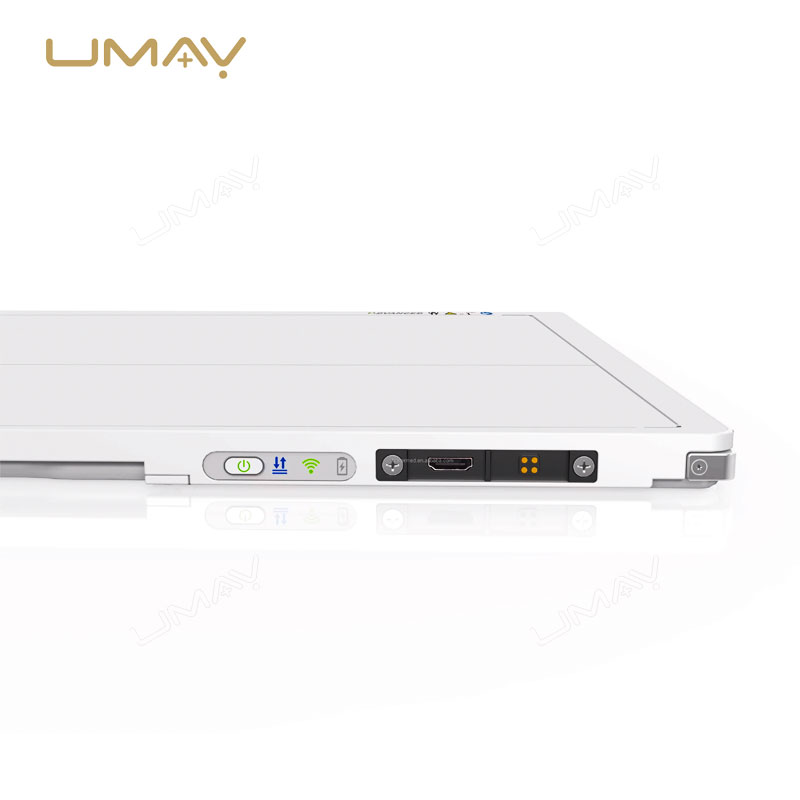

- Integrated Connectivity Options: Features multiple connection ports for efficient data transfer, including wired and wireless interface support to streamline workflow.
- Durable and Robust Construction: Built with reinforced housing and premium materials to ensure long-term reliability and stable performance in clinical environments.
- Efficient Digital Image Acquisition: Supports rapid image capture and fast transmission to imaging workstations, improving clinical workflow and patient throughput.
- Versatile Clinical Compatibility: Compatible with a wide range of digital X-ray systems, suitable for human, veterinary, orthopedic, thoracic, and abdominal imaging applications.

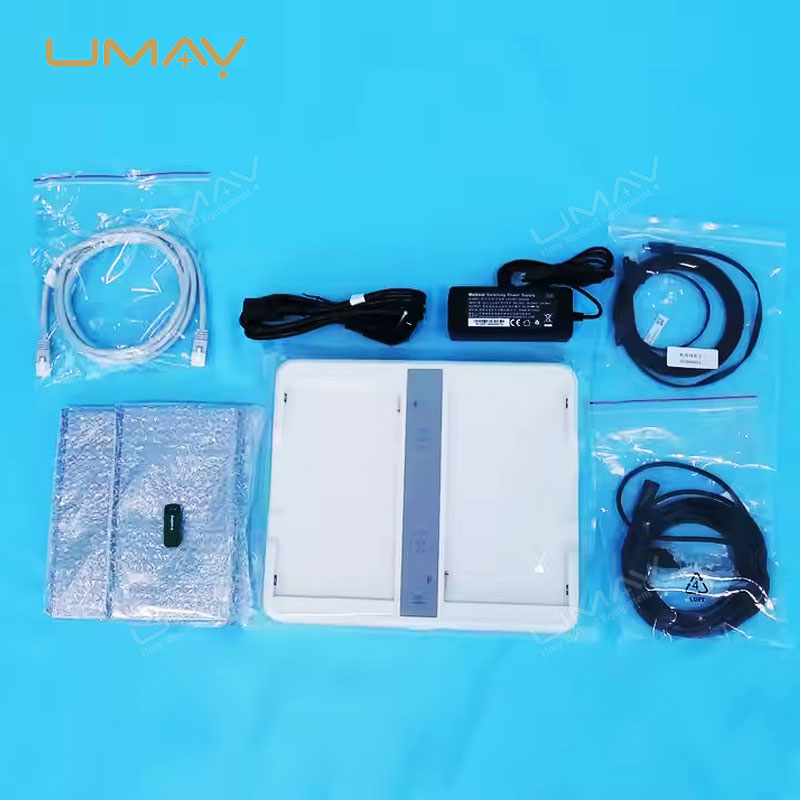

Detail Gallery
