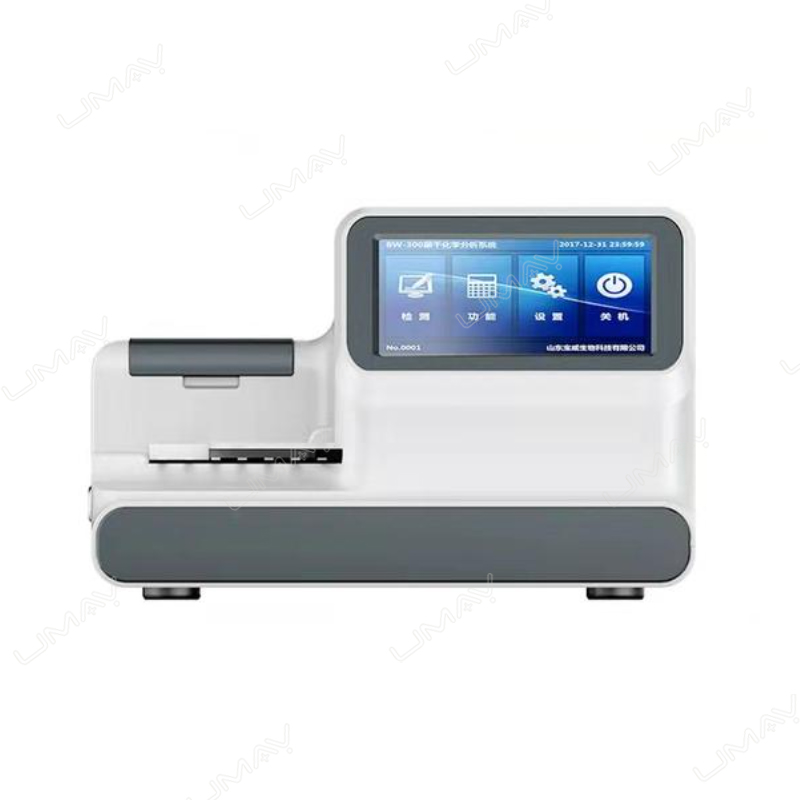

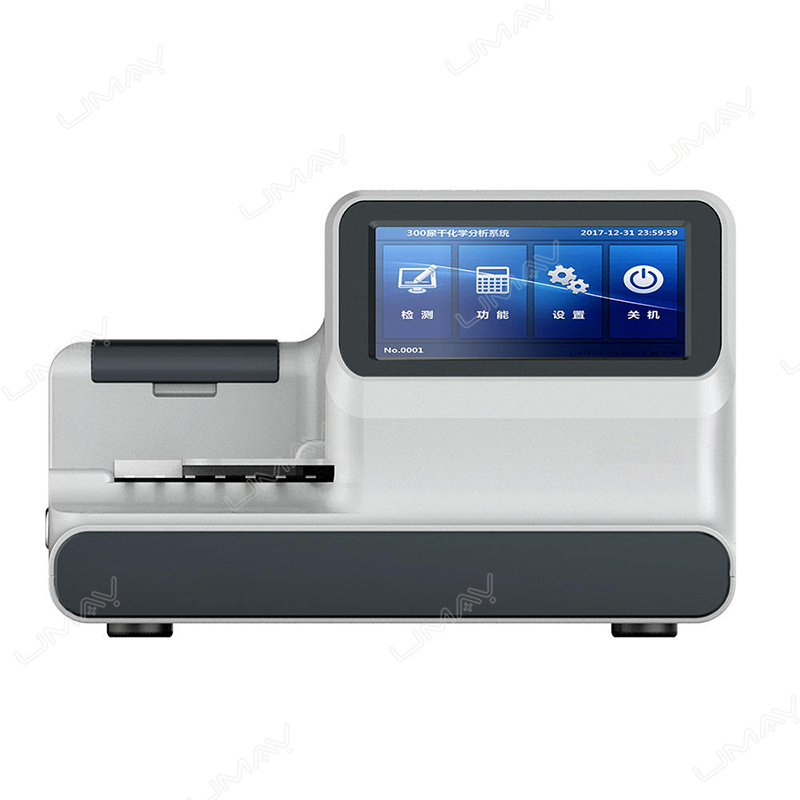

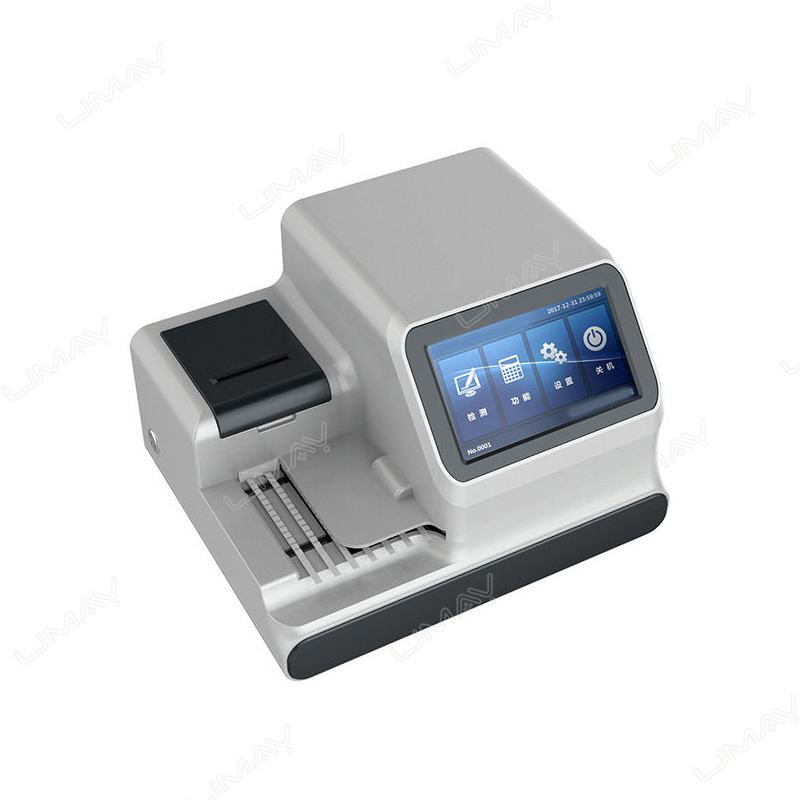

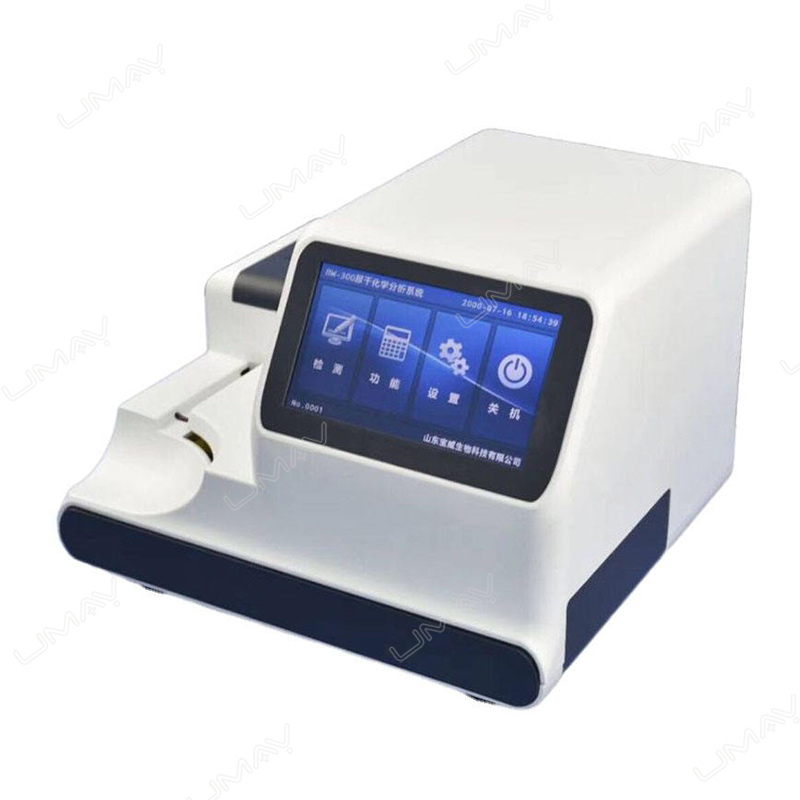

UMYUA001 Semi Automatic Urine Analyzer
The UMYUA001 is a semi automatic urine analyzer designed for routine urine test strip analysis in clinical laboratories and healthcare testing environments. It supports 10, 11, 12 and 14-parameter urine test configurations with a specified throughput of up to 514 samples per hour.
The analyzer combines computer vision and artificial intelligence-based measurement technology with a 7-inch touchscreen, built-in thermal printer, environmental temperature monitoring and laboratory data connectivity. Results can be stored and retrieved electronically, while reserved communication interfaces support integration requirements for HIS, LIS and external urine sediment analysis systems.
Key Features
Up to 514 Samples per Hour
Designed for routine laboratory urinalysis workflows with a specified test speed of up to 514 samples per hour.
AI and Computer Vision Measurement
Uses artificial intelligence and computer vision technology for automated reading and interpretation of compatible urine reagent strips.
10, 11, 12 and 14-Parameter Testing
Supports multiple urine test strip configurations covering routine urine chemistry parameters and extended test items.
Environmental Temperature Monitoring
Built-in ambient temperature monitoring is designed to reduce the influence of laboratory temperature changes on routine testing consistency.
Test Strip Identification and Traceability
Supports test strip logo identification together with result image archiving to assist strip management and test-result traceability.
Laboratory Data Connectivity
Reserved RS232, WiFi and network interfaces support data communication requirements including HIS, LIS and external urine sediment analysis systems.
Applications
The UMYUA001 is intended for semi-automatic urine test strip analysis in routine laboratory environments. Its multi-parameter testing capability and data-management functions support laboratories requiring higher-throughput urine chemistry workflows.
- Routine urine chemistry analysis.
- Urine reagent strip testing.
- Hospital clinical laboratory workflows.
- Diagnostic laboratory urinalysis.
- Multi-parameter urine screening workflows.
- Laboratories requiring HIS or LIS data connectivity.
Urine Test Parameters
The analyzer supports 10, 11, 12 and 14-parameter test configurations. Available parameters depend on the compatible urine reagent strip configuration selected for the system.
| GLU | Glucose |
|---|---|
| BIL | Bilirubin |
| KET | Ketone |
| SG | Specific Gravity |
| pH | pH |
| BLD | Blood |
| PRO | Protein |
| URO | Urobilinogen |
| NIT | Nitrite |
| LEU | Leukocyte |
| VC | Ascorbic Acid |
| CRE | Creatinine |
| CAL | Calcium |
| MAL | Microalbumin |
Technical Specifications
| Model | UMYUA001 |
|---|---|
| Product Type | Semi Automatic Urine Analyzer |
| Test Speed | Up to 514 samples/hour |
| Measurement Principle | Artificial intelligence + computer vision technology |
| Test Configuration | 10, 11, 12 and 14 parameters |
| Operating System | Embedded Linux operating system |
| Display | 7-inch large-screen display with touch operation |
| Result Output | LCD display and thermal printing |
| Printer | Built-in high-speed thermal printer |
| Power Supply | AC 100–240 V ±10%, 50–60 Hz |
| Power | 20 VA |
| Operating Temperature | 15–35°C |
| Operating Humidity | <85% |
| Data Communication | Reserved RS232 interface, WiFi and network interface |
| Laboratory Connectivity | HIS, LIS and external urine sediment analysis system interface support |
| Data Storage | Large-capacity test-result storage with record-number retrieval |
| Dimensions (W × D × H) | 340 × 290 × 250 mm |
| Shipping Size (W × D × H) | 450 × 440 × 400 mm |
| Net Weight | 3.1 kg |
| Gross Weight | 8 kg |
Data Management and Connectivity
The UMYUA001 includes data-management functions for routine laboratory workflows. Test results can be stored and retrieved by record number, while each result can be photographed and archived to support traceability.
The analyzer provides reserved RS232, WiFi and network communication interfaces. HIS, LIS and external urine sediment analysis system integration requirements should be confirmed before quotation because final connectivity may depend on the laboratory software environment and interface protocol.
Urine Test Strip Configuration
The analyzer supports different urine reagent strip configurations covering 10, 11, 12 and 14 parameters. The required strip type should be confirmed according to the laboratory testing menu and procurement requirements.
Test strip compatibility, parameter combination, package quantity and supply requirements should be confirmed together with the analyzer quotation.
Before Ordering
Please provide the following information so the analyzer, urine reagent strip configuration and laboratory connectivity requirements can be confirmed before quotation.
- Required quantity.
- Destination country.
- Required 10, 11, 12 or 14-parameter test configuration.
- Required urine reagent strip quantity.
- Expected laboratory testing volume.
- Whether HIS or LIS connection is required.
- Whether connection to an external urine sediment analyzer is required.
- Any tender, installation or documentation requirements.
Frequently Asked Questions
What type of analyzer is the UMYUA001?
The UMYUA001 is a semi automatic urine analyzer designed for urine reagent strip analysis in routine laboratory workflows.
How many urine test parameters does the analyzer support?
It supports 10, 11, 12 and 14-parameter test configurations. The final parameter combination depends on the compatible urine reagent strip selected.
What is the test speed?
The specified maximum test speed is up to 514 samples per hour.
Can the urine analyzer connect to LIS or HIS?
The analyzer provides reserved RS232, WiFi and network interfaces and supports HIS and LIS connectivity requirements. The required interface and software environment should be confirmed before ordering.
Does the analyzer include a printer?
Yes. The UMYUA001 is equipped with a built-in high-speed thermal printer for test-result output.
Can it be connected to a urine sediment analyzer?
The specification lists reserved connectivity for an external urine sediment analysis system. Final compatibility and communication requirements should be confirmed according to the external system.
