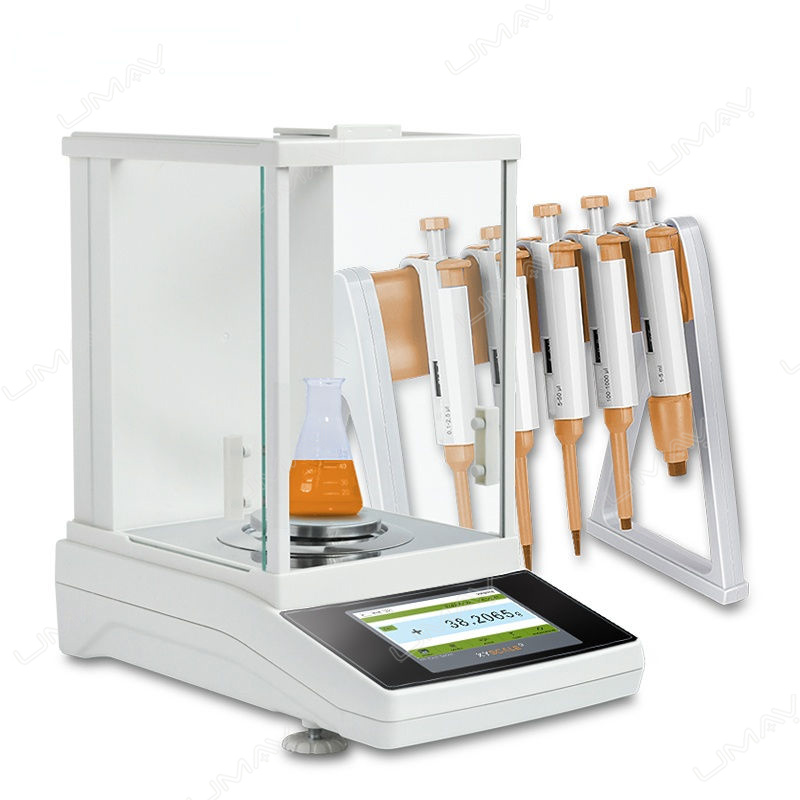

UMY-FA-T Series 0.1mg Analytical Balance

The UMY-FA-T Series 0.1mg Analytical Balance is designed for
high-resolution laboratory weighing applications requiring
0.0001 g (0.1 mg) readability.

The series includes UMY-FA1004T, UMY-FA2004T and UMY-FA2204T,
providing maximum capacities of 100 g, 200 g and 220 g respectively.
Each model combines internal automatic calibration, electromagnetic force sensing,
a 5-inch touch panel and a large glass draft shield for routine analytical weighing.

Key Features

• 0.0001 g / 0.1 mg readability
• 100 g, 200 g and 220 g capacity options
• Internal automatic calibration
• One-key and timed internal calibration
• 5-inch touch control panel
• Electromagnetic force sensor
• Minimum weighing value: 0.0004 g
• Repeatability: ±0.0002 g
• Linearity: ±0.0003 g
• Stabilization time: ≤3 seconds
• Ø80 mm weighing pan
• Large glass draft shield
• RS232 communication as standard
• Optional USB communication and printer

Typical Applications

The UMY-FA-T Series is suitable for precision weighing and sample preparation in:

• Analytical laboratories
• Pharmaceutical laboratories
• Universities and research institutes
• Chemical laboratories
• Quality control laboratories
• Biological and life science laboratories
• Industrial testing laboratories

0.1mg Analytical Weighing

All three models provide a readability of 0.0001 g (0.1 mg),
allowing small differences in sample mass to be measured during analytical
and laboratory weighing procedures.

The specified minimum weighing value is 0.0004 g, with
repeatability of ±0.0002 g and linearity of
±0.0003 g.

Internal Automatic Calibration

The UMY-FA-T Series uses an internal calibration system, reducing the need
for routine external calibration weights during normal operation.

Calibration can be activated manually by the operator or triggered according
to the instrument’s timed internal calibration function.

• UMY-FA1004T: 100 g internal calibration weight
• UMY-FA2004T: 200 g internal calibration weight
• UMY-FA2204T: 200 g internal calibration weight

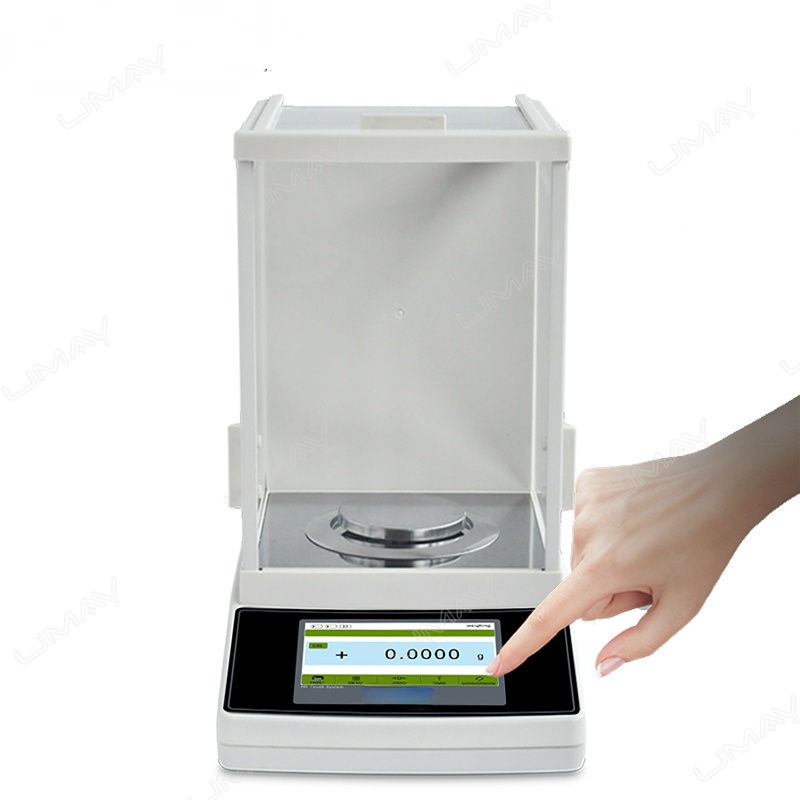

5-Inch Touch Panel

A 5-inch touch panel provides access to weighing functions,
calibration settings and operating parameters.

In addition to basic weighing, the balance supports multiple laboratory
weighing modes for routine analytical workflows.

Weighing Functions

• Tare weighing
• Piece counting
• Percentage weighing
• Density determination
• Unit conversion including g, mg, ct and oz
• Under-weighing function
• Adjustable sensitivity
• Adjustable response speed

An optional density kit is available for solid and liquid density measurement
applications.

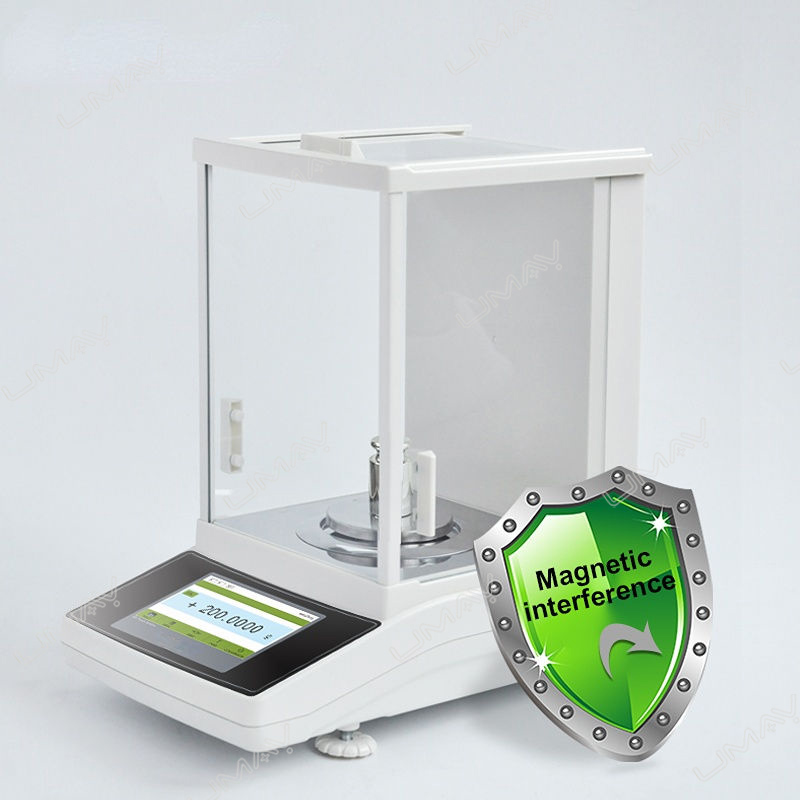

Electromagnetic Force Sensor

The balance uses an electromagnetic force sensing system
to support stable high-resolution weighing performance.

The specified stabilization time is ≤3 seconds under suitable operating conditions.
Actual stabilization may vary according to sample condition, air movement,
vibration and the installation environment.

Large Draft Shield

The analytical balance is equipped with a glass draft shield to reduce the influence
of air movement on small-mass measurements.

The specified draft shield dimensions are approximately
240 × 190 × 265 mm, providing access for routine sample placement
while protecting the weighing area.

Data Communication

An RS232 interface is provided as standard for connection
to compatible external devices and laboratory data workflows.

• RS232: Standard
• USB: Optional
• Printer: Optional

Alarm and Setup Functions

The system includes functions intended to assist routine operation and instrument setup:

• Overload alarm
• Fault alarm
• Level indicator
• Sensitivity adjustment
• Response speed adjustment

Model Comparison

Technical Specifications

How to Select the Correct Model

• UMY-FA1004T: suitable when sample quantities remain within
  a 100 g maximum capacity.
• UMY-FA2004T: provides a 200 g maximum capacity while
  retaining 0.1 mg readability.
• UMY-FA2204T: provides the highest capacity in the UMY-FA-T
  range at 220 g with the same 0.1 mg readability.

Before Ordering

For model selection and quotation, please provide:

• Required maximum weighing capacity
• Required readability
• Sample type
• Required quantity
• Whether USB communication is required
• Whether a printer is required
• Whether a density determination kit is required
• Destination country

Request UMY-FA-T Analytical Balance Quotation

Contact UMY Medical with your required capacity, application,
optional accessories and destination country for configuration confirmation and quotation.

Email UMY Medical

WhatsApp UMY Medical

FAQ

What is the readability of the UMY-FA-T Series?

All three models provide a readability of 0.0001 g, equivalent to 0.1 mg.

What capacities are available?

UMY-FA1004T provides 100 g capacity, UMY-FA2004T provides 200 g,
and UMY-FA2204T provides 220 g.

Does the balance have internal calibration?

Yes. The UMY-FA-T Series uses internal automatic calibration with one-key
and timed calibration functions.

Can the balance connect to a computer or printer?

RS232 communication is standard. USB connectivity and a printer are available
as optional configurations.

Can the balance perform density measurement?

Yes. Density determination is supported, and an optional solid/liquid density
kit is available for corresponding applications.
