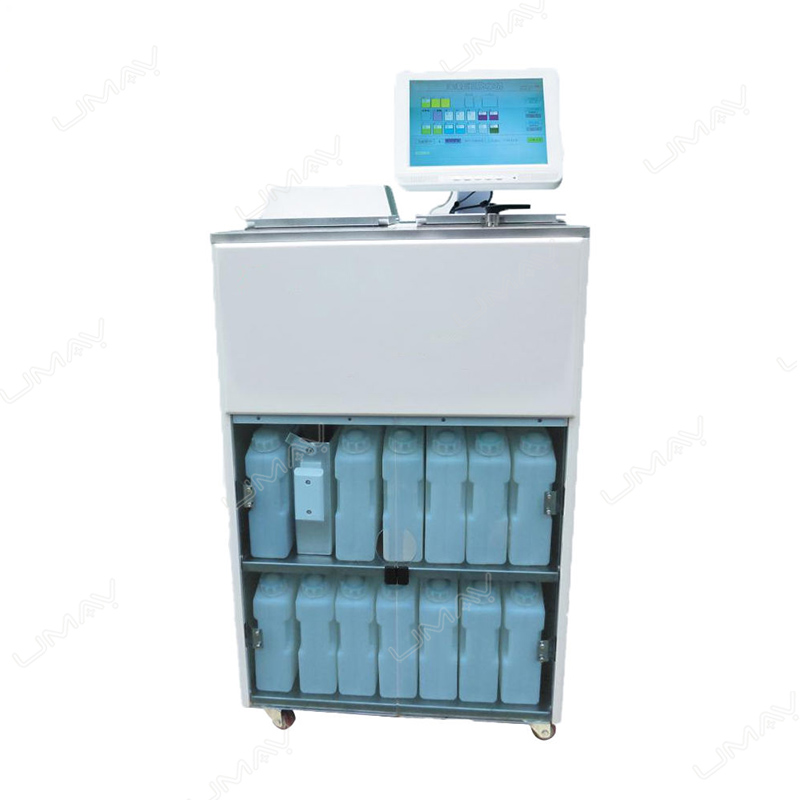

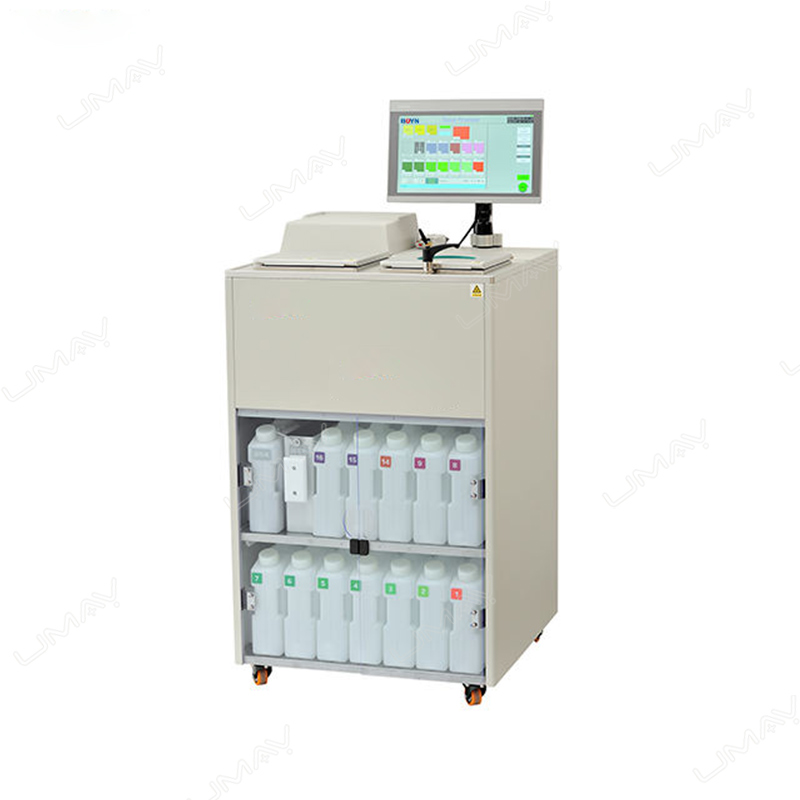

The UMTDD001 Fully Automatic Enclosed Tissue Processor is designed
for routine tissue processing in histology and pathology laboratories.
It integrates reagent processing, washing and paraffin wax handling in an enclosed
automated system for standardized tissue preparation workflows.
The system provides 12 reagent stations, including tissue processing
and washing stations, together with 3 wax tanks and one working station.
Its processing chamber has a capacity of 9 L, while each reagent station
provides a capacity of 6 L.
Both manual and automatic operation modes are available, with programmable immersion
time, adjustable stirring settings and controlled solvent and wax temperatures.
Key Features
- Fully automatic enclosed tissue processing system
- 12 reagent stations
- Tissue processing stations No. 1–9
- Washing stations No. 14–16
- 3 paraffin wax tanks: No. 10, 12 and 13
- 1 working station
- 9 L processing chamber capacity
- 6 L reagent station capacity
- Manual and automatic operation modes
- Programmable immersion time up to 99 hours 59 minutes
- User-settable stirring time and stirring interval
- Controlled solvent temperature up to 45°C
- Wax temperature range: 58–70°C
- Wax melting time: ≤3 hours
- Operating pressure: <0.1 MPa
Enclosed Automated Tissue Processing
The UMTDD001 combines tissue processing, reagent handling, washing and paraffin wax
processing in one enclosed system. The automated workflow helps reduce repeated manual
handling during routine histology sample preparation.
Operators can select either manual or automatic
operation according to laboratory workflow requirements.

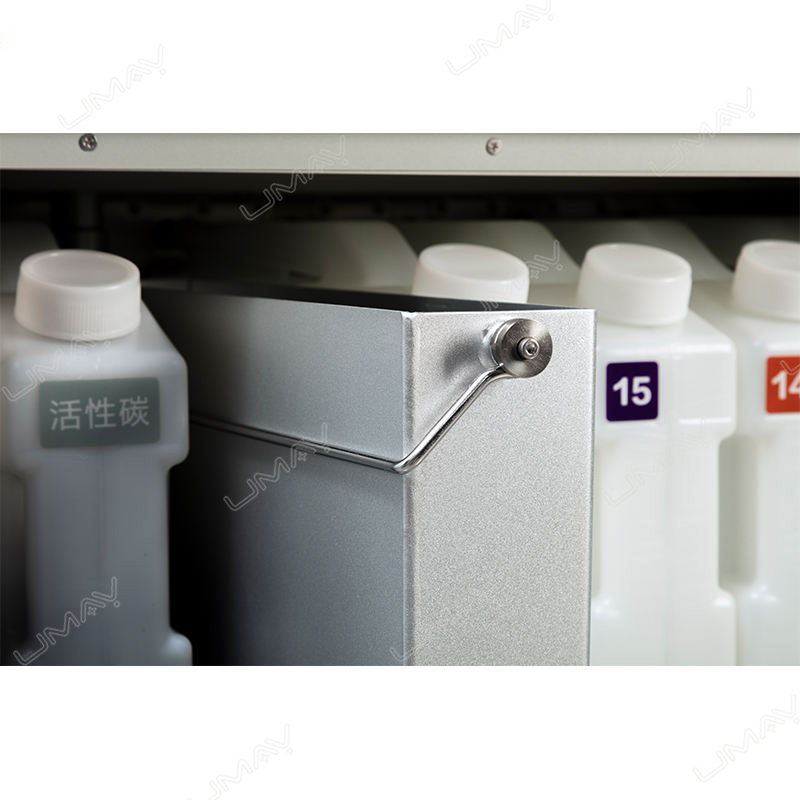

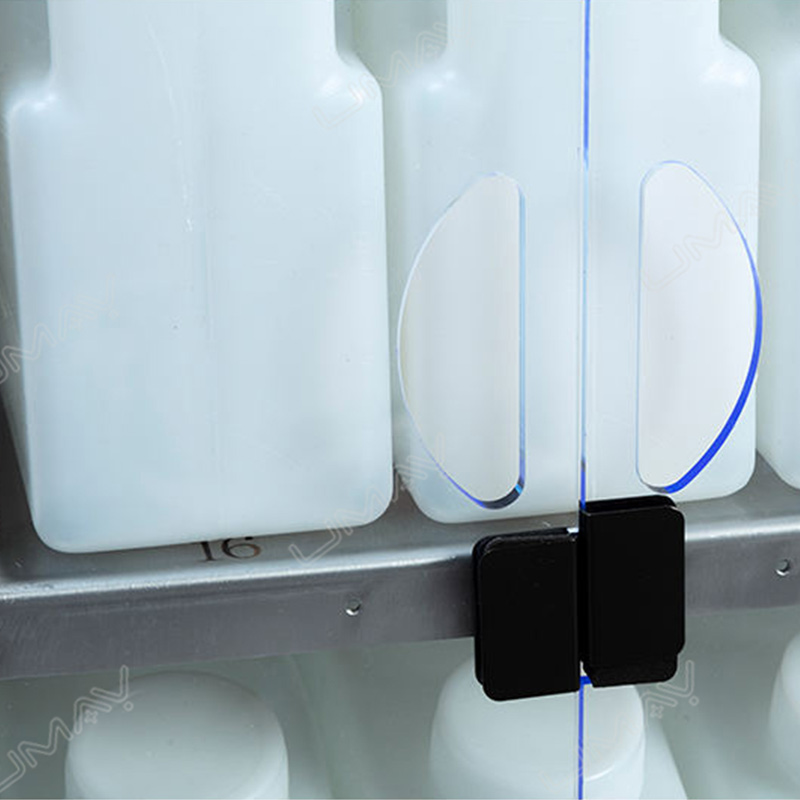

12 Reagent Stations and 3 Wax Tanks
The processor is configured with a total of 12 reagent stations,
organized for tissue processing and washing procedures.
| Station Type | Station Number |
|---|---|
| Tissue Processing Stations | No. 1–9 |
| Wax Tanks | No. 10, 12 and 13 |
| Washing Stations | No. 14–16 |
| Working Station | 1 |

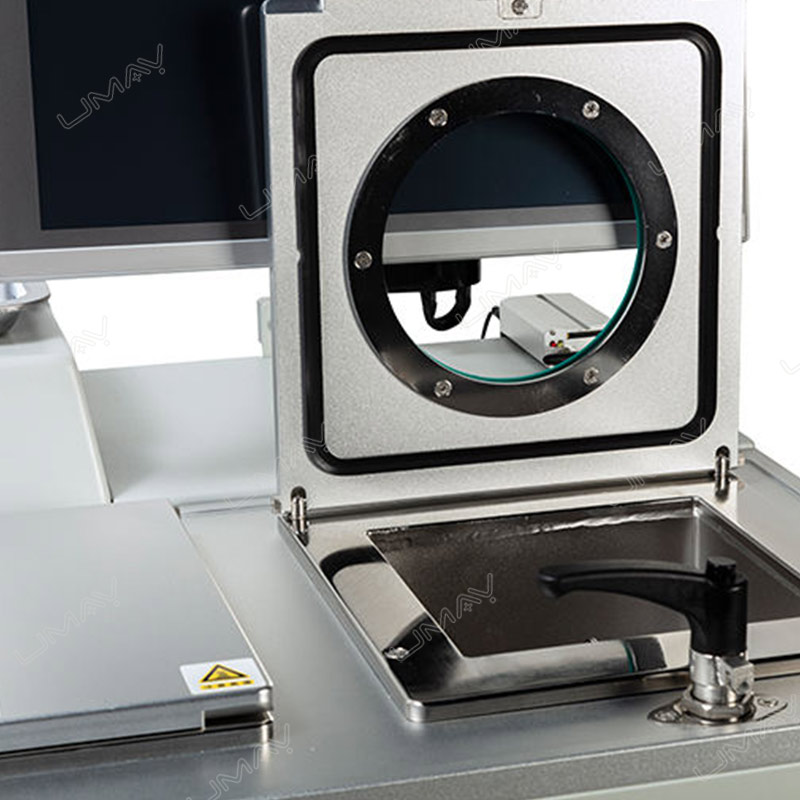

9L Processing Chamber
The processing station provides a 9 L chamber capacity, while the
reagent stations have a specified capacity of 6 L.
This configuration is intended for routine laboratory tissue processing where larger
reagent volumes and automated processing cycles are required.
Temperature Control for Solvent and Paraffin Wax
Separate operating temperature requirements are provided for solvent and paraffin wax
processing:
- Solvent temperature: ≤45°C
- Wax temperature: 58–70°C
- Wax melting time: ≤3 hours
Temperature settings should be selected according to the laboratory protocol,
reagent type and paraffin wax specification.
Programmable Immersion and Stirring
The immersion time can be programmed from 0 to 99 hours 59 minutes,
providing flexibility for different tissue processing protocols.
Both the stirring time and stirring interval
are user-settable, allowing the processing procedure to be adjusted according
to the laboratory workflow.
Liquid Inflow and Discharge
The specified liquid transfer times are:
- Liquid inflow time: ≤5 minutes
- Liquid discharge time: ≤5 minutes
Technical Specifications
| Model | UMTDD001 |
|---|---|
| Product Type | Fully automatic enclosed tissue processor |
| Number of Reagent Stations | 12 |
| Tissue Processing Stations | No. 1–9 |
| Washing Stations | No. 14–16 |
| Wax Tanks | 3 (No. 10, 12 and 13) |
| Working Stations | 1 |
| Processing Chamber Capacity | 9 L |
| Reagent Station Capacity | 6 L |
| Solvent Temperature | ≤45°C |
| Wax Temperature | 58–70°C |
| Operating Pressure | <0.1 MPa |
| Wax Melting Time | ≤3 hours |
| Immersion Time | 0–99 h 59 min |
| Liquid Inflow Time | ≤5 min |
| Liquid Discharge Time | ≤5 min |
| Stirring Time | User-settable |
| Stirring Interval | User-settable |
| Operation Mode | Manual / Automatic |
| Power Input | <1500 VA +10% |
| Working Voltage | 220 VAC ±10%, 50/60 Hz |
| Overall Dimensions | 650 × 650 × 1350 mm (W × D × H) |
| Net Weight | 145 kg |
Typical Applications
The UMTDD001 is intended for tissue processing workflows in:
- Hospital pathology departments
- Histology laboratories
- Medical laboratories
- Research institutes
- Universities and teaching laboratories
Before Ordering
For configuration confirmation and quotation, please provide:
- Required quantity
- Intended pathology or histology application
- Typical tissue processing workload
- Required reagent and paraffin workflow
- Local voltage and frequency
- Required technical or regulatory documentation
- Destination country
Please confirm the intended laboratory workflow and reagent protocol before ordering
so the system configuration can be reviewed for compatibility.
Request UMTDD001 Tissue Processor Quotation
Contact UMY Medical with your laboratory application, required quantity
and destination country for configuration confirmation and quotation.
FAQ
How many reagent stations does the UMTDD001 have?
The UMTDD001 has 12 reagent stations, including tissue processing and washing stations.
What is the processing chamber capacity?
The processing chamber capacity is 9 L, while the reagent station capacity is 6 L.
How many wax tanks are included?
The system includes three wax tanks, identified as No. 10, 12 and 13.
What is the paraffin wax temperature range?
The specified wax temperature range is 58–70°C.
Can the tissue processor operate automatically?
Yes. The UMTDD001 supports both manual and automatic operation modes.
