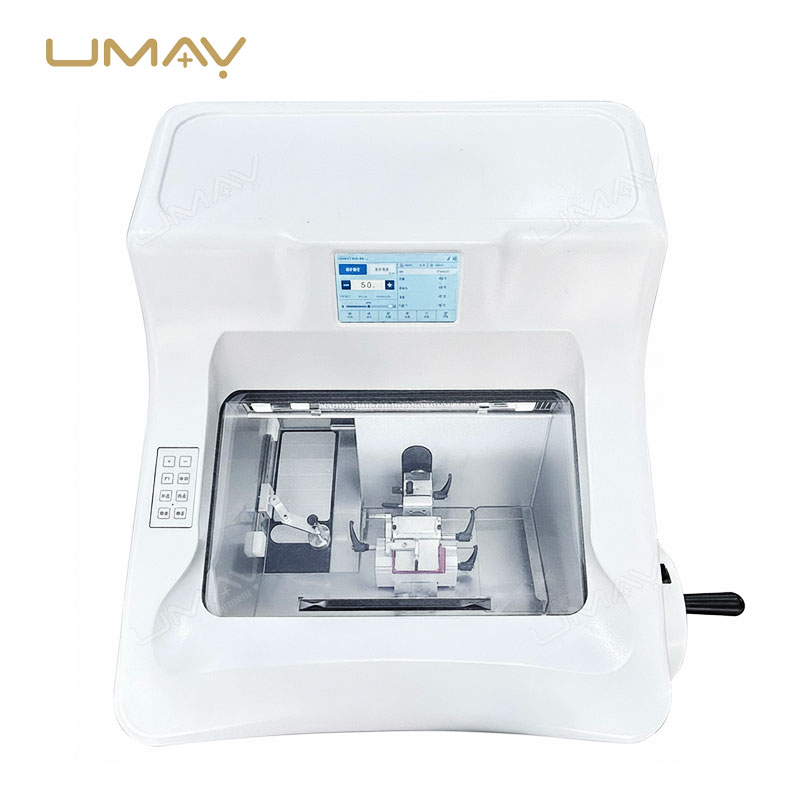

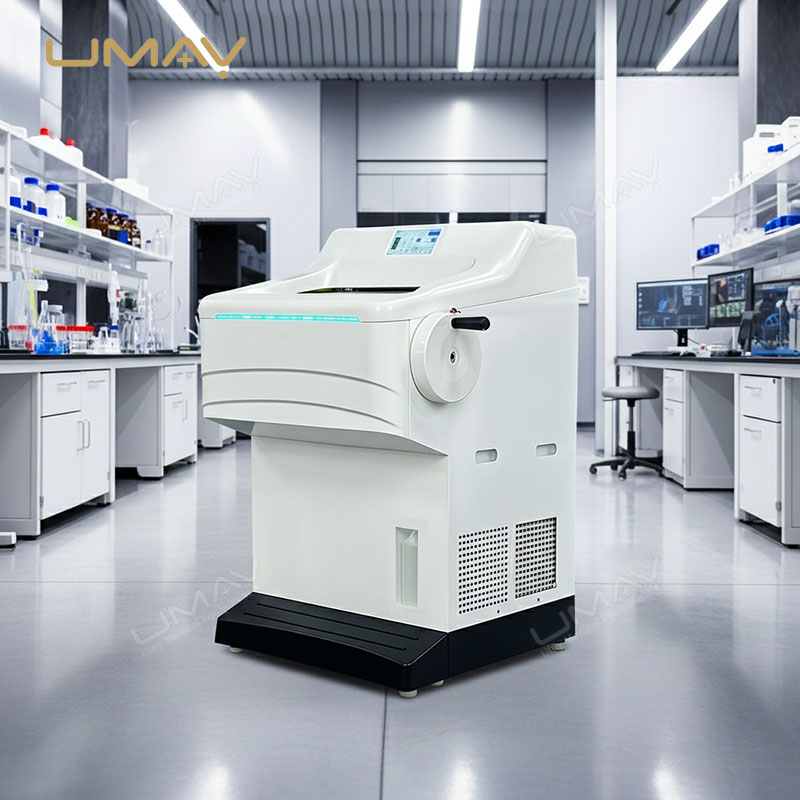

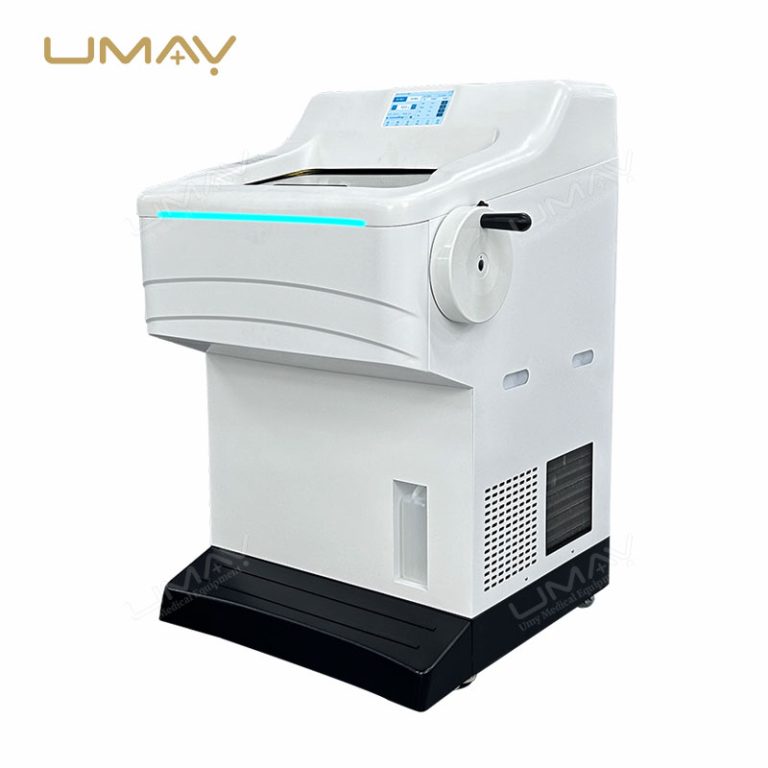

Cryostat Microtome for Pathological Frozen Section Diagnosis
The Cryostat Microtome is engineered to simplify pathological diagnosis for histopathology laboratories. Developed based on 30‑years focus on pathological equipment R&D, this equipment delivers high‑efficiency, precise, stable and safe frozen section performance for clinical and research pathological specimen processing. It integrates intelligent control, adjustable refrigeration, UVC disinfection and human‑oriented mechanical structure to optimize daily pathological section workflow.
Key Features
Ergonomic ABS Customized Machine Body
Arc edge design conforming to human body engineering with comfortable working height for long‑time laboratory operation.

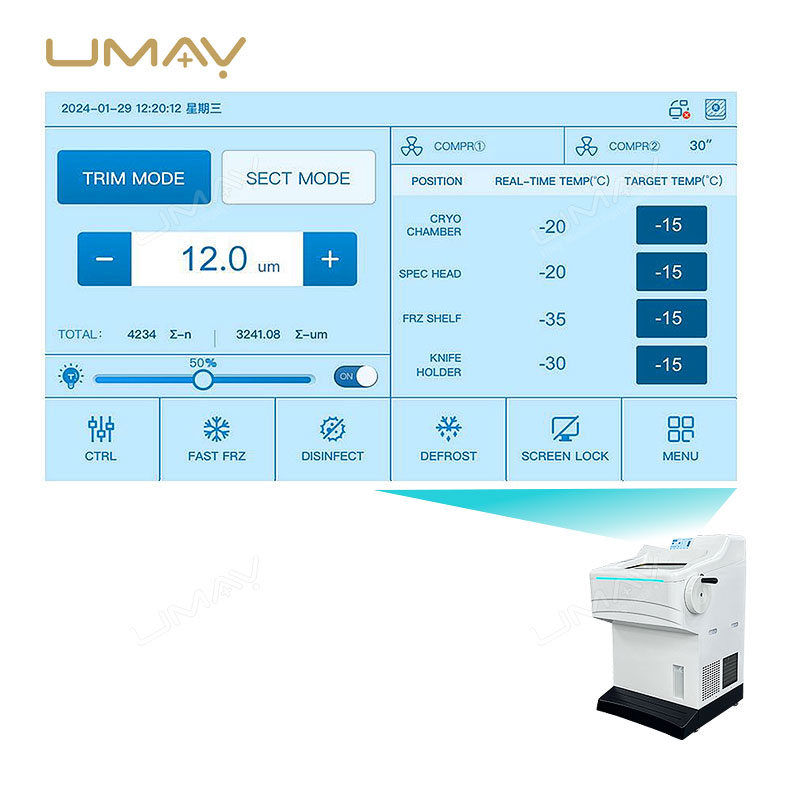

10‑Inch Color Touch Screen Control
Supports tissue temperature management, accumulated sectioned times recording, defrosting, disinfection, dormancy mode and appointment wake‑up functions.
Intelligent Multi‑Color Status Indicator Lamp Belt
Displays different colors for working, dormancy and malfunction status for real‑time machine status monitoring.
Adjustable UVC Disinfection Function
Non‑working time setting and adjustable disinfection time to realize laboratory equipment safety disinfection.
Shortcut Keyboard & High‑Precision Specimen Feeding
Trim/sect fast switching, accurate section thickness adjustment; motor‑driven specimen feeding & retreat with multiple adjustable speeds.

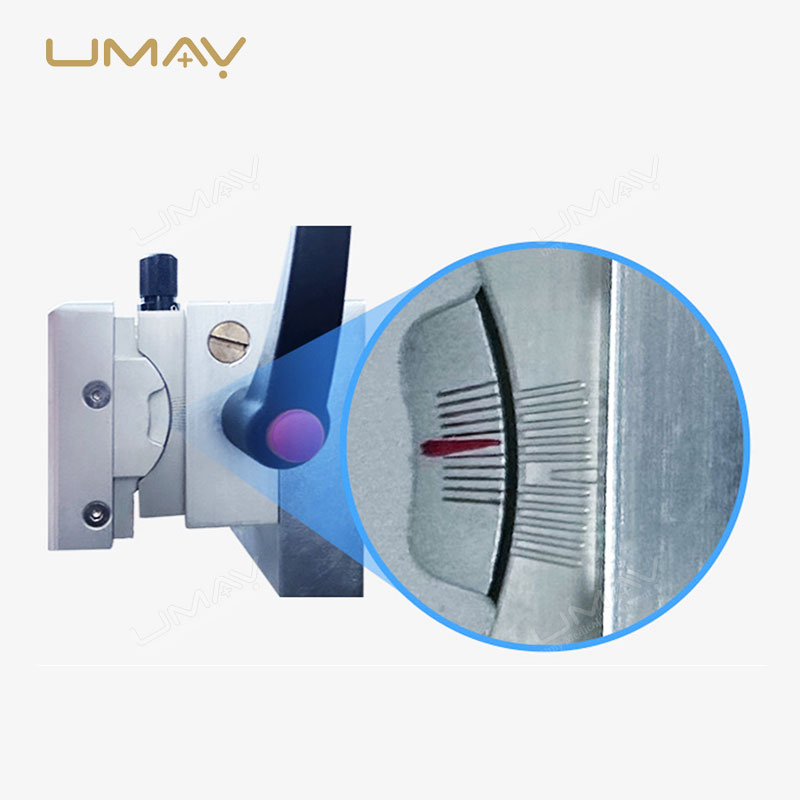

High‑Accuracy Specimen Head System
Visual zero‑mark & scale adjustment, dual‑axis angle adjustment, automatic knife setting and position memory; one‑click homing and independent refrigeration for stable specimen temperature.

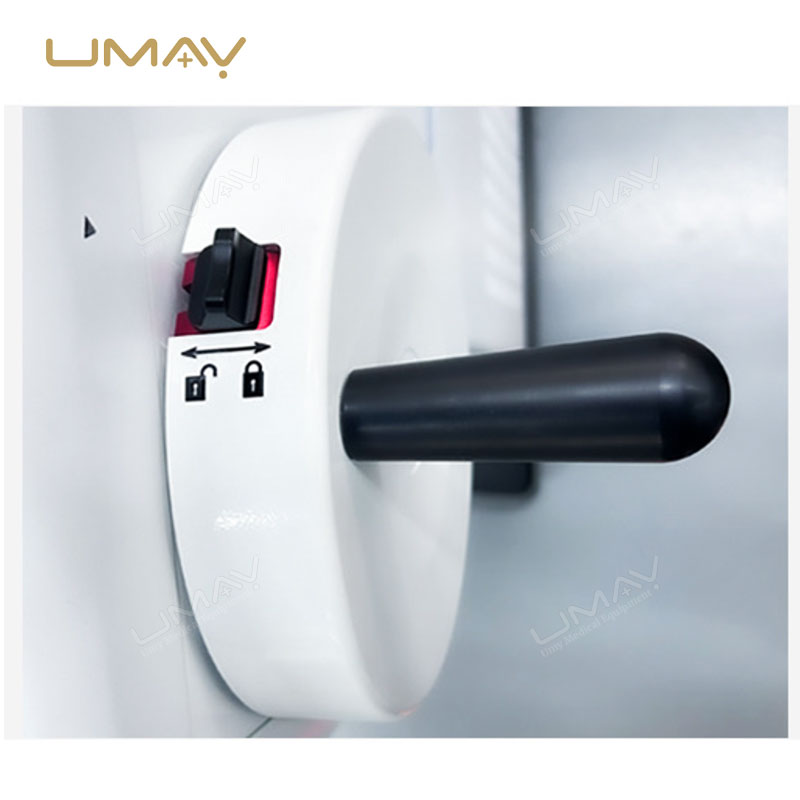

Safe Handwheel Lock Mechanism
12‑o’clock lock for specimen replacement; 6‑o’clock lock for section collection; half‑rotation cutting support, with lock direction signs and locking sound alert.

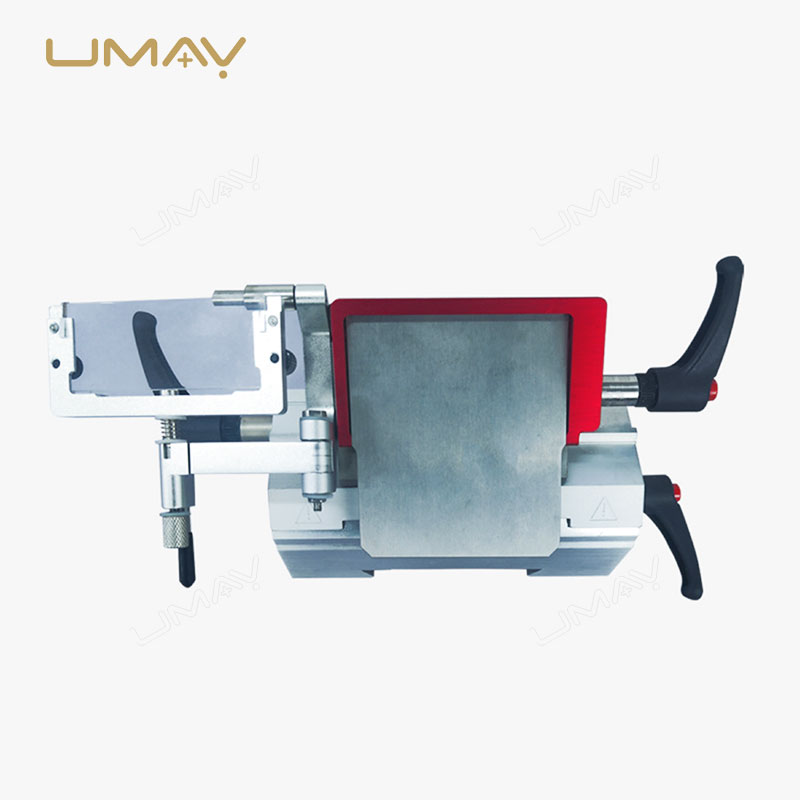

Safeguard‑Equipped Knife/Blade Holder Base
Red knife protector prevents scratch injury; multi‑direction moving base for multi‑angle sectioning; compatible with high/low profile blades for easy blade replacement.
Efficient Refrigeration System
Large freezing shelf with multi‑site controllable refrigeration; Peltier fast freezing station reaches lowest ‑60°C with adjustable fast‑freezing time; dual imported compressors for high‑efficiency refrigeration.
High‑Precision Cross Roller Guide Rail
Reduce running noise and extend service life for stable mechanical movement.
Software & Hardware Double Guarantee
Preset multiple groups of tissue temperature parameters for quick tissue switching and time‑saving adjustment.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Overall Dimension (handwheel included) | 830*820*1225 mm |
| Peltier Fast Freezing Station Lowest Temperature | -60°C |
| Core Refrigeration Configuration | Dual imported compressors |
| Display & Control | 10‑inch color touch screen + shortcut physical keyboard |
| Disinfection Mode | UVC disinfection, adjustable disinfection time |
| Guide Rail Type | High‑precision cross roller guide rail |
| Specimen Disc | Color differentiation, zero identification, fast counterpoint, easy installation |
| Specimen Head | One‑click return to original location, independent refrigeration |
- Specifications are based on the official technical datasheets for the Cryostat Microtome.
- Standard configuration includes main unit, touch screen, shortcut keyboard, knife/blade holder base, freezing shelf and specimen discs.
- Consumables including disposable blades and freezing embedding medium are optional accessories.
Applications
Hospital Pathology Department
For intraoperative rapid frozen section pathological diagnosis, fast specimen section processing.
Biomedical Research Laboratory
Precise frozen tissue section for scientific research and experimental specimen preparation.
Medical Teaching & Training Institution
Stable frozen section equipment for pathological teaching and skill training.
System Configuration
The Cryostat Microtome is supplied complete with main machine body, 10‑inch touch screen control panel, shortcut keyboard, specimen head assembly, knife/blade holder base with safeguard, large freezing shelf, Peltier fast freezing station and specimen discs. Optional pathological consumables: disposable blades, freezing embedding medium. Please confirm your accessory requirements and on‑site power supply condition prior to placing an order.
Before Ordering
- Required order quantity and destination country.
- Confirm requirements for optional consumables: disposable blades, freezing embedding medium.
- Laboratory room spatial layout and local power supply requirements.
Request a Cryostat Microtome Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your pathology lab or hospital.
Frequently Asked Questions
What are the core advantages of this cryostat microtome?
It combines ergonomic hardware design, intelligent touch control, UVC disinfection and dual‑compressor refrigeration to realize high‑precision, safe and stable frozen section for pathological labs.
What is the lowest temperature of the Peltier fast freezing station?
The Peltier fast freezing station can reach the lowest temperature of -60°C with adjustable fast‑freezing time.
Does the machine support equipment self‑disinfection?
Yes, it adopts UVC disinfection function. Users can set non‑working time and adjust disinfection duration.
What after‑sales support is available?
1‑to‑1 professional customer service, 24‑hours after‑sales service and nationwide direct warranty supported by application R&D team and professional after‑sales technical team.
