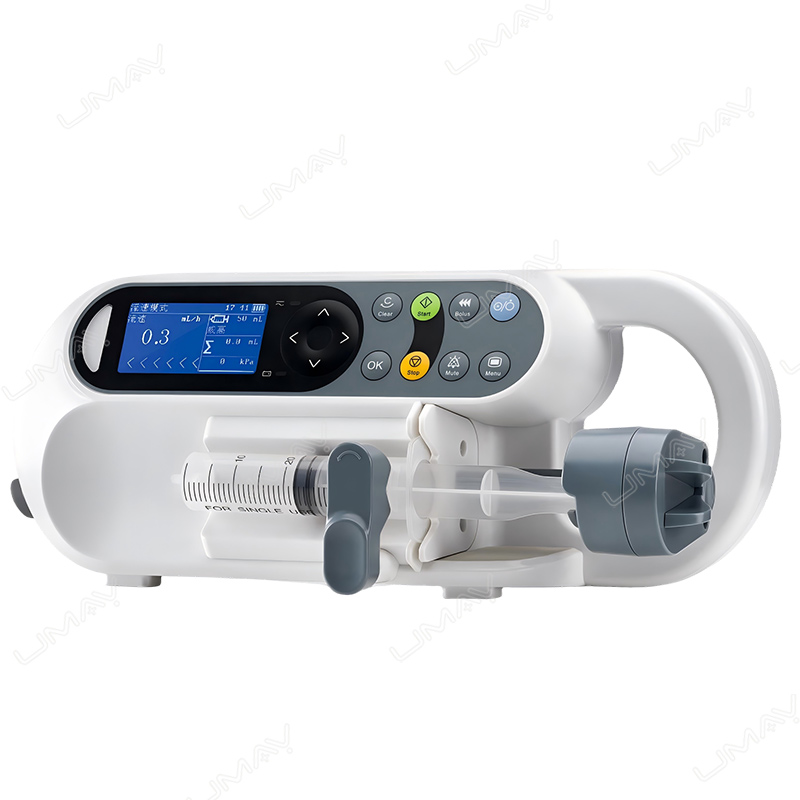

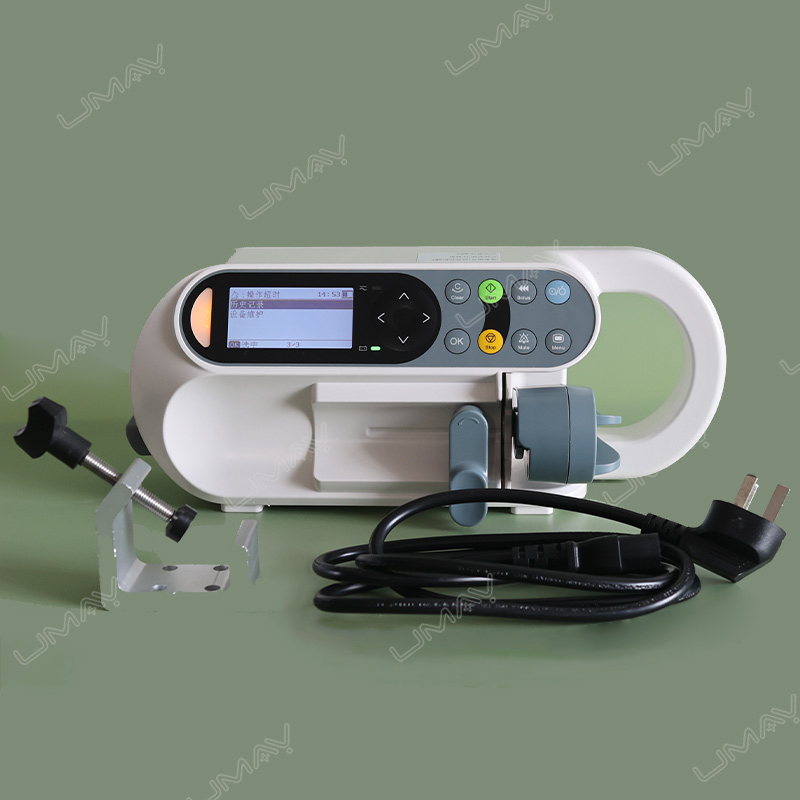

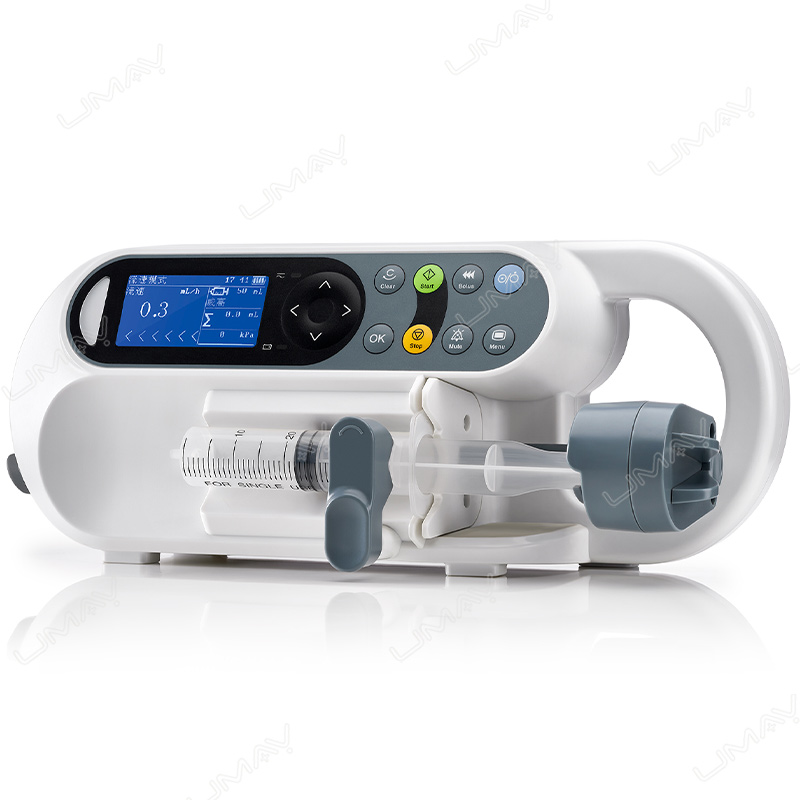

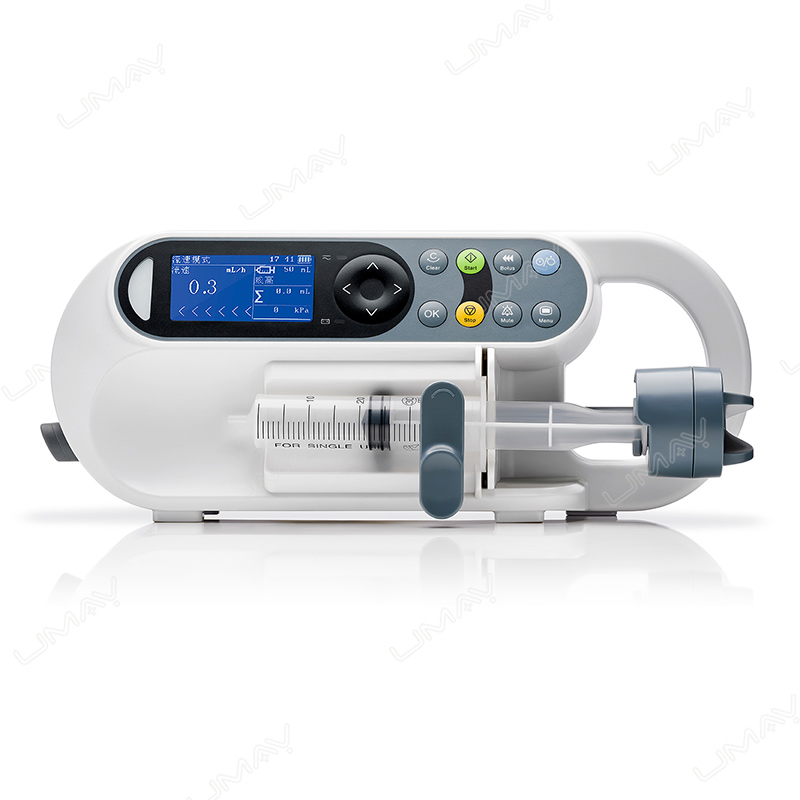

UMSP007 Syringe Pump
The UMSP007 syringe pump is designed for controlled low-volume medication and fluid delivery in operating rooms, intensive care units, hospital wards and other clinical infusion environments.
The system provides a programmable flow-rate range of 0.1–1500 mL/h and automatically recognizes 10 mL, 20 mL, 30 mL and 50 mL syringe sizes. Multiple infusion modes support different clinical workflows, including Rate Mode, Time Mode, Body Weight Mode, Drug Library Mode and Loading Dose Mode.
Adjustable occlusion-pressure levels, operating-history storage, automatic screen locking and rechargeable battery operation support safe and flexible bedside infusion management.
Key Features
0.1–1500 mL/h Flow Range
Supports programmable infusion rates from 0.1 to 1500 mL/h with 0.1 mL/h adjustment increments for a broad range of syringe-based medication delivery requirements.
Automatic Syringe Recognition
Automatically recognizes commonly used 10 mL, 20 mL, 30 mL and 50 mL syringe sizes to simplify setup and reduce manual configuration steps.
Multiple Infusion Modes
Supports Rate Mode, Time Mode, Body Weight Mode, Drug Library Mode and Loading Dose Mode for different infusion protocols and clinical departments.
±2% Infusion Accuracy
Mechanical and operating accuracy of ±2% supports controlled syringe infusion for routine clinical medication delivery.
Adjustable Occlusion Pressure
Three selectable occlusion-pressure levels are available: Low at 50 kPa, Medium at 80 kPa and High at 110 kPa.
Long Battery Operation
The rechargeable lithium battery supports more than 10 hours of operation at an infusion rate of 5 mL/h, supporting bedside use and patient-transfer workflows.
Operating History Storage
The system can retain up to 2000 history records for review of operating events, alarms and setting modifications.
Rotary Knob Interface
A one-key rotary control interface and blue LCD display provide straightforward parameter setting and operating-status review.
Applications
The UMSP007 is suitable for controlled low-volume infusion in departments where medications or fluids need to be delivered from a syringe at programmed rates.
- Operating rooms and anesthesia departments.
- Intensive care units.
- Emergency departments.
- General hospital wards.
- Neonatal and pediatric care.
- Post-operative recovery areas.
- Bedside medication infusion.
- Patient-transfer infusion workflows.
- Clinical laboratories and treatment areas requiring syringe-based delivery.
Infusion Modes
| Mode | Application |
|---|---|
| Rate Mode | Infusion according to a programmed flow rate. |
| Time Mode | Infusion parameters configured according to required delivery time. |
| Body Weight Mode | Supports dose calculation workflows based on patient body weight. |
| Drug Library Mode | Supports medication delivery using configured drug-library information. |
| Loading Dose Mode | Supports an initial loading-dose workflow before programmed maintenance infusion. |
Technical Specifications
| Model | UMSP007 |
|---|---|
| Product Type | Medical Syringe Pump |
| Compatible Syringe Sizes | 10 / 20 / 30 / 50 mL |
| Flow Rate Range | 0.1–1500 mL/h |
| Rate Increment | 0.1 mL/h |
| Accuracy | ±2% |
| Cumulative Volume | 0.1–9999.9 mL |
| KVO Rate | 0.1–1.0 mL/h adjustable |
| Occlusion Pressure | Low: 50 kPa / Medium: 80 kPa / High: 110 kPa |
| Display | Blue LCD |
| Infusion Modes | Rate / Time / Body Weight / Drug Library / Loading Dose |
| History Records | Up to 2000 records |
| Database Capacity | Up to 1000 entries |
| Ingress Protection | IPX3 |
| Battery | Rechargeable lithium battery |
| Battery Runtime | >10 hours at 5 mL/h |
| Weight | Approx. 2 kg |
Occlusion Pressure and Safety Functions
The UMSP007 provides three selectable occlusion-pressure settings so the pump can be configured according to the infusion application and clinical protocol.
| Pressure Level | Occlusion Pressure |
|---|---|
| Low | 50 kPa |
| Medium | 80 kPa |
| High | 110 kPa |
The system also performs self-checking during startup and provides an automatic screen-lock function to reduce unintended changes to programmed settings.
Syringe Compatibility
Automatic syringe-size recognition supports 10 mL, 20 mL, 30 mL and 50 mL syringes.
Before ordering or clinical deployment, the syringe manufacturer and model used by the facility should be confirmed. Syringe geometry can vary between brands, so compatibility and calibration requirements should be checked for the intended consumables.
Battery and Mobile Use
The rechargeable lithium battery provides more than 10 hours of operating time at 5 mL/h under the specified test condition. This supports continued infusion during temporary power interruption, bedside movement and selected patient-transfer workflows.
Actual battery runtime can vary according to battery condition, infusion settings, operating environment and usage pattern.
Data and History Management
The UMSP007 maintains operating history to assist with routine review of infusion activity and alarm events.
- Up to 2000 history records.
- Records may include operations, alarms and parameter modifications.
- Database capacity up to 1000 entries.
- Drug Library Mode supports configured medication workflows.
Any specific hospital information-system, networking or external data-interface requirement should be confirmed before ordering.
Before Ordering
Please provide the following information so the pump configuration, accessories and quotation can be confirmed.
- Required quantity.
- Intended clinical department.
- Required syringe sizes.
- Syringe manufacturer and model normally used by the facility.
- Required flow-rate range.
- Need for Body Weight or Drug Library Mode.
- Required occlusion-pressure settings.
- Battery-operation requirements.
- Required mounting accessories or pole clamp.
- Destination country.
- Local power supply and plug type.
- Required operating language.
Frequently Asked Questions
What syringe sizes does the UMSP007 support?
The UMSP007 automatically recognizes 10 mL, 20 mL, 30 mL and 50 mL syringe sizes. The specific syringe brand should also be confirmed before use.
What is the infusion-rate range?
The programmable infusion-rate range is 0.1–1500 mL/h with adjustment increments of 0.1 mL/h.
Which infusion modes are available?
Available modes include Rate Mode, Time Mode, Body Weight Mode, Drug Library Mode and Loading Dose Mode.
Does the pump provide adjustable occlusion pressure?
Yes. Three pressure levels are available: 50 kPa, 80 kPa and 110 kPa.
How long can the syringe pump operate on battery power?
The rechargeable lithium battery can provide more than 10 hours of operation at an infusion rate of 5 mL/h under the specified test condition.
What information is required for quotation?
Please provide the required quantity, syringe sizes and brands, intended department, flow requirements, desired infusion modes, destination country, power supply and any required mounting accessories.
